/Products/Electric Motors/Single Phase/Leeson/100361.00 Leeson 1/4HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 100361.00

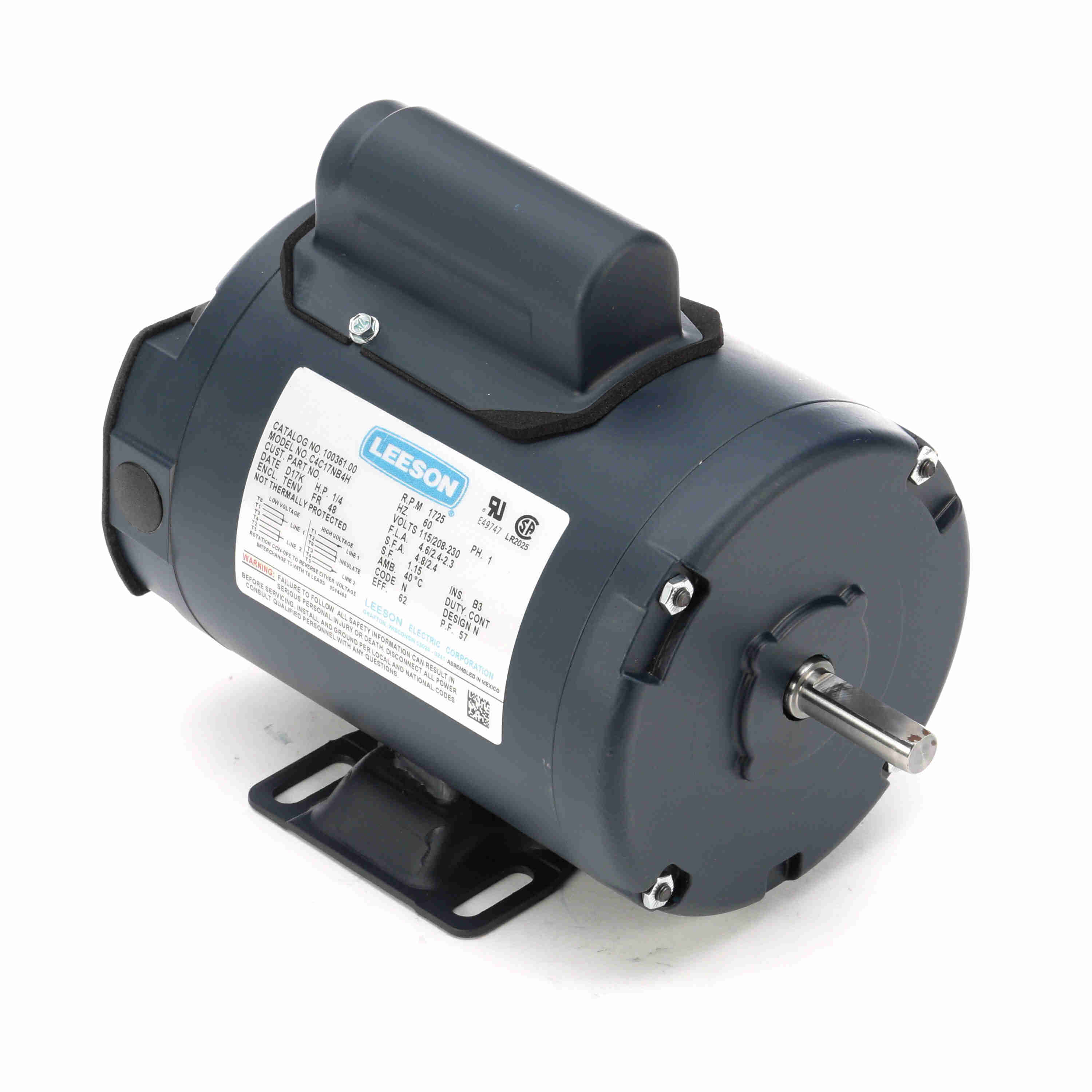

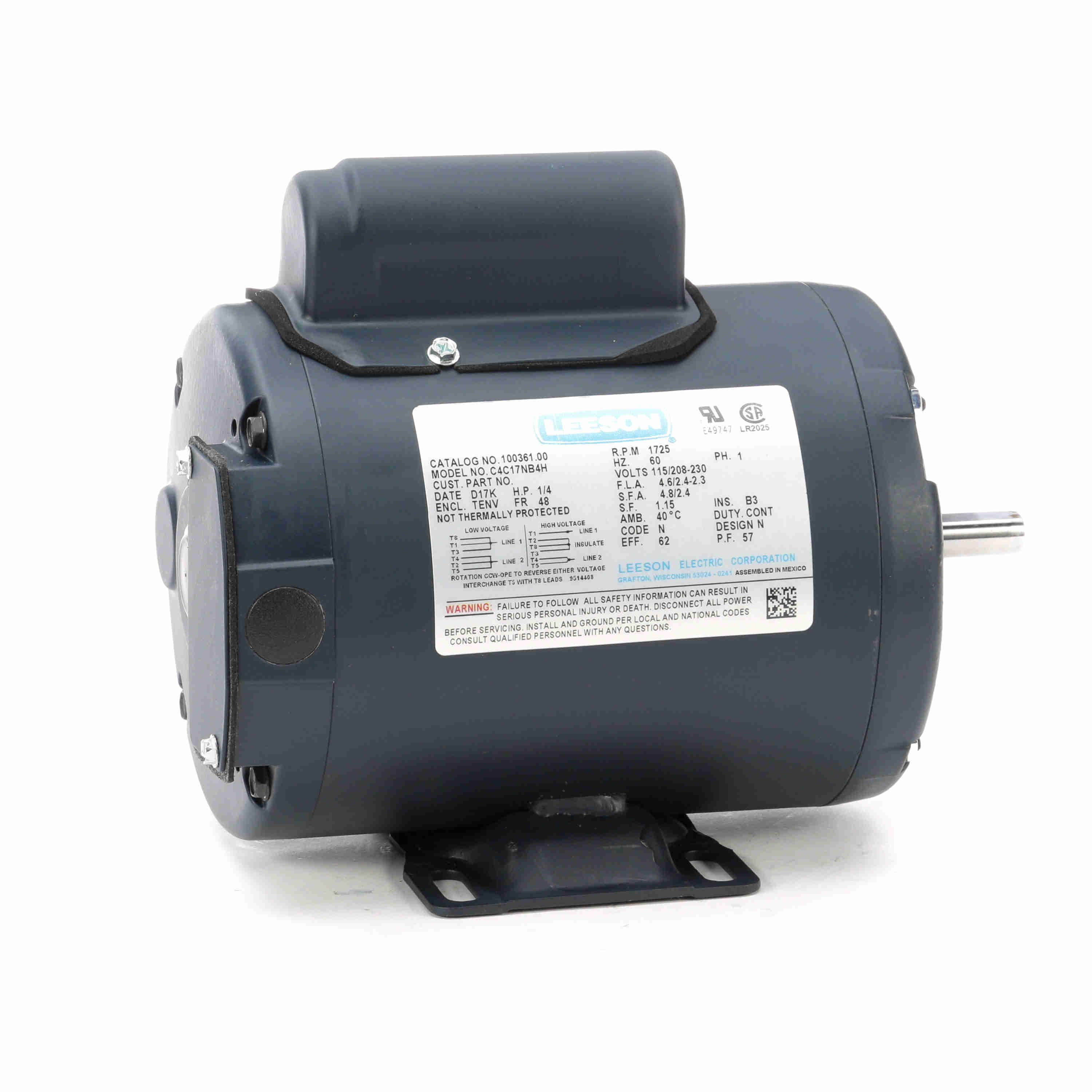

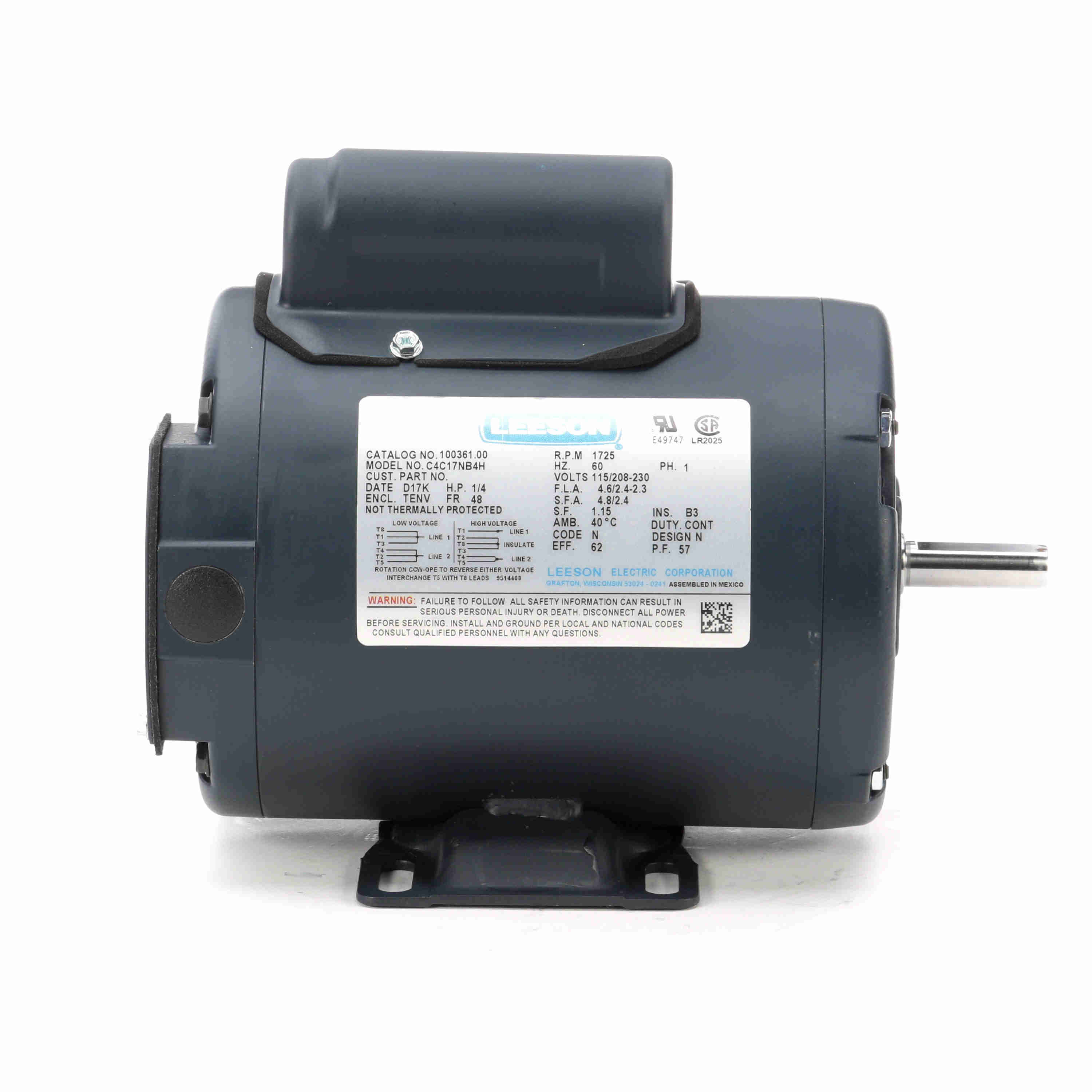

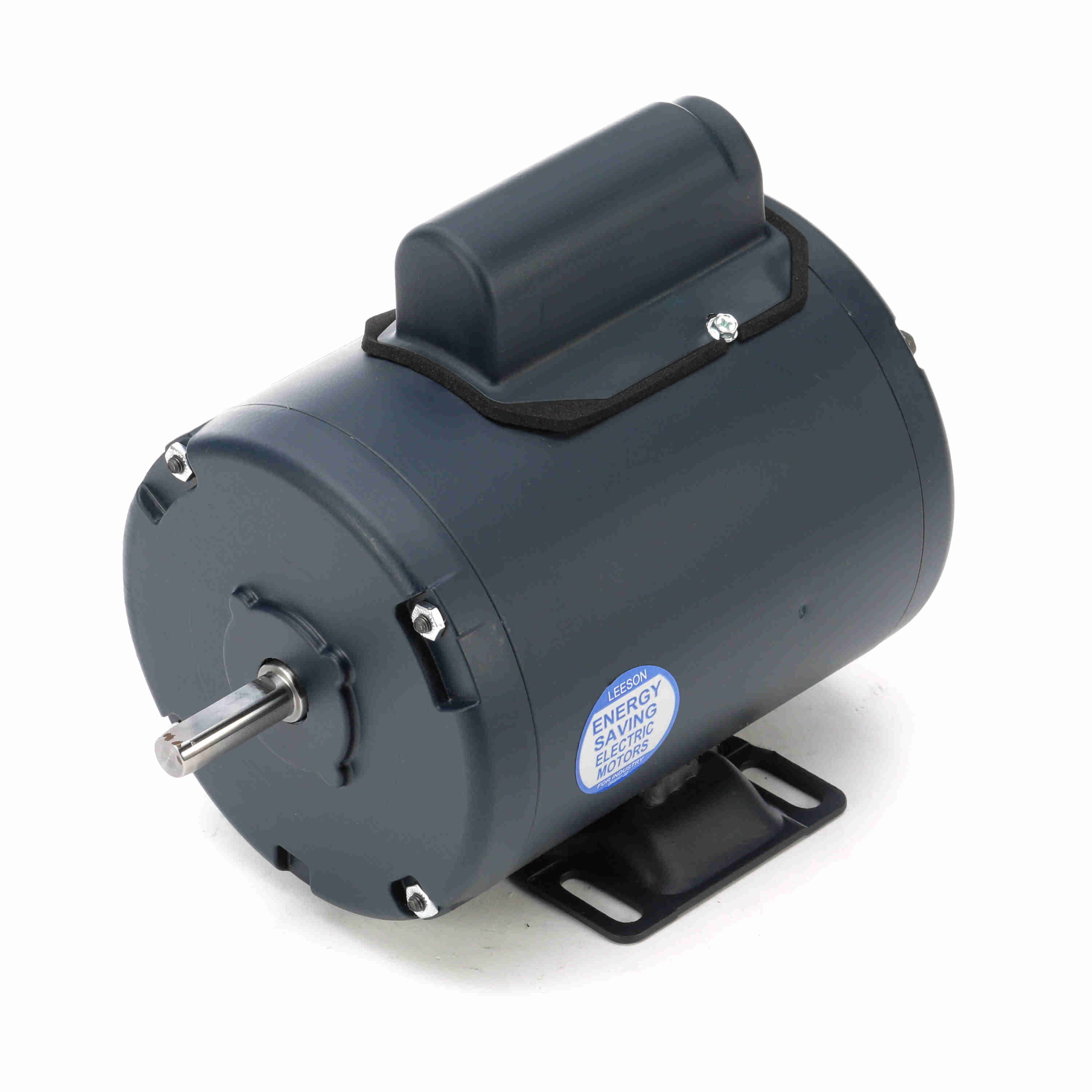

100361.00 Leeson 1/4HP General Purpose Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 100361.00

Selected accessories will also be added to cart
$332.94 / Each
Quantity:
TENV, 48 Frame, 115/208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 1/2" Shaft

Features

  • Durable rolled steel construction
  • NEMA ® Desing B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720004814 Weight: 20.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 4.6/2.4-2.3 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 62 % Power Factor: 57
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: N
Frame: 48 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 59.9 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 9.43 in
Frame Length: 5.75 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 34.80 290.0 0 0.25
Full Load 2.30 12.00 100.0 1,756 0.25
Break-Down 0.00 37.00 308.0 0 0.25
Locked-Rotor 13.50 55.00 458.0 0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.77 1.79 1.88 2.00 2.17 2.38 2.63
Rated Output (KW) 0.08 0.13 0.18 0.23 0.29 0.35 0.42
Efficiency (%) 0.0 34.0 49.8 57.4 62.0 64.3 65.1
Power Factor (%) 22.7 31.7 41.3 50.2 57.6 63.8 68.8
Speed (RPM) 1,796 1,787 1,777 1,768 1,756 1,744 1,730
Temp. Rise @ FL 0.0 0.0 0.0 0.0 64.2 0.0 0.0
Torque (ft-lbs) 0.00 3.02 5.94 8.98 12.00 15.13 18.28
