/Products/Electric Motors/Single Phase/Leeson/Hatchery & Incubator Fan/101341.00 Leeson 1/4HP Agriculture Duty Hatchery/Incubator Fan Motor
Click Image to Expand

Product ID: 101341.00

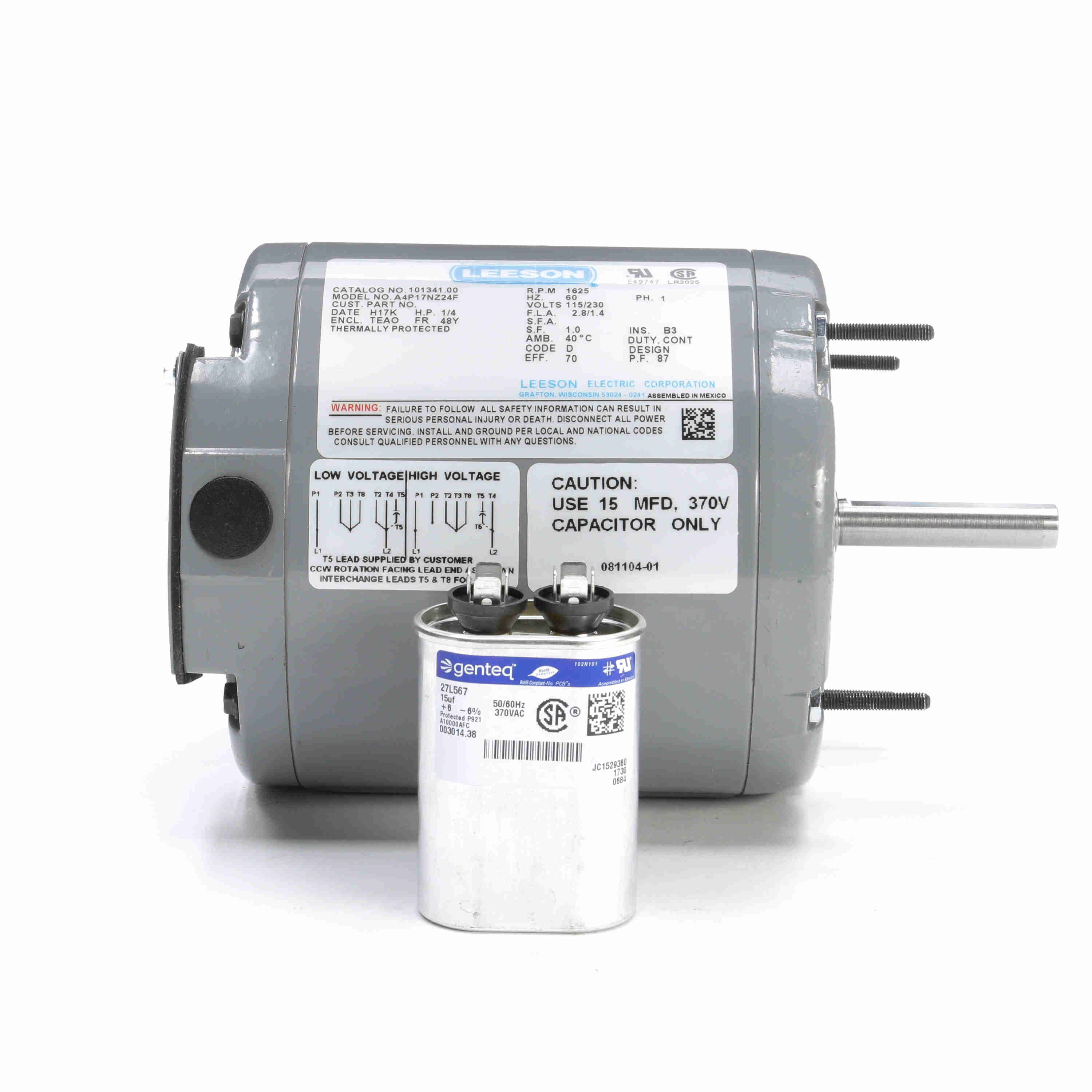

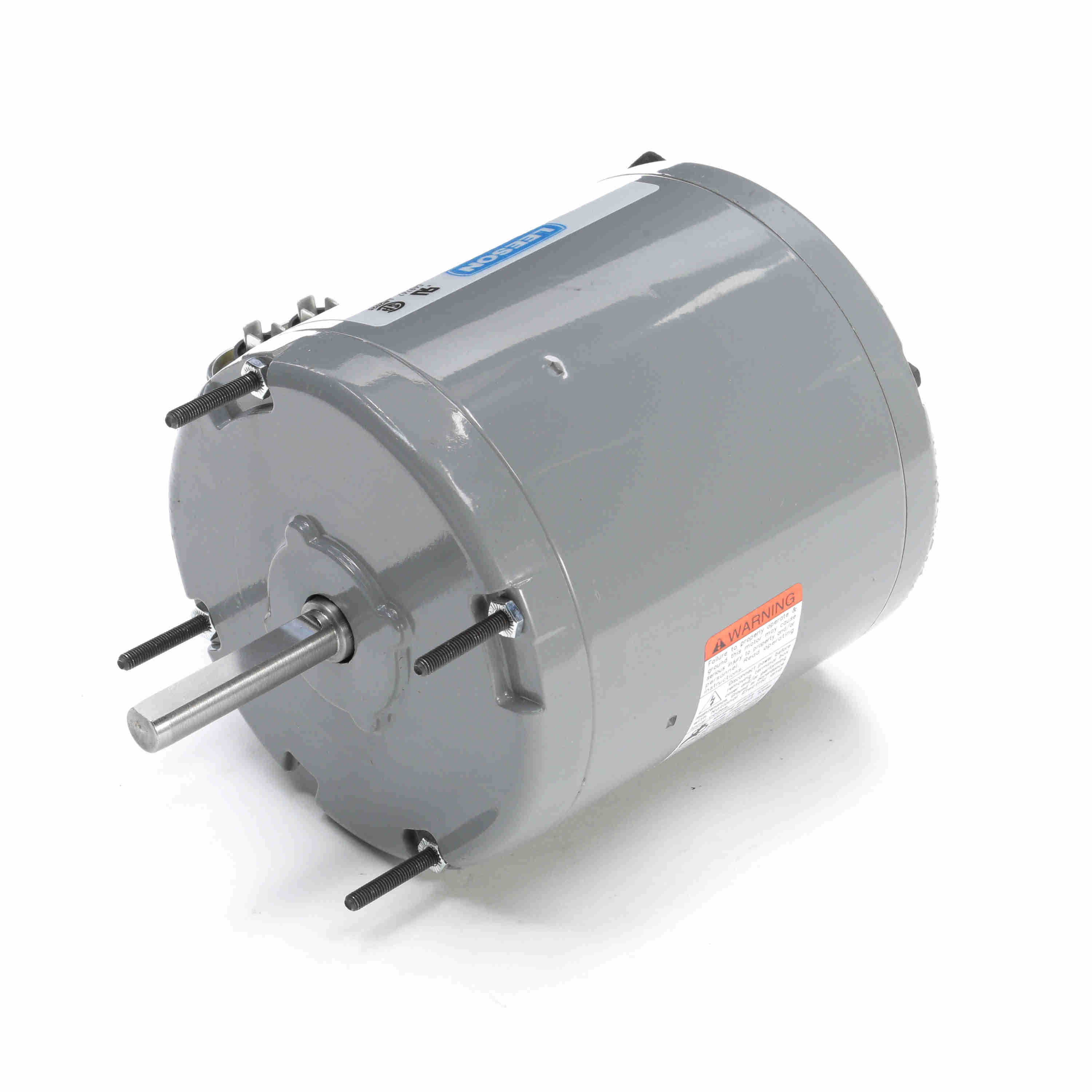

101341.00 Leeson 1/4HP Agriculture Duty Hatchery/Incubator Fan Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A4P17NZ24

Selected accessories will also be added to cart
$227.75 / Each
Quantity:
TEAO, 1800RPM, 48Y Frame, 115/230VAC Single Phase 60Hz, A4P17NZ24F, Rolled Steel, 1/2" Shaft, PSC

Features

Features
  • Automatic overload protected
  • 15MFD, 370V capacitor shipped loose with motor 101341.00
  • Double shielded ball bearings

General Specifications

General Specifications
Model :A4P17NZ24F Catalog No :101341.00
Part Description :1/4HP..1625RPM.48.TENV.115/230V.1PH.60HZ.AIROVER.AUTOMATIC.40C.1.0SF.ROUND-EXTENDED STUDS.AG - HATCHERY.A4P17NZ24F Category :Hatchery
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.25 HP Output KW :0.19 kW
Frequency :60 Hz Voltage :115/230 V
Current :2.8/1.4 A Speed :1625 RPM
Service Factor :1 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :D Frame :48Y
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 48
Overall Length :8.93 in Frame Length :4.50 in
Shaft Diameter :0.500 in Shaft Extension :2.13 in
Assembly/Box Mounting :F1 ONLY UPC :691720005453
Weight :15.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load1.40100.012.00100.000.000.00.25
Locked-Rotor5.00357.08.0067.000.000.00.25
Break-Down0.000.027.00225.000.000.00.25
Pull-Up0.000.07.5062.000.000.00.25
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.70
  • 0.076
  • 0.0
  • 47.2
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 0.78
  • 0.116
  • 40.7
  • 64.7
  • 1,771
  • 0.0
  • 3.00
  • 50 %
  • 0.91
  • 0.160
  • 58.1
  • 76.0
  • 1,745
  • 0.0
  • 6.00
  • 75 %
  • 1.10
  • 0.210
  • 67.2
  • 83.0
  • 1,715
  • 0.0
  • 9.26
  • 100 %
  • 1.33
  • 0.267
  • 70.1
  • 87.3
  • 1,679
  • 0.0
  • 12.56
  • 125 %
  • 1.62
  • 0.334
  • 70.3
  • 89.6
  • 1,634
  • 0.0
  • 16.17
  • 150 %
  • 2.00
  • 0.417
  • 67.4
  • 90.7
  • 1,571
  • 0.0
  • 20.14
