/Products/Electric Motors/Single Phase/Leeson/102871.00 Leeson 1/2HP General Purpose Electric Motor, 1800 RPM
Click Image to Expand

Product ID: 102871.00

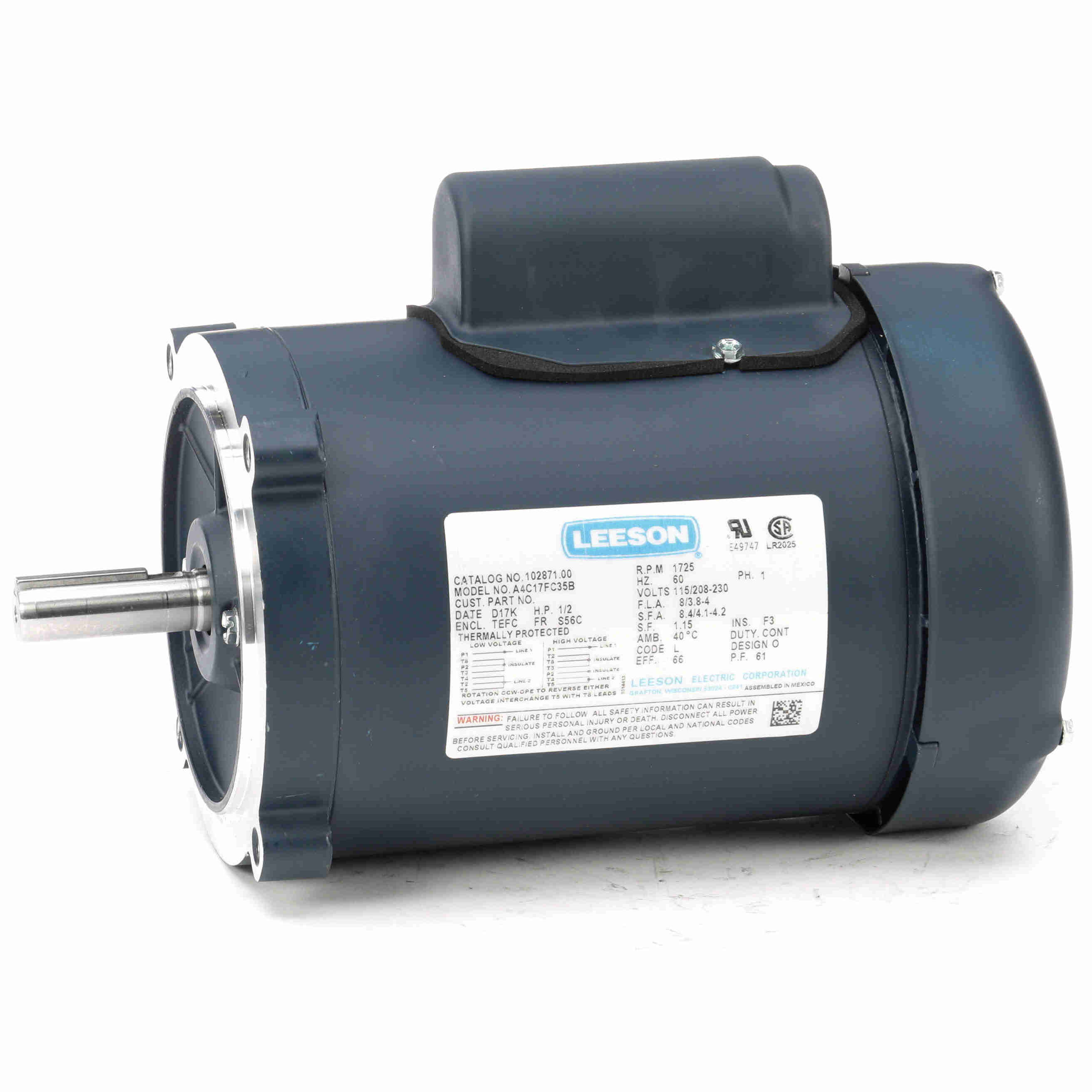

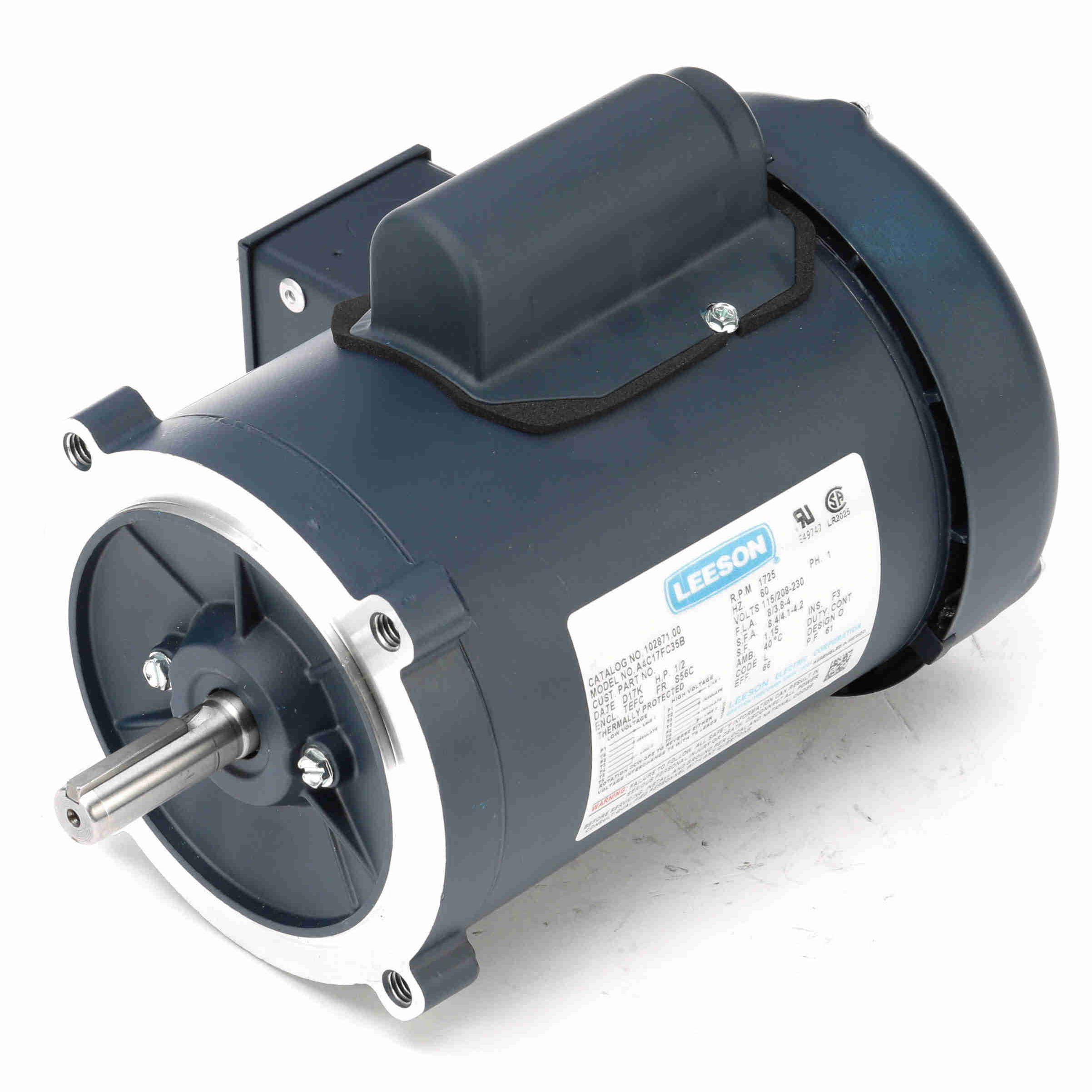

102871.00 Leeson 1/2HP General Purpose Electric Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 102871.00

Temporarily out of stock
Selected accessories will also be added to cart
$469.91 / Each
TE, S56C Frame, 115/208-230V 1-Phase 60Hz, C-Face Less Base

Features

Features
  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • 1-year warranty on general purpose motors
  • UL recognized component listing and CSA certified

General Specifications

General Specifications
Model :A4C17FC35B Catalog No :102871.00
Part Description :..1/2HP..1725RPM.S56C.TEFC.115/208-230V.1PH.60HZ.CONT.40C.1.15SF.ROUND.A4C17FC35B.....S56C Platform Model.AUTOMATIC....... Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :8.0/4.4-4.0 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :66 % Duty :Continuous
Insulation Class :F Design Code :O
KVA Code :L Frame :S56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :10.69 in Frame Length :6.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720326510
Weight :25.00 LB
