/Products/Electric Motors/3 Phase Metric/Leeson 3-Phase Metric Electric Motors/IEC Washguard All-Stainless/103398.00 Leeson 0.50HP/0.37kW IEC Metric Washguard Electric Motor, 1800RPM

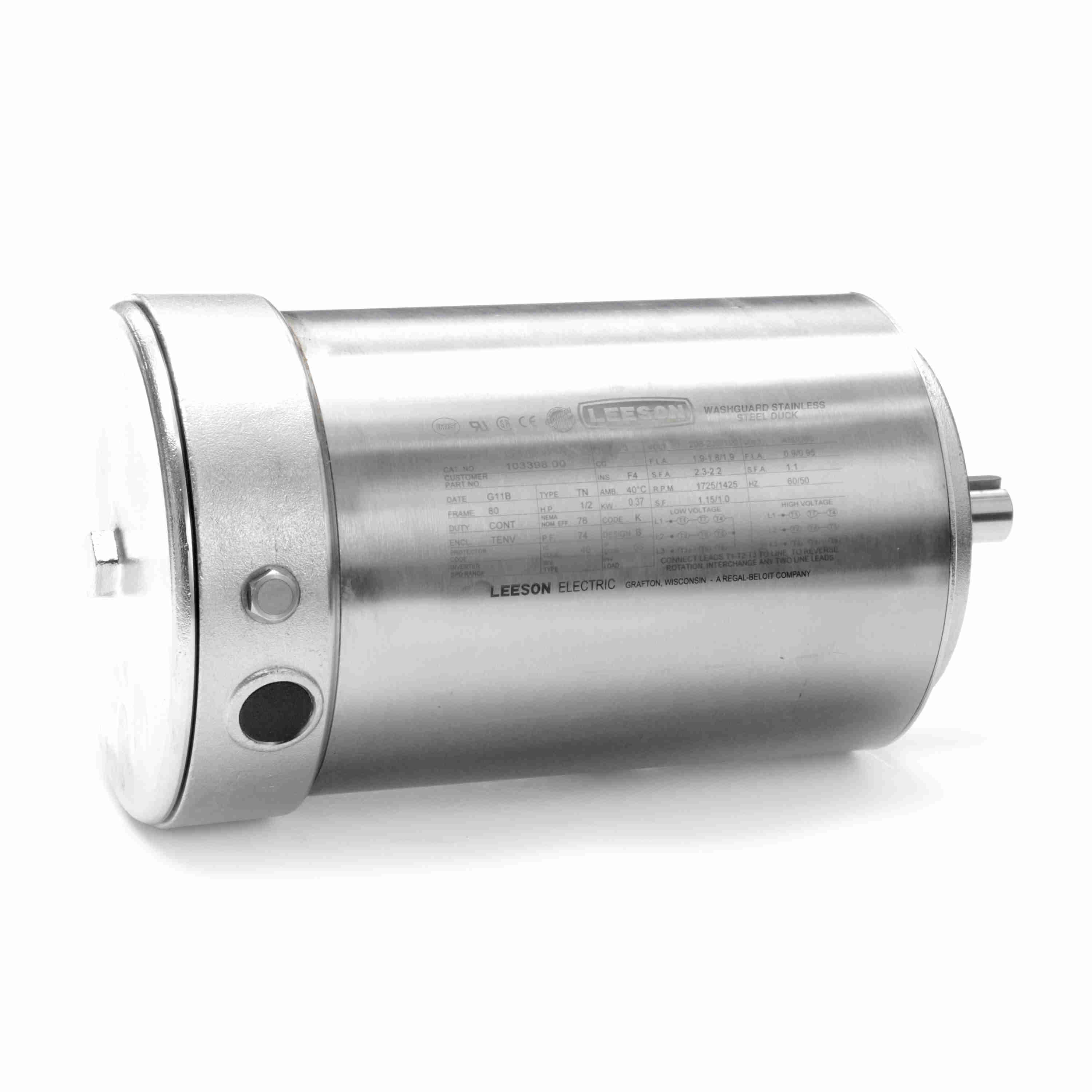

Click Image to Expand

Product ID: 103398.00

103398.00 Leeson 0.50HP/0.37kW IEC Metric Washguard Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103398.00

Selected accessories will also be added to cart
$1,389.97 / Each
Quantity:
TENV, IP56, 80 Frame, 208-230/460VAC 3-Phase 60Hz, Round Body, Stainless Steel, 3/4" Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton? for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • All Washdown Duty motors have Class F Insulation
  • Ease to clean construction is BISSC Certified for bakery applications
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:691720989432Weight:38.00 LB
Packaged Length:19.5 INPackaged Width:10.44 IN
Packaged Height:10.88 IN

Nameplate Specifications

Output HP:0.50 HpOutput KW:0.37 kW
Frequency:60 HzVoltage:208-230/460 V
Current:1.9-1.8/0.90 ASpeed:1725 rpm
Service Factor:1.15Phase:3
Efficiency:76 %Power Factor:74
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:K
Frame:80Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6204Opp Drive End Bearing Size:6204
UL:RecognizedCSA:Y
CE:YIP Code:56

Technical Specifications

Electrical Type:Squirrel Cage Induction RunStarting Method:Across The Line
Poles:4Rotation:Reversible
Resistance Main:0 OhmsMounting:Round
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Stainless Steel
Shaft Type:IECOverall Length:11.47 in
Frame Length:7.25 inShaft Diameter:0.750 in
Shaft Extension:1.57 inAssembly/Box Mounting:F1 ONLY

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor5.30646.0106.00442.000.000.00.50
Break-Down4.50549.0100.00417.07600.000.00.50
Full Load0.82100.024.00100.01,7250.000.00.50
Pull-Up5.000.0100.700.000.000.00.50

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)0.500.550.620.700.820.890.94
Rated Output (KW)0.080.160.270.380.480.550.60
Efficiency (%)0.058.169.173.875.876.776.0
Power Factor (%)18.337.455.467.074.477.279.3
Speed (RPM)1,7931,7781,7591,7411,7221,7151,701
Temp. Rise @ FL0.00.00.00.086.095.00.0
Torque (ft-lbs)0.006.0012.0018.0024.0027.6030.00
Type
Electric Motor
Speed
1800RPM
Enclosure
TENV
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Horsepower
1/2HP
Frame
80
