/Products/Electric Motors/3 Phase Metric/Leeson 3-Phase Metric Electric Motors/IEC Washguard All-Stainless/103400.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM

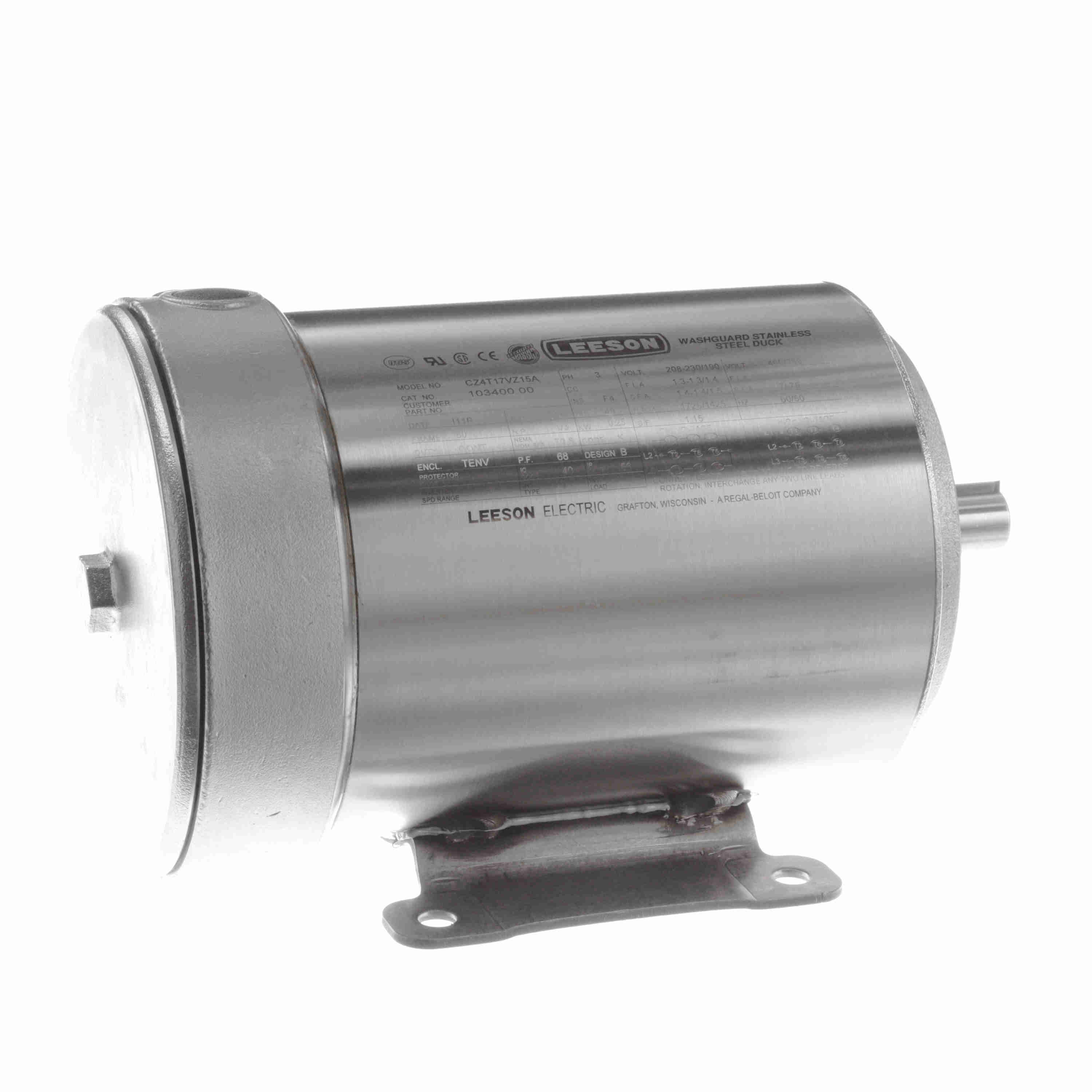

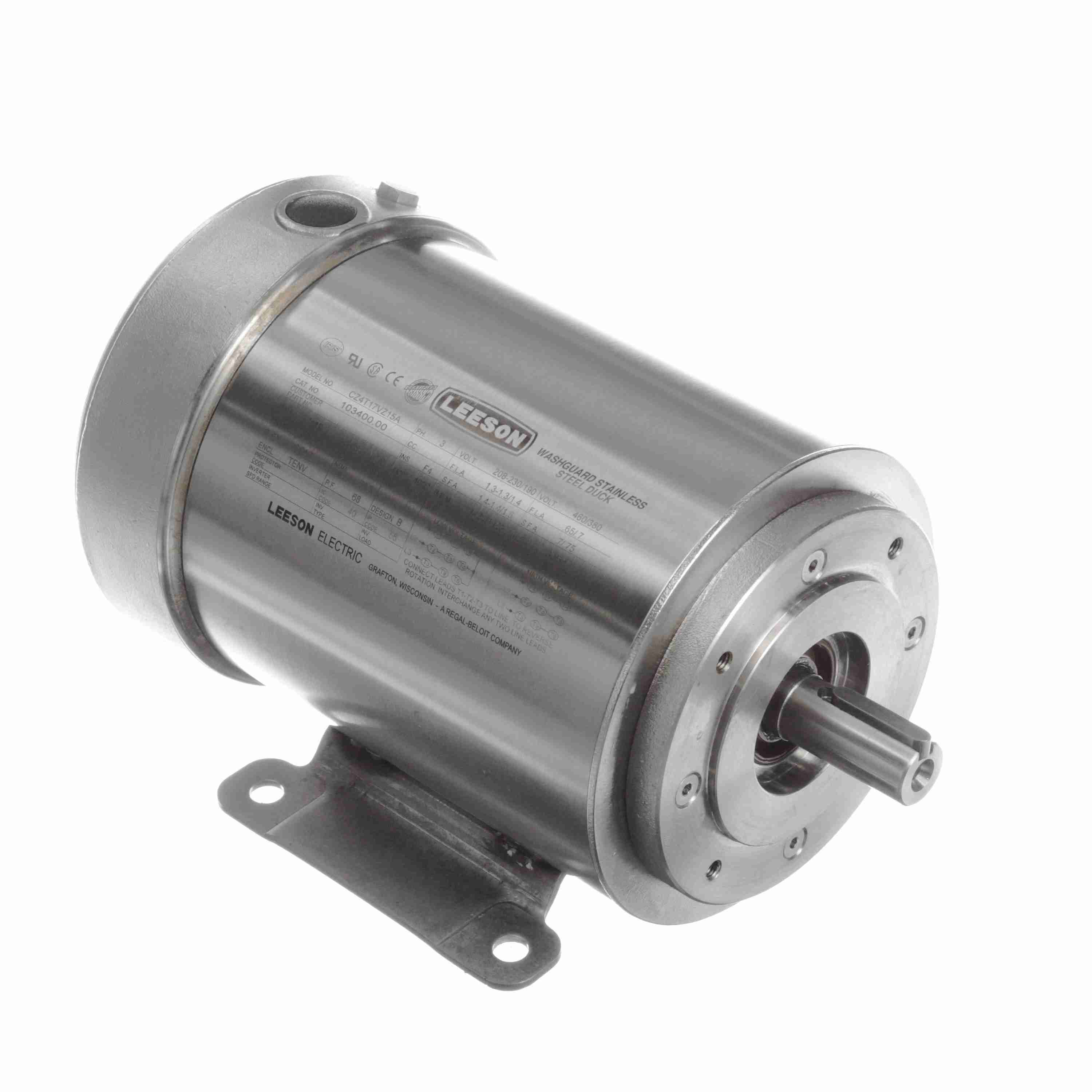

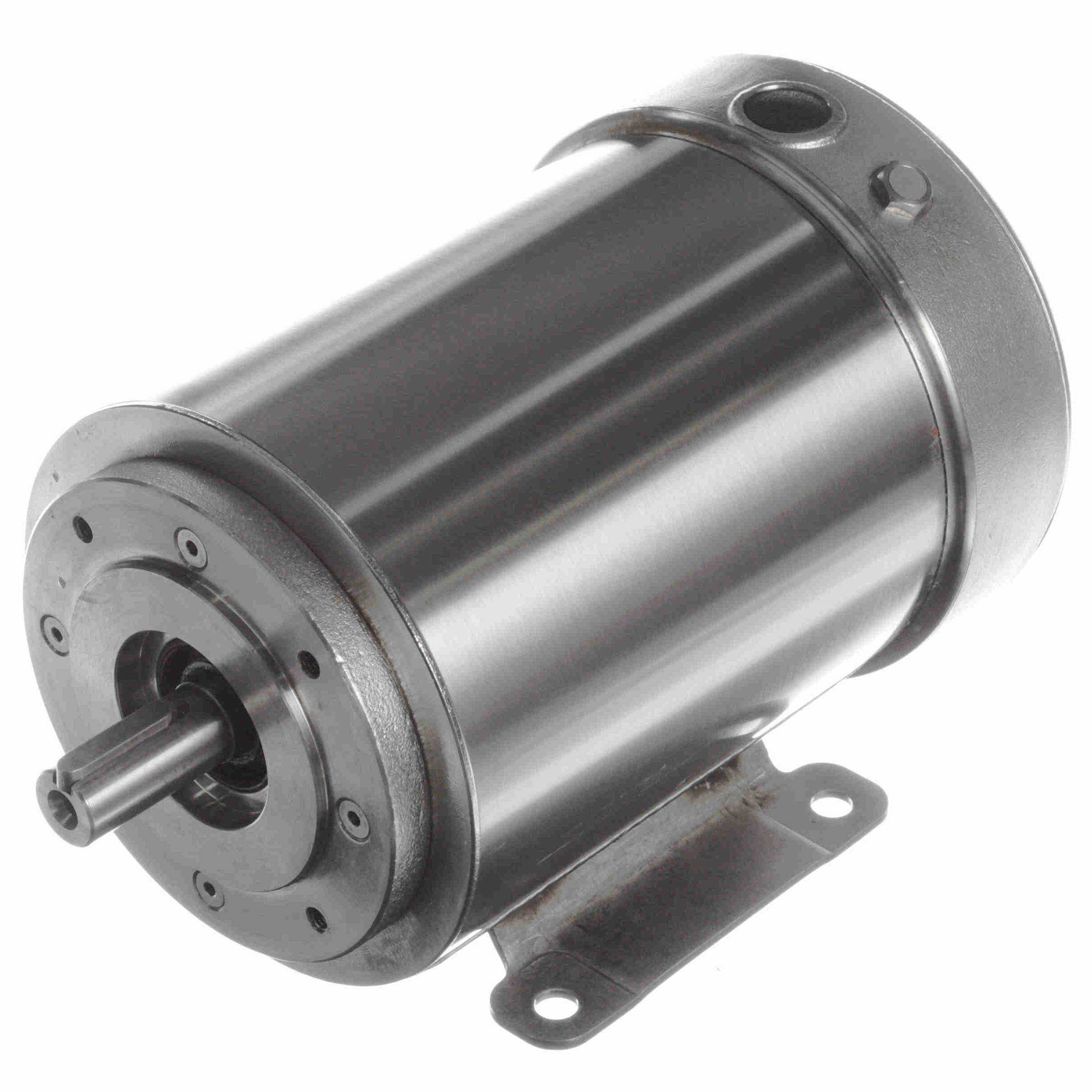

Click Image to Expand

Product ID: 103400.00

103400.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103400.00

Selected accessories will also be added to cart
$384.97 / Each
Quantity:
TENV, IP56, 80 Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, Stainless Steel, 3/4" Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • All Washdown Duty motors have Class F Insulation
  • Ease to clean construction is BISSC Certified for bakery applications
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:691720000045Weight:31.00 LB
Packaged Length:19.5 INPackaged Width:10.44 IN
Packaged Height:10.88 IN

Nameplate Specifications

Output HP:0.33 HpOutput KW:0.25 kW
Frequency:60 HzVoltage:208-230/460 V
Current:1.3-1.3/0.65 ASpeed:1725 rpm
Service Factor:1.15Phase:3
Efficiency:70.5 %Power Factor:68
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:K
Frame:80Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:NoAmbient Temperature:40 °C
Drive End Bearing Size:6204Opp Drive End Bearing Size:6204
UL:RecognizedCSA:Y
CE:YIP Code:56

Technical Specifications

Electrical Type:Squirrel Cage Induction RunStarting Method:Across The Line
Poles:4Rotation:Reversible
Resistance Main:11 OhmsMounting:Rigid base
Motor Orientation:HORIZONTALDrive End Bearing:BALL
Opp Drive End Bearing:BALLFrame Material:Stainless Steel
Shaft Type:IECOverall Length:9.72 in
Frame Length:5.50 inShaft Diameter:0.750 in
Shaft Extension:1.57 inAssembly/Box Mounting:F1 ONLY

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.079.60498.000.000.00.33
Pull-Up0.000.068.70429.000.000.00.33
Full Load1.30100.016.00100.01,7420.000.00.33
Locked-Rotor8.80677.069.60435.000.000.00.33

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %125 %150 %
Current (Amps)0.470.490.520.560.610.680.74
Rated Output (KW)0.070.130.190.260.330.400.46
Efficiency (%)0.050.765.971.774.876.578.7
Power Factor (%)19.032.346.659.068.174.678.7
Speed (RPM)1,7951,7841,7711,7571,7421,7281,714
Temp. Rise @ FL0.00.00.00.050.00.00.0
Torque (ft-lbs)0.004.008.0012.0016.0020.0024.00
Type
Electric Motor
Speed
1800RPM
Enclosure
TENV
Input Phase
3-Phase
Horsepower
1/3HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
80
