/Products/Electric Motors/Single Phase/Leeson/Pedestal Fan/103720.00 Leeson 1/2HP Electric HVAC/Fan Motor
Click Image to Expand

Product ID: 103720.00

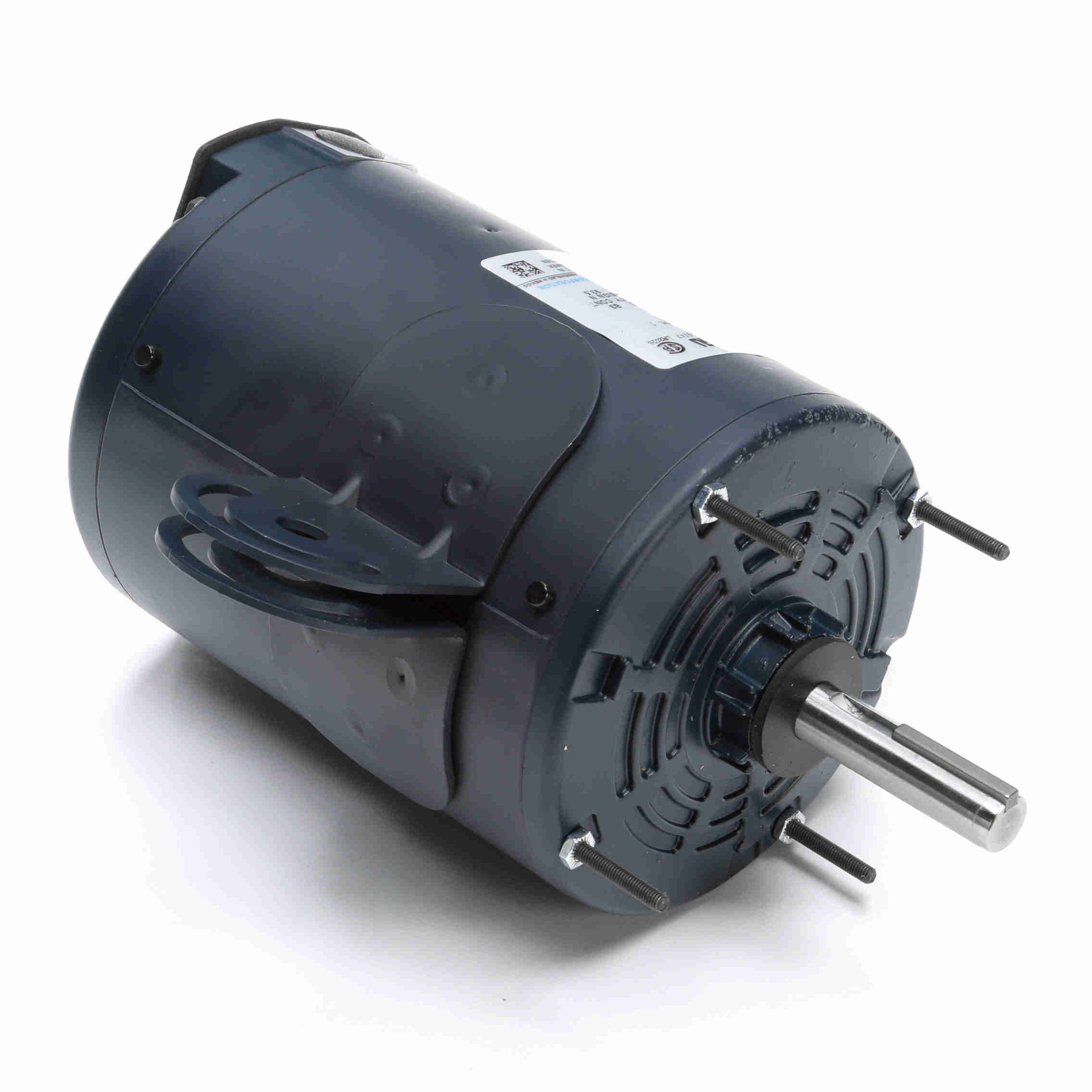

103720.00 Leeson 1/2HP Electric HVAC/Fan Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103720.00

Selected accessories will also be added to cart
$264.72 / Each
Quantity:
1625 RPM, 48Y, 115/230VAC, TEAO, 60Hz Single Phase
Features
  • Drop-in replacement for most standard belted-fan motors
  • Extremely quiet running compared to standard fan motors
  • Consumes approximately half of the power of a standard fan motor
  • Permanent split capacitor type
  • Ball bearing design
  • Heavy-gauge steel yoke is welded to the motor frame
  • 10-32 mounting studs are extended 1.0” on 5.14” bolt circle
  • Motors are UL and CSA recognized for both the U.S. and Canadian markets
  • Automatic overload protection
General Specifications
Model : A4P17NZ126A Catalog No : 103720.00
Part Description : ..1/2HP..1800RPM.48Y.TEAO.115/230V.1PH.60HZ.CONT.40C.1.0SF.YOKE......FAN........ Category : Pedestal Fan
Stock : No
Nameplate Specifications
Output HP : 0.5 Hp Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 5.4/2.7 A Speed : 1625 rpm
Service Factor : 1 Phase : 1
Efficiency : 72 % Duty : CONTINUOUS
Insulation Class : B Design Code : N
KVA Code : B Frame : 48Y
Enclosure : TEAO Overload Protector : AUT LCK RTR ONLY
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : PSC 1 SPEED Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : ROUND-SWING ARM Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : SGL SPL EXT
Overall Length : 11.06 in Frame Length : 6.25 in
Shaft Diameter : 0.63 in Shaft Extension : 2.56 in
Assembly/Box Mounting : F1 ONLY UPC : 691720021873
Weight : 25.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 7.80 325.0 16.40 64.0 34 1.54 0.0 0.50
Full Load 2.40 100.0 25.70 100.0 1,630 0.52 0.0 0.50
Locked-Rotor 7.74 322.0 17.80 69.0 0 1.53 0.0 0.50
Break-Down 5.31 221.0 46.10 179.0 1,264 1.12 0.0 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.75
  • 0.128
  • 0.0
  • 74.2
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.05
  • 0.209
  • 44.7
  • 86.5
  • 1,755
  • 0.0
  • 5.99
  • 50 %
  • 1.40
  • 0.300
  • 62.0
  • 93.2
  • 1,718
  • 0.0
  • 12.20
  • 75 %
  • 1.80
  • 0.398
  • 70.0
  • 96.1
  • 1,678
  • 0.0
  • 18.70
  • 100 %
  • 2.40
  • 0.515
  • 72.0
  • 93.5
  • 1,630
  • 0.0
  • 25.70
  • 115 %
  • 2.70
  • 0.600
  • 70.0
  • 95.0
  • 1,600
  • 0.0
  • 30.00
  • 125 %
  • 3.04
  • 0.665
  • 70.3
  • 95.1
  • 1,559
  • 0.0
  • 33.80
