/Products/Electric Motors/Single Phase/Leeson/Pedestal Fan/103722.00 Leeson 1/2HP Pedestal Fan Electric Motor, 1200RPM
Click Image to Expand

Product ID: 103722.00

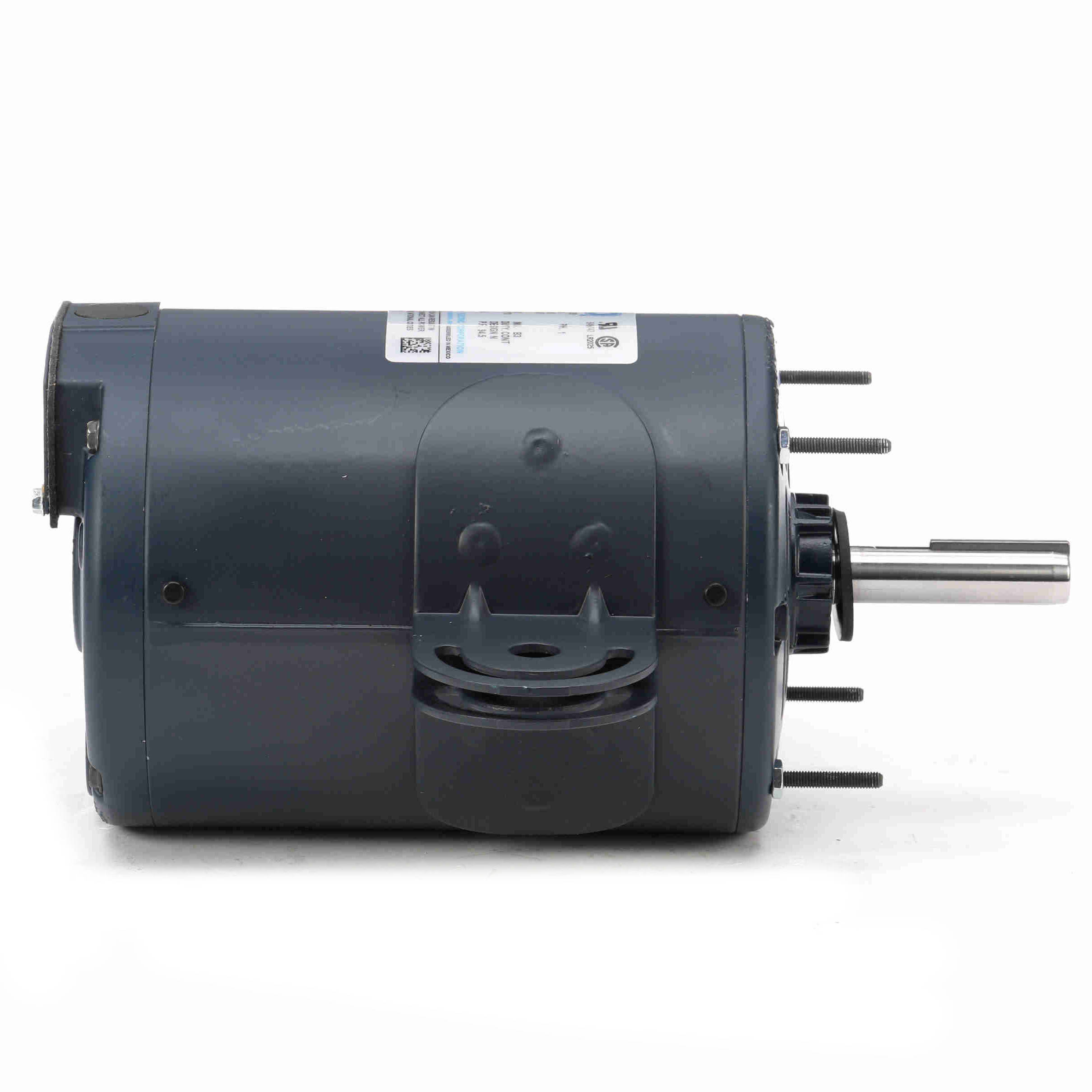

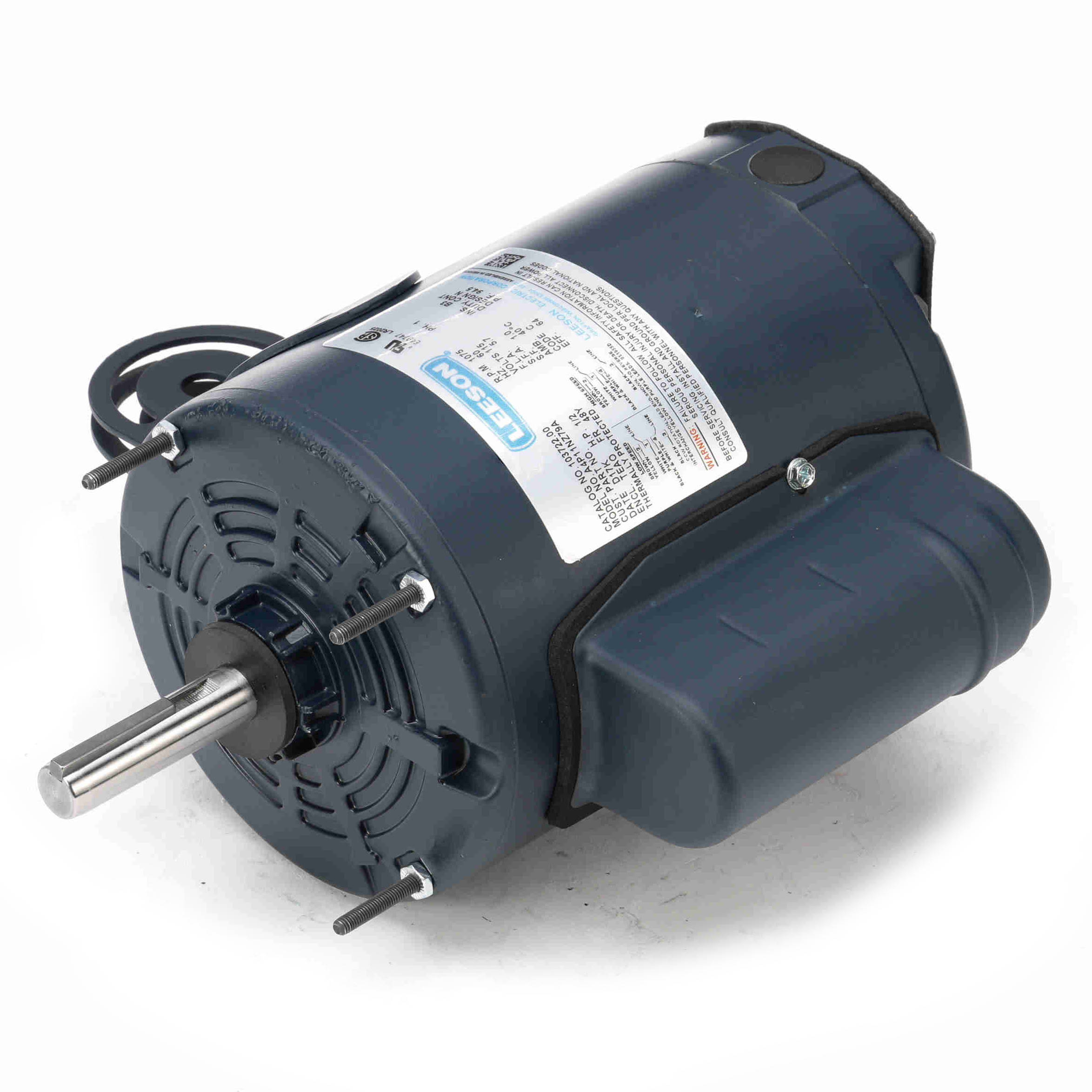

103722.00 Leeson 1/2HP Pedestal Fan Electric Motor, 1200RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103722.00

Selected accessories will also be added to cart
$332.13 / Each
Quantity:
TEAO, 48Y Frame, 115VAC Single Phase 60Hz, A4P11NZ79A, Round, Swing Arm, Rolled Steel, 5/8" Shaft

Features

Features
  • Drop-in replacement for most standard belted-fan motors
  • Extremely quiet running compared to standard fan motors
  • Consumes approximately half of the power of a standard fan motor
  • Permanent split capacitor type
  • Ball bearing design
  • Heavy-gauge steel yoke is welded to the motor frame
  • 10-32 mounting studs are extended 1.0” on 5.14” bolt circle
  • Motors are UL and CSA recognized for both the U.S. and Canadian markets
  • Automatic overload protection

General Specifications

General Specifications
Model : A4P11NZ79A Catalog No : 103722.00
Part Description : ..1/2HP..1200RPM.48Y.TEAO.115V.1PH.60HZ.CONT.40C.1.0SF.YOKE......FAN........ Category : Pedestal Fan
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.50 HP Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 115 V
Current : 5.7 A Speed : 1075 RPM
Service Factor : 1 Phase : 1
Efficiency : 64 % Duty : Continuous
Insulation Class : B Design Code : N
KVA Code : C Frame : 48Y
Enclosure : Totally Enclosed Air Over Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Permanent Split Capacitor Starting Method : Across The Line
Poles : 6 Rotation : Selective Counterclockwise
Mounting : Round - Swing Arm Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : Single Special Extension
Overall Length : 11.06 in Frame Length : 6.25 in
Shaft Diameter : 0.625 in Shaft Extension : 2.56 in
Assembly/Box Mounting : F1 ONLY UPC : 691720021910
Weight : 35.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 17.00 298.0 0.00 0.0 0 1.53 78.2 0.50
Full Load 5.70 100.0 37.00 100.0 1,130 1.20 94.4 0.50
Pull-Up 17.10 300.0 15.00 41.0 31 1.53 77.8 0.50
Break-Down 11.20 196.0 66.60 180.0 907 1.20 91.1 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.15
  • 0.190
  • 0.0
  • 0.0
  • 1,200
  • 0.0
  • 0.00
  • 25 %
  • 2.69
  • 0.269
  • 34.6
  • 86.6
  • 1,180
  • 0.0
  • 9.00
  • 50 %
  • 3.39
  • 0.358
  • 52.1
  • 91.6
  • 1,167
  • 0.0
  • 18.00
  • 75 %
  • 4.23
  • 0.456
  • 61.3
  • 93.9
  • 1,151
  • 0.0
  • 27.40
  • 100 %
  • 5.21
  • 0.568
  • 65.7
  • 94.7
  • 1,130
  • 0.0
  • 37.20
  • 125 %
  • 6.49
  • 0.704
  • 66.2
  • 94.4
  • 1,101
  • 0.0
  • 47.80
