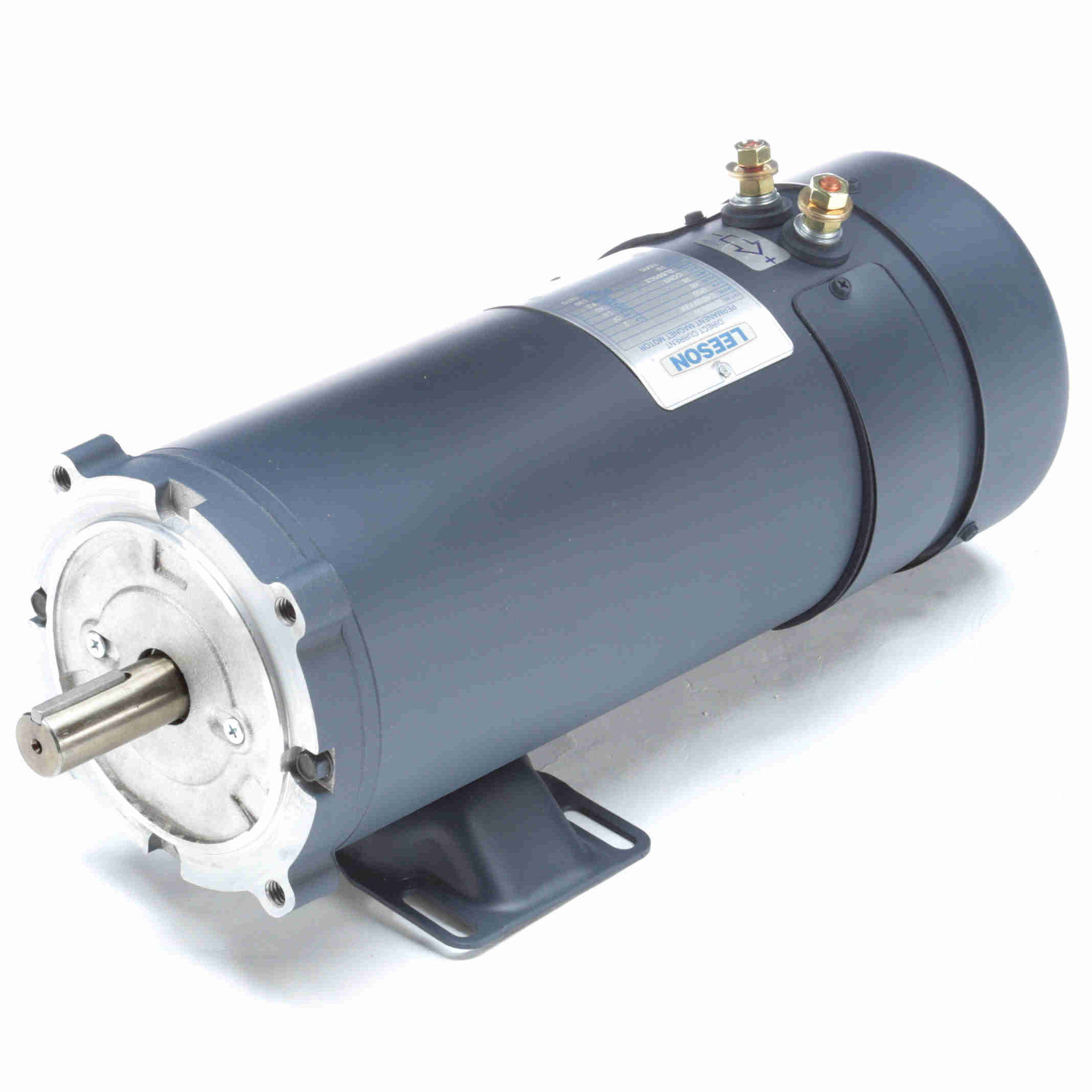

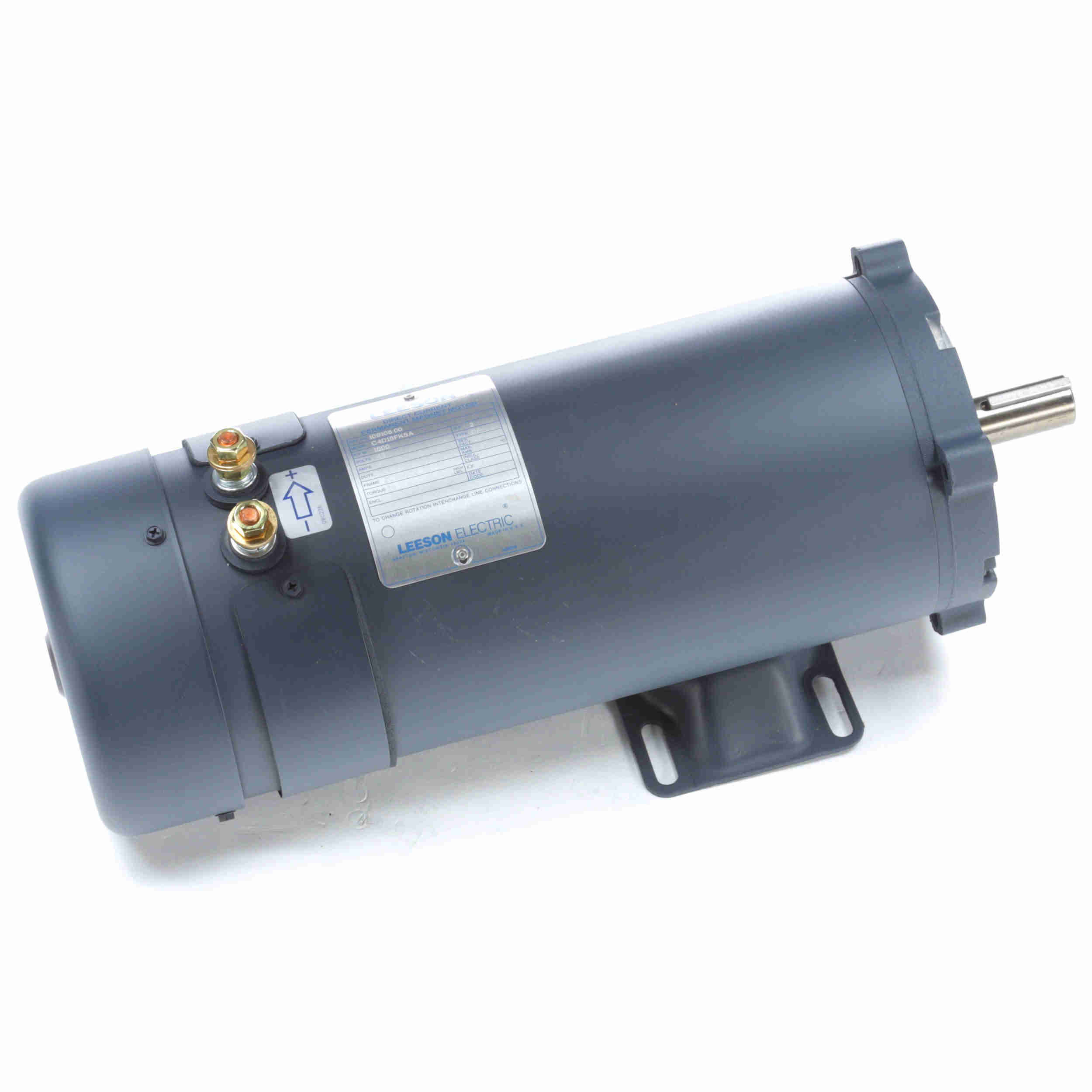

/Products/Electric Motors/DC/Leeson/Low Voltage/109108.00 Leeson 2HP Low Voltage DC Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Selected accessories will also be added to cart

$1,599.97 / Each

Quantity:

TEFC, ZLS56CZ Frame, 48VDC, C4D18FK8A, C-Face, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
Heavy-duty, stamped steel, bolt on base (Removable)
NEMA C face mounting flange at no additional cost; High strength rolled steel frame
Rugged die cast end shields with steel bearing inserts
Permanently lubricated sealed ball bearings
High starting torques for heavy load applications
Linear speed torque characteristics throughout the speed range
Capable of dynamic braking for faster stops
Reversible rotation; Simple two lead connection

	C4D18FK8A		109108.00
	2HP.1800RPM.ZLS56CZ.TEFC.48V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D18FK8A		Low Voltage
	No

40mm x 17mm x 12mm
Available Stock: 32

6203-2RS

$7.76 / Each

6205-2RS
Available Stock: 15

6205-2RS

$12.76 / Each
