/Products/Electric Motors/3 Phase/Leeson/Special Voltage/110178.00 Leeson 3/4HP Special Voltage Electric Motor, 1725RPM
Click Image to Expand

Product ID: 110178.00

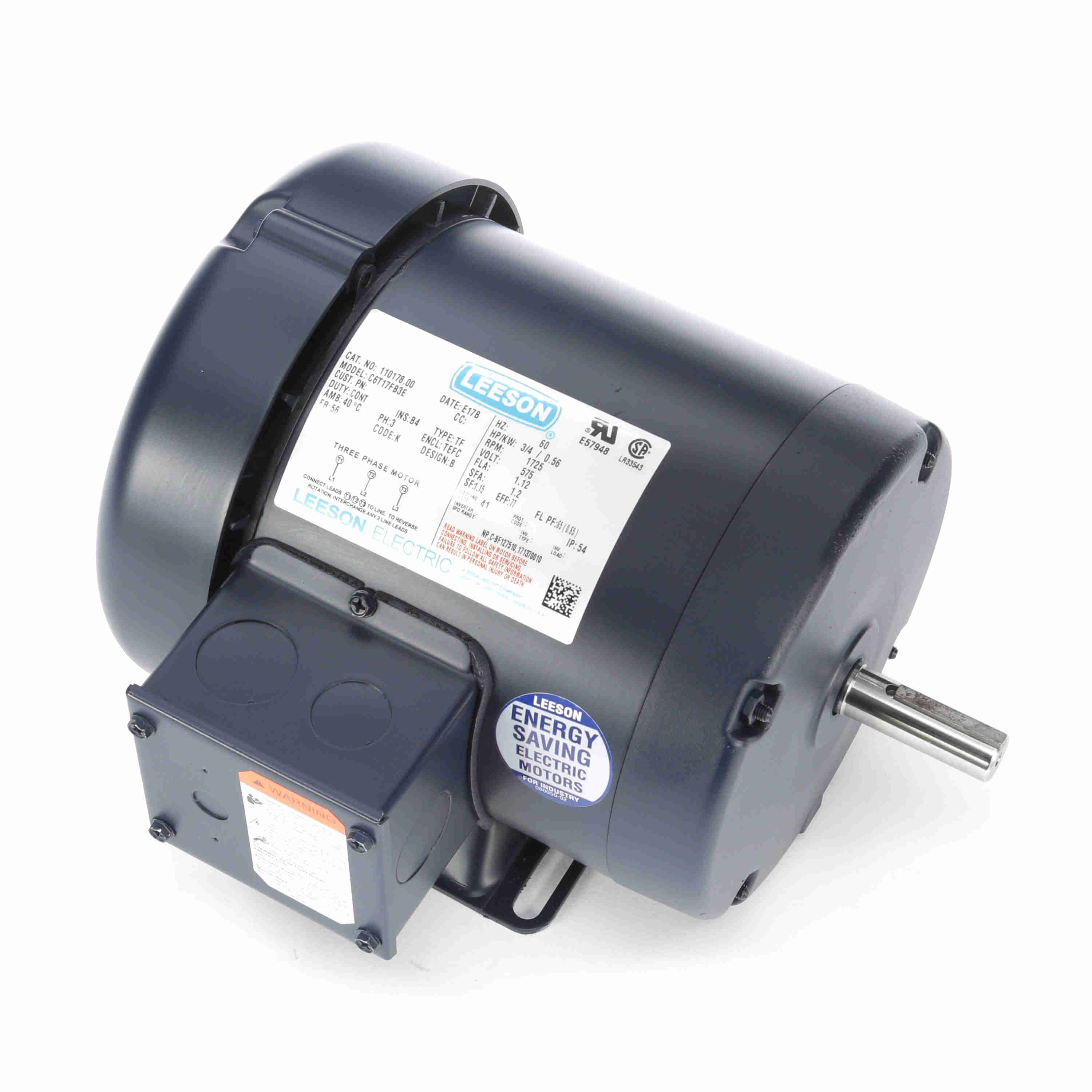

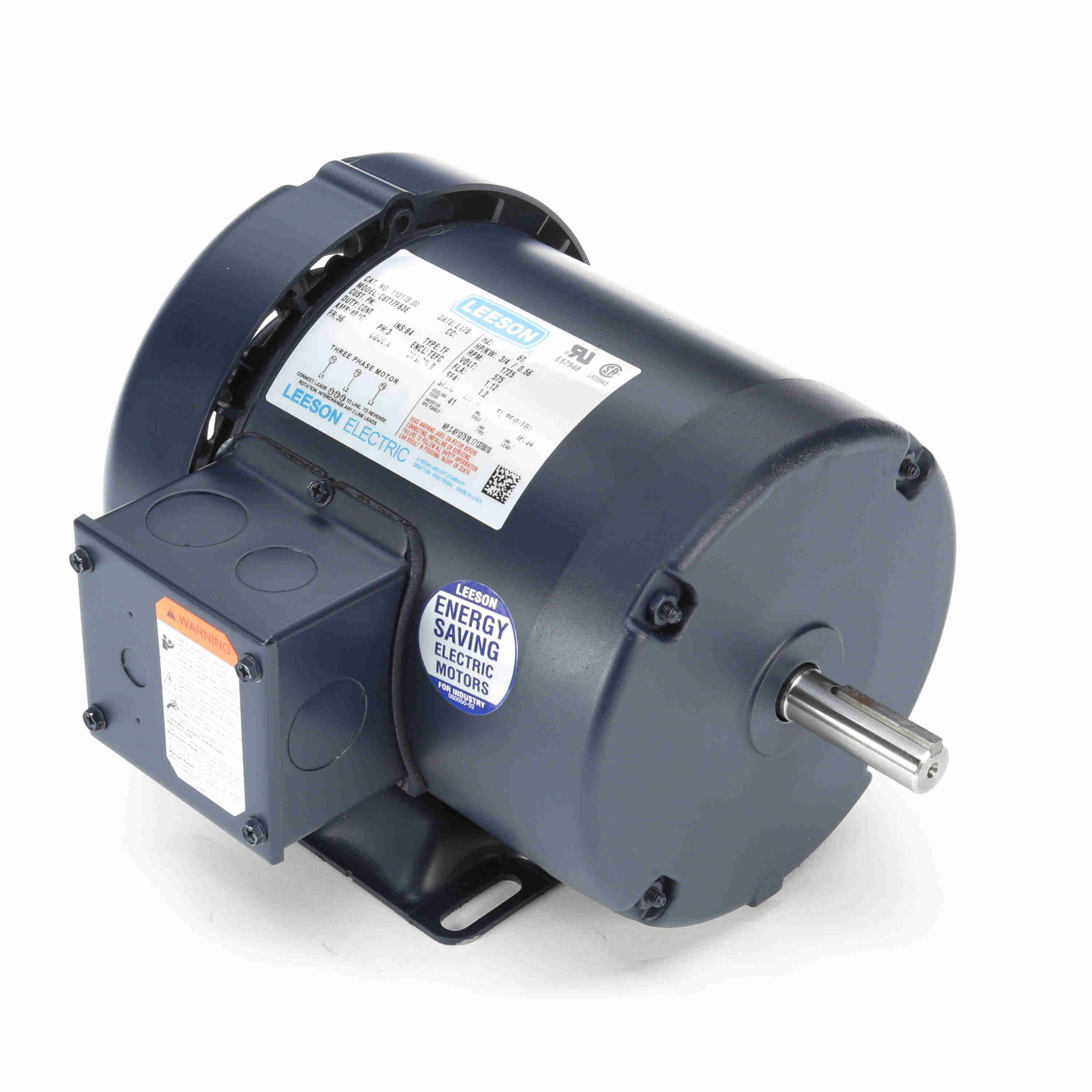

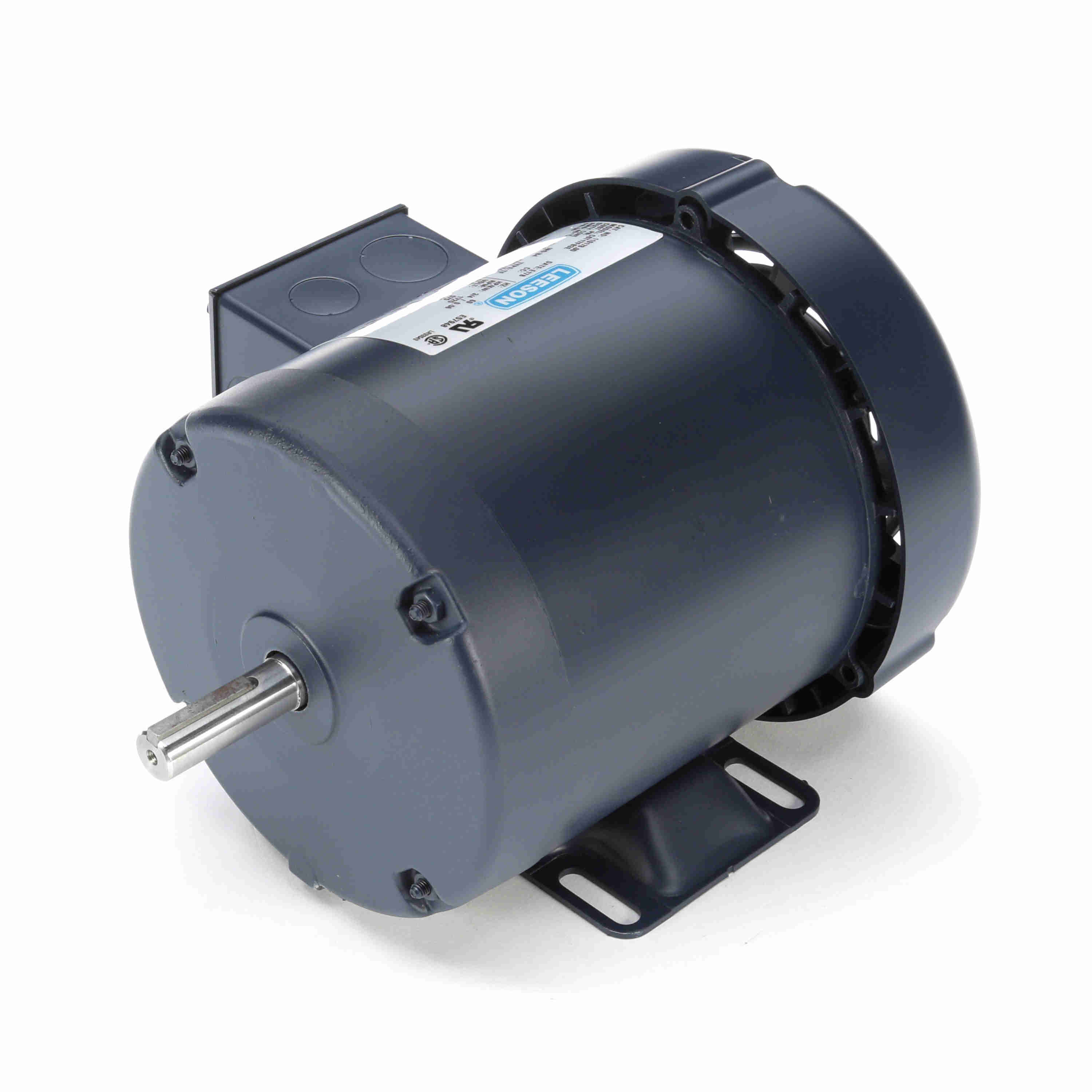

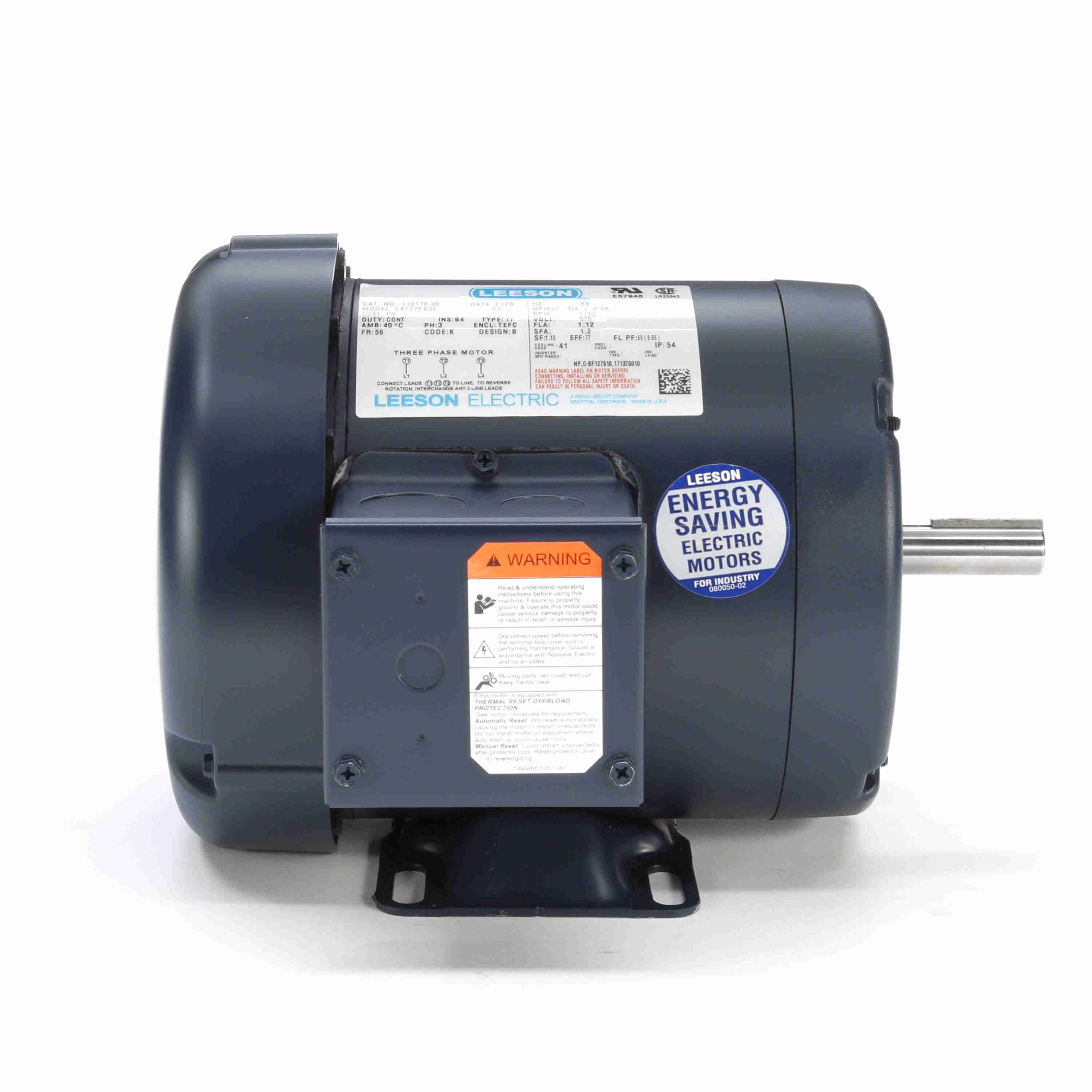

110178.00 Leeson 3/4HP Special Voltage Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110178.00

Selected accessories will also be added to cart
$130.07 / Each
Quantity:
TEFC, 56 Frame, 575V 3-Phase 60Hz, Rigid Base, C6T17FB3E
Features
  • Standard efficient ratings
  • Inverter rated
  • Shielded ball bearings for direct coupled applications. Contact your local sales office for belted load applications
  • Rolled steel frame material designs
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards
  • UL recognized and CSA certified
  • Continuous duty
General Specifications
Model :C6T17FB3E Catalog No :110178.00
Part Description :3/4HP..1725RPM.56.TEFC./575V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.575 VOLT.C6T17FB3E Category :575 Volts
Stock :No
Nameplate Specifications
Output HP :0.75 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :575 V
Current :1.1 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :77 % Duty :Continuous
Insulation Class :B Design Code :B
KVA Code :K Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.48 in Frame Length :5.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720008034
Weight :25.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.008.35371.000.75
Locked-Rotor6.456.60293.000.75
Full Load1.122.25100.000.75
Pull-Up0.006.45287.000.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.88
  • 0.000
  • 0.0
  • 0.0
  • 0
  • 0.0
  • 0.00
  • 25 %
  • 0.00
  • 0.000
  • 55.4
  • 28.6
  • 0
  • 0.0
  • 0.00
  • 50 %
  • 0.00
  • 0.000
  • 70.9
  • 42.3
  • 0
  • 0.0
  • 0.00
  • 75 %
  • 0.00
  • 0.000
  • 74.7
  • 54.5
  • 0
  • 0.0
  • 0.00
  • 100 %
  • 0.00
  • 0.000
  • 77.0
  • 65.0
  • 0
  • 60.0
  • 0.00
  • 125 %
  • 0.00
  • 0.000
  • 0.0
  • 0.0
  • 0
  • 0.0
  • 0.00
  • 150 %
  • 0.00
  • 0.000
  • 0.0
  • 0.0
  • 0
  • 0.0
  • 0.00
