/Products/Electric Motors/Single Phase, Explosion Proof/Leeson/C-Face less Base/111097.00 Leeson 3/4HP Explosion Proof Electric Motor, 3600RPM
Click Image to Expand

Product ID: 111097.00

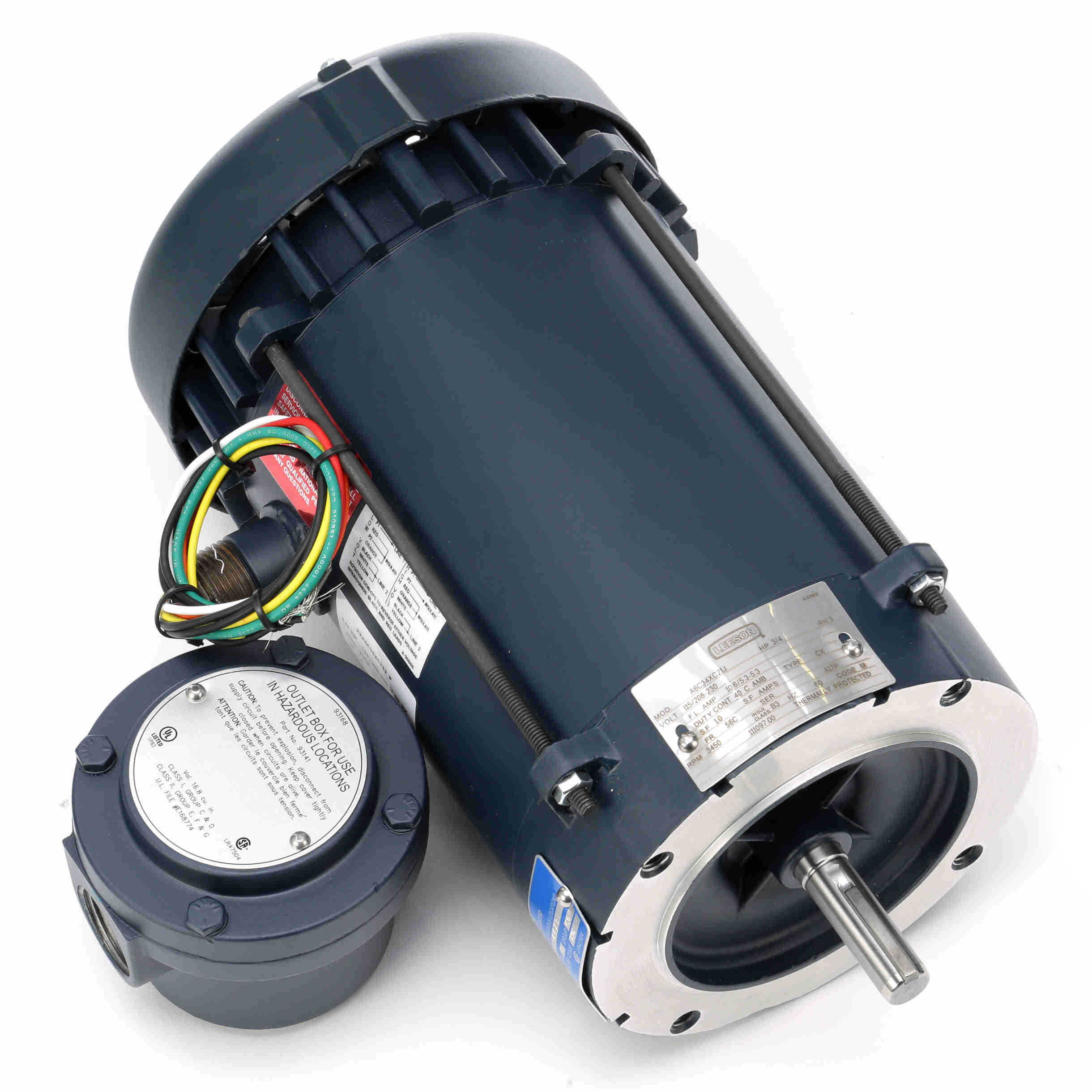

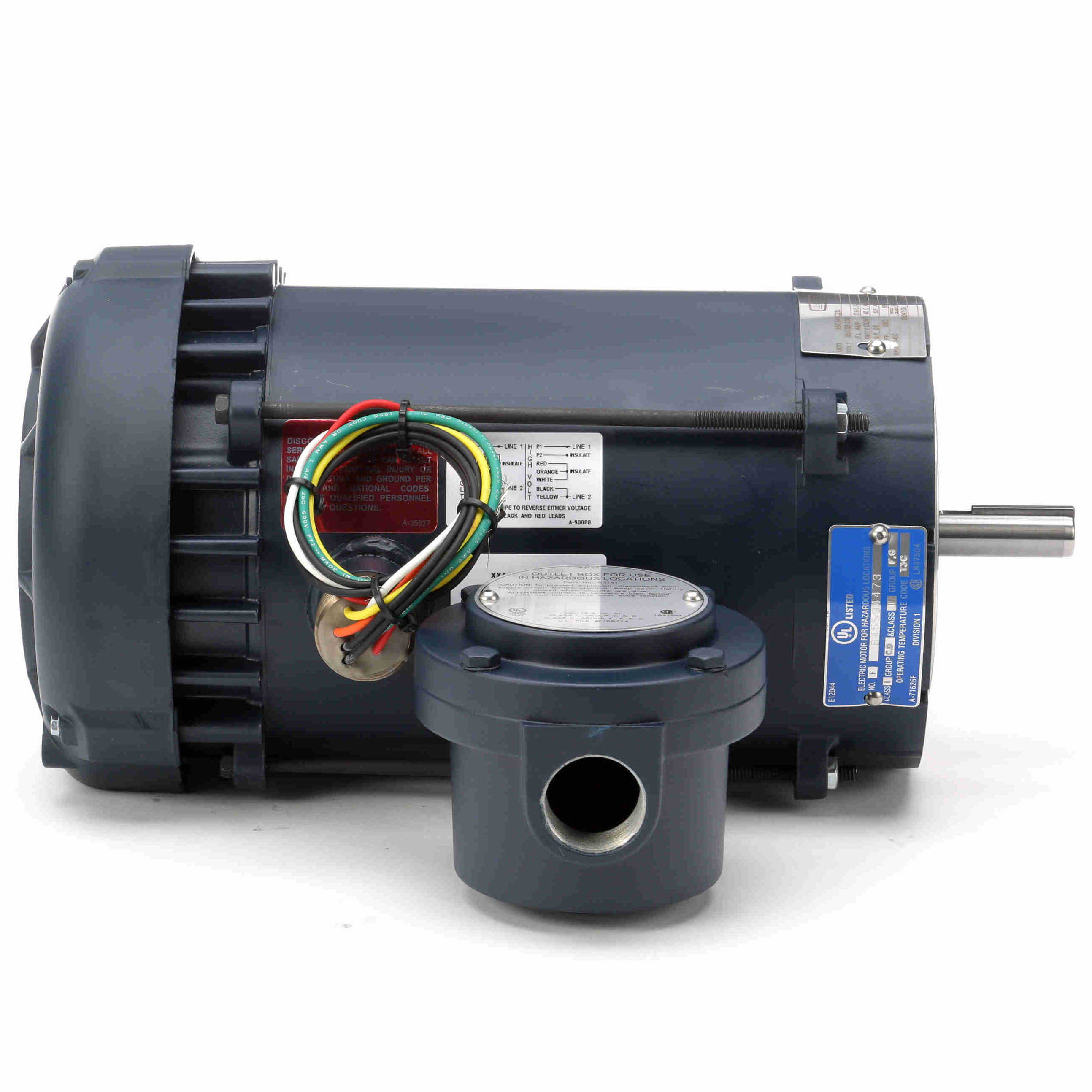

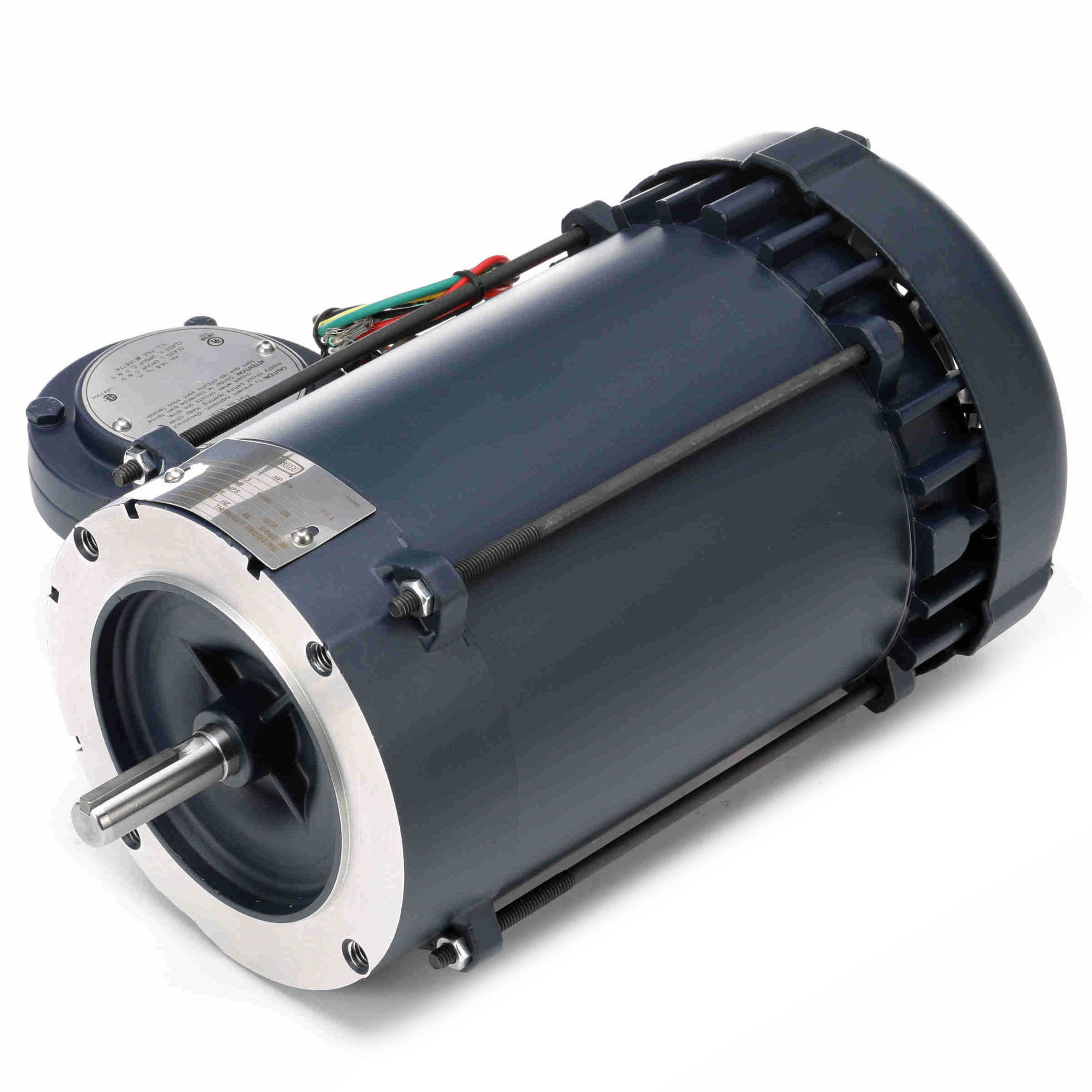

111097.00 Leeson 3/4HP Explosion Proof Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 111097.00

Selected accessories will also be added to cart
$919.97 / Each
Quantity:
EPFC, 56C Frame, 115/208-230VAC 60Hz Single Phase, Rolled Steel, Round Body, C-Face, 5/8" Keyed Shaft

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Meets T3B temperature code with a maximum surface temperature of 329° F.
  • Permanently lubricated, sealed bearings extend the lifetime of the motor.
  • 140 frame motor and below include explosion proof conduit box, shipped loose.

General Specifications

UPC: 691720009604 Weight: 33.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 10.6/5.3-5.3 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 66 % Power Factor: 71.9
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: M
Frame: 56C Enclosure: Explosion Proof Fan cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.94 in
Frame Length: 6.81 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 17.00 321.0 54.10 301.0 3,029 3.40 0.0 0.75
Locked-Rotor 34.70 655.0 59.60 331.0 0 7.50 0.0 0.75
Pull-Up 18.40 347.0 48.60 270.0 2,814 3.50 0.0 0.75
Full Load 5.30 100.0 18.00 100.0 3,500 0.85 71.9 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 % 200 %
Current (Amps) 3.65 3.80 4.15 4.65 5.30 5.80 6.00 6.80 7.80 9.10
Rated Output (KW) 0.22 0.37 0.52 0.68 0.85 0.97 1.05 1.26 1.50 1.80
Efficiency (%) 0.0 40.1 55.5 62.8 66.0 67.4 67.8 67.7 66.0 63.0
Power Factor (%) 25.0 40.5 53.5 62.8 71.9 74.9 77.1 80.8 84.0 86.0
Speed (RPM) 3,600 3,565 3,547 3,525 3,500 3,489 3,478 3,449 3,410 3,355
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 80.0 85.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 4.47 8.88 13.40 18.00 20.80 22.70 27.40 32.30 37.60
