/Products/Electric Motors/Single Phase/Leeson/TEAO Resilient Base/111321.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM
Click Image to Expand

Product ID: 111321.00

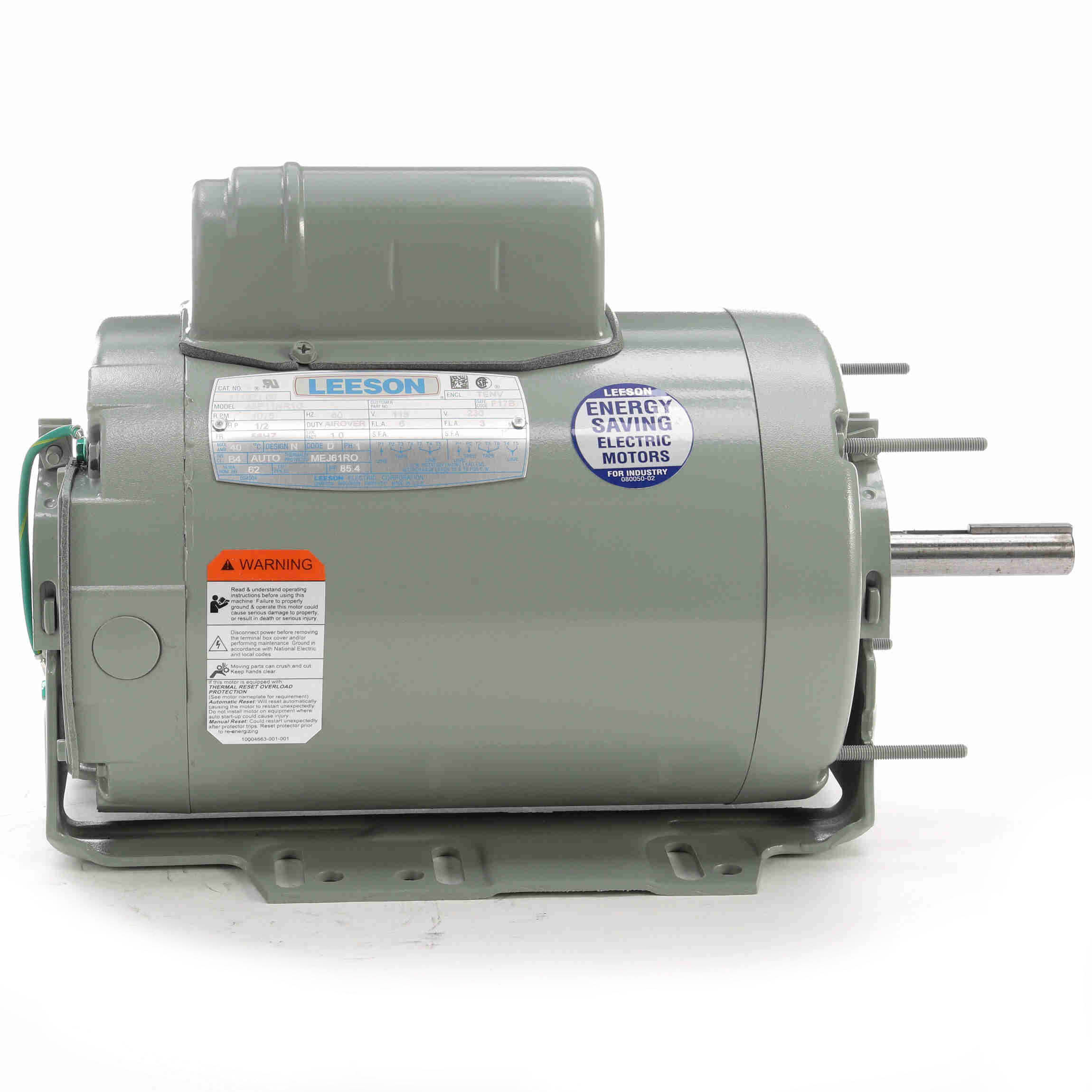

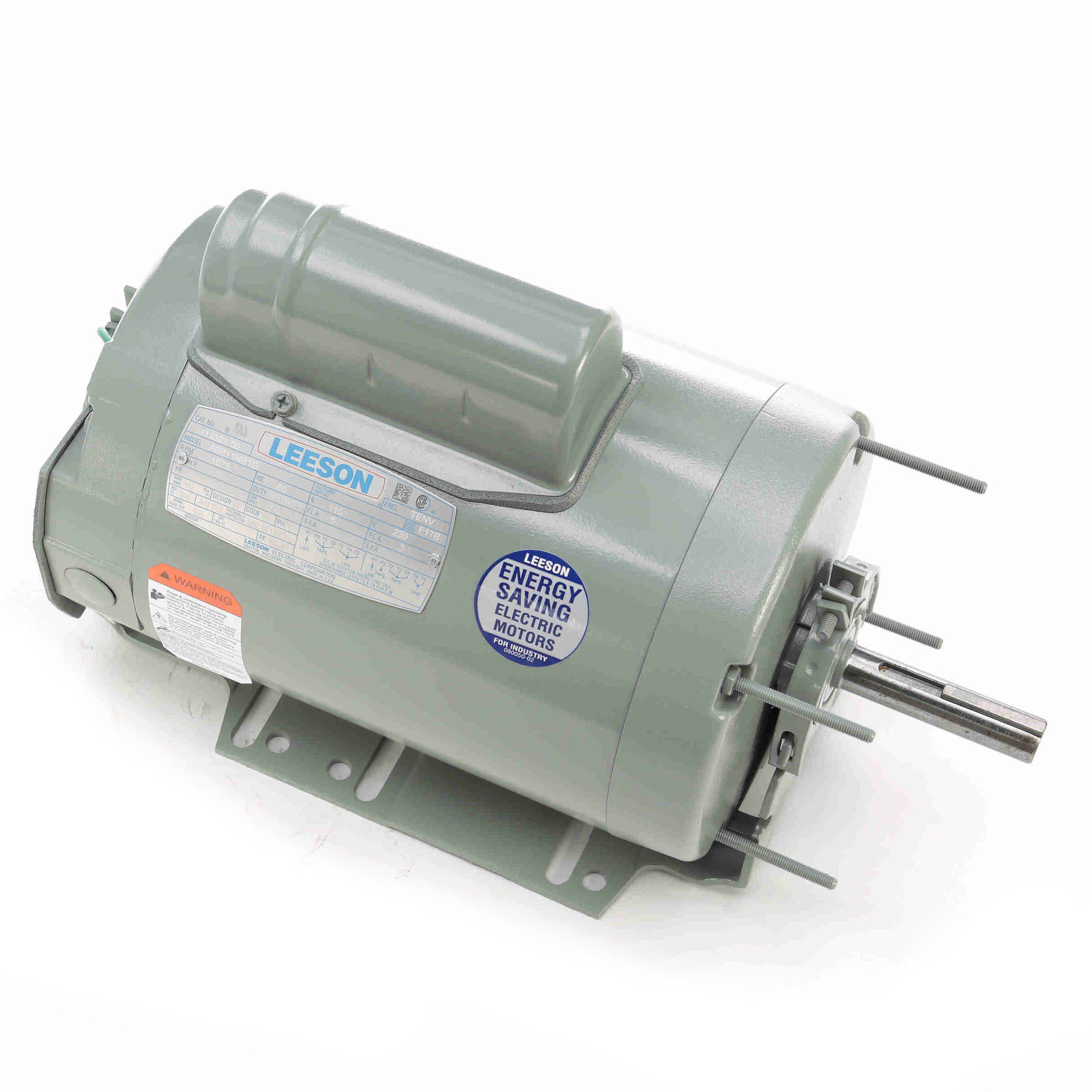

111321.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A6P11NR1

Selected accessories will also be added to cart
$334.09 / Each
Quantity:
TEAO, 56HZ Frame, 115/230VAC Single Phase 60Hz, A6P11NR1G, Resilient Base

Features

  • Extended through bolts
  • Must be mounted in air stream
  • PSC designs offer low in-rush current
  • Automatic overload protected
  • Resilient mount for quiet operation
  • Corrosion resistant finish

General Specifications

UPC: 691720009840 Weight: 37.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 6.0/3.0 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Efficiency: 62 % Power Factor: 85.4
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: D
Frame: 56HZ Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Resilient Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 13.60 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 3.05 0.0 2.36 0.0 1,106 0.60 85.6 0.50
Locked-Rotor 8.88 0.0 1.71 0.0 0 1.58 0.0 0.50
Pull-Up 8.71 0.0 1.55 0.0 79 1.59 0.0 0.50
Break-Down 6.16 0.0 4.13 0.0 857 1.23 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 %
Current (Amps) 1.60 1.90 2.15 2.55 3.04 3.85
Rated Output (KW) 0.22 0.30 0.38 0.49 0.60 0.77
Efficiency (%) 0.0 0.0 47.8 57.7 62.0 60.7
Power Factor (%) 60.6 0.0 77.4 83.1 85.4 87.0
Speed (RPM) 1,195 1,178 1,160 1,136 1,107 1,060
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 0.56 1.11 1.74 2.36 3.11
