/Products/Electric Motors/Single Phase/Leeson/TEAO Rigid Base/111332.00 3/4HP Leeson Ag-Duty Aeration Fan Motor
Click Image to Expand

Product ID: 111332.00

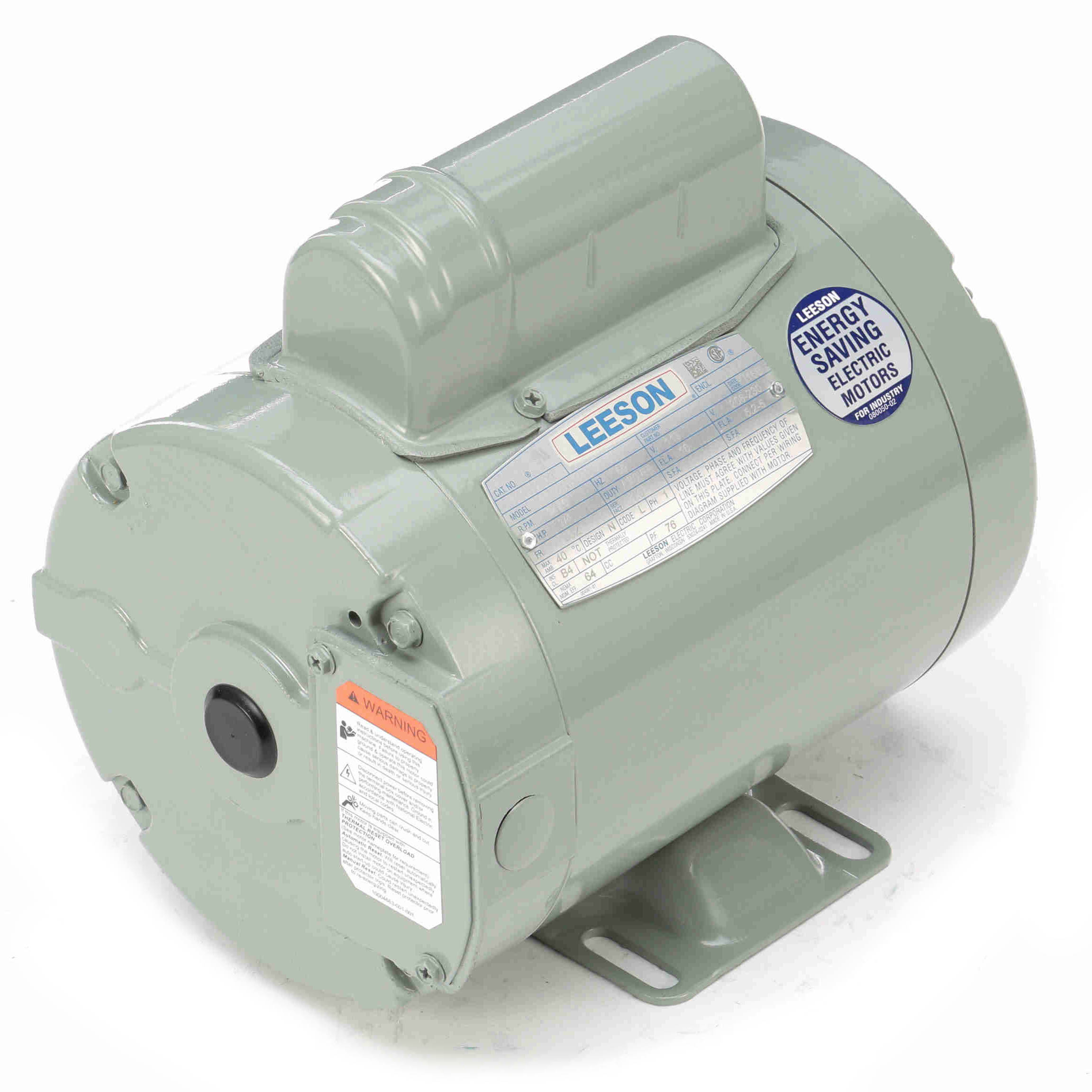

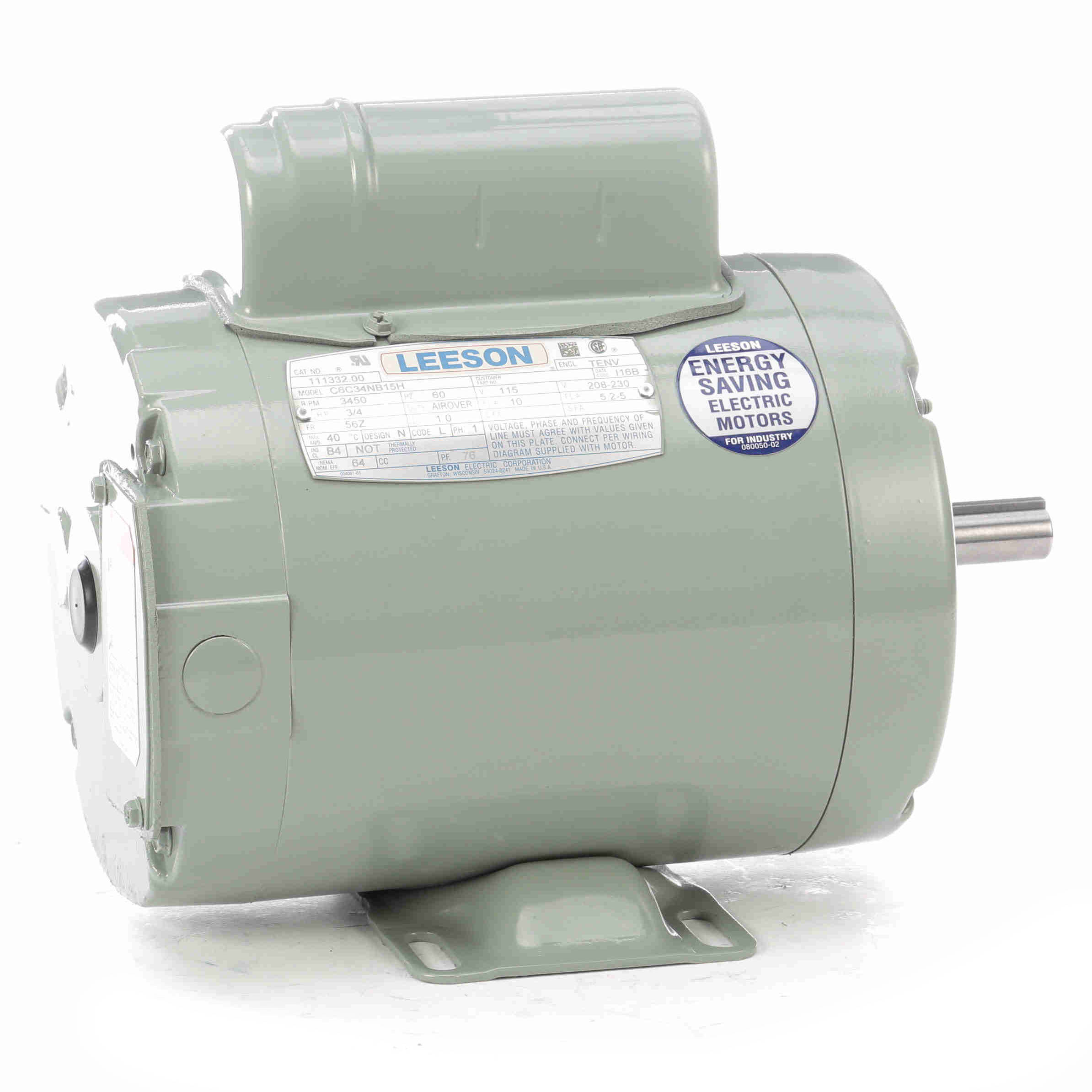

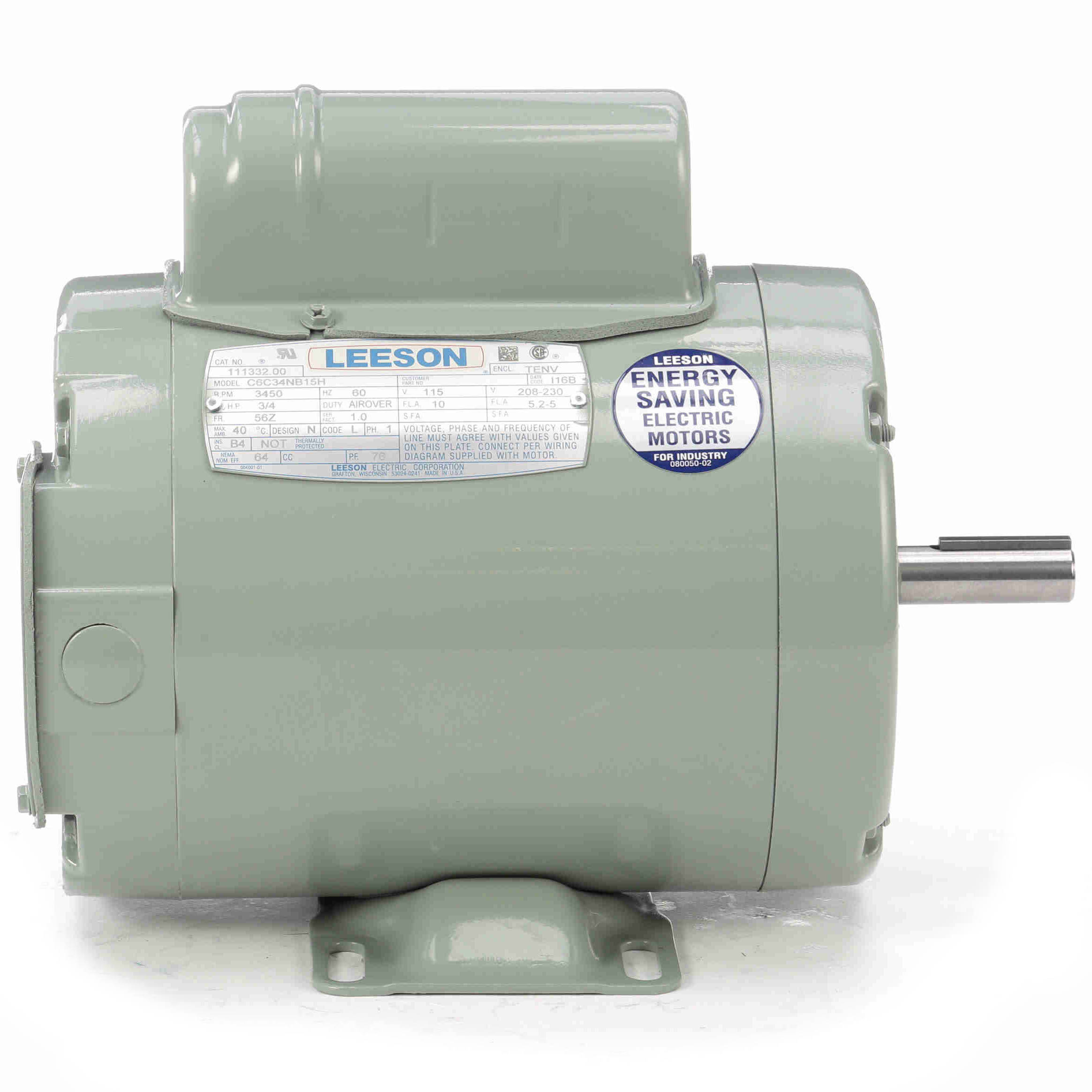

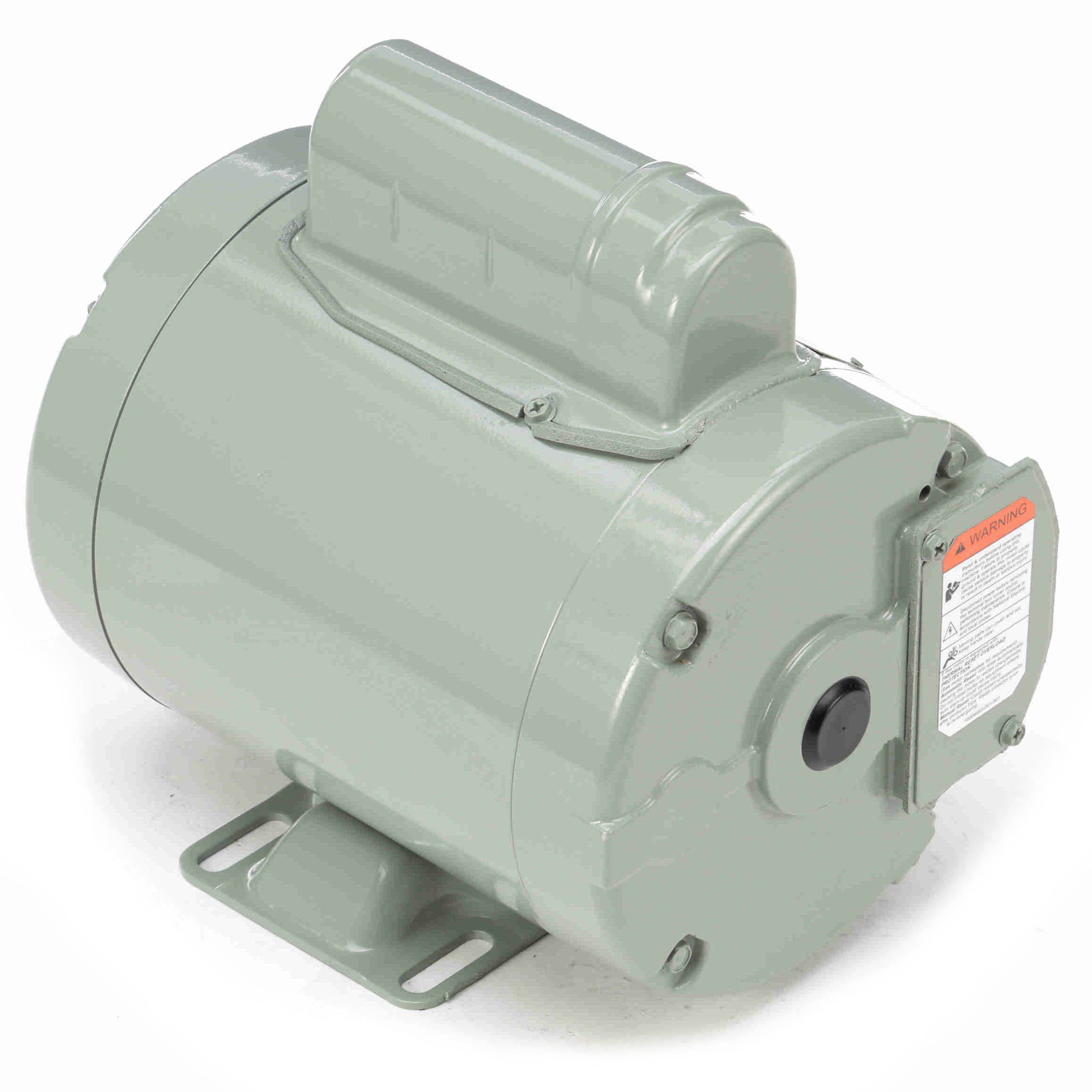

111332.00 3/4HP Leeson Ag-Duty Aeration Fan Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6C34NB15

Temporarily out of stock
Selected accessories will also be added to cart
$122.05 / Each
TEAO, 3450RPM, 56Z Frame, Single Phase, 115/208-230VAC

Features

  • Belt driven fans or fan on shaft applications
  • Capacitor start designs
  • Epoxy paint to resist corrosion
  • Single-phase models have built-in terminal boards

General Specifications

UPC: 691720009932 Weight: 30.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 10.0/5.2-5.0 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 64 % Power Factor: 76
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: 56Z Enclosure: Totally Enclosed Air Over
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 2.4 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.90 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.87 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 30.00 64.00 356.0 0 0.75
Break-Down 0.00 48.00 267.0 3,000 0.75
Full Load 5.00 18.00 100.0 3,478 0.75
Pull-Up 0.00 45.00 250.0 2,700 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 2.93 3.33 3.73 4.27 4.95 5.68 6.63
Rated Output (KW) 0.16 0.38 0.56 0.72 0.87 1.07 1.29
Efficiency (%) 0.0 37.5 50.3 58.6 64.0 64.2 63.3
Power Factor (%) 23.7 49.6 65.4 73.0 76.3 81.9 84.3
Speed (RPM) 3,598 3,569 3,530 3,502 3,478 3,437 3,395
Temp. Rise @ FL 0.0 0.0 0.0 0.0 64.0 0.0 0.0
Torque (ft-lbs) 0.00 4.50 9.00 13.50 18.00 22.50 27.00
