/Products/Electric Motors/3 Phase Explosion Proof/Leeson/Rigid Base/111932.00 Leeson 1/3HP Explosion Proof Motor, 1725-1425RPM
Click Image to Expand

Product ID: 111932.00

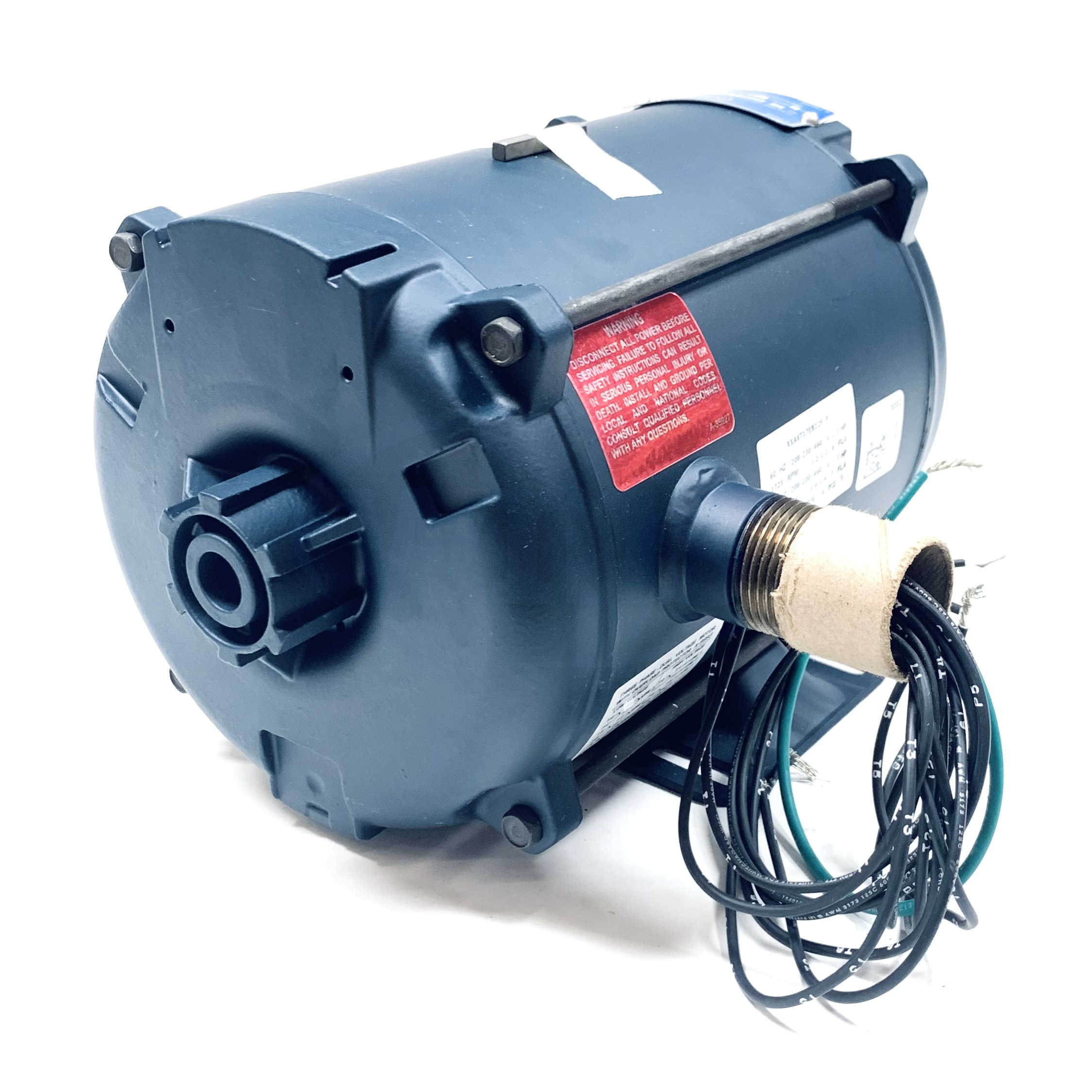

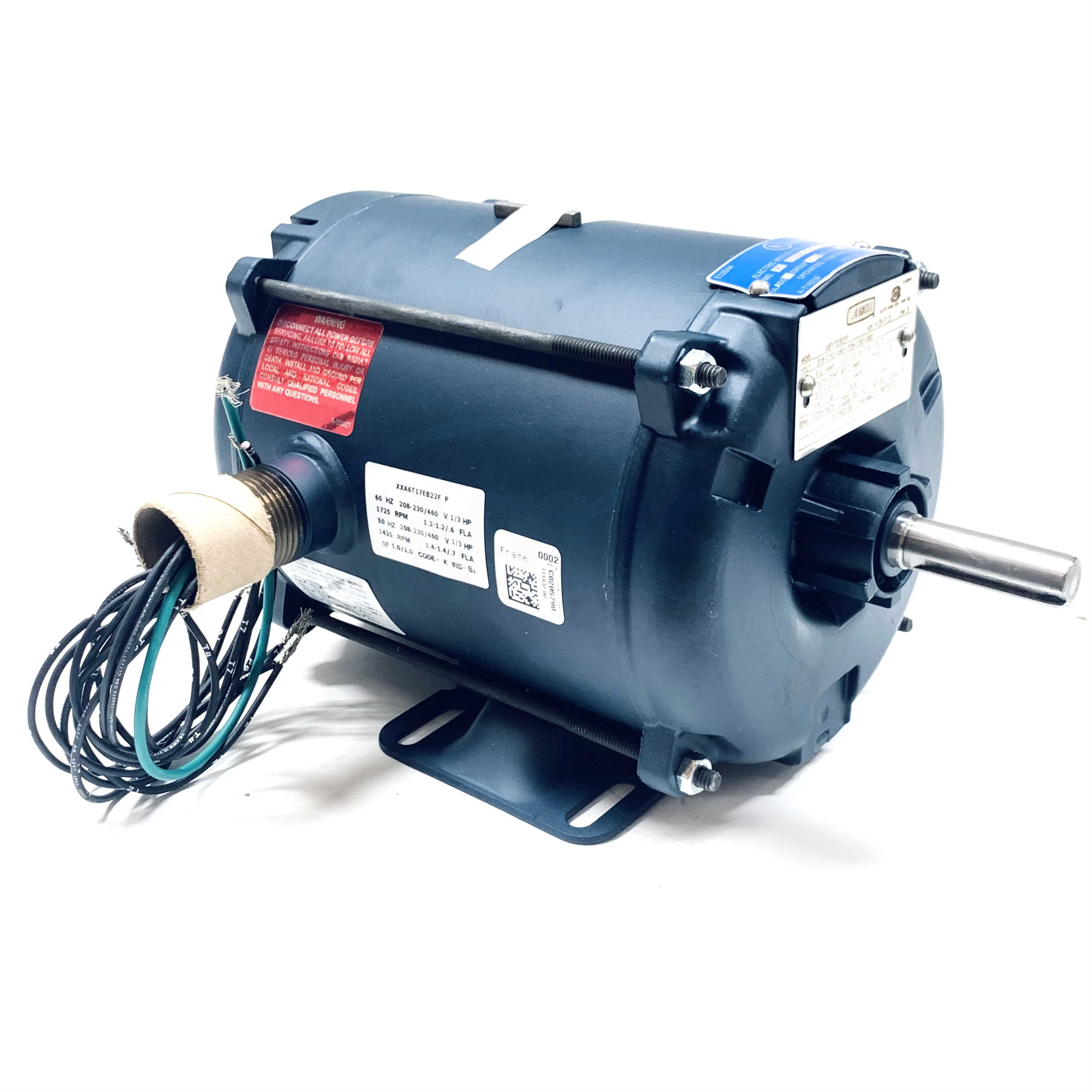

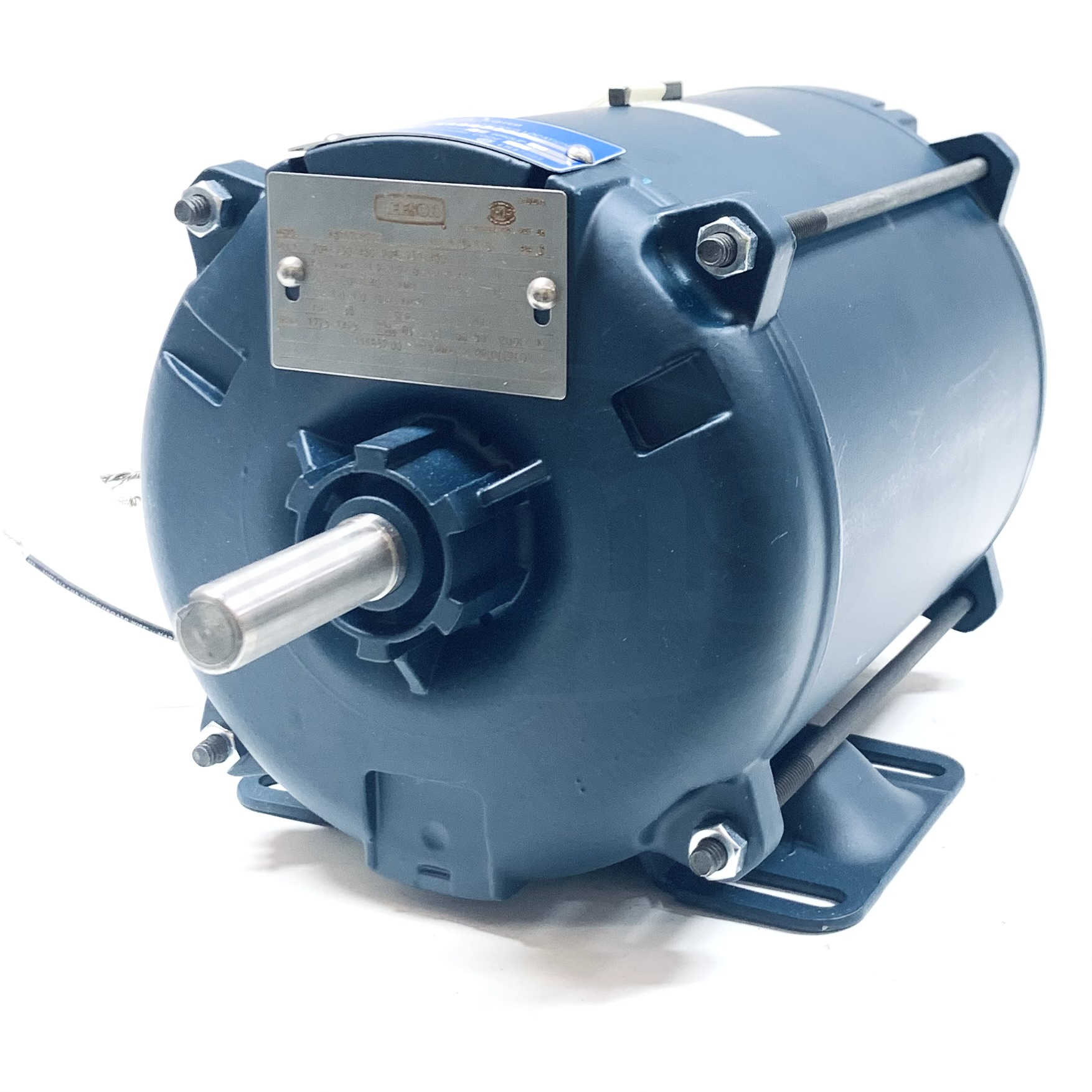

111932.00 Leeson 1/3HP Explosion Proof Motor, 1725-1425RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 111932.00

Available Stock: 1
Selected accessories will also be added to cart
$739.97 / Each
Quantity:
EPNV, 56 Frame, 208-230/460VAC 3-Phase 60Hz, A6T17EB22F, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B

General Specifications

General Specifications
Model : A6T17EB22F Catalog No : 111932.00
Part Description : ..1/3HP..1725RPM.56.EPNV./V.3PH.60HZ.CONT.40C.1.0SF.RIGID.A6T17EB22F.....EXPLOSION-PROOF.AUTOMATIC....... Category : Explosion Proof
Stock : No

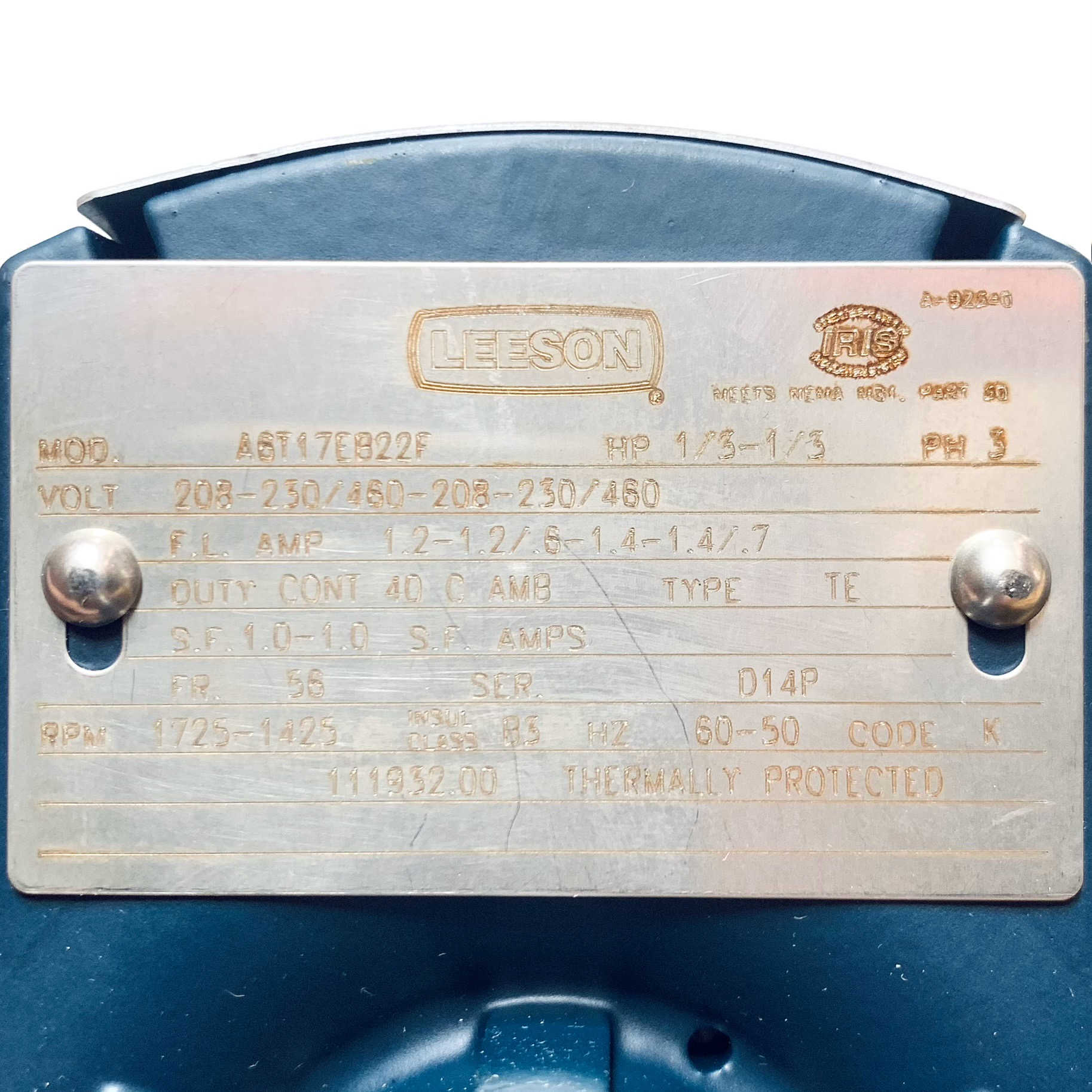

Nameplate Specifications

Nameplate Specifications
Output HP : 0.33 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 1.2-1.2/0.60 A Speed : 1725 RPM
Service Factor : 1 Phase : 3
Efficiency : 74.5 % Duty : Continuous
Insulation Class : B Design Code : B
KVA Code : K Frame : 56
Enclosure : Explosion Proof Non Ventilated Overload Protector : Automatic
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Listed
CSA : Y CE : N
IP Code : 54

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.97 in Frame Length : 6.31 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720010211
Weight : 26.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 0.42 70.0 0.00 0.0 1,800 0.00 0.0 0.33
Full Load 0.60 100.0 1.00 100.0 1,725 0.00 71.0 0.33
Locked-Rotor 3.60 600.0 3.00 300.0 0 0.00 74.5 0.33
Break-Down 2.50 417.0 3.75 375.0 1,300 0.00 85.0 0.33
2/3 2.80 467.0 3.30 330.0 1,200 0.00 0.0 0.33
Pull-Up 3.45 575.0 2.90 290.0 320 0.00 0.0 0.33
1/3 3.20 533.0 2.60 260.0 600 0.00 0.0 0.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.40
  • 0.070
  • 0.0
  • 21.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 0.43
  • 0.110
  • 44.0
  • 33.5
  • 1,780
  • 0.0
  • 0.20
  • 50 %
  • 0.45
  • 0.190
  • 67.5
  • 52.0
  • 1,755
  • 0.0
  • 0.50
  • 75 %
  • 0.50
  • 0.260
  • 72.5
  • 64.0
  • 1,735
  • 0.0
  • 0.75
  • 100 %
  • 0.60
  • 0.330
  • 74.5
  • 71.0
  • 1,725
  • 35.0
  • 1.00
  • 115 %
  • 0.65
  • 0.380
  • 75.0
  • 75.0
  • 1,715
  • 0.0
  • 1.20
  • 125 %
  • 0.70
  • 0.400
  • 75.0
  • 76.0
  • 1,710
  • 0.0
  • 1.30
