/Products/Electric Motors/3 Phase Explosion Proof/Leeson/C-Face less Base/111936.00 Leeson 3/4HP Explosion Proof Electric Motor, 3600RPM
Click Image to Expand

Product ID: 111936.00

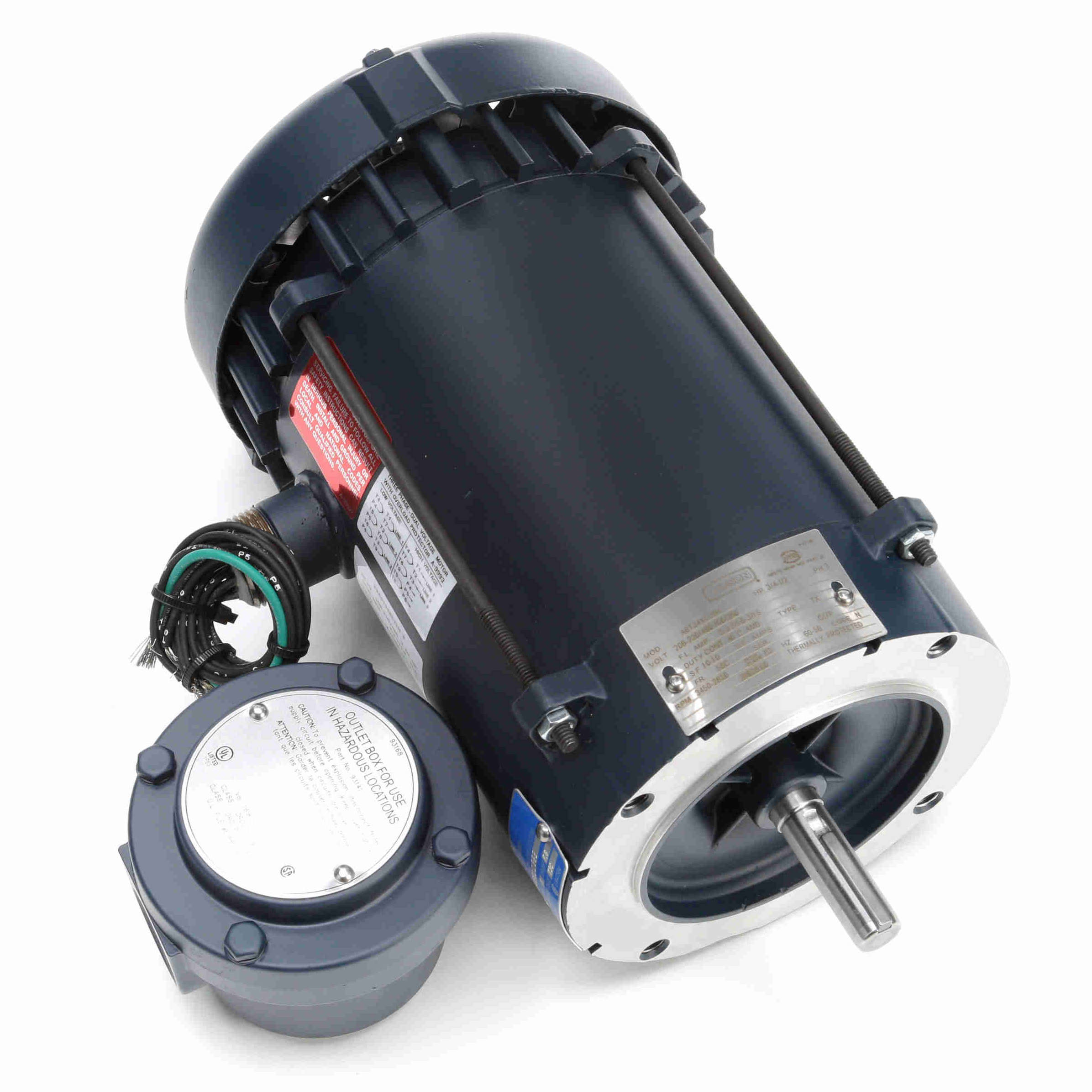

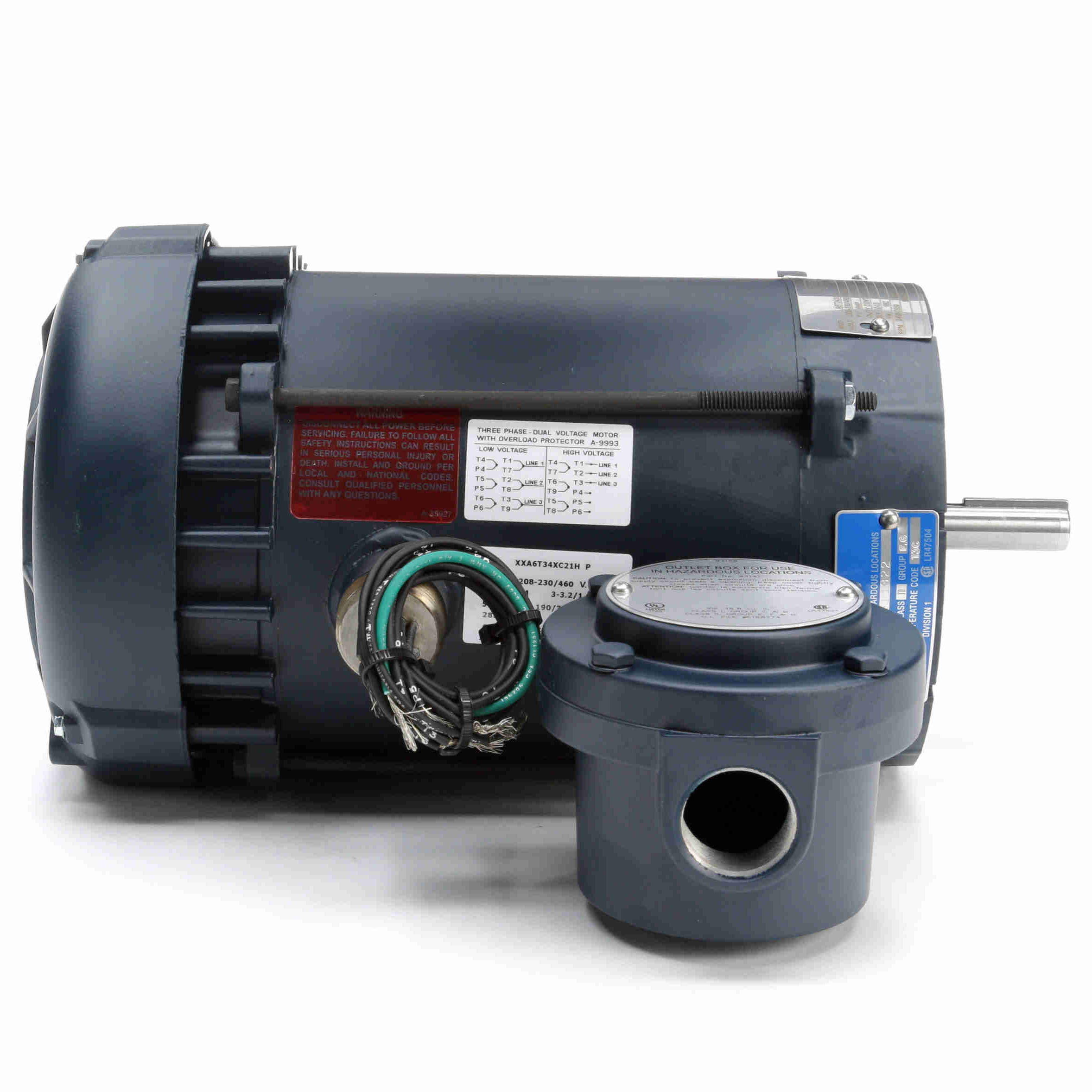

111936.00 Leeson 3/4HP Explosion Proof Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 111936.00

Selected accessories will also be added to cart
$1,099.97 / Each
Quantity:
EPFC, 56C Frame, 208-230/460VAC 3-Phase 60Hz, Rolled Steel, C-Face, 5/8" Keyed Shaft

Features

  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B

General Specifications

UPC: 691720010259 Weight: 30.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

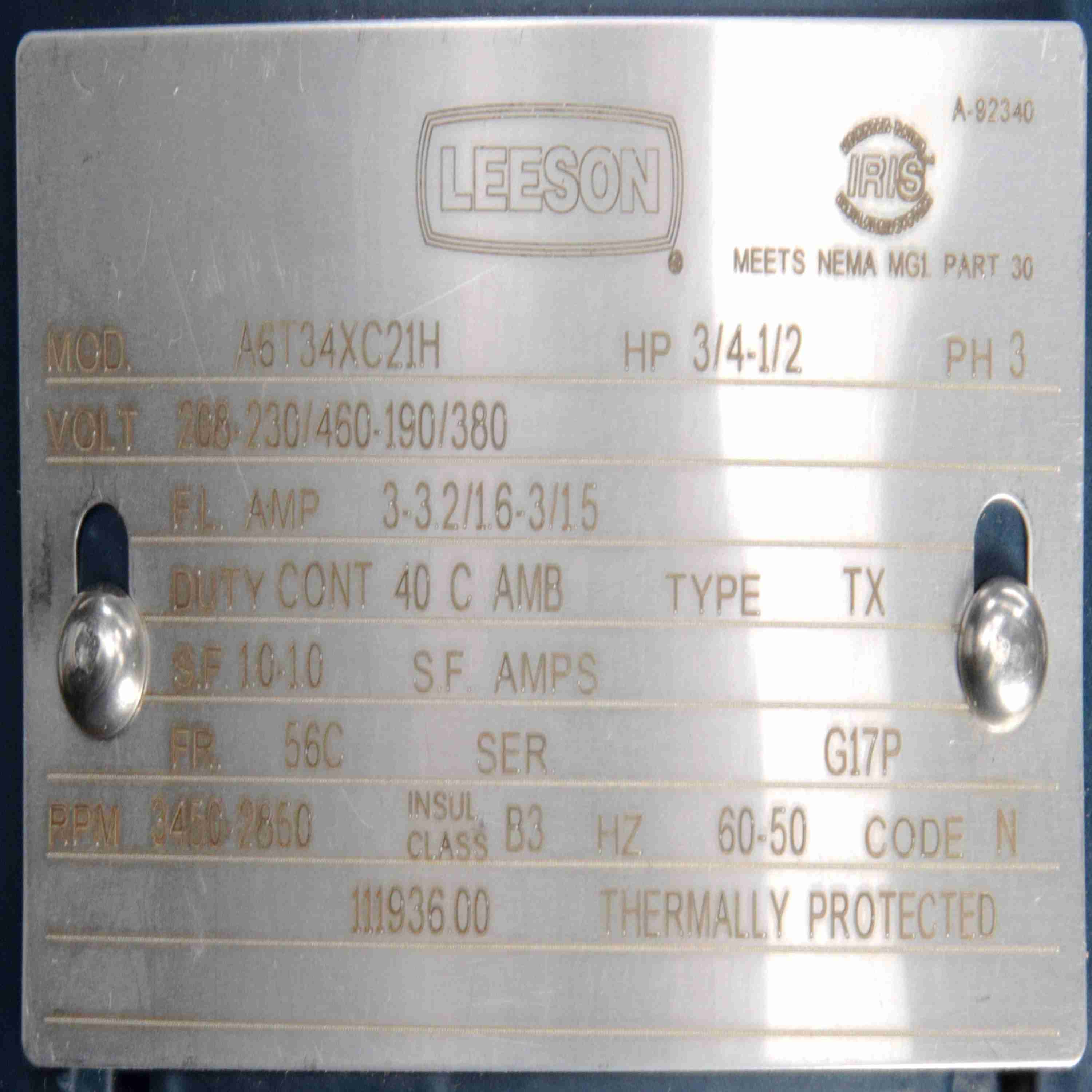

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.0-3.2/1.6 A Speed: 3450 rpm
Service Factor: 1 Phase: 3
Efficiency: 74 % Power Factor: 69.1
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: N
Frame: 56C Enclosure: Explosion Proof Fan cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 5.66 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.44 in
Frame Length: 6.31 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 11.50 719.0 4.00 351.0 0 0.00 74.0 0.75
1/3 10.90 681.0 3.40 298.0 1,200 0.00 0.0 0.75
Break-Down 7.50 469.0 5.60 491.0 2,640 0.00 85.0 0.75
No Load 1.00 63.0 0.00 0.0 3,600 0.00 0.0 0.75
2/3 9.50 594.0 4.50 395.0 2,200 0.00 0.0 0.75
Pull-Up 10.40 650.0 3.60 316.0 1,800 0.00 0.0 0.75
Full Load 1.60 100.0 1.14 100.0 3,450 0.00 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 %
Current (Amps) 1.00 1.00 1.20 1.30 1.60 1.65 1.75 1.80 2.00
Rated Output (KW) 0.17 0.31 0.47 0.62 0.77 0.90 0.95 1.10 1.30
Efficiency (%) 0.0 44.5 60.0 68.0 74.0 74.0 74.0 75.0 76.0
Power Factor (%) 18.0 37.0 51.0 61.5 69.1 74.0 75.5 80.0 83.0
Speed (RPM) 3,600 3,577 3,560 3,525 3,450 3,440 3,425 3,415 3,400
Temp. Rise @ FL 0.0 0.0 0.0 0.0 50.0 65.0 80.0 0.0 0.0
Torque (ft-lbs) 0.00 0.28 0.55 0.84 1.14 1.30 1.40 1.70 2.00
