/Products/Electric Motors/Single Phase Electric Motors/Leeson Single Phase Electric Motors/Washguard - TEFC/113584.00 Leeson Washguard Motor, 1.5HP, 1800RPM
Click Image to Expand

Product ID: 113584.00

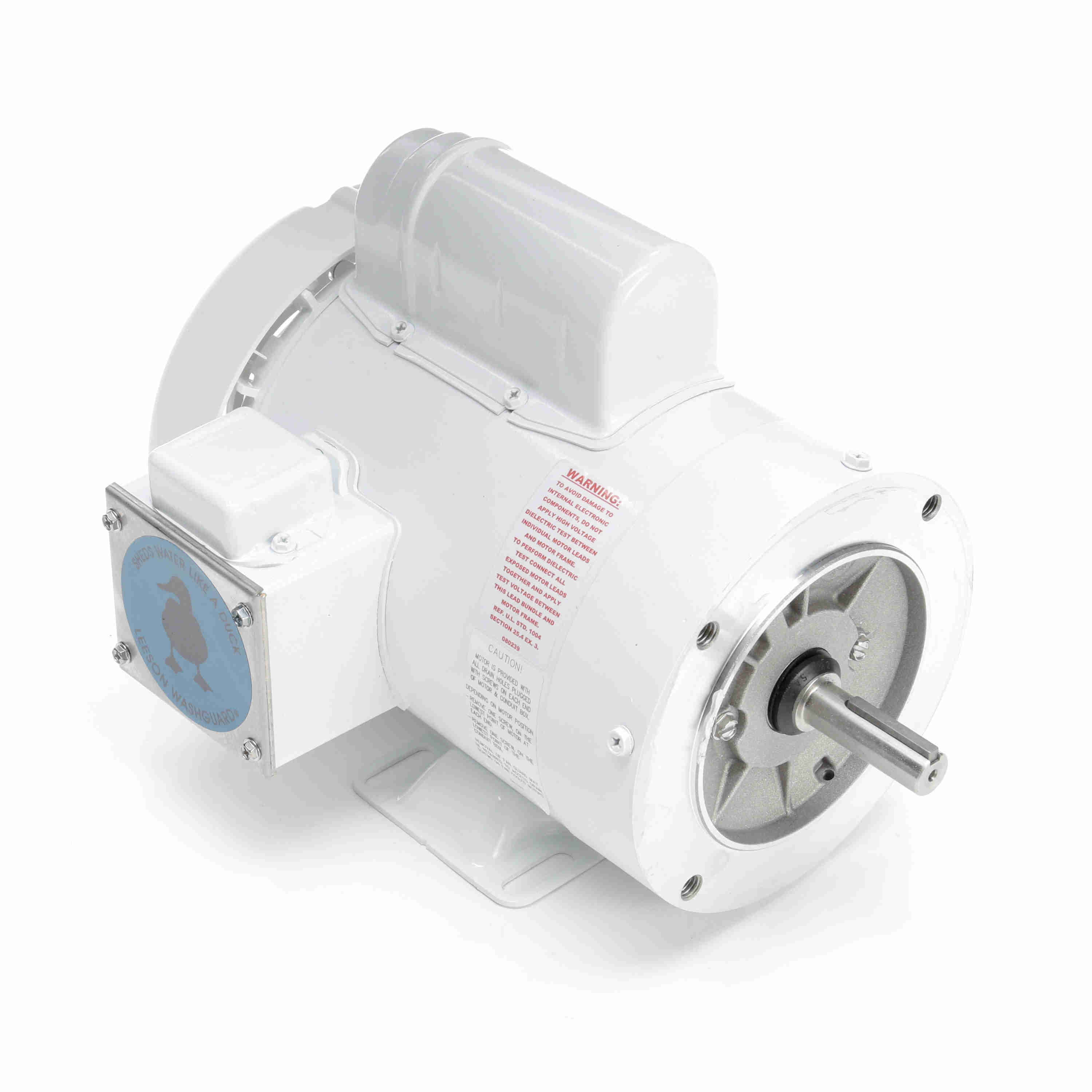

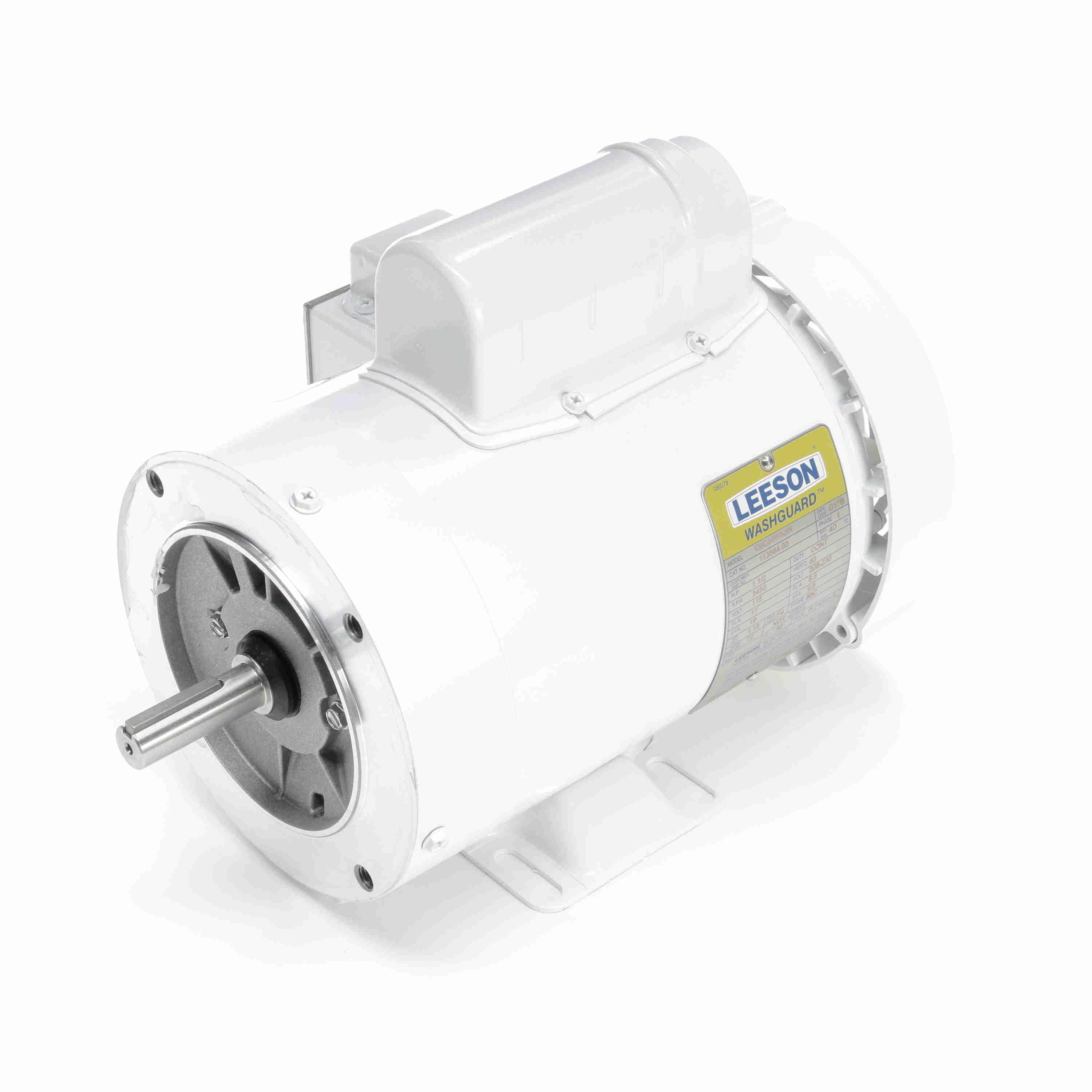

113584.00 Leeson Washguard Motor, 1.5HP, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113584.00

Selected accessories will also be added to cart
$751.23 / Each
Quantity:
56C Frame, 115/208-230V 1-Phase, TEFC, C Face with Base, C6C34WK5
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C34WK5N Catalog No :113584.00
Part Description :1.5HP.- C-FACE WITH BASE -..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6C34WK5N Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :17.0/8.5 A Speed :3450 rpm
Service Factor :1.15 Phase :1
Efficiency :72 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :H Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 ?C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :12.37 in Frame Length :6.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720012109
Weight :36.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor46.005.50244.001.50
Break-Down0.005.60249.03,0001.50
Full Load8.502.25100.03,4541.50
Pull-Up0.005.30236.02,8001.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.67
  • 0.259
  • 0.0
  • 24.1
  • 3,598
  •
  • 0.00
  • 25 %
  • 5.07
  • 0.536
  • 52.9
  • 46.0
  • 3,561
  •
  • 0.56
  • 50 %
  • 5.89
  • 0.850
  • 66.1
  • 62.7
  • 3,530
  •
  • 1.12
  • 75 %
  • 7.05
  • 1.191
  • 70.5
  • 73.5
  • 3,496
  •
  • 1.69
  • 100 %
  • 8.45
  • 1.555
  • 72.0
  • 80.0
  • 3,454
  • 82.0
  • 2.28
  • 125 %
  • 9.52
  • 1.813
  • 71.1
  • 82.8
  • 3,424
  •
  • 2.65
  • 150 %
  • 10.33
  • 2.000
  • 70.0
  • 84.2
  • 3,399
  •
  • 2.90
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Horsepower
1.5HP
Frame
56C
Enclosure
TEFC
