/Products/Electric Motors/Single Phase/Leeson/Jet Pump Motors/113640.00 Leeson 1.5HP Jet Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 113640.00

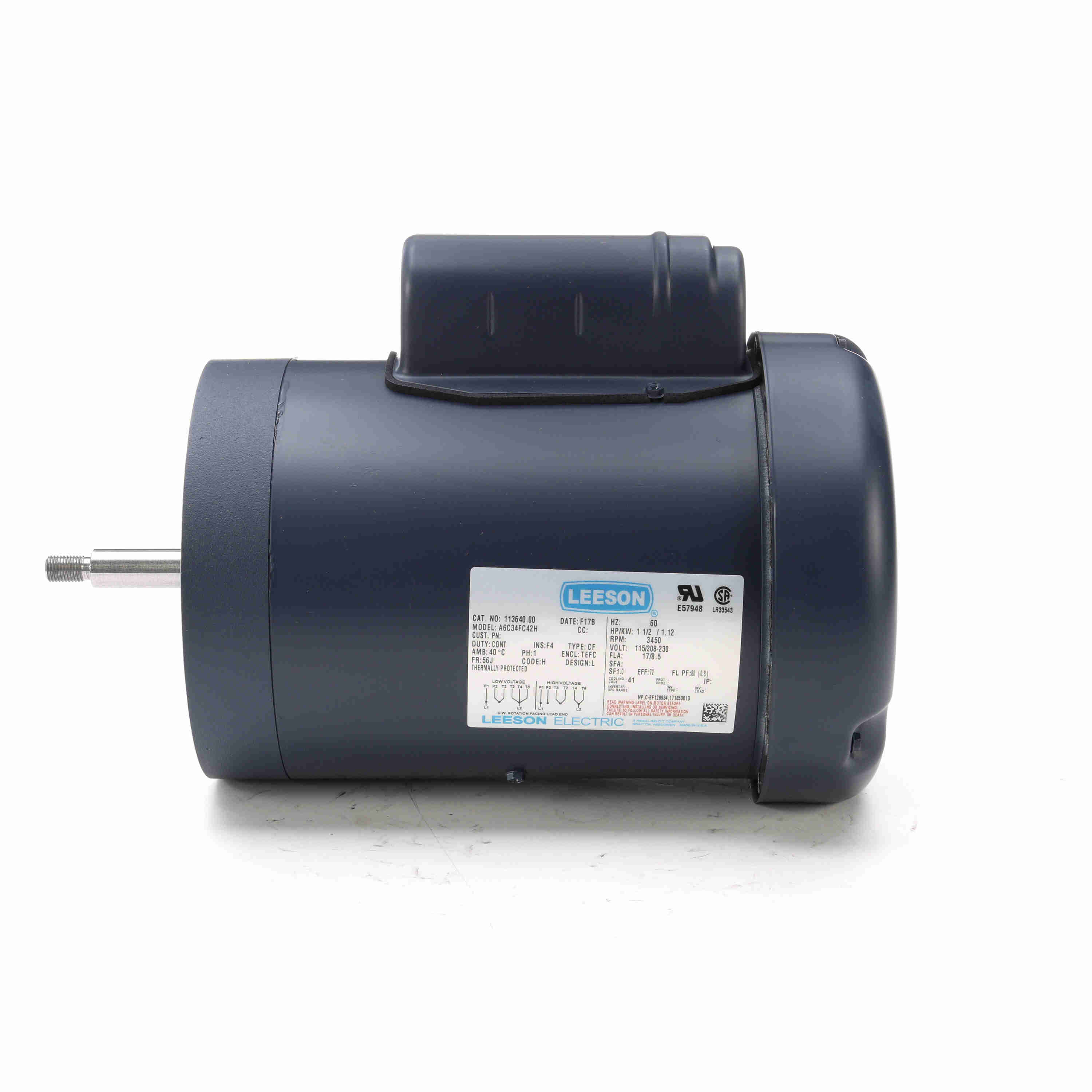

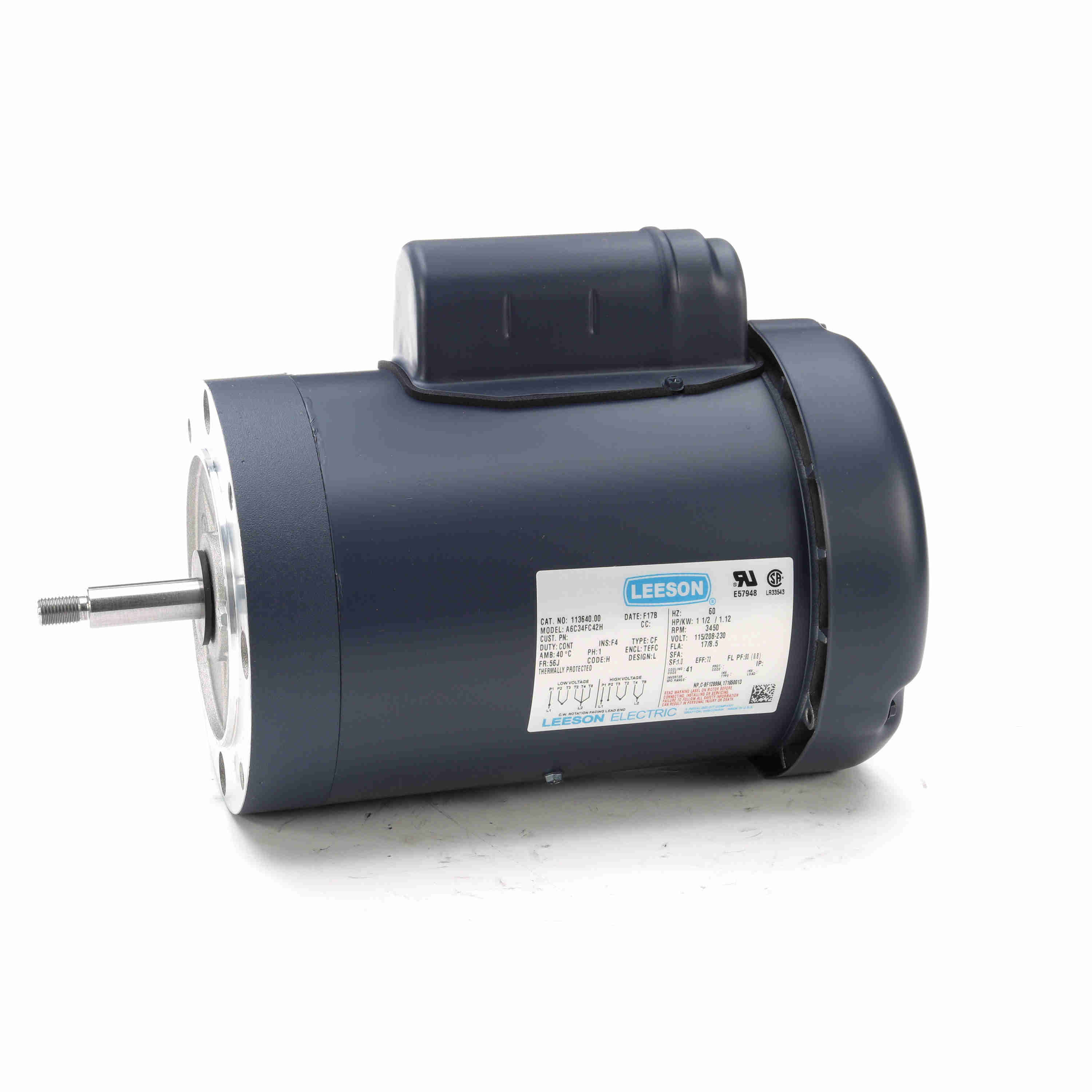

113640.00 Leeson 1.5HP Jet Pump Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113640.00

Selected accessories will also be added to cart
$475.68 / Each
Quantity:
TEFC, 56J Frame, 115/208-230VAC 60Hz Single Phase, A6C34FC42H, Round Body, Rolled Steel, 5/8" Shaft

Features

  • NEMA 56 C face mounting flange
  • Keyed shafts made of carbon steel
  • Dual rotation - Key shaft motors only
  • Quiet flow-through ventilation system
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft-end bearings
  • UL recognized and CSA certified

General Specifications

UPC: 691720012307 Weight: 33.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 17.0/9.0-8.5 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 72 % Power Factor: 80
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: H
Frame: 56J Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Fixed Clockwise
Resistance Main: 1.32 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: J Overall Length: 12.86 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.44 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 5.30 236.0 2,800 1.50
Break-Down 0.00 5.60 249.0 3,000 1.50
Full Load 8.50 2.25 100.0 3,454 1.50
Locked-Rotor 46.00 5.50 244.0 0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 4.67 5.07 5.89 7.05 8.45 9.52 10.33
Rated Output (KW) 0.26 0.54 0.85 1.19 1.56 1.81 2.00
Efficiency (%) 0.0 52.9 66.1 70.7 72.0 71.1 70.0
Power Factor (%) 24.1 46.0 62.7 73.5 80.0 82.8 84.2
Speed (RPM) 3,598 3,561 3,530 3,496 3,454 3,424 3,399
Temp. Rise @ FL 0.0 0.0 0.0 0.0 82.0 0.0 0.0
Torque (ft-lbs) 0.00 0.56 1.12 1.69 2.28 2.65 2.90
