114425.00 Leeson 2HP Explosion Proof Electric Motor, 3450RPM
Click Image to Expand
Previous
Next
Product ID: 114425.00

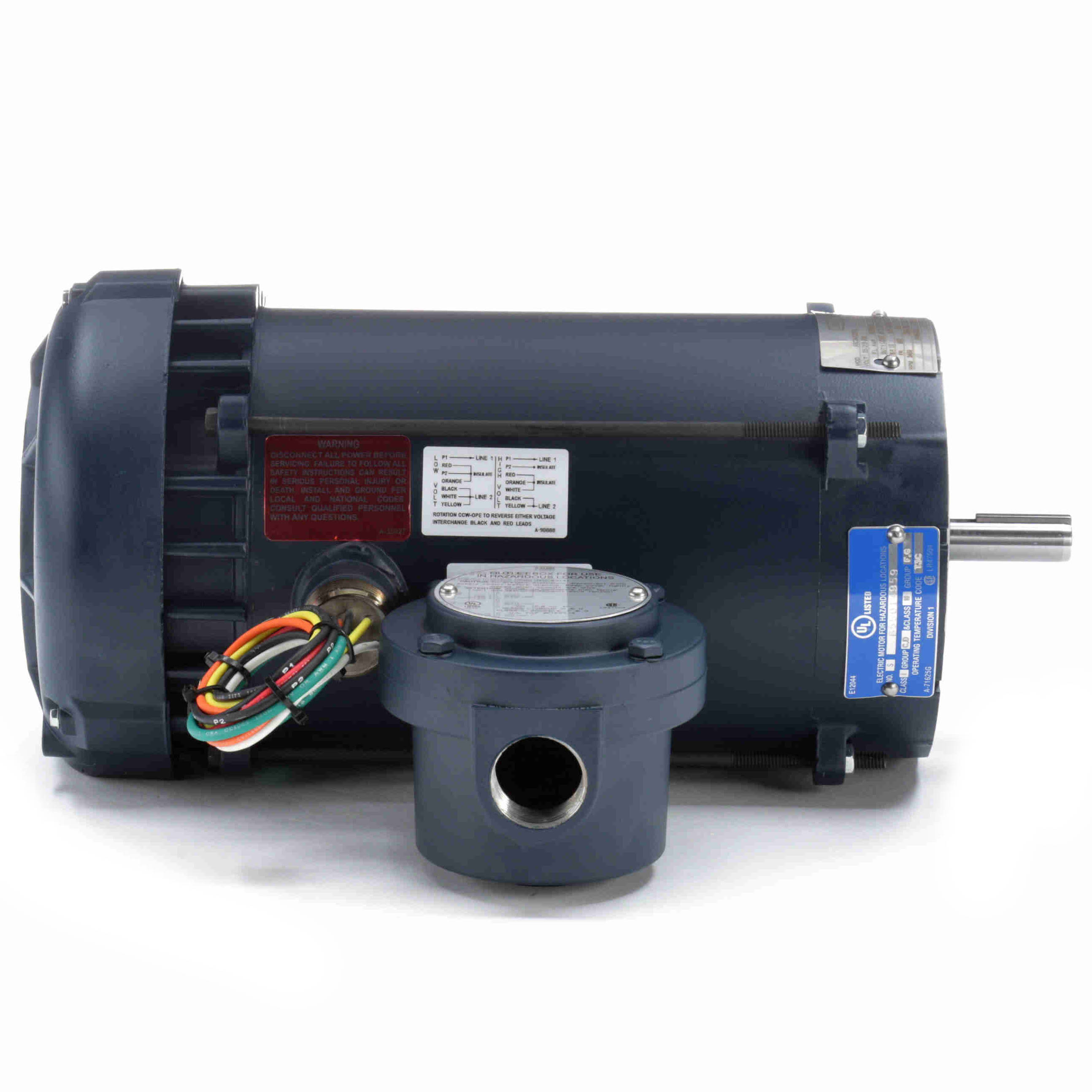

114425.00 Leeson 2HP Explosion Proof Electric Motor, 3450RPM
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114425.00
Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
EPFC, 56C Frame, 115/208-230V Single Phase 60Hz
Details
Features
Meets UL and CSA safety requirements
Automatic overload protected
Explosion rated conduit box included
Internal mounted capacitors
Double shielded ball bearings
Meets temperature code T3B
General Specifications
Model :
A6C34XC27C
Catalog No :
114425.00
Part Description :
..2HP..3450RPM.56.EPFC.115/208-230V.1PH.60HZ.CONT.40C.1.0SF.ROUND.A6C34XC27C.....EXPLOSION-PROOF.AUTOMATIC.......
Category :
Explosion Proof
Stock :
No
Nameplate Specifications
Output HP :
2 Hp
Output KW :
1.5 kW
Frequency :
60 Hz
Voltage :
115/208-230 V
Current :
20.0/10.8-10.0 A
Speed :
3450 rpm
Service Factor :
1
Phase :
1
Efficiency :
75.5 %
Duty :
Continuous
Insulation Class :
B
Design Code :
L
KVA Code :
J
Frame :
56C
Enclosure :
Explosion Proof Fan cooled
Overload Protector :
Automatic
Ambient Temperature :
40 °C
Drive End Bearing Size :
6203
Opp Drive End Bearing Size :
6203
UL :
Listed
CSA :
N
CE :
N
IP Code :
54
Technical Specifications
Electrical Type :
Capacitor Start Capacitor Run
Starting Method :
Across The Line
Poles :
2
Rotation :
Selective Counterclockwise
Mounting :
Round
Motor Orientation :
Horizontal
Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball
Frame Material :
Rolled Steel
Shaft Type :
NEMA 56
Overall Length :
14.94 in
Frame Length :
7.81 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in
Assembly/Box Mounting :
F1 ONLY
UPC :
691720013953
Weight :
42.00 LB
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Locked-Rotor
63.50
635.0
7.30
246.0
0
11.50
0.0
2.00
Break-Down
35.80
358.0
7.70
259.0
3,080
7.10
0.0
2.00
Full Load
10.00
100.0
2.97
100.0
3,500
1.96
0.0
2.00
Pull-Up
64.00
640.0
5.20
175.0
290
11.40
0.0
2.00
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
3.80
0.260
0.0
31.0
3,600
0.0
0.00
25 %
4.50
0.660
58.3
61.5
3,570
0.0
0.74
50 %
6.00
1.060
71.3
75.5
3,545
0.0
1.47
75 %
8.05
1.500
75.4
83.7
3,525
0.0
2.22
100 %
10.00
1.960
75.5
87.5
3,500
70.0
2.97
115 %
10.80
2.275
75.5
88.5
3,485
85.0
3.47
125 %
11.30
2.490
75.9
89.4
3,470
0.0
3.79
150 %
14.40
3.050
74.0
90.4
3,442
0.0
4.53
175 %
17.80
3.750
71.1
90.5
3,395
0.0
5.42
