/Products/Electric Motors/3 Phase Explosion Proof/Leeson/C-Face with Base/114626.00 Leeson 1/3HP Explosion Proof Electric Motor, 1800RPM

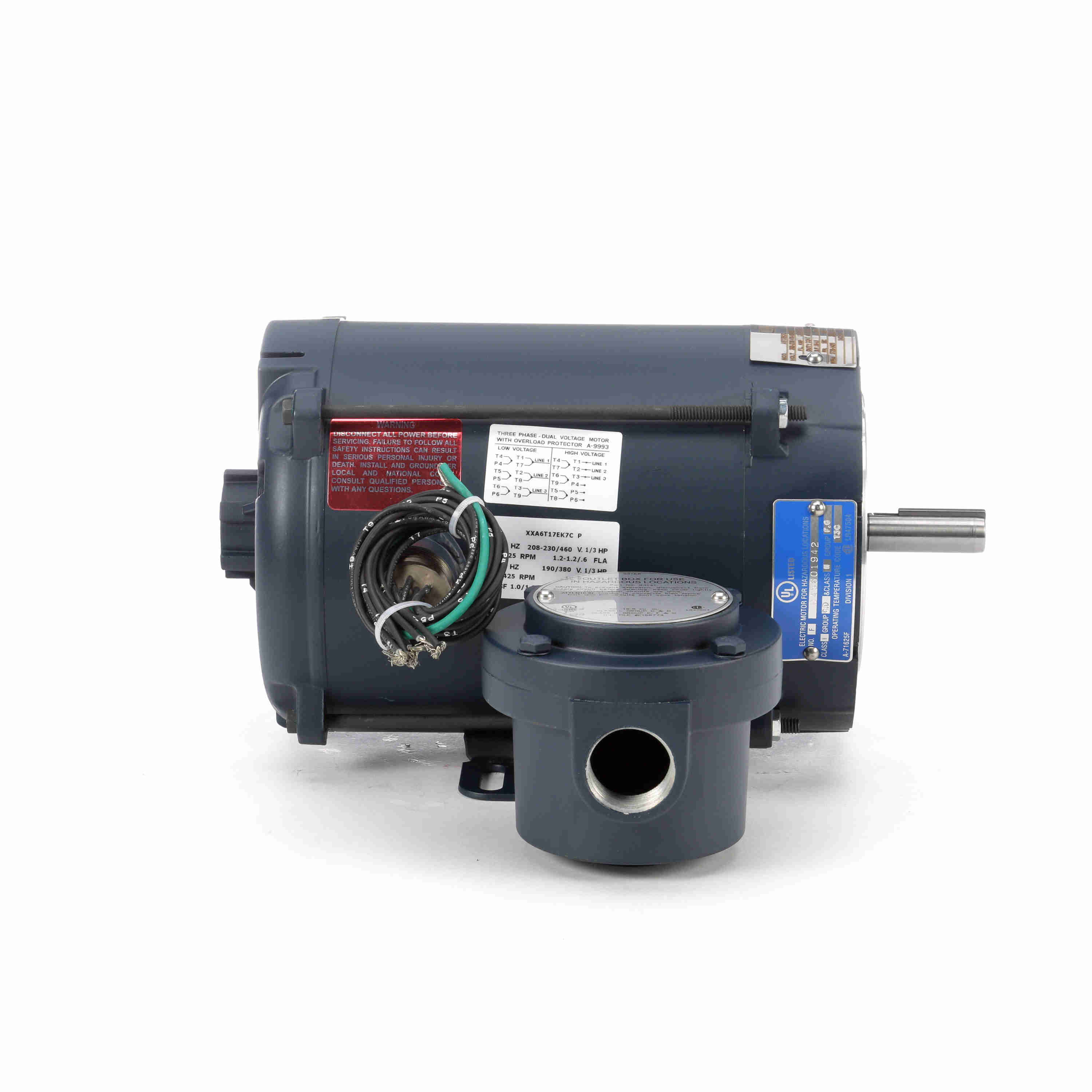

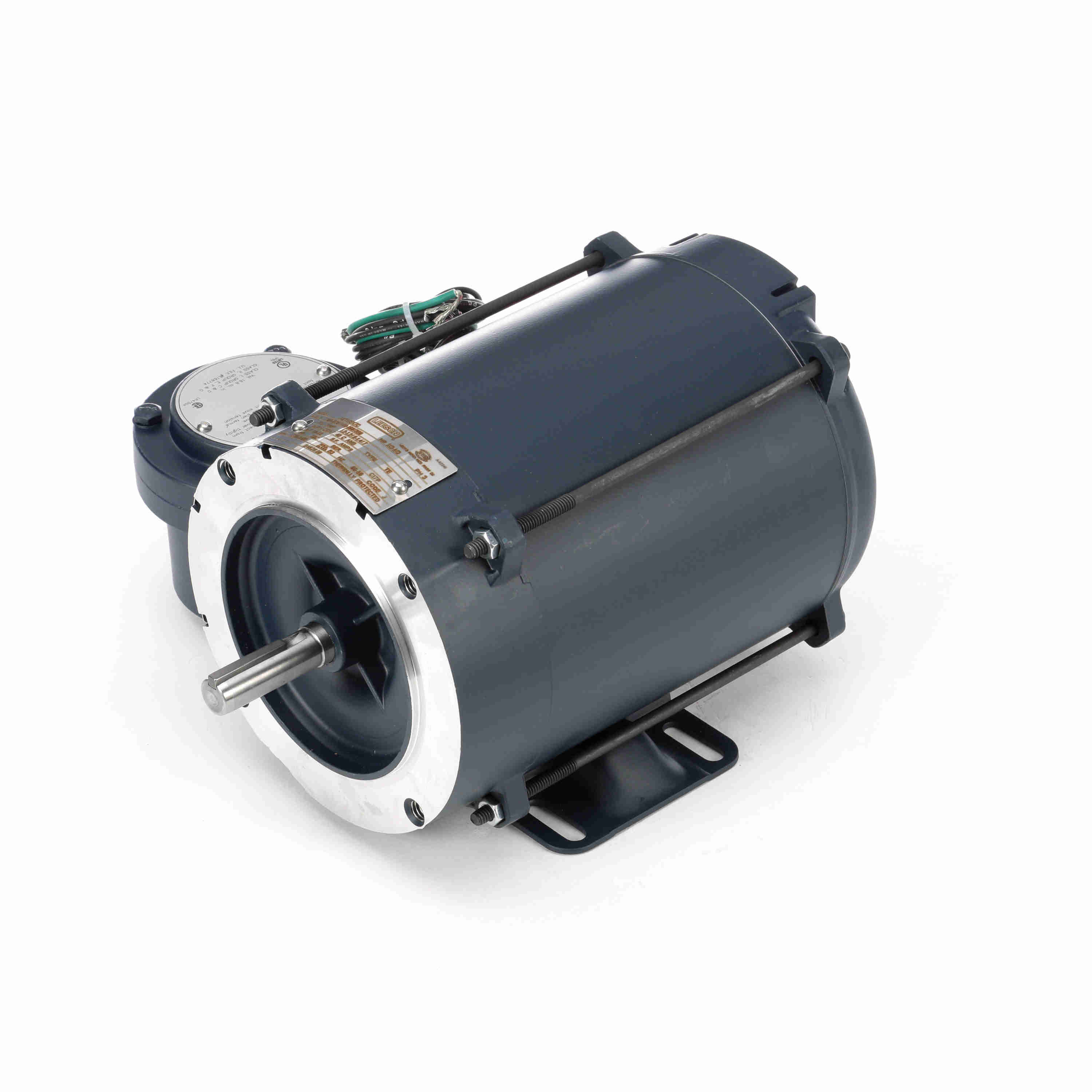

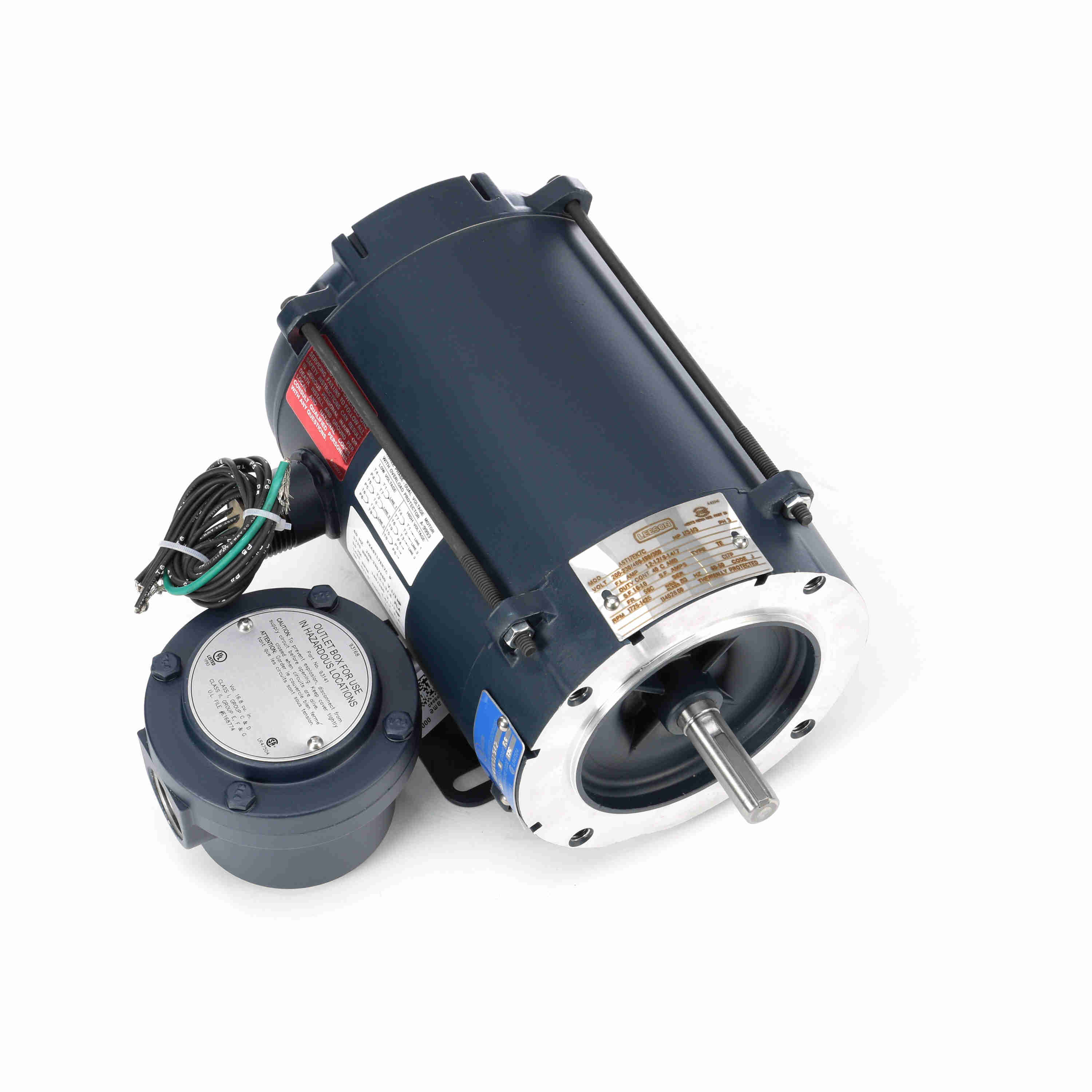

Click Image to Expand

Product ID: 114626.00

114626.00 Leeson 1/3HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114626.00

Selected accessories will also be added to cart
$1,099.97 / Each
Quantity:
EPNV, 56C Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, C-Face, Rolled Steel, Reversible, 5/8" Keyed Shaft

Features

  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Explosion rated conduit box included
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B

General Specifications

UPC: 691720014134 Weight: 29.00 LB
Packaged Length: 16.38 IN Packaged Width: 10.5 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.2-1.2/0.60 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Efficiency: 74.5 % Power Factor: 71
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: K
Frame: 56C Enclosure: Explosion Proof Non Ventilated
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.97 in
Frame Length: 6.31 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 3.60 0.0 3.10 0.0 0 0.00 0.0 0.33
Break-Down 2.40 0.0 3.70 0.0 1,500 0.00 0.0 0.33
Pull-Up 3.00 0.0 2.80 0.0 280 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.40 0.45 0.45 0.50 0.55 0.65 0.70
Rated Output (KW) 0.07 0.11 0.20 0.26 0.33 0.38 0.40
Efficiency (%) 0.0 44.0 67.5 72.5 74.5 74.5 75.0
Power Factor (%) 77.0 33.5 52.0 64.0 71.0 71.2 76.0
Speed (RPM) 1,800 1,780 1,755 1,735 1,725 1,715 1,710
Temp. Rise @ FL 0.0 0.0 0.0 0.0 39.0 0.0 0.0
Torque (ft-lbs) 0.00 0.20 0.50 0.75 1.00 1.20 1.30
