/Products/Electric Motors/3 Phase Explosion Proof/Leeson/C-Face with Base/114628.00 Leeson 1/2HP Explosion Proof Electric Motor, 1800RPM
Click Image to Expand

Product ID: 114628.00

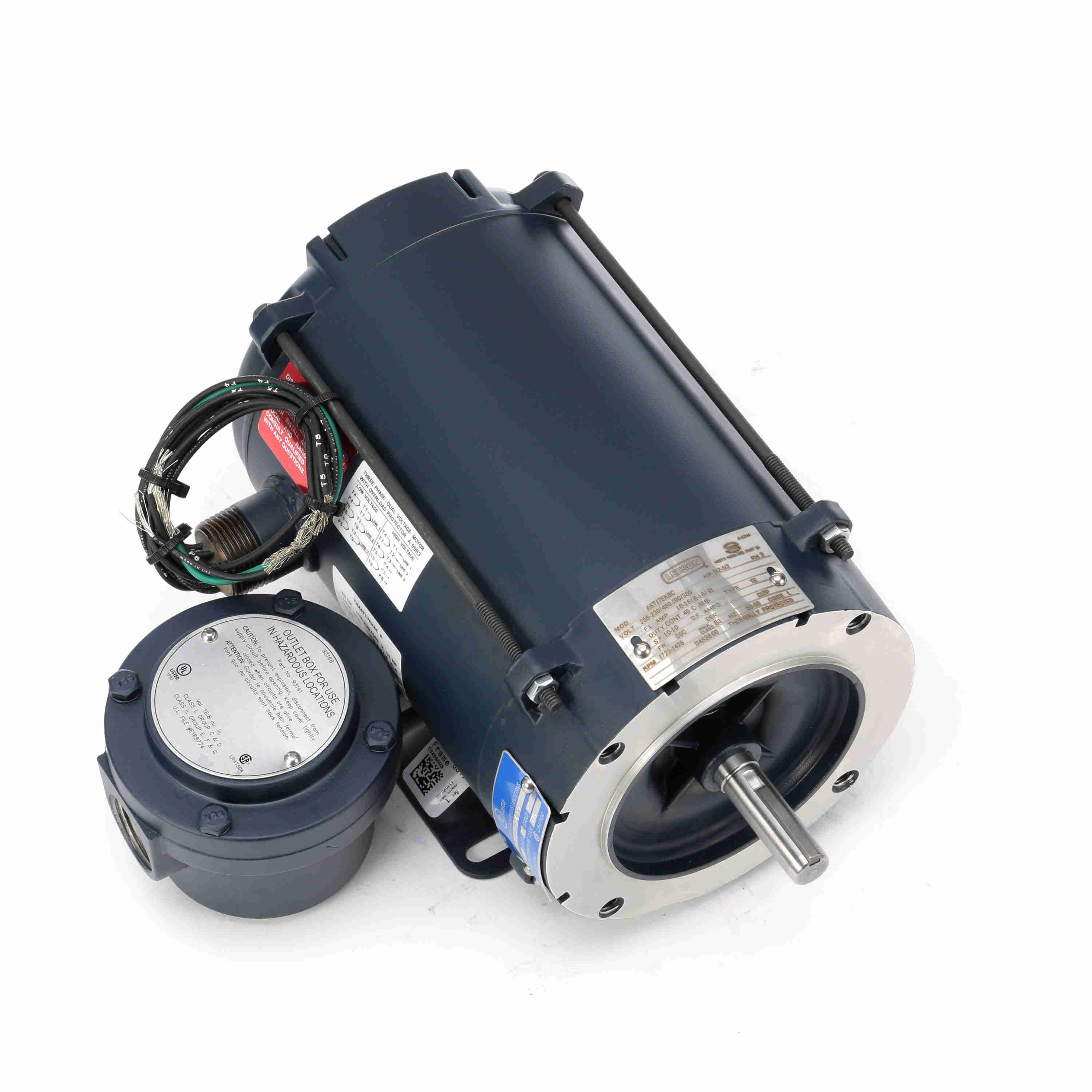

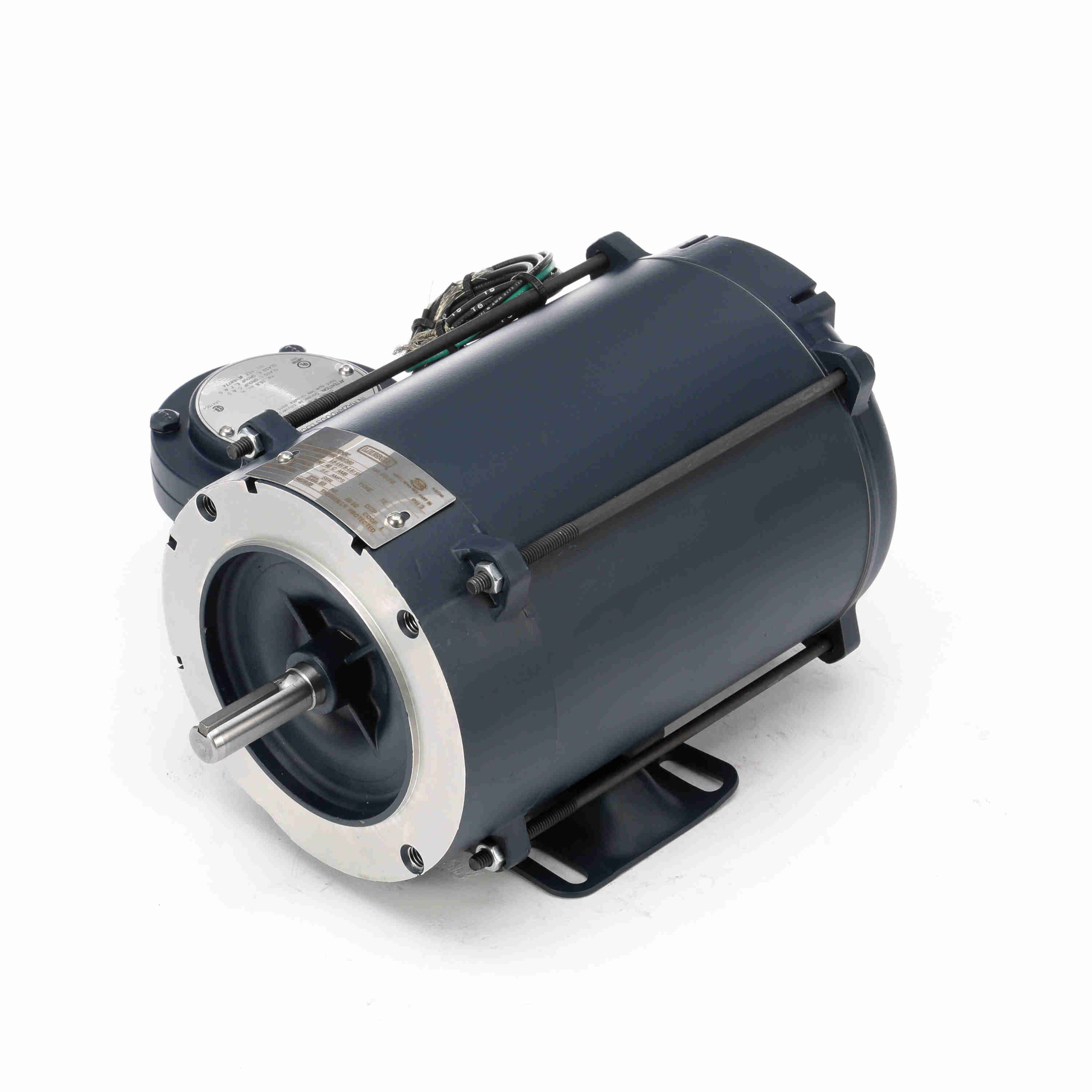

114628.00 Leeson 1/2HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114628.00

Selected accessories will also be added to cart
$1,099.97 / Each
Quantity:
EPNV, 56C Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, C-Face, Rolled Steel, Reversible, 5/8" Keyed Shaft

Features

  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Explosion rated conduit box included
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B

General Specifications

UPC: 691720014158 Weight: 31.00 LB
Packaged Length: 16.38 IN Packaged Width: 10.5 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.8-1.6/0.80 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Efficiency: 80 % Power Factor: 72
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: L
Frame: 56C Enclosure: Explosion Proof Non Ventilated
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 36.24 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.47 in
Frame Length: 6.81 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 0.90 100.0 1.52 100.0 1,725 0.00 0.0 0.50
Break-Down 3.50 389.0 5.80 382.0 1,330 0.00 84.0 0.50
Locked-Rotor 5.60 622.0 4.60 303.0 0 0.00 69.5 0.50
No Load 0.52 58.0 0.00 0.0 1,800 0.00 0.0 0.50
1/3 5.30 589.0 3.90 257.0 500 0.00 0.0 0.50
2/3 4.80 533.0 4.80 316.0 1,100 0.00 0.0 0.50
Pull-Up 5.00 556.0 4.20 276.0 800 0.00 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.52 0.55 0.60 0.70 0.80 1.00 1.10
Rated Output (KW) 0.05 0.15 0.25 0.35 0.45 0.58 0.70
Efficiency (%) 0.0 62.5 75.6 78.6 82.8 79.8 79.3
Power Factor (%) 12.1 34.2 52.3 62.8 70.6 72.8 79.9
Speed (RPM) 1,800 1,785 1,775 1,760 1,725 1,715 1,700
Temp. Rise @ FL 0.0 0.0 0.0 0.0 50.0 0.0 0.0
Torque (ft-lbs) 0.00 0.37 0.75 1.10 1.52 1.90 2.30
