/Products/Electric Motors/Single Phase/Leeson/Pressure Washer/114995.00 Leeson 2HP Electric Motor, 3600RPM
Click Image to Expand

Product ID: 114995.00

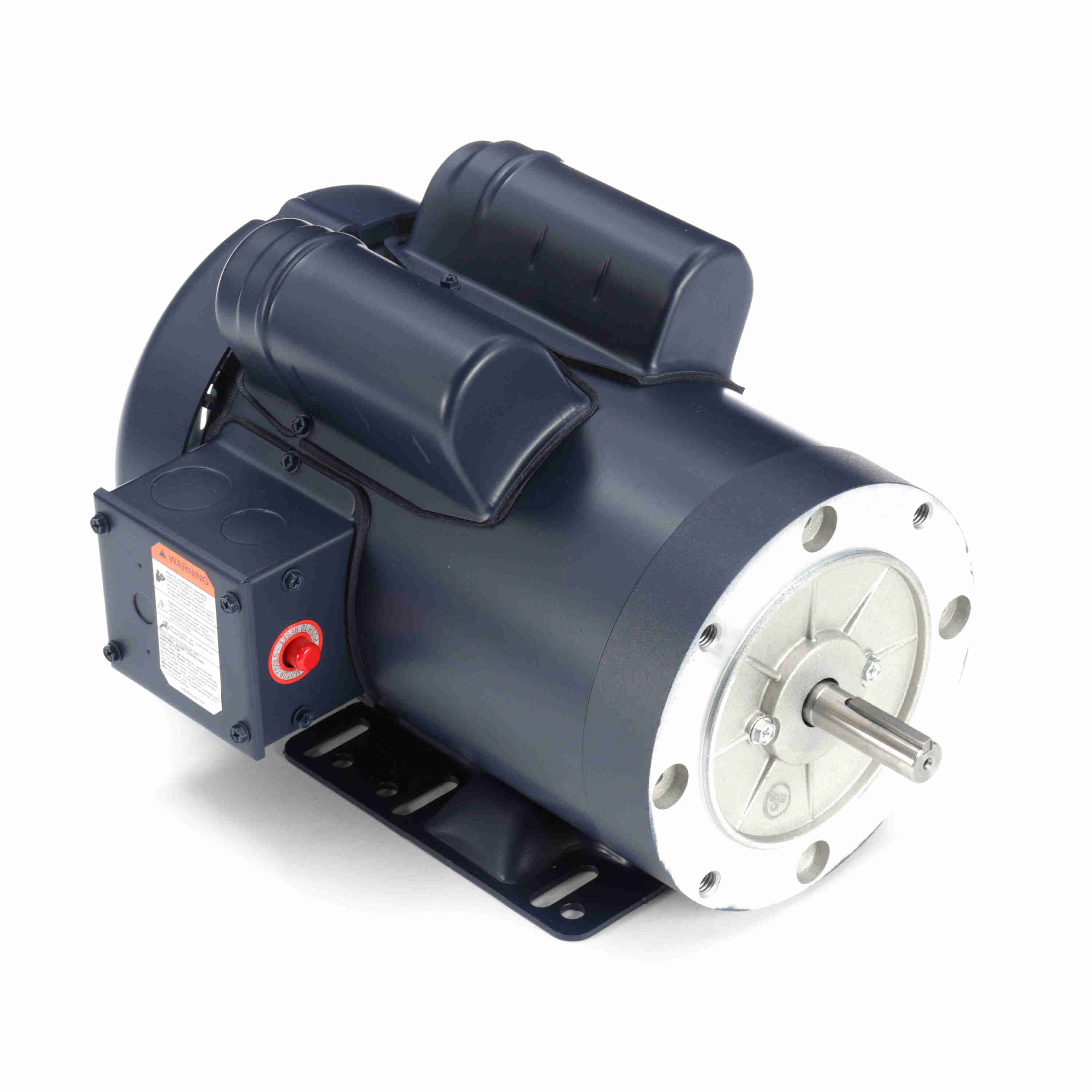

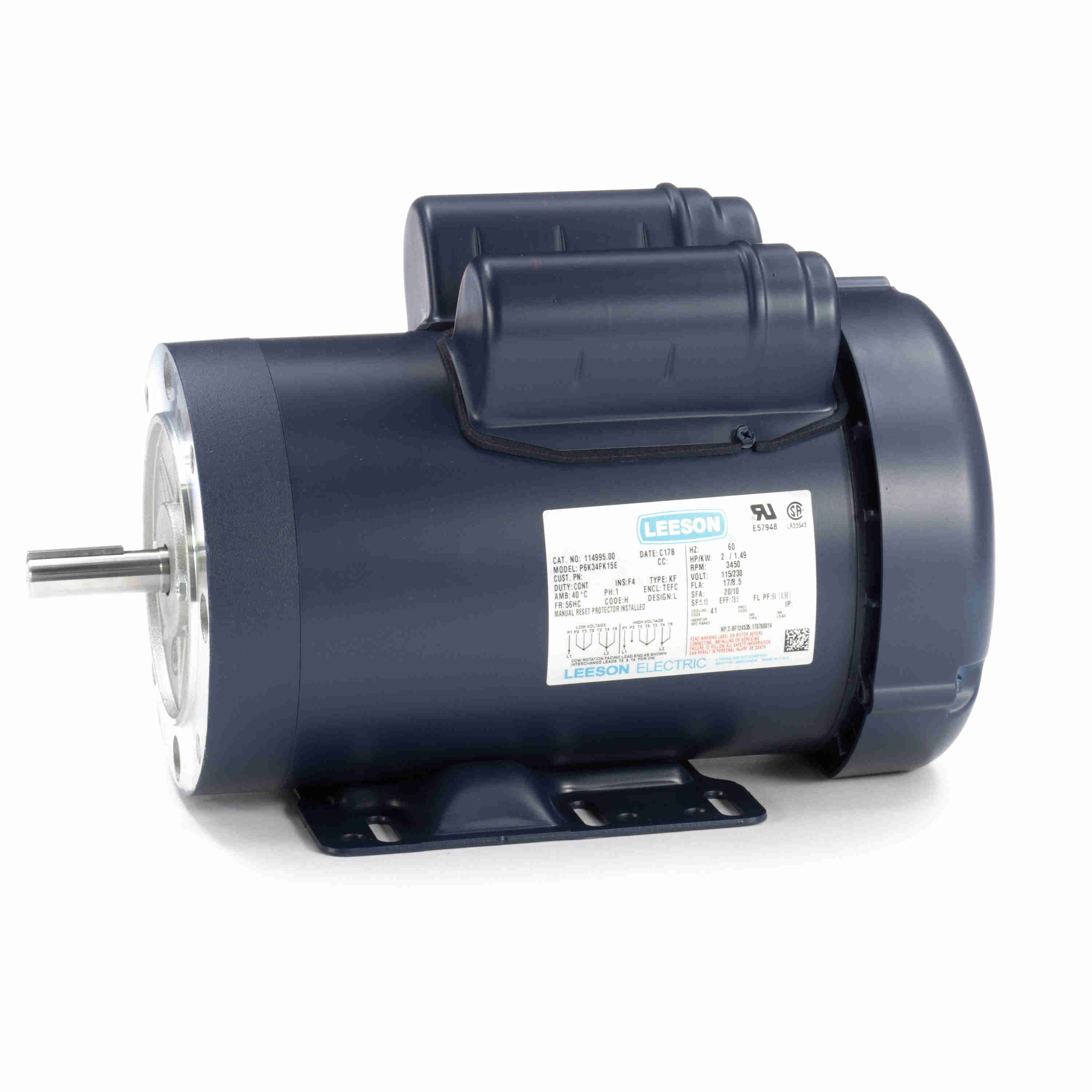

114995.00 Leeson 2HP Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114995.00

Selected accessories will also be added to cart
$813.62 / Each
Quantity:
P6K34FK15E, 56HC Frame, 115/208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Windings dipped in heavy duty varnish system
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
General Specifications
Model : P6K34FK15E Catalog No : 114995.00
Part Description : 2HP..3450RPM.56H.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID C.PRESSURE WASHER.P6K34FK15E Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 2 Hp Output KW : 1.49 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 17/8.5 A Speed : 3450 rpm
Service Factor : 1.15 Phase : 1
Efficiency : 78.5 % Duty : CONTINUOUS
Insulation Class : F Design Code : L
KVA Code : H Frame : 56HC
Enclosure : TEFC Overload Protector : MANUAL
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE
Poles : 2 Rotation : SELECTIVE CCW
Mounting : RIGID Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : STANDARD 56
Overall Length : 12.84 in Frame Length : 8 in
Shaft Diameter : 0.63 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720014400
Weight : 45.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 61.00 0.0 7.20 0.0 0 0.00 0.0 2.00
Full Load 8.50 0.0 3.00 0.0 3,450 0.00 0.0 2.00
Break-Down 0.00 0.0 7.50 0.0 3,000 0.00 0.0 2.00
Pull-Up 0.00 0.0 6.80 0.0 2,000 0.00 0.0 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.50
  • 0.270
  • 0.0
  • 78.3
  • 3,590
  • 0.0
  • 0.00
  • 25 %
  • 2.80
  • 0.605
  • 62.8
  • 93.9
  • 3,568
  • 0.0
  • 0.75
  • 50 %
  • 4.50
  • 1.003
  • 75.2
  • 96.9
  • 3,541
  • 0.0
  • 1.50
  • 75 %
  • 6.50
  • 1.414
  • 79.4
  • 94.6
  • 3,513
  • 0.0
  • 2.25
  • 100 %
  • 8.50
  • 1.862
  • 79.6
  • 95.2
  • 3,479
  • 70.0
  • 3.00
  • 125 %
  • 10.60
  • 2.347
  • 78.1
  • 96.3
  • 3,442
  • 0.0
  • 3.75
  • 150 %
  • 13.20
  • 2.887
  • 75.6
  • 95.1
  • 3,415
  • 0.0
  • 4.50
