/Products/Electric Motors/Single Phase/Leeson/Pressure Washer/115048.00 Leeson 3HP Electric Motor, 3600RPM
Click Image to Expand

Product ID: 115048.00

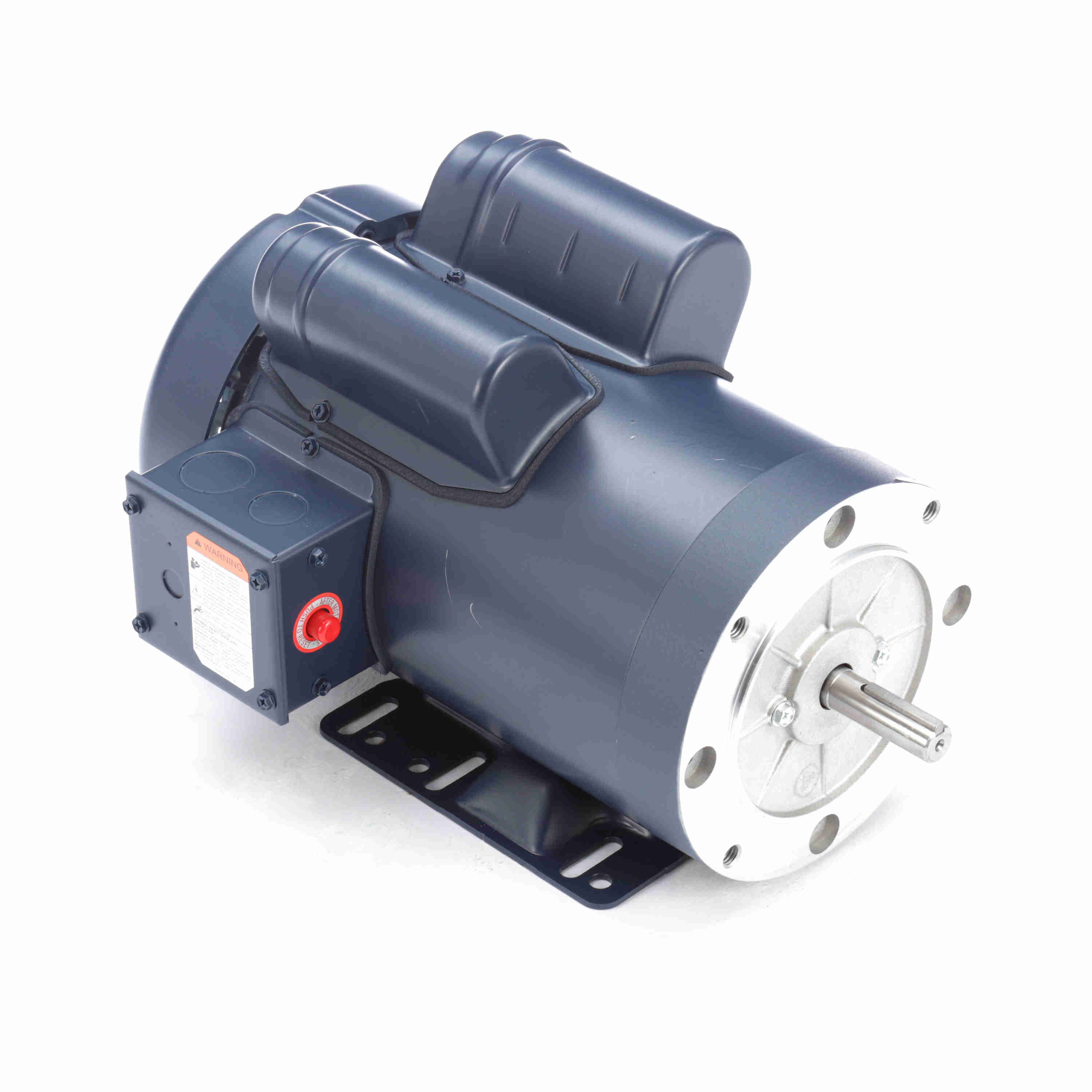

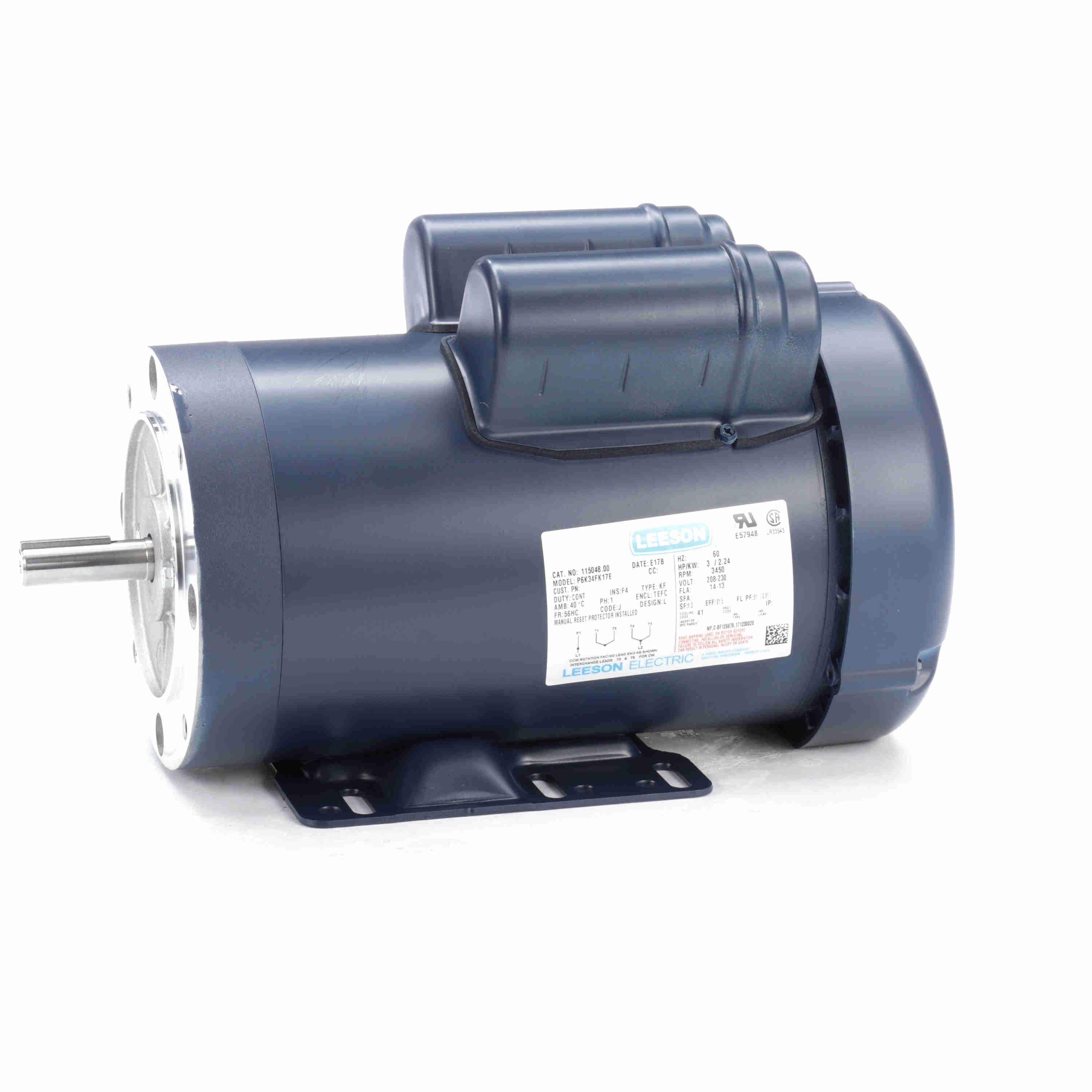

115048.00 Leeson 3HP Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 115048.00

Selected accessories will also be added to cart
$890.06 / Each
Quantity:
P6K34FK17E. 56HC Frame, 115/208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Windings dipped in heavy duty varnish system
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
General Specifications
Model : P6K34FK17E Catalog No : 115048.00
Part Description : 3HP..3450RPM.56H.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.0SF.RIGID C.PRESSURE WASHER.P6K34FK17E Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 3 Hp Output KW : 2.24 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 14-13 A Speed : 3450 rpm
Service Factor : 1 Phase : 1
Efficiency : 81.5 % Duty : CONTINUOUS
Insulation Class : F Design Code : L
KVA Code : J Frame : 56HC
Enclosure : TEFC Overload Protector : MANUAL
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE
Poles : 2 Rotation : SELECTIVE CCW
Mounting : RIGID Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : STANDARD 56
Overall Length : 13.98 in Frame Length : 8.5 in
Shaft Diameter : 0.63 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720014424
Weight : 49.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 13.00 0.0 4.50 100.0 3,512 0.00 0.0 3.00
Pull-Up 0.00 0.0 12.00 287.0 2,650 0.00 0.0 3.00
Break-Down 0.00 0.0 13.50 300.0 2,850 0.00 0.0 3.00
Locked-Rotor 100.00 0.0 12.50 302.0 0 0.00 0.0 3.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.93
  • 0.341
  • 0.0
  • 31.3
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 5.79
  • 0.897
  • 64.0
  • 67.4
  • 3,577
  • 0.0
  • 1.13
  • 50 %
  • 7.89
  • 1.470
  • 77.4
  • 81.0
  • 3,557
  • 0.0
  • 2.25
  • 75 %
  • 10.30
  • 2.089
  • 81.3
  • 88.2
  • 3,536
  • 0.0
  • 3.38
  • 100 %
  • 13.23
  • 2.760
  • 82.4
  • 91.0
  • 3,512
  • 80.0
  • 4.50
  • 125 %
  • 15.94
  • 3.397
  • 82.1
  • 92.7
  • 3,486
  • 0.0
  • 5.63
  • 150 %
  • 19.08
  • 4.100
  • 80.8
  • 93.4
  • 3,455
  • 0.0
  • 6.75
