/Products/Electric Motors/Single Phase/Leeson/High Torque TEFC C-Face W/Base/116486.00 1/2HP Leeson Ag Duty Electric Motor
Click Image to Expand

Product ID: 116486.00

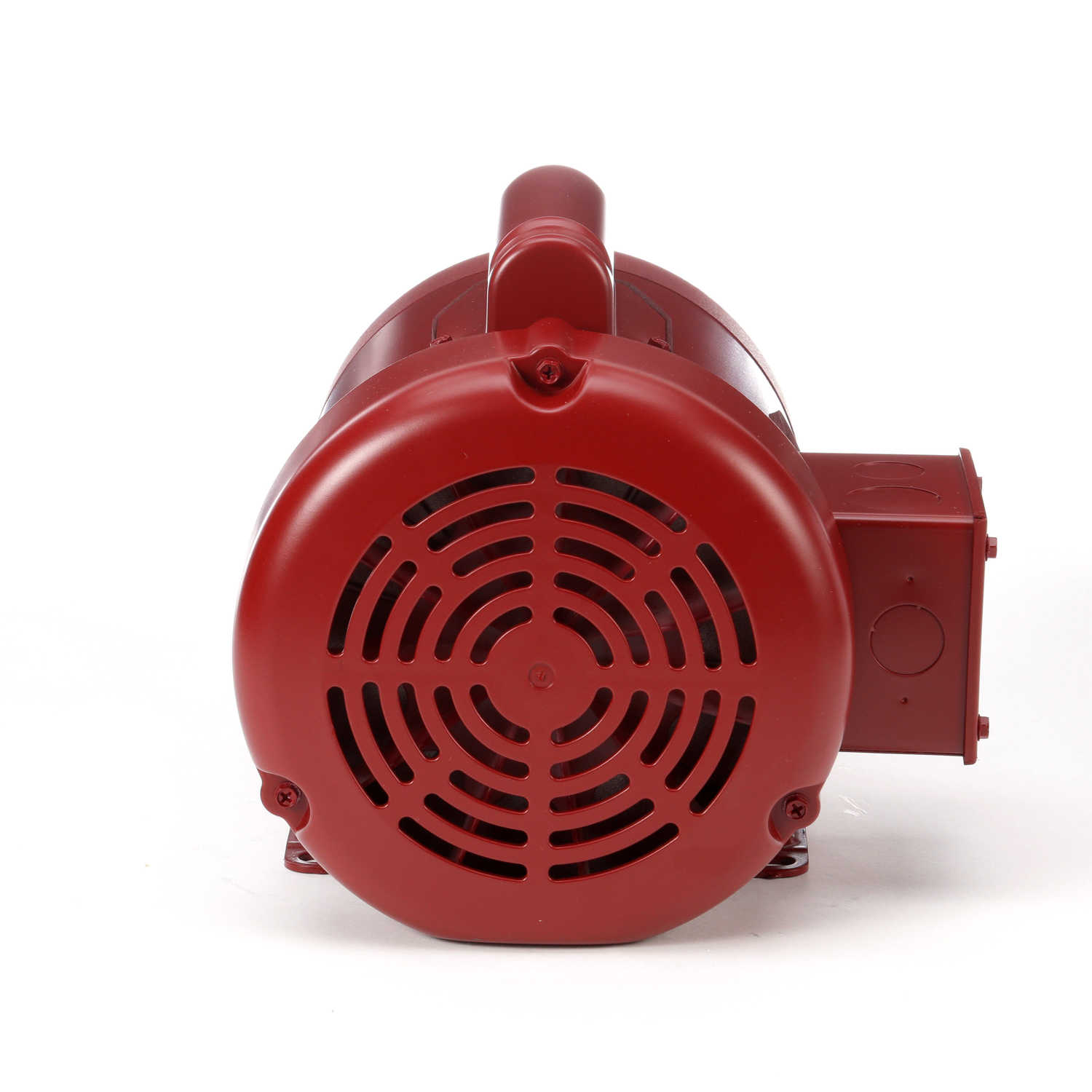

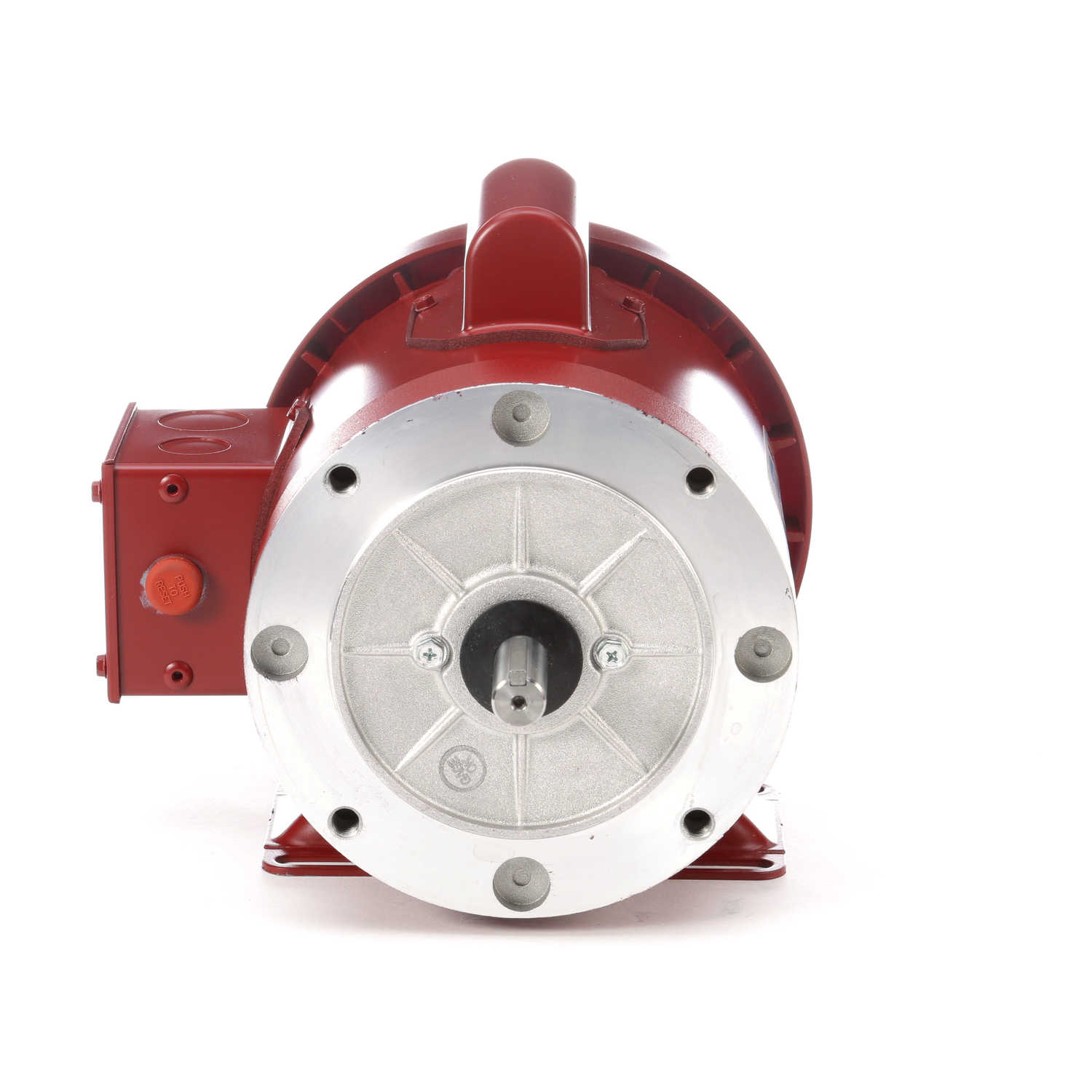

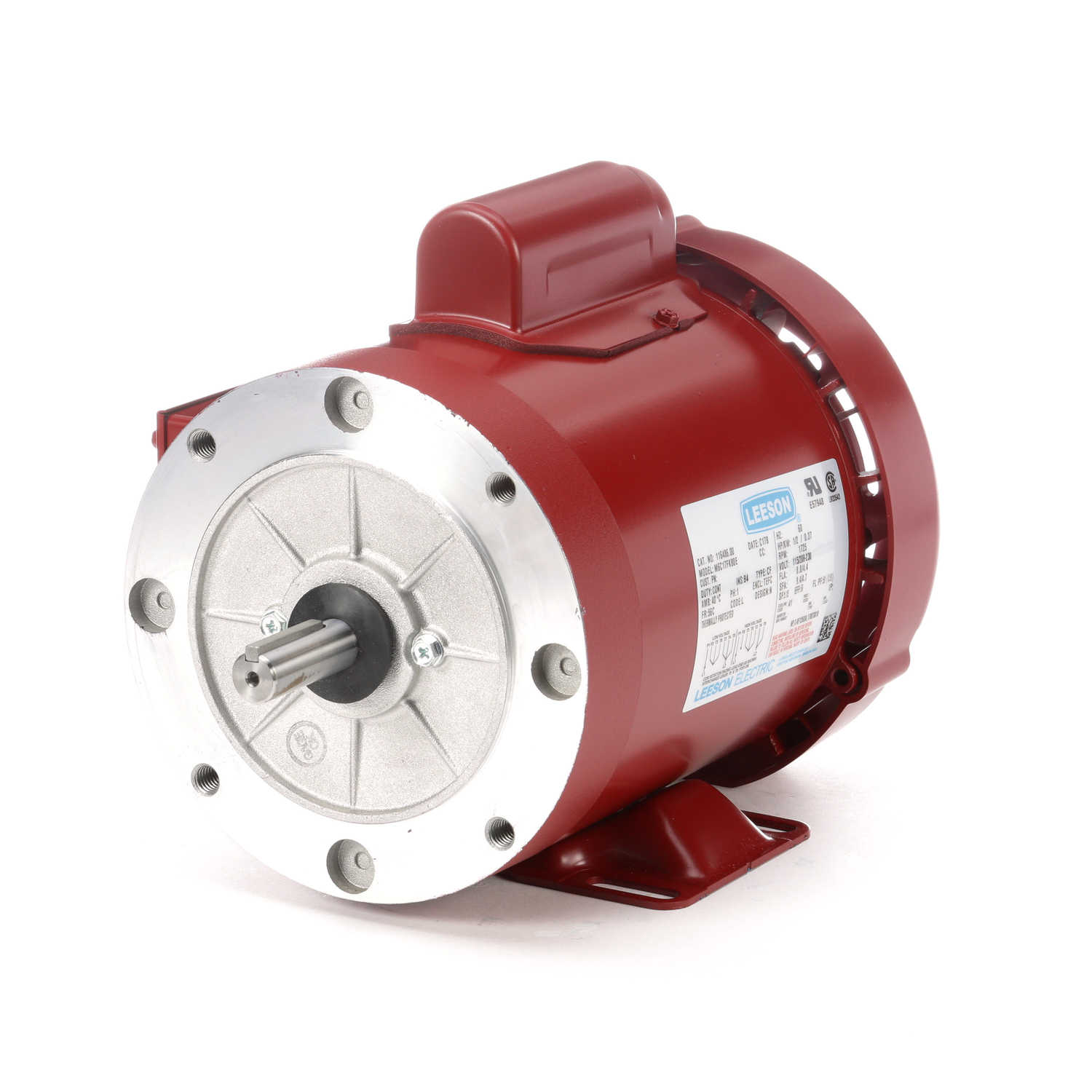

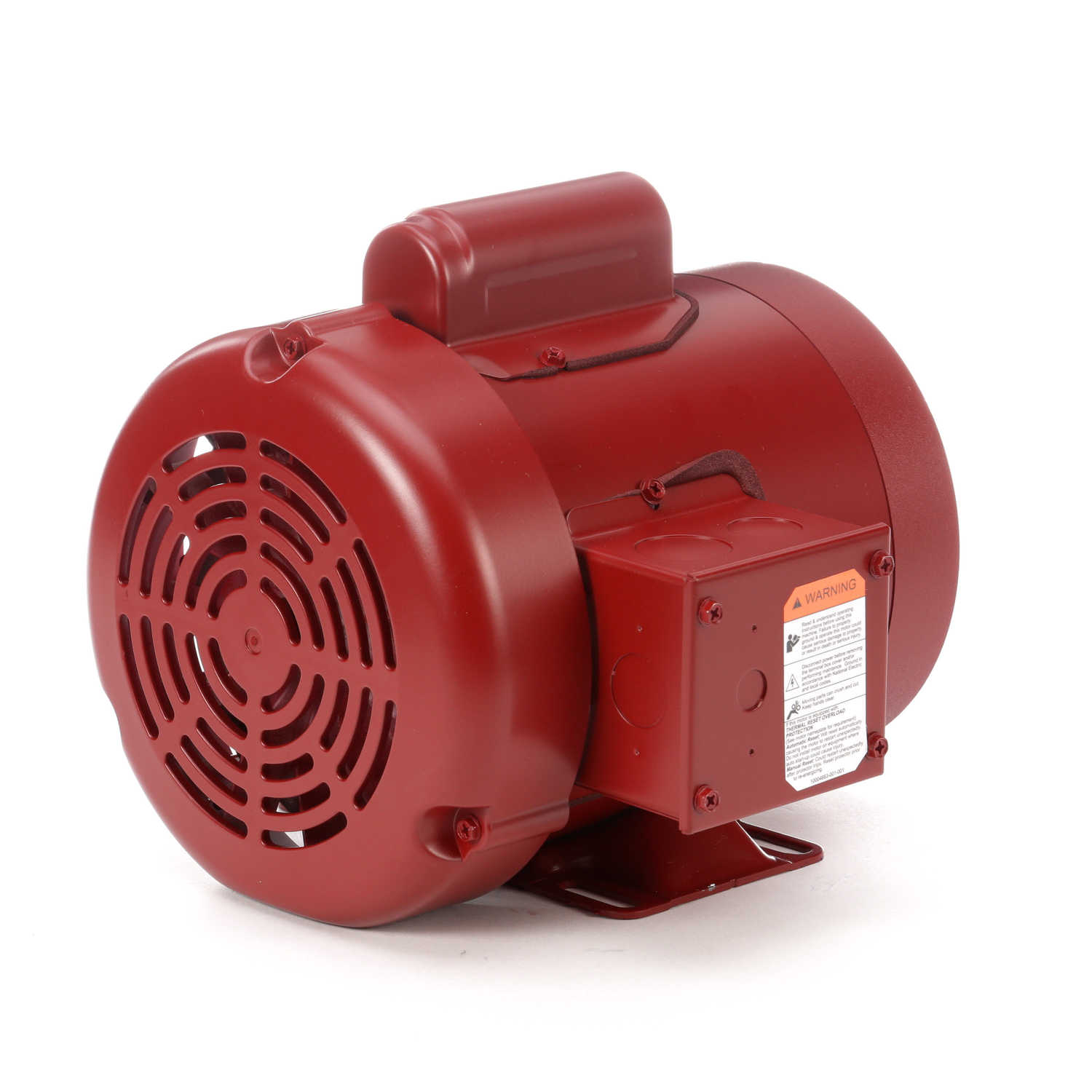

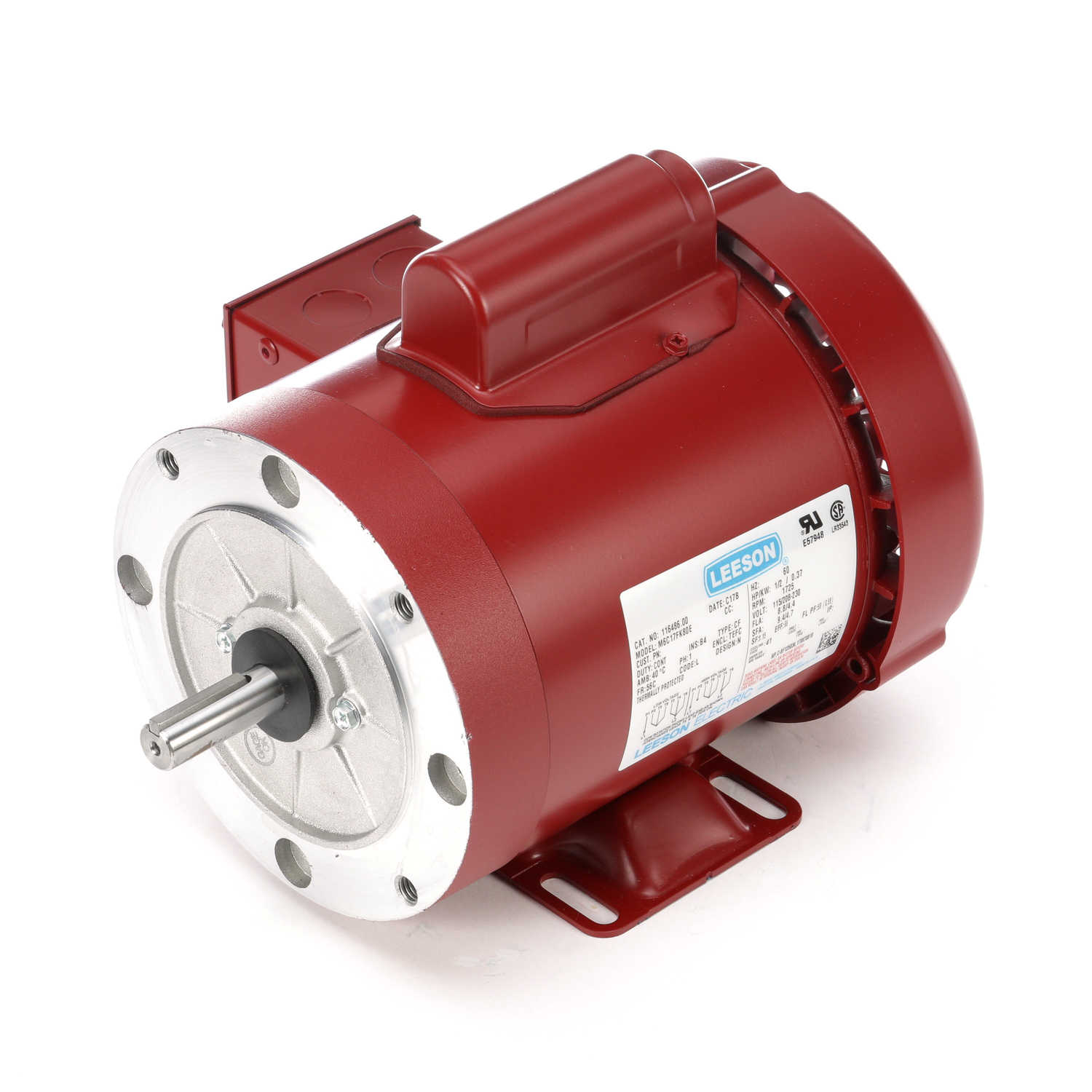

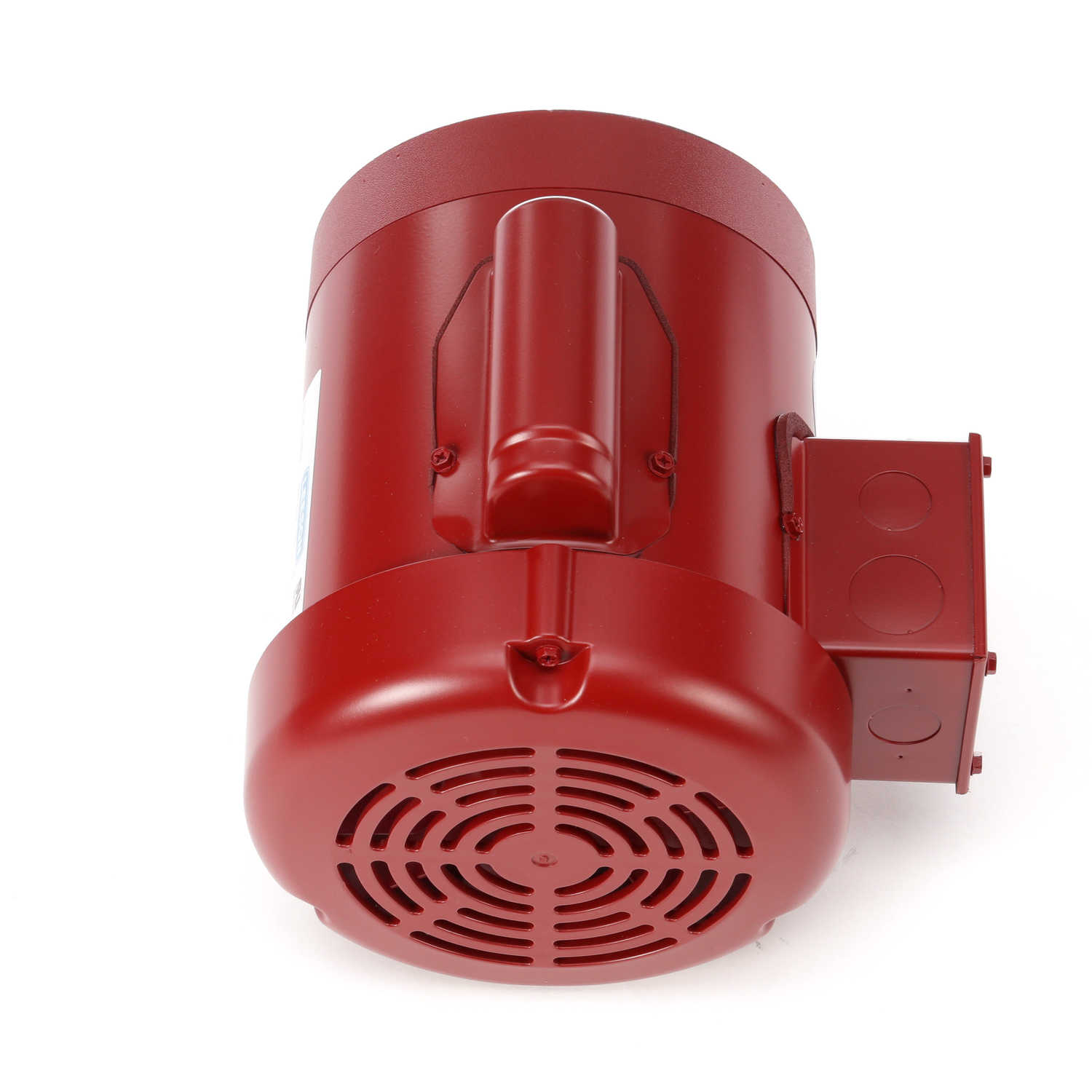

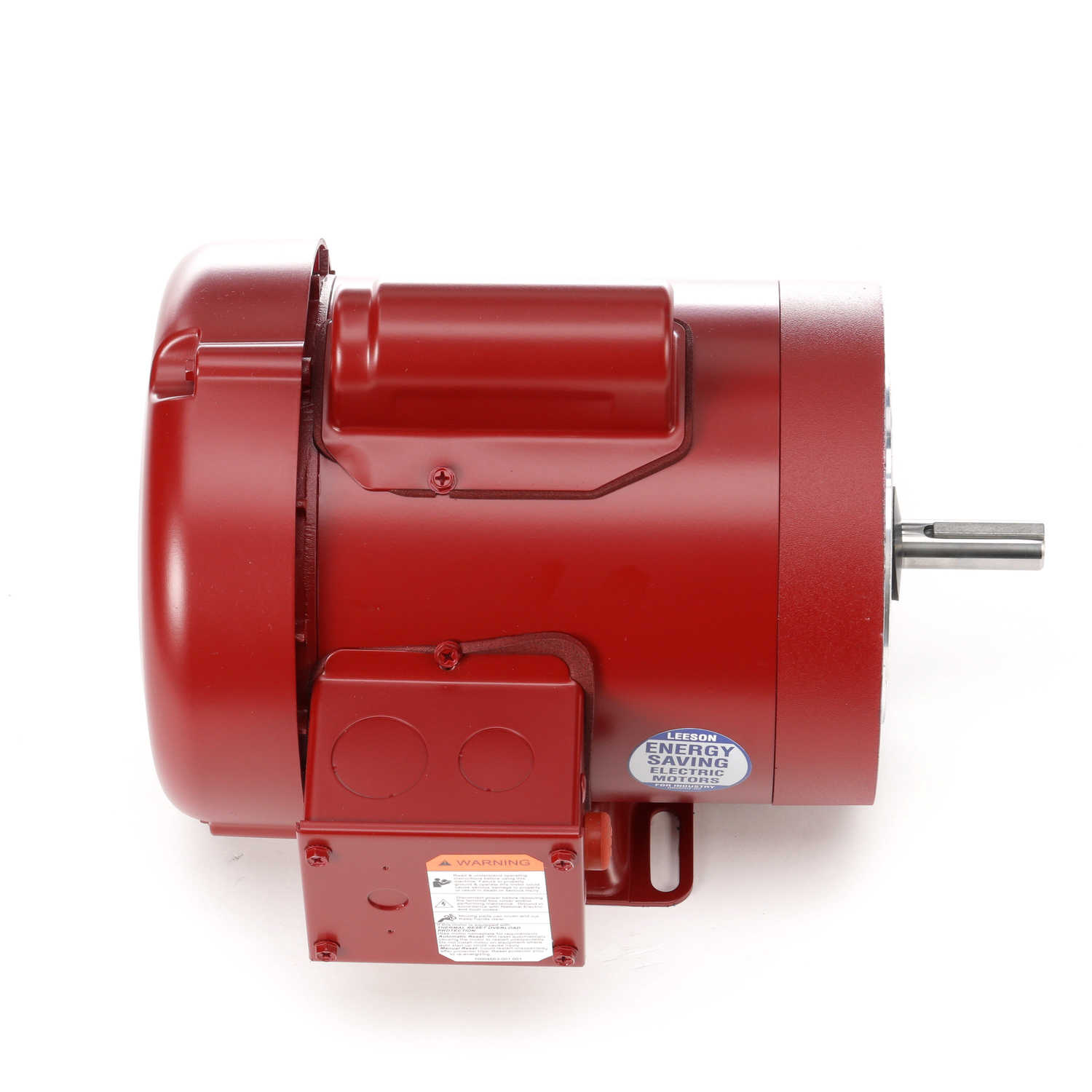

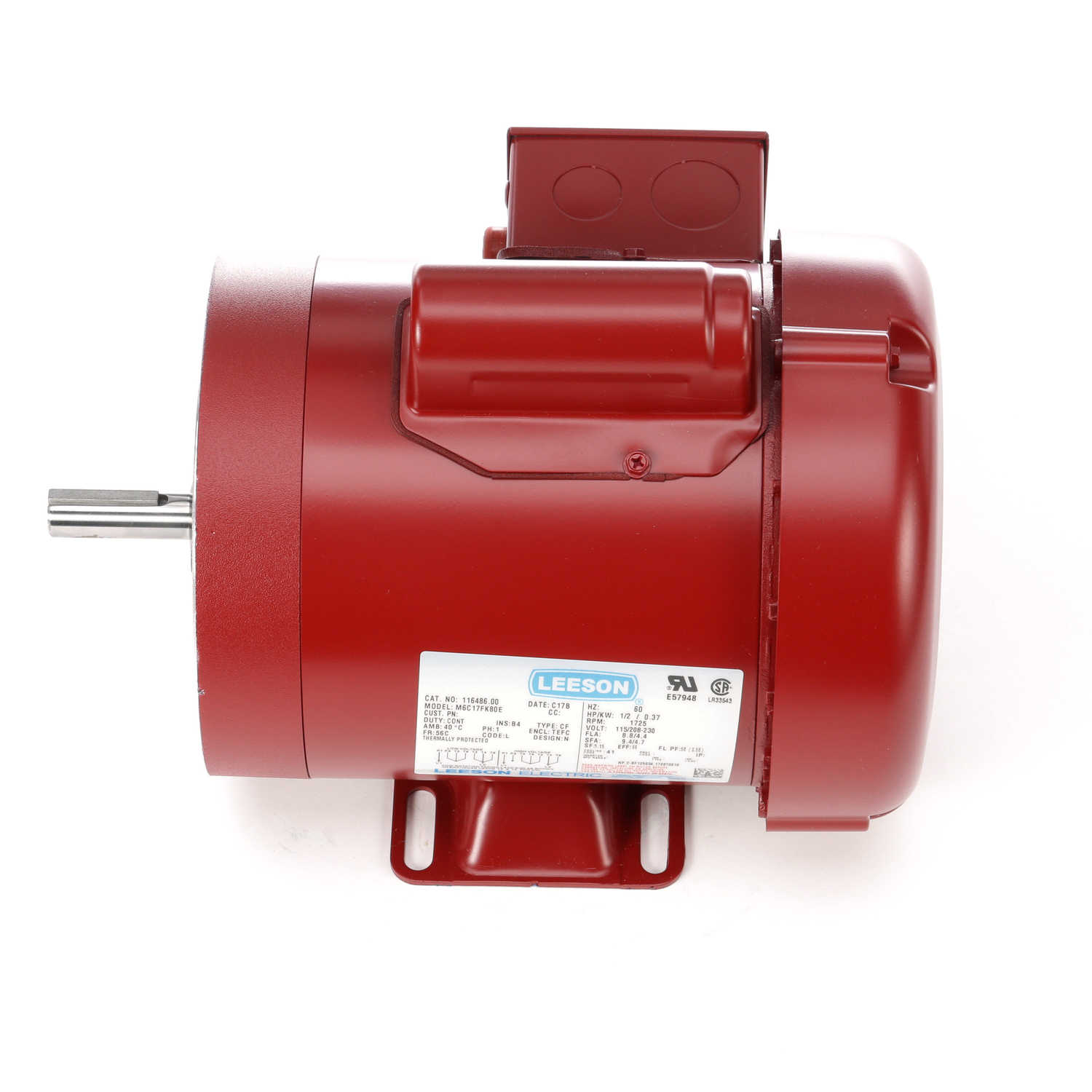

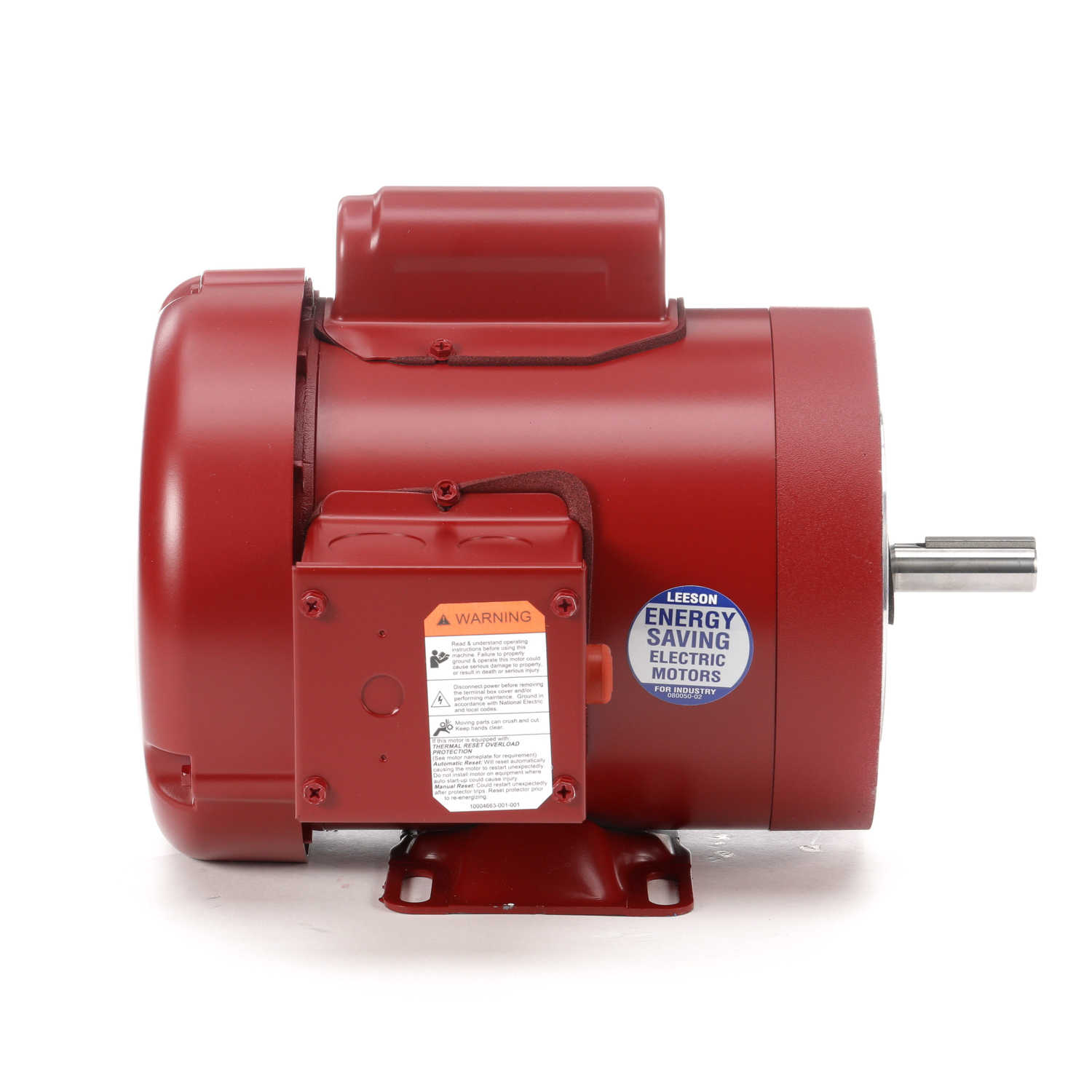

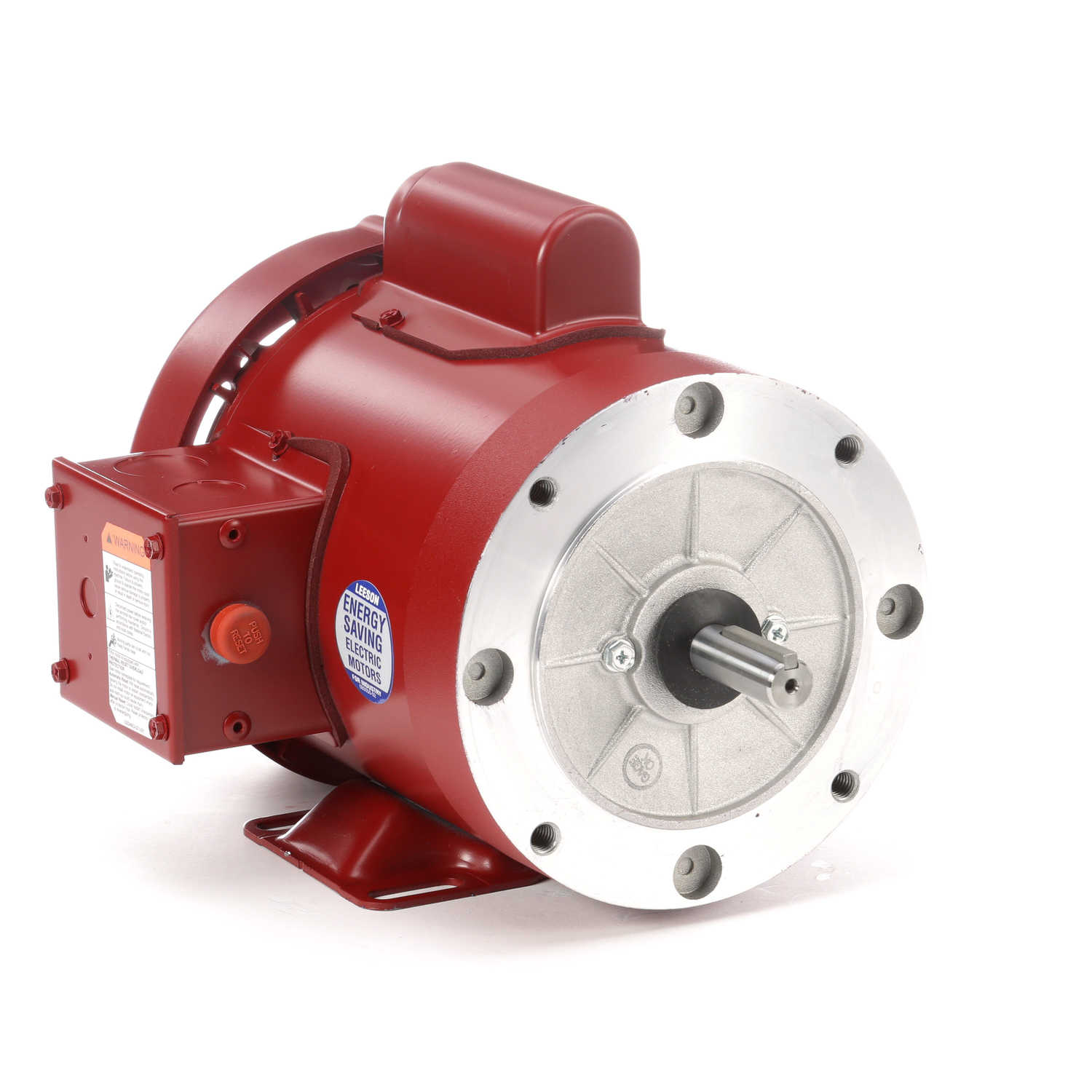

116486.00 1/2HP Leeson Ag Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M6C17FK80

Selected accessories will also be added to cart
$314.86 / Each
Quantity:
TEFC, 1800RPM, 56C Frame, Single Phase, 115/208-230VAC




Volts 115   Volts 208-230   Volts
FL Amps 8.8   FL Amps 4.4   FL Amps
SF Amps 9.4   SF Amps 4.7   SF Amps
RPM 1800   Hertz 60
HP 1/2   Duty CONTINUOUS   Type CF
KW 0.37   SF 1.15   Phase 1
Frame 56C   Design N   KVA Code L
Ambient 40   Protection MANUAL   Therm.Prot. CED4705
Insulation Class B   Eff(75%)   PF 58
Eff(100%) 66   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 24 LB   Enclosure TEFC   Lubrication POLYREX EM
Nameplate 993500   Mounting RIGID   Rotation SELECTIVE CCW
Shaft Diam. 5/8 IN   Cust Part No.   Packaging B
    Winding C634257   Carton Label Leeson Farm Duty
    Group 3   Iris
Paint RED - LEESON FARM DUTY   Hazardous Location NONE   Test Card 03
