/Products/Electric Motors/Single Phase/Leeson/High Torque TEFC C-Face W/Base/116487.00 Leeson 3/4HP Hi-Torque Agriculture Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 116487.00

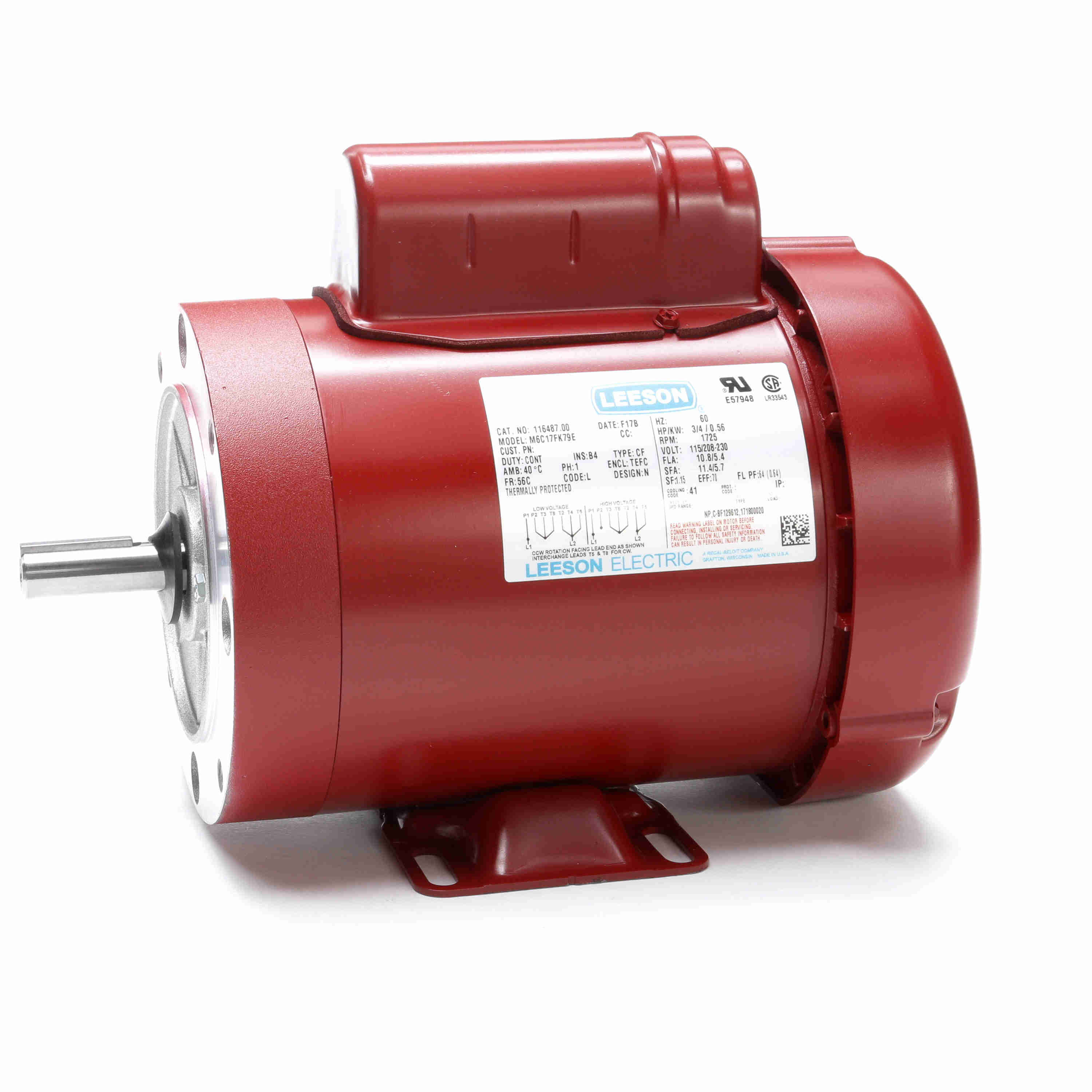

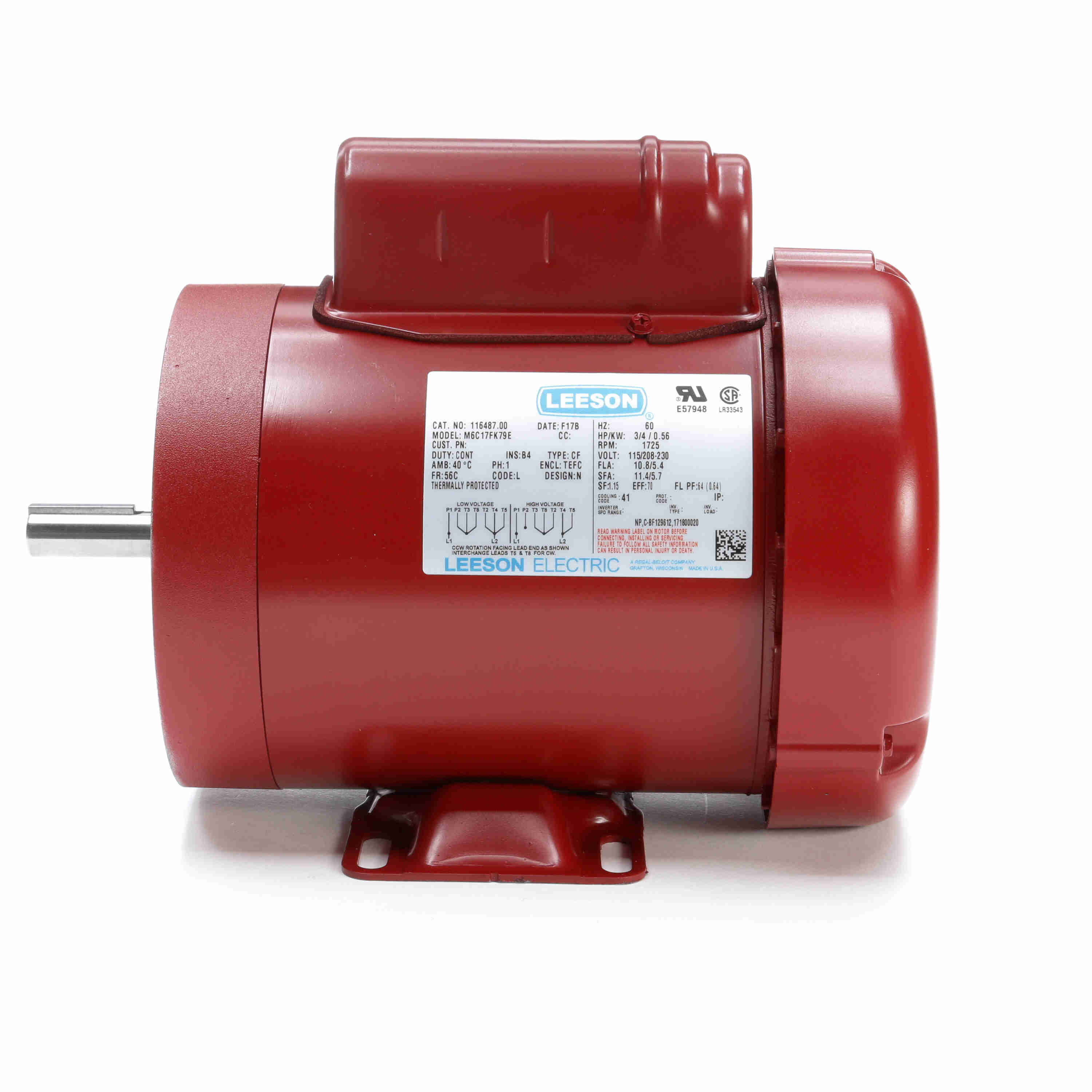

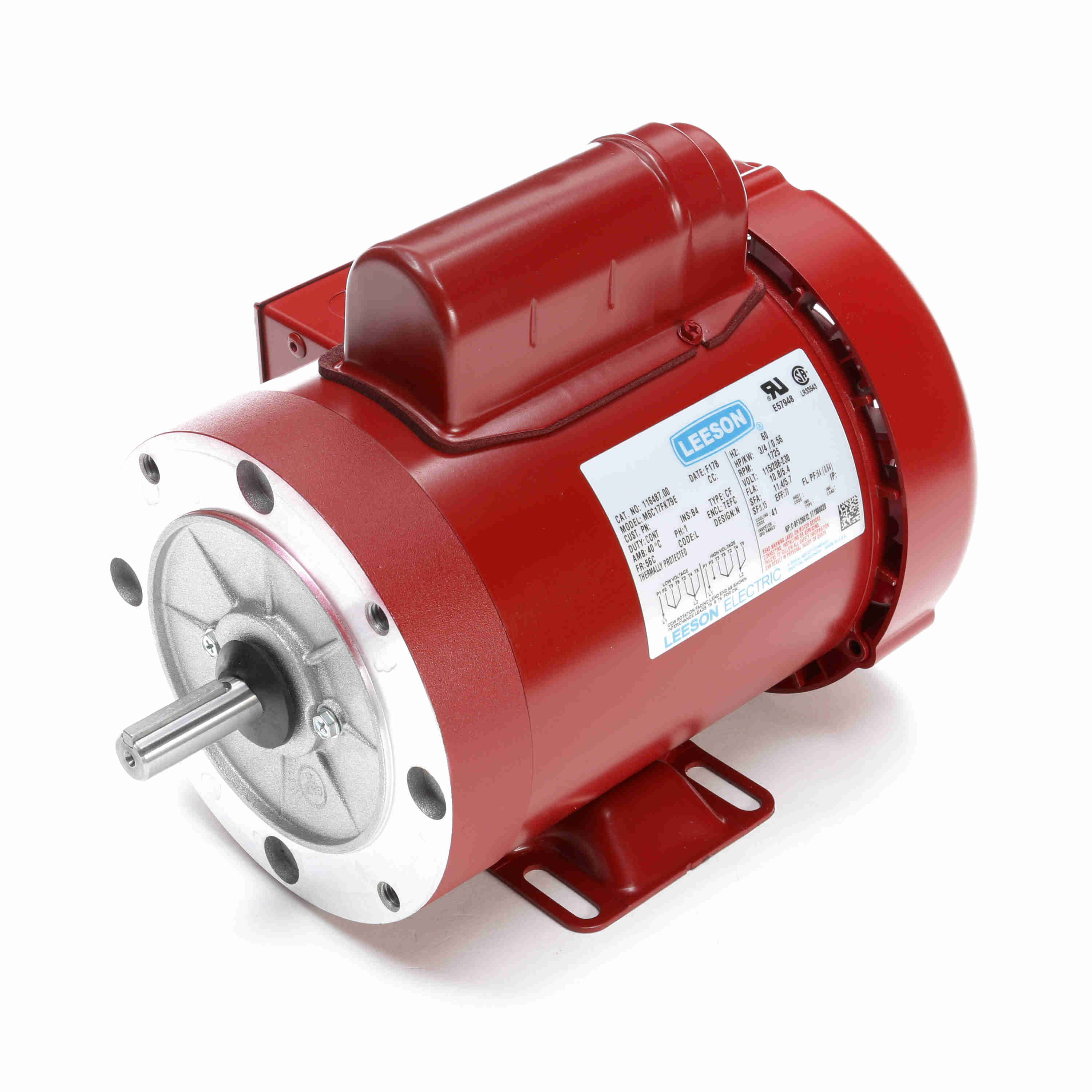

116487.00 Leeson 3/4HP Hi-Torque Agriculture Duty Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M6C17FK79

Selected accessories will also be added to cart
$326.84 / Each
Quantity:
TEFC, 56C Frame, 115-208/230VAC Single Phase 60Hz, M6C17FK79E, Rigid Base, Rolled Steel, 5/8" Shaft

Features

Features
  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA ® service factors
  • High Torque ratings
  • Manual rest overload protection
  • UL recognized component listing and CSA certified

General Specifications

General Specifications
Model : M6C17FK79E Catalog No : 116487.00
Part Description : 3/4HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID C.Farm Duty.M6C17FK79E Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 10.8/5.4 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 70 % Duty : Continuous
Insulation Class : B Design Code : N
KVA Code : L Frame : 56C
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.49 in Frame Length : 6.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720328750
Weight : 29.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 19.20 0.0 84.19 0.0 1,314 3.20 0.0 0.75
Full Load 5.46 0.0 35.95 0.0 1,753 0.80 64.0 0.75
Break-Down 15.20 0.0 98.47 0.0 1,536 2.80 0.0 0.75
Locked-Rotor 30.10 0.0 114.48 0.0 0 6.00 0.0 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.13
  • 0.172
  • 0.0
  • 18.1
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 4.20
  • 0.306
  • 46.0
  • 31.6
  • 1,786
  • 0.0
  • 8.85
  • 50 %
  • 4.45
  • 0.456
  • 61.3
  • 44.6
  • 1,777
  • 0.0
  • 17.72
  • 75 %
  • 4.86
  • 0.519
  • 67.8
  • 55.3
  • 1,766
  • 0.0
  • 26.79
  • 100 %
  • 5.42
  • 0.792
  • 70.7
  • 63.6
  • 1,754
  • 78.0
  • 35.94
  • 125 %
  • 6.11
  • 0.978
  • 71.5
  • 69.6
  • 1,740
  • 90.0
  • 45.30
  • 150 %
  • 6.97
  • 1.191
  • 70.8
  • 74.3
  • 1,723
  • 0.0
  • 55.09
  • 175 %
  • 7.97
  • 1.421
  • 88.9
  • 77.4
  • 1,703
  • 0.0
  • 64.75
