Product Features
|
| |
|
|
|
| Catalog No |
116488.00 |
Model
|
M6C17FK78E |
| Product type
|
AC MOTOR |
Stock |
Stock |
| Description
|

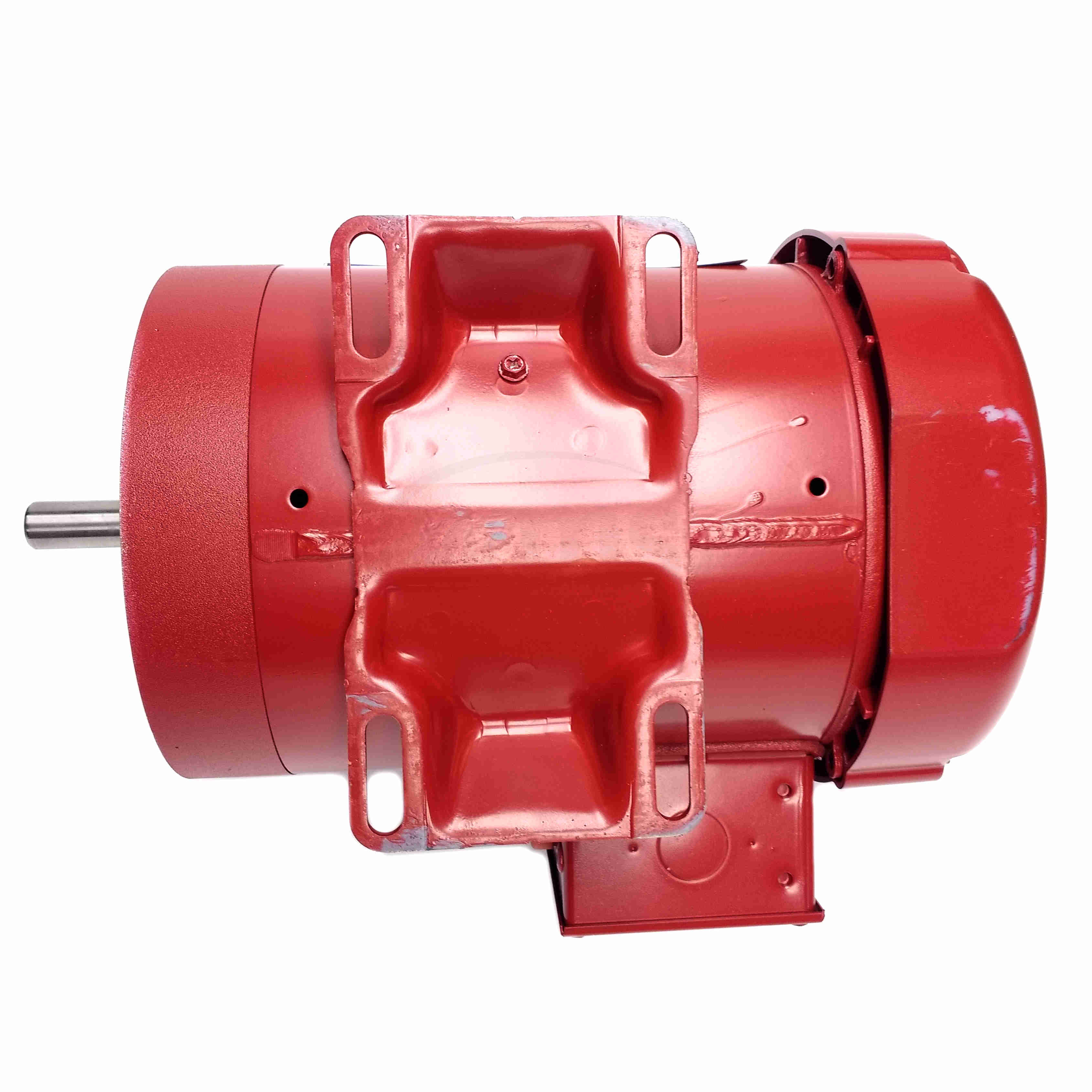

1HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID C.Farm Duty.M6C17FK78E |
|
|
| Engineering Data |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
14 |
F.L. Amps |
7 |
F.L. Amps |
|
| S. F Amps |
15 |
S. F Amps |
7.5 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1 |
Duty |
CONTINUOUS |
TYPE |
CF |
| KW |
0.75 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.15 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
K |
| Insul Class |
F |
Protection |
MANUAL |
Therm.Prot. |
CED2797 |
| Eff 100% |
74 |
Eff 75% |
|
PF |
63 |
| UL |
Y-(LEESON UL REC)
|
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
32 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
NONE |
Shaft Dia. |
5/8 IN |

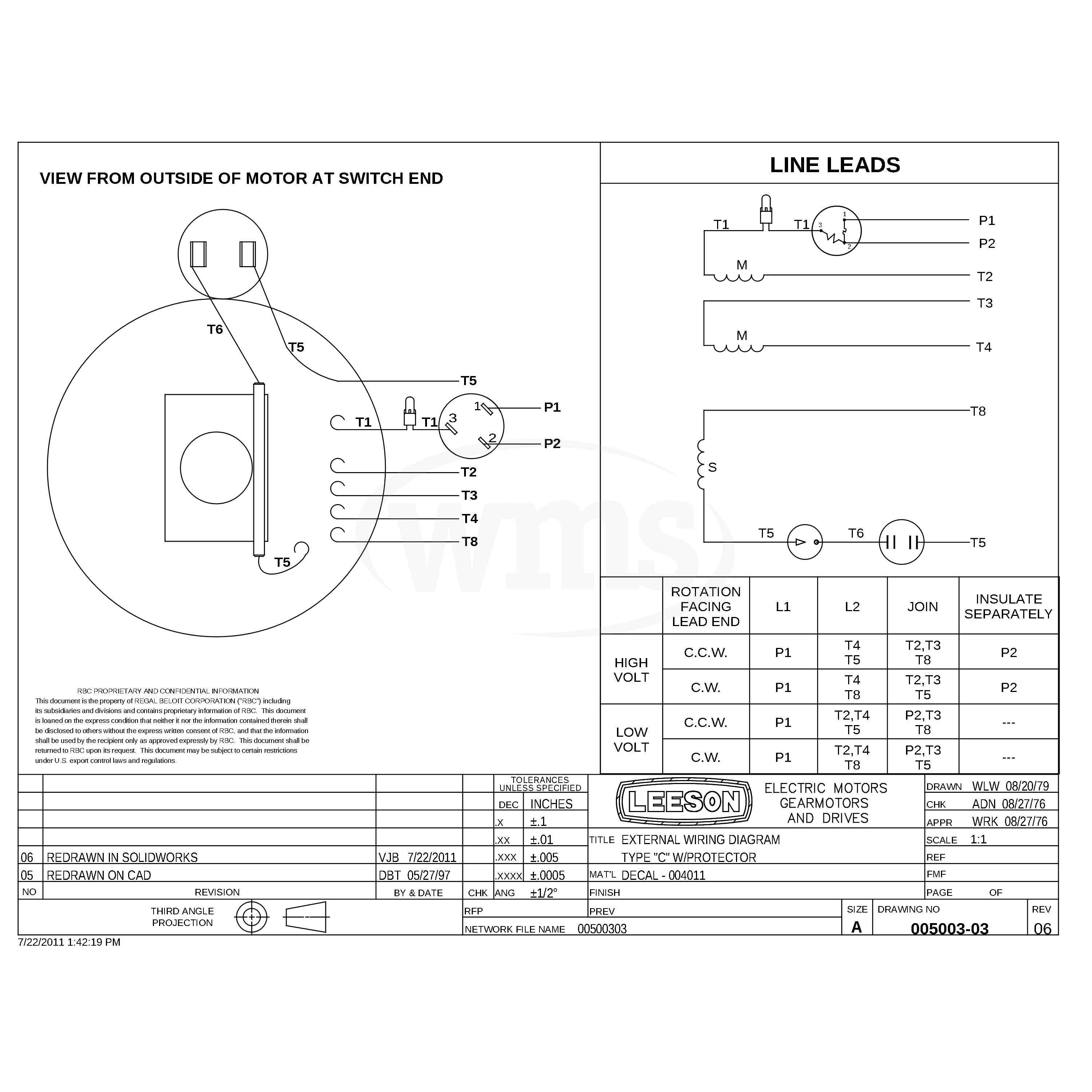

Ext. Diag. |
005003.03 |
| Cust Part No |
|

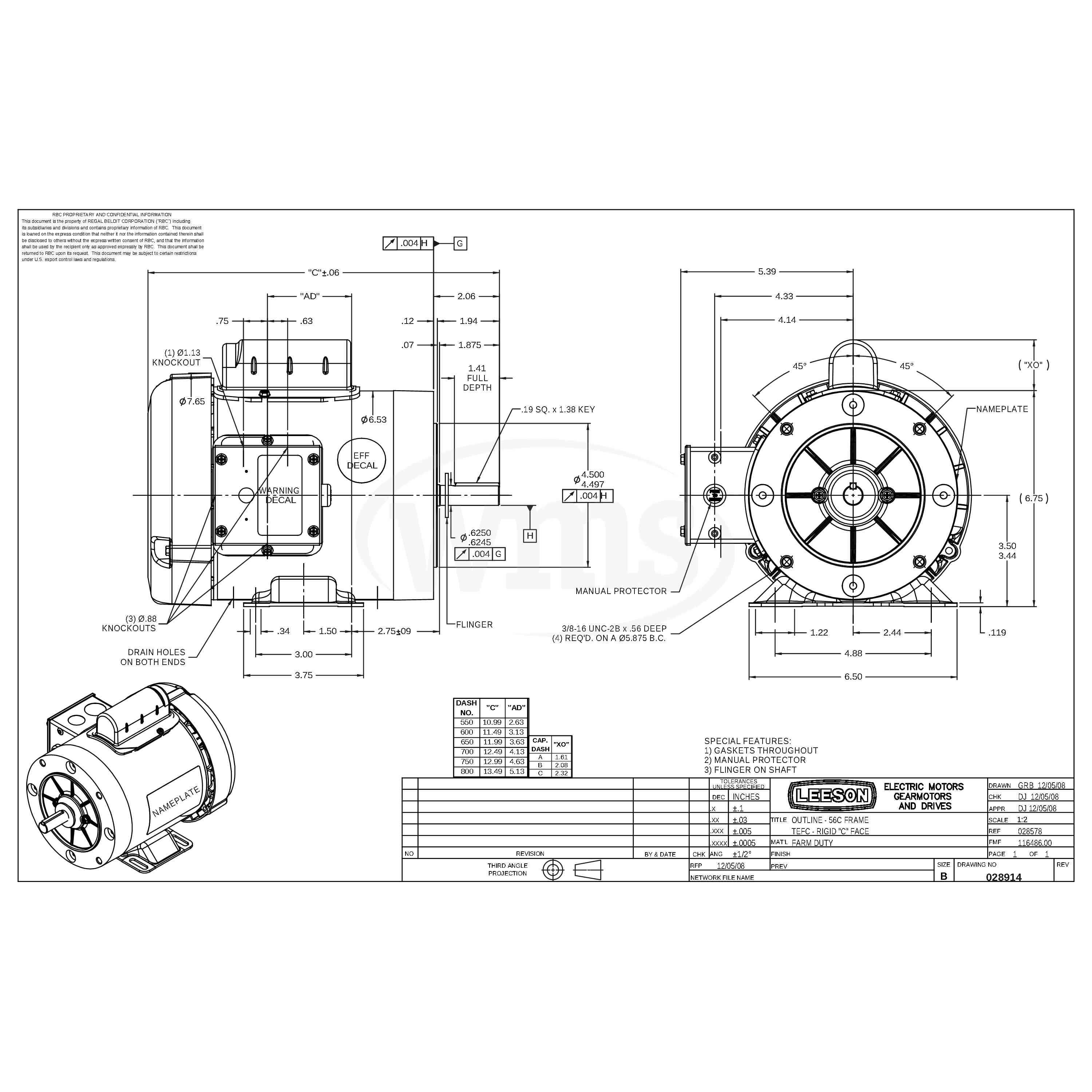

Outline |
028914-650B |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
C634259 |

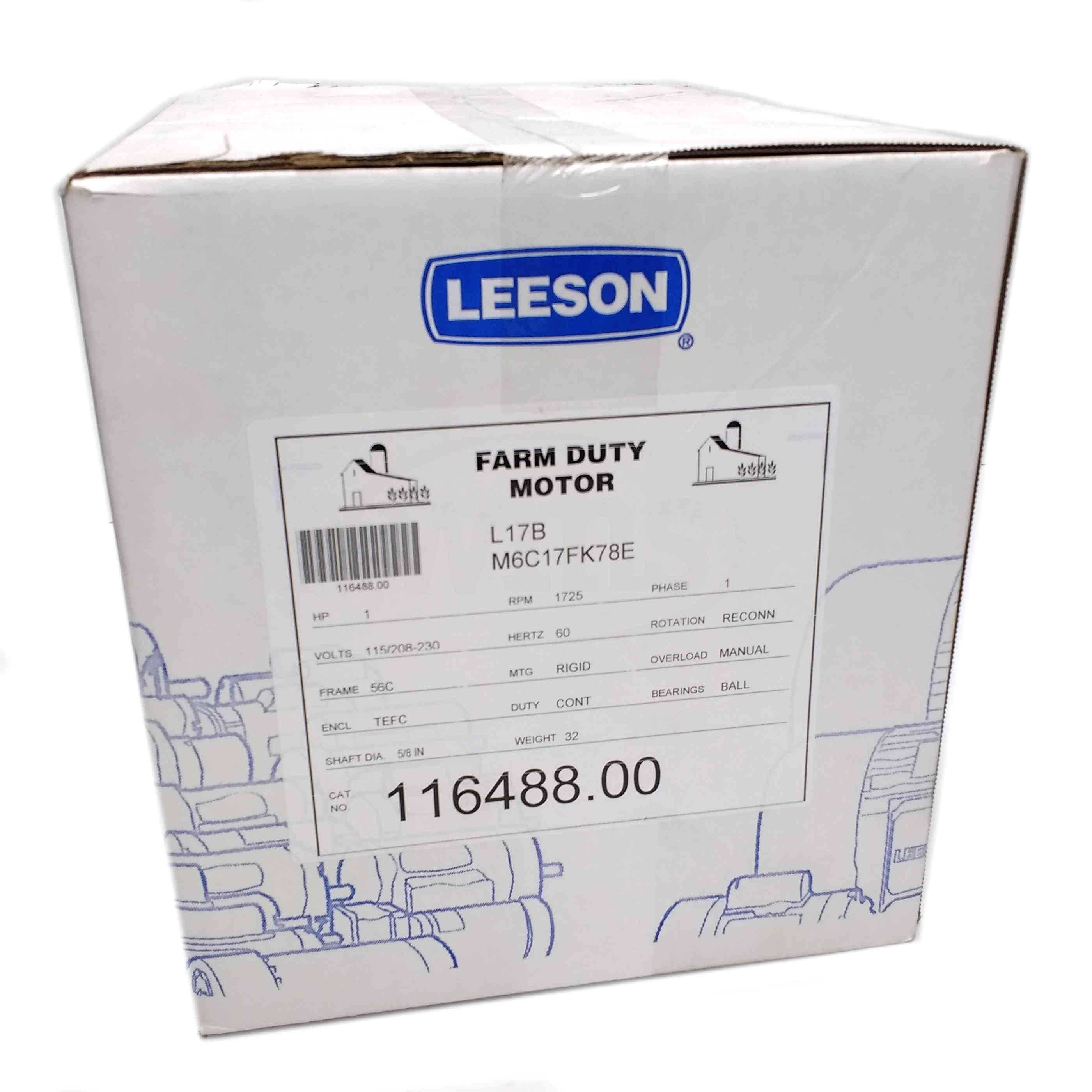

| Carton Label |
Leeson Farm Duty |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
RED - LEESON FARM DUTY |
Test Card |
04 |
|
| Form Factor |
|
RMS Amps |
|
Const Torque Speed Range |
|
| Torque |
|
Peak |
|
|
|
| AB Code |
|
Peak@DegC |
|
|
|
| Resistance |
|
|
|
|
|
| Connection |
|
|
|
|
|
|
| Rework Status |
|
Rework TYPE |
|
|
|
|
| Hazardous Loc |
NONE |
Brake Motors |
|
| Explosion Proof |
|
Temp Op Code |
|
FORCE |
|
| Class |
|
GROUP: |
|
VDC |
|
| Class |
|
GROUP: |
|
ADC |
|
| |
|
|
|
Brake Coil OHMs @25 C |
|
| Performance |
| Torque UOM |
OZ-FT |
Inertia (WK²) |
.099 LB-FT^2 |
|
| Torque |
48.16(Full Load) |
132.6(Break Down) |
117.6(Pull Up) |
141.8(Locked Rotor) |
| CURRENT (amps) |
7.01(Full Load) |
17.9(Break Down) |
29(Pull Up) |
37.3(Locked Rotor) |
| Efficiency (%) |
0(Full Load) |
67.8(75% Load) |
61.6(50% Load) |
46.6(25% Load) |
| PowerFactor |
0(Full Load) |
57.8(75% Load) |
46.9(50% Load) |
33.3(25% Load) |
|
Speed Torque Curve @
60 Hz, 230 Volts
|
| Curve Point |
Amps |
Amps(%) |
Torque |
Torque(%) |
RPM |
KW |
PF |
HP |
|
FL
|
7.01
|
100.0
|
48.16
|
100.0
|
1751
|
1.063
|
-
|
1.0
|
|
BD
|
17.9
|
255.0
|
132.6
|
275.0
|
0.0
|
3.98
|
-
|
1.0
|
|
PU
|
29.0
|
414.0
|
117.6
|
244.0
|
0.0
|
4.37
|
-
|
1.0
|
|
LR
|
37.3
|
532.0
|
141.8
|
294.0
|
0.0
|
7.35
|
-
|
1.0
|
|
SOURCE: CALCULATED
GROUP: 3
|
| Load Curve Data
@60 Hz,
230 Volts, 1 Horsepower
|
| Load |
Amps |
KW |
RPM |
Torque |
EFF |
PF |
Rise By Resis |
Frame Rise |
|
0.0
|
4.85
|
0.206
|
1797
|
0.0
|
0.0
|
0.0
|
0.0
|
-
|
|
0.25
|
5.24
|
0.401
|
1787
|
11.74
|
46.6
|
33.3
|
0.0
|
-
|
|
0.5
|
5.61
|
0.606
|
1776
|
23.67
|
61.6
|
46.9
|
0.0
|
-
|
|
0.75
|
6.2
|
0.825
|
1764
|
35.74
|
67.8
|
57.8
|
0.0
|
-
|
|
1.0
|
7.01
|
1.063
|
1751
|
48.16
|
70.4
|
65.9
|
88.6
|
47.2
|
|
1.15
|
7.56
|
1.208
|
1743
|
55.44
|
71.0
|
69.4
|
102.0
|
56.3
|
|
1.25
|
7.97
|
1.312
|
1738
|
60.47
|
71.1
|
71.5
|
0.0
|
-
|
|
1.5
|
9.14
|
1.586
|
1722
|
73.28
|
70.6
|
75.5
|
0.0
|
-
|
|
SOURCE: CALCULATED
GROUP: 3
|
|
|
