/Products/Electric Motors/3 Phase/Leeson 3-Phase Electric Motors/Jet Pump/C-Face Less Base/116698.00 Leeson 5HP Jet Pump Electric Motor, 3490RPM

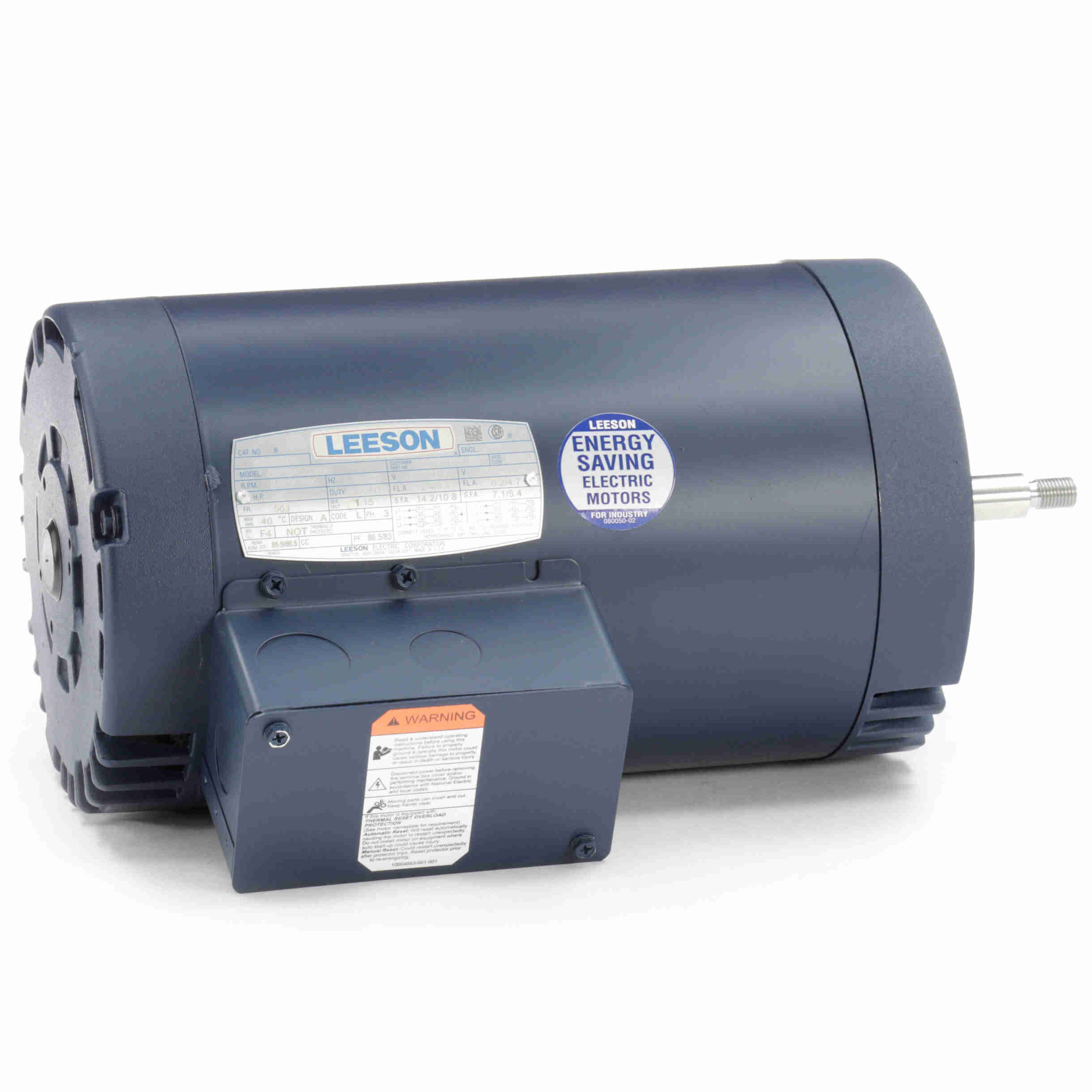

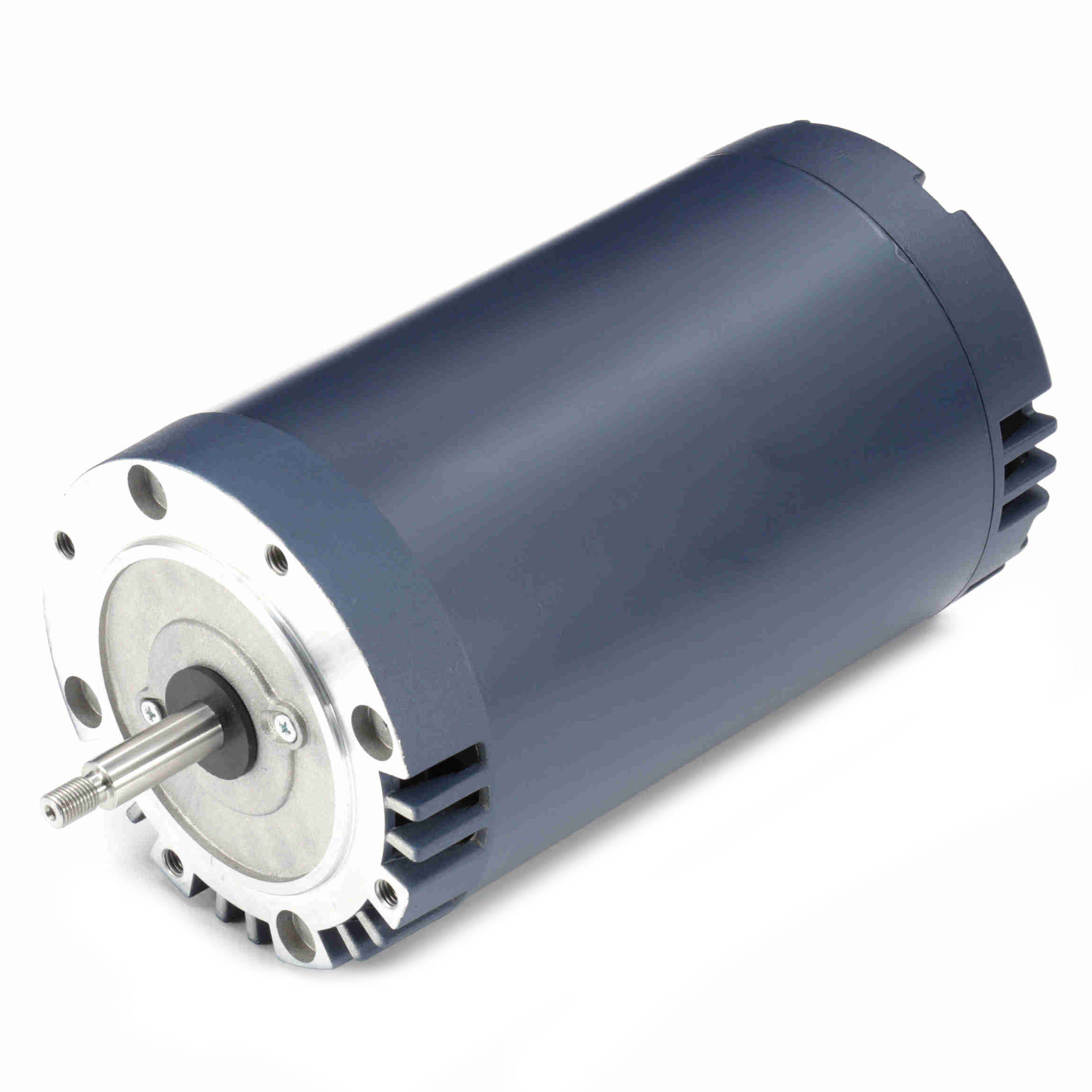

Click Image to Expand

Product ID: 116698.00

116698.00 Leeson 5HP Jet Pump Electric Motor, 3490RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116698.00

Selected accessories will also be added to cart
$529.97 / Each
Quantity:
DP, 56J Frame, 230/460VAC 3-Phase 60Hz, C6T34DC92A, Round Body, Rolled Steel, 5/8" Threaded Shaft

Features

Features
  • NEMA 56 C face mounting flange
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings

General Specifications

General Specifications
Model : C6T34DC92A Catalog No : 116698.00
Part Description : ..5HP..3490RPM.56.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34DC92A......NOT....3.7/2.2kW... Category : Jet Pump
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 5 HP Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 12.4/6.2 A Speed : 3490 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 85.5 % Duty : Continuous
Insulation Class : F Design Code : A
KVA Code : L Frame : 56J
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 ?C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 22

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : J
Overall Length : 13.68 in Frame Length : 8.50 in
Shaft Diameter : 0.625 in Shaft Extension : 2.44 in
Assembly/Box Mounting : F1 ONLY UPC : 691720346570
Weight : 52.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up 0.000.023.00307.04000.000.05.00
Full Load 6.200.07.50100.03,4880.000.05.00
Locked-Rotor 59.000.025.00333.000.000.05.00
Break-Down 0.000.031.00413.02,4000.000.05.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.20
  • 0.143
  • 0.0
  • 5.6
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 3.29
  • 1.782
  • 93.6
  • 68.0
  • 3,557
  • 0.0
  • 3.30
  • 50 %
  • 3.50
  • 1.995
  • 93.6
  • 71.5
  • 3,551
  • 0.0
  • 3.70
  • 75 %
  • 4.65
  • 3.023
  • 92.7
  • 81.6
  • 3,522
  • 0.0
  • 3.40
  • 100 %
  • 6.00
  • 4.150
  • 89.9
  • 86.8
  • 3,488
  • 60.0
  • 7.50
  • 125 %
  • 7.46
  • 5.300
  • 88.0
  • 89.2
  • 3,454
  • 0.0
  • 9.50
  • 150 %
  • 9.09
  • 6.540
  • 85.6
  • 90.3
  • 3,417
  • 0.0
  • 11.53
Type
Electric Motor
Horsepower
5HP
Frame
56J
Enclosure
DP
Speed
3490RPM
