/Products/Electric Motors/3 Phase Explosion Proof/Leeson/C-Face with Base/117859.00 Leeson 1/3HP Explosion Proof Electric Motor, 1800RPM

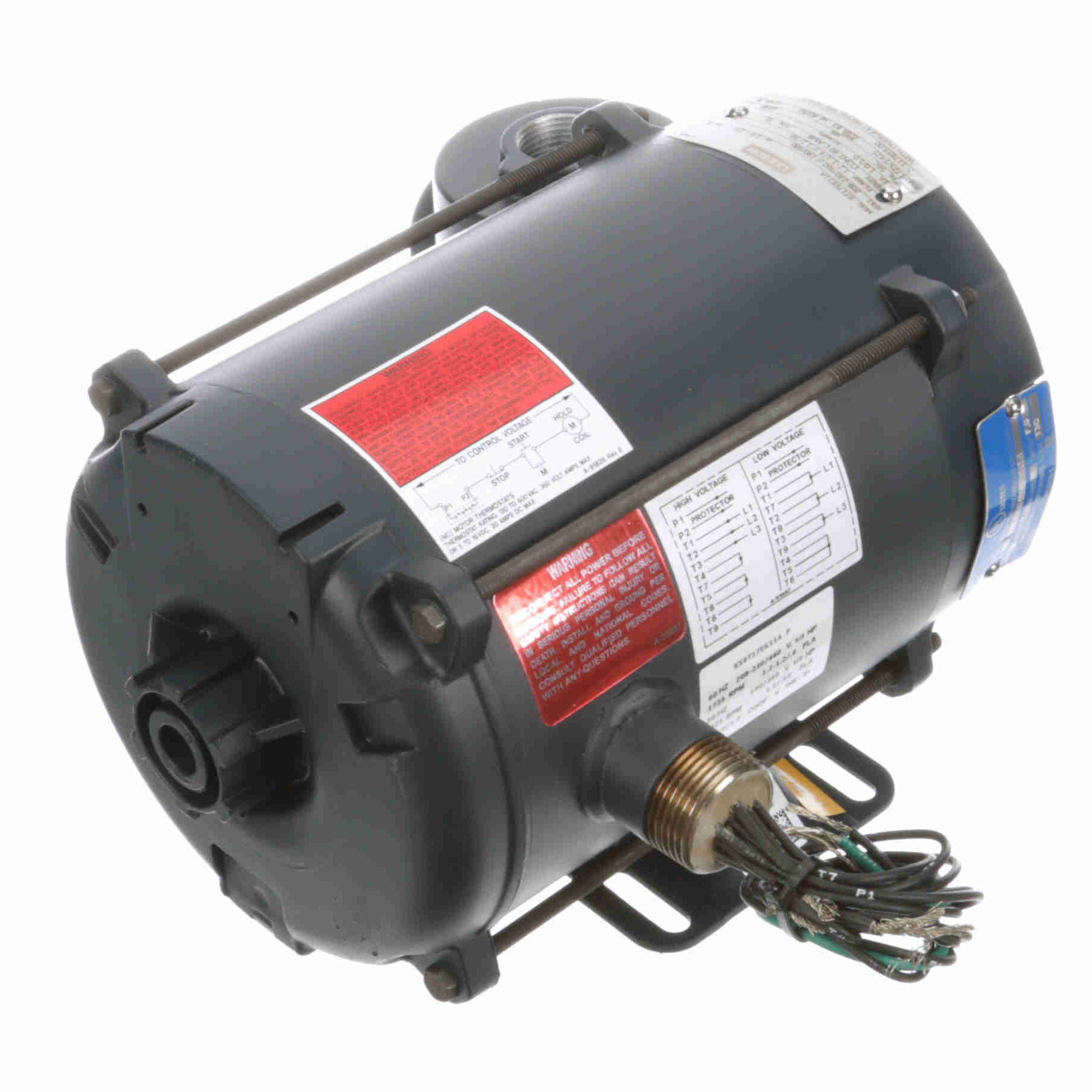

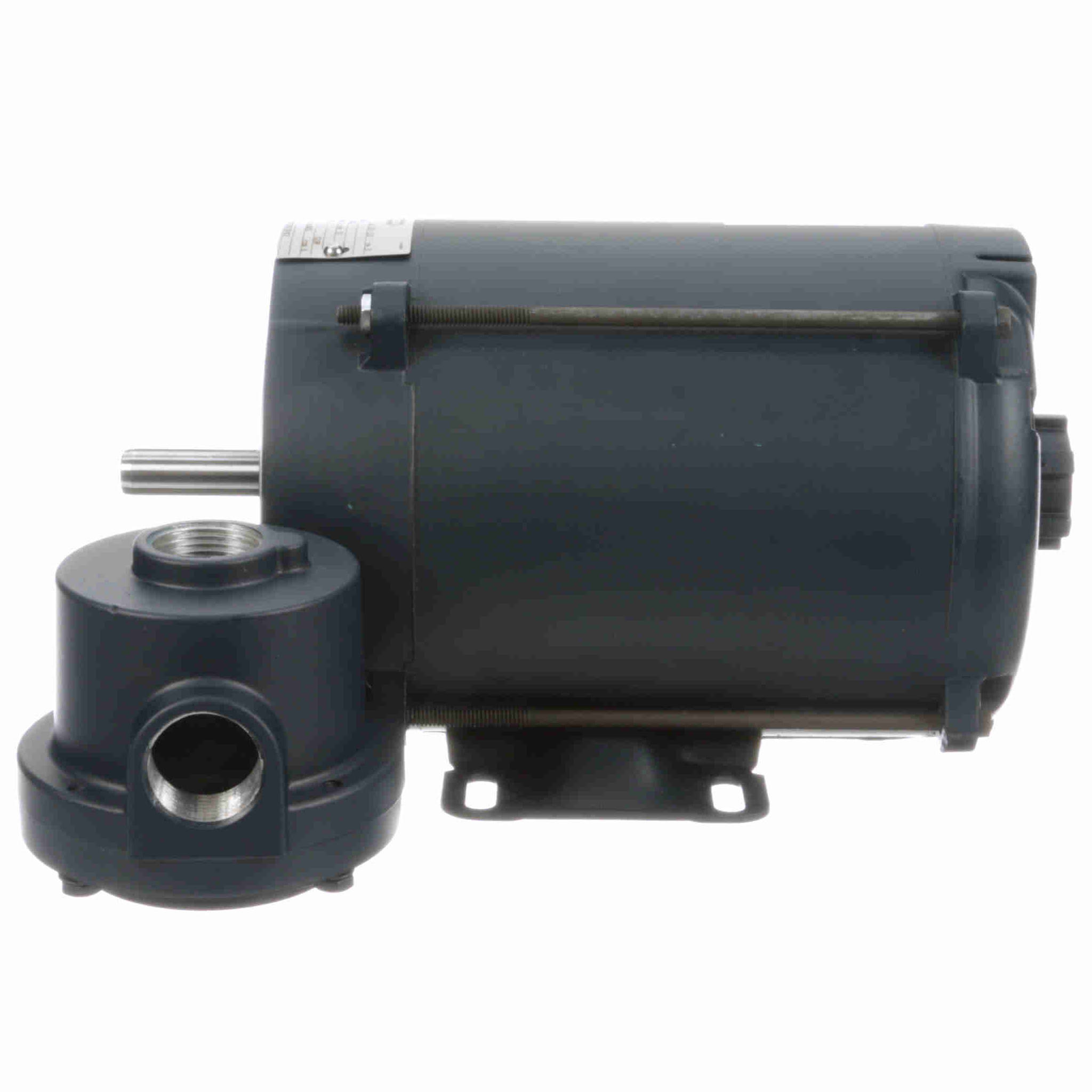

Click Image to Expand

Product ID: 117859.00

117859.00 Leeson 1/3HP Explosion Proof Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117859.00

Selected accessories will also be added to cart
$999.97 / Each
Quantity:
EPNV, 56C Frame, 208-230/460VAC 3-Phase 60Hz, Rigid Base, Rolled Steel, Reversible, 5/8" Shaft

Features

  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Explosion rated conduit box included
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B

General Specifications

UPC: 691720003732 Weight: 38.00 LB
Packaged Length: 16.12 IN Packaged Width: 10.25 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.2-1.2/0.60 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Efficiency: 74.5 % Power Factor: 71
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: K
Frame: 56C Enclosure: Explosion Proof Non Ventilated
Thermal Protection: Thermostats (N/C) Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 63.7 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.97 in
Frame Length: 6.31 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 0.42 70.0 0.00 0.0 1,800 0.00 0.0 0.33
2/3 2.80 467.0 3.30 330.0 1,200 0.00 0.0 0.33
1/3 3.20 533.0 2.60 260.0 600 0.00 0.0 0.33
Full Load 0.60 100.0 1.00 100.0 1,725 0.00 71.0 0.33
Locked-Rotor 3.60 600.0 3.00 300.0 0 0.00 74.5 0.33
Break-Down 2.50 417.0 3.75 375.0 1,300 0.00 85.0 0.33
Pull-Up 3.45 575.0 2.90 290.0 320 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.40 0.43 0.45 0.50 0.60 0.65 0.70
Rated Output (KW) 0.07 0.11 0.19 0.26 0.33 0.38 0.40
Efficiency (%) 0.0 44.0 67.5 72.5 74.5 75.0 75.0
Power Factor (%) 21.0 33.5 52.0 64.0 71.0 75.0 76.0
Speed (RPM) 1,800 1,780 1,755 1,735 1,725 1,715 1,710
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 0.0 0.0
Torque (ft-lbs) 0.00 0.20 0.50 0.75 1.00 1.20 1.30
