/Products/Electric Motors/Single Phase/Leeson/Industrial Agriculture Hi-Torque/117864.00 Leeson 3/4HP Industry Agriculture High Torque Electric Motor, 1800RPM
Click Image to Expand

Product ID: 117864.00

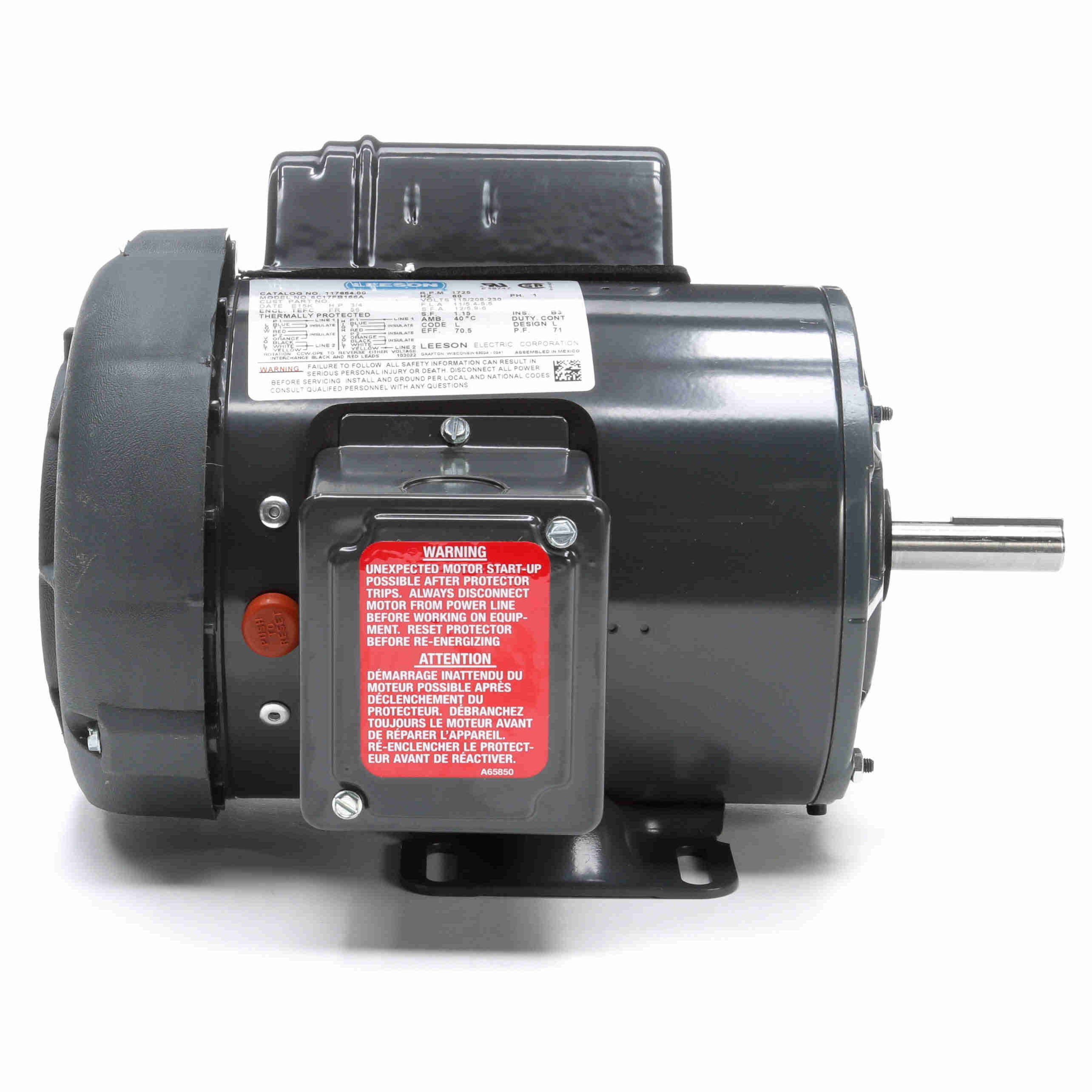

117864.00 Leeson 3/4HP Industry Agriculture High Torque Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117864.00

Selected accessories will also be added to cart
$356.71 / Each
Quantity:
TEFC, 56 Frame, 115/230VAC Single Phase 60Hz, 6C17FB166A, Rolled Steel, Rigid Base, 5/8" Shaft

Features

Features
  • Manual overload protected
  • Double sealed ball bearings
  • Weather resistant reset button protection
  • Capacitor start provides high starting torque

General Specifications

General Specifications
Model :6C17FB166A Catalog No :117864.00
Part Description :..3/4HP..1800RPM.56.TEFC.115/230V.1PH.60HZ.CONT.40C.1.15SF.RIGID......AG-DUTY........ Category :Agricultural
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.75 HP Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :11.0/5.4-5.5 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :70.5 % Duty :Continuous
Insulation Class :B Design Code :L
KVA Code :L Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :12.32 in Frame Length :7.06 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720003657
Weight :33.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down15.700.093.000.002.850.00.75
Locked-Rotor31.000.0120.000.006.510.00.75
Pull-Up20.300.094.700.01,3003.500.00.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.76
  • 0.150
  • 0.0
  • 17.3
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 3.89
  • 0.291
  • 48.5
  • 32.5
  • 1,781
  • 0.0
  • 8.90
  • 50 %
  • 4.19
  • 0.444
  • 63.2
  • 46.1
  • 1,768
  • 0.0
  • 17.80
  • 75 %
  • 4.64
  • 0.607
  • 69.4
  • 56.9
  • 1,757
  • 0.0
  • 26.90
  • 100 %
  • 5.50
  • 0.782
  • 70.0
  • 66.2
  • 1,740
  • 70.0
  • 36.00
  • 115 %
  • 6.10
  • 0.896
  • 72.0
  • 71.0
  • 1,733
  • 85.0
  • 41.70
  • 125 %
  • 6.50
  • 0.975
  • 71.8
  • 71.2
  • 1,726
  • 0.0
  • 45.40
  • 150 %
  • 6.82
  • 1.180
  • 71.3
  • 75.2
  • 1,710
  • 0.0
  • 55.10
  • 175 %
  • 7.91
  • 1.430
  • 68.5
  • 78.6
  • 1,690
  • 0.0
  • 65.10
  • 200 %
  • 9.32
  • 1.730
  • 64.8
  • 80.7
  • 1,655
  • 0.0
  • 75.80
