$1,601.55 / Each

Quantity:

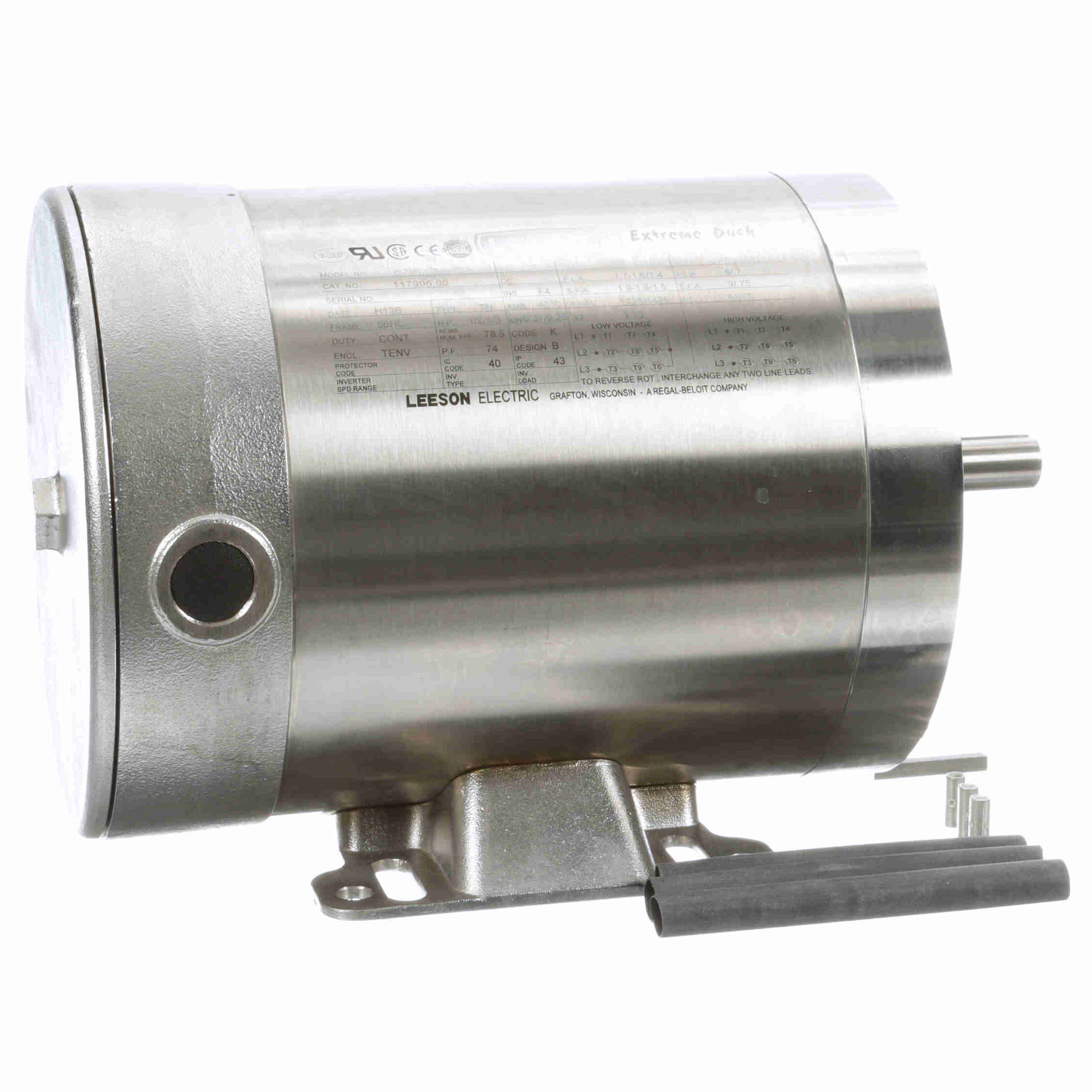

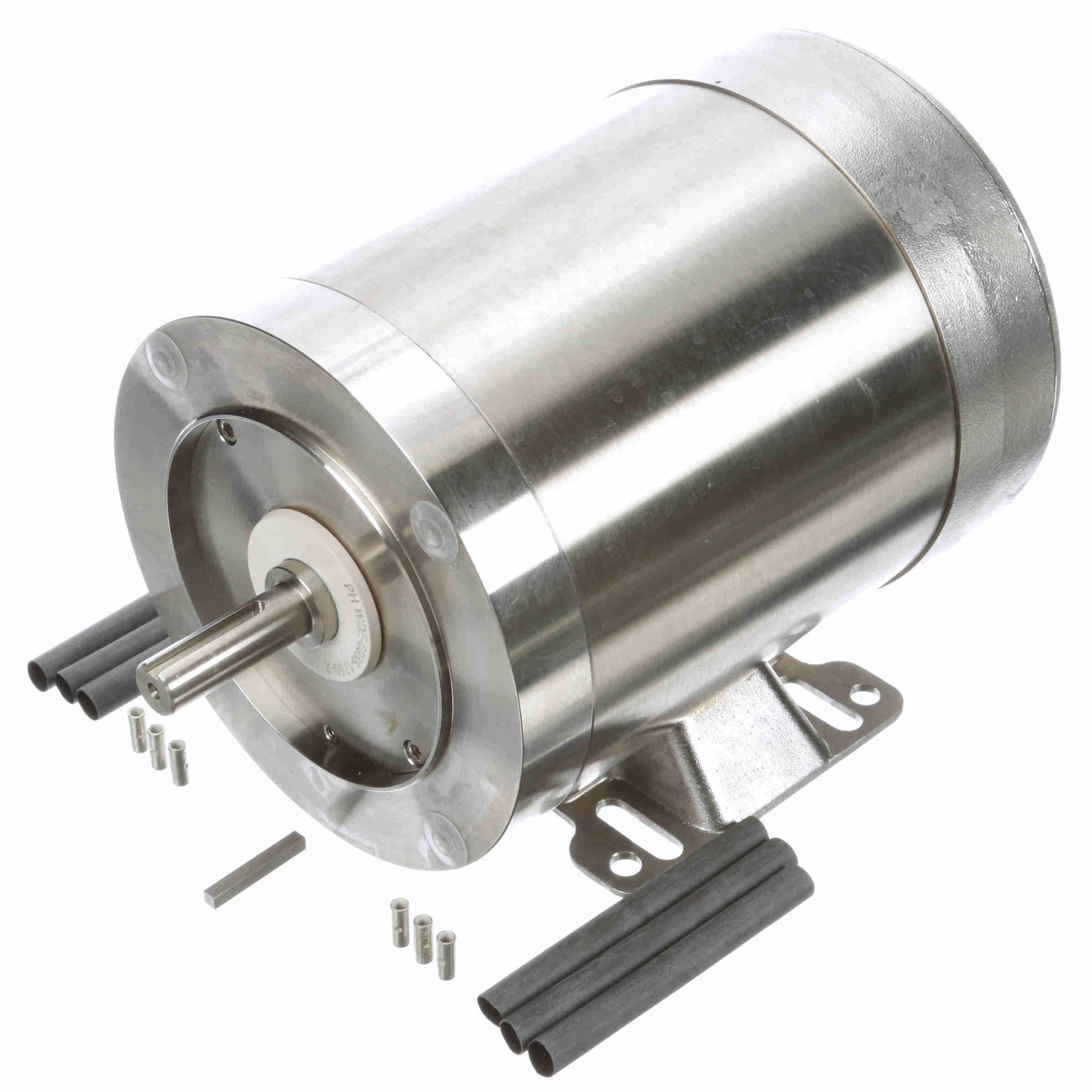

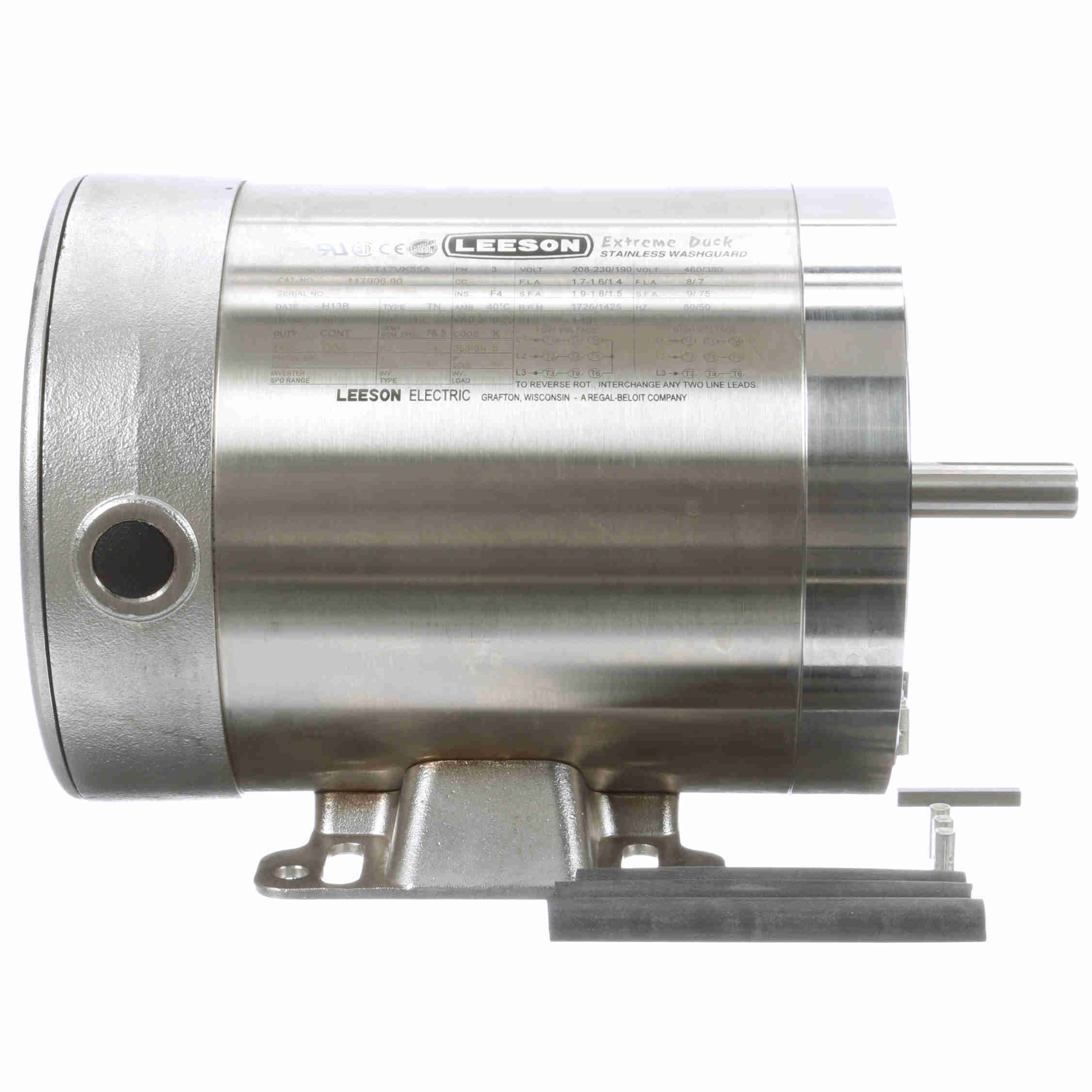

TENV, 56C Frame, 208-230/460VAC 60Hz 3-Phase, Rigid Base, C-Face, Stainless Steel Frame, 5/8" Keyed Shaft

All exterior components are 300-series stainless steel; All sealing components are Viton? for superior chemical resistance
End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
Q-Car(TM) rotor cartridge for quick access
Color Coded Leads
IP69K enclosure protection; Internal Shaft Grounding Rings; Full fact nameplate is laser etched on the motor frame

Output HP:	0.50 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	208-230/460 V
Current:	1.7-1.6/0.80 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	78.5 %	Power Factor:	74
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	K
Frame:	56C	Enclosure:	Totally Enclosed Non Ventilated
Thermal Protection:	No	Ambient Temperature:	40 ?C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6205
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	69
