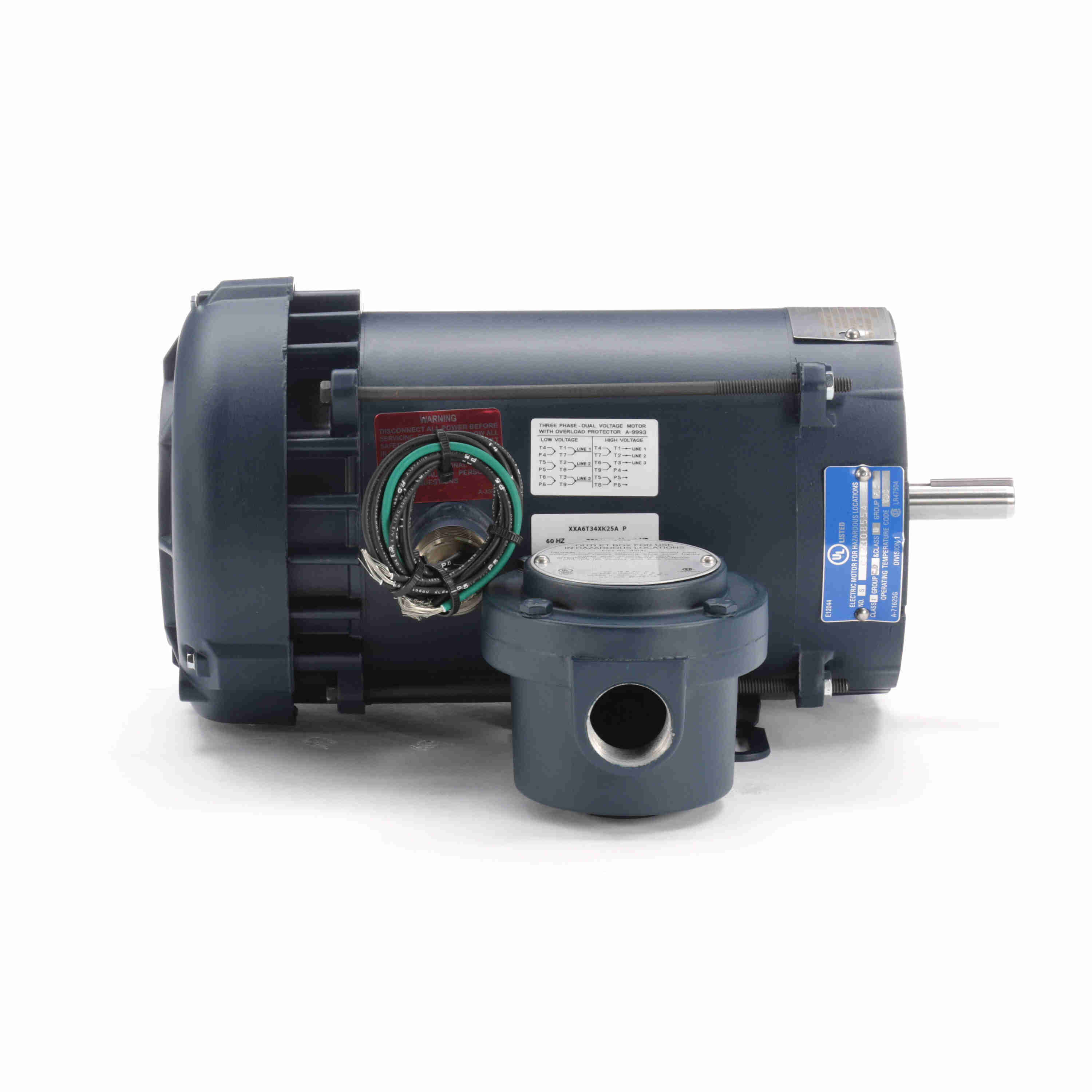

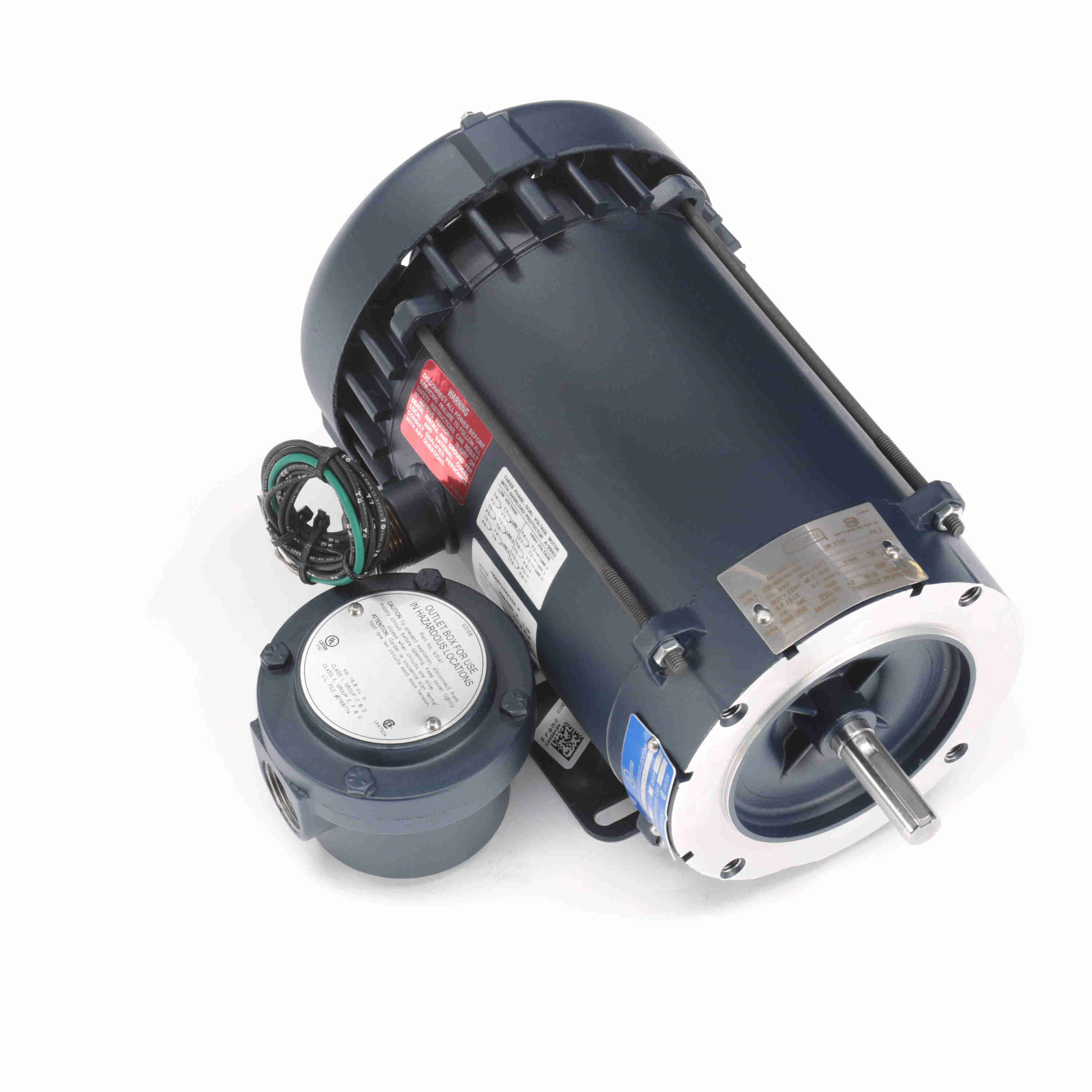

119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM
Click Image to Expand
Previous
Next
119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM
Product ID: 119436.00
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119436.00
Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
EPFC, 56C Frame, 230/460VAC 3-Phase 60Hz, Rigid Base, C-Face, Rolled Steel, 5/8" Shaft
Details
Features
Meets UL and CSA safety requirements
Automatic overload protected
Explosion rated conduit box included
Internal mounted capacitors
Double shielded ball bearings
Meets temperature code T3B
General Specifications
UPC:
691720047118
Weight:
38.00 LB
Packaged Length:
16.12 IN
Packaged Width:
10.25 IN
Packaged Height:
8.12 IN
Nameplate Specifications
Output HP:
1 Hp
Output KW:
0.75 kW
Frequency:
60 Hz
Voltage:
230/460 V
Current:
3.0/1.5 A
Speed:
3450 rpm
Service Factor:
1
Phase:
3
Efficiency:
80 %
Power Factor:
83.5
Duty:
Continuous
Insulation Class:
B
Design Code:
B
KVA Code:
K
Frame:
56C
Enclosure:
Explosion Proof Fan cooled
Thermal Protection:
Automatic
Ambient Temperature:
40 °C
Drive End Bearing Size:
6203
Opp Drive End Bearing Size:
6203
UL:
UL Listed And CSA Certified
CSA:
Y
CE:
N
IP Code:
54
Hazardous Location:
EXP PROOF CL I GR C&D CL II GR F&G T3C
Technical Specifications
Electrical Type:
Squirrel Cage Induction Run
Starting Method:
Across The Line
Poles:
2
Rotation:
Reversible
Resistance Main:
19.5 Ohms
Mounting:
Rigid Base
Motor Orientation:
Horizontal
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
NEMA 56
Overall Length:
13.94 in
Frame Length:
6.81 in
Shaft Diameter:
0.625 in
Shaft Extension:
1.88 in
Assembly/Box Mounting:
F1 ONLY
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
(%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
No Load
0.65
43.0
0.00
0.0
3,600
1.00
1/3
10.50
700.0
3.00
200.0
1,200
1.00
Full Load
1.50
100.0
1.50
100.0
3,500
1.00
Locked-Rotor
11.00
733.0
3.50
233.0
66.0
1.00
Break-Down
7.00
467.0
5.30
353.0
2,830
83.5
1.00
Pull-Up
10.00
667.0
3.20
213.0
1,800
1.00
2/3
9.00
600.0
3.70
247.0
2,400
1.00
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
115 %
125 %
Current (Amps)
0.65
0.80
1.00
1.20
1.50
1.60
1.70
Rated Output (KW)
0.17
0.32
0.52
0.75
0.95
1.10
1.20
Efficiency (%)
0.0
60.2
72.7
73.4
80.0
76.6
78.3
Power Factor (%)
32.8
50.2
65.3
78.4
83.5
86.3
88.6
Speed (RPM)
3,600
3,570
3,550
3,525
3,500
3,490
3,480
Temp. Rise @ FL
0.0
0.0
0.0
0.0
35.0
45.0
55.0
Torque (ft-lbs)
0.00
0.38
0.75
1.10
1.50
1.70
1.90
