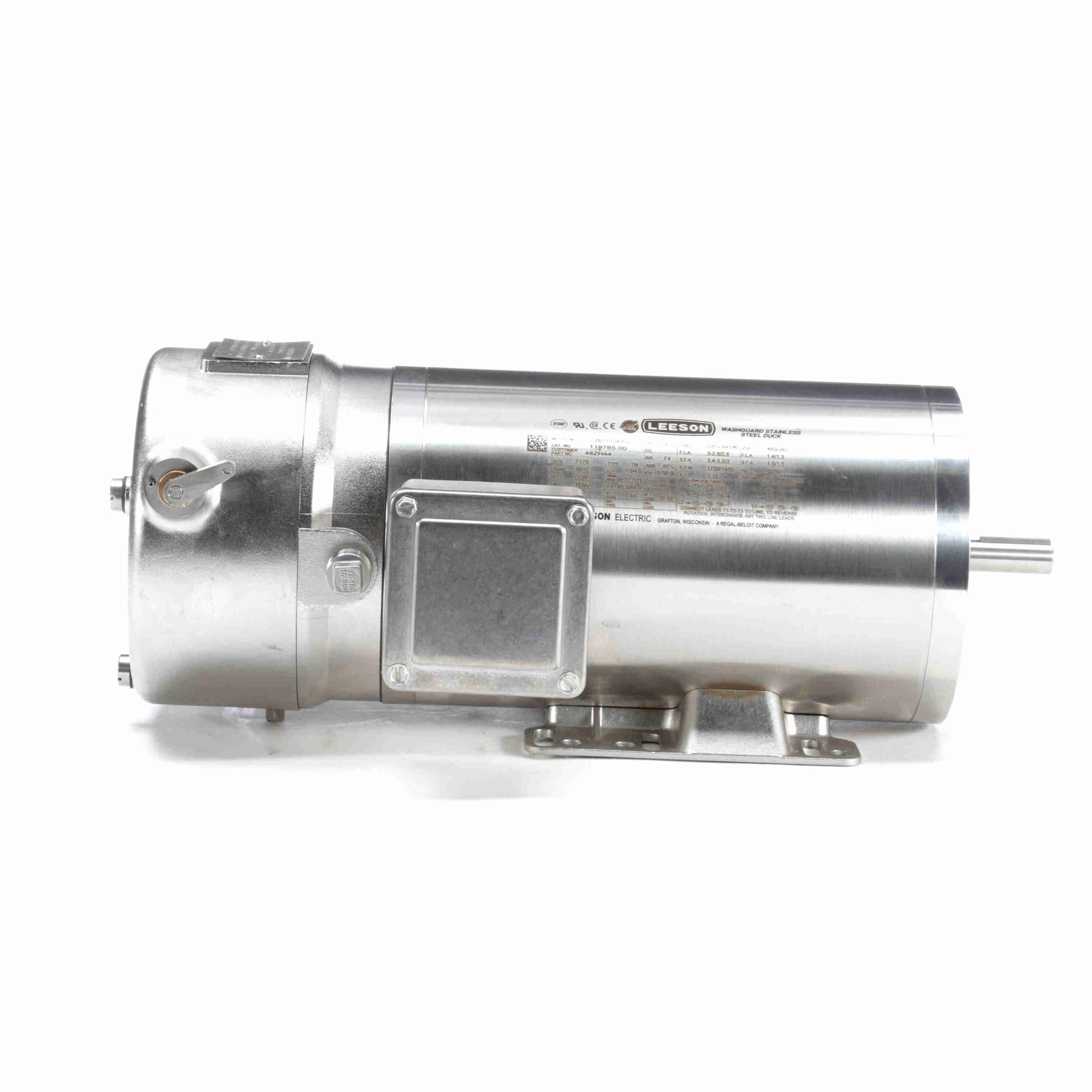

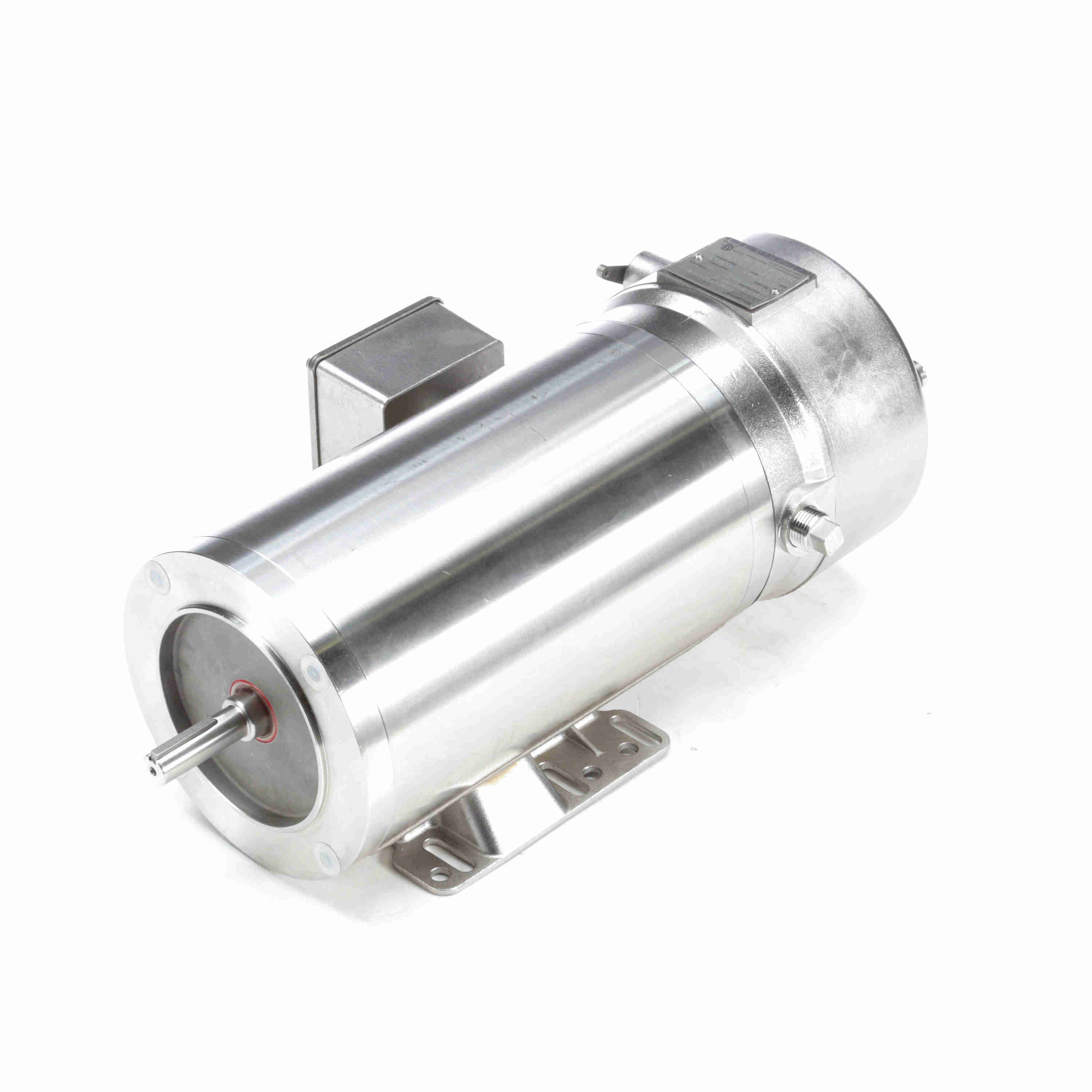

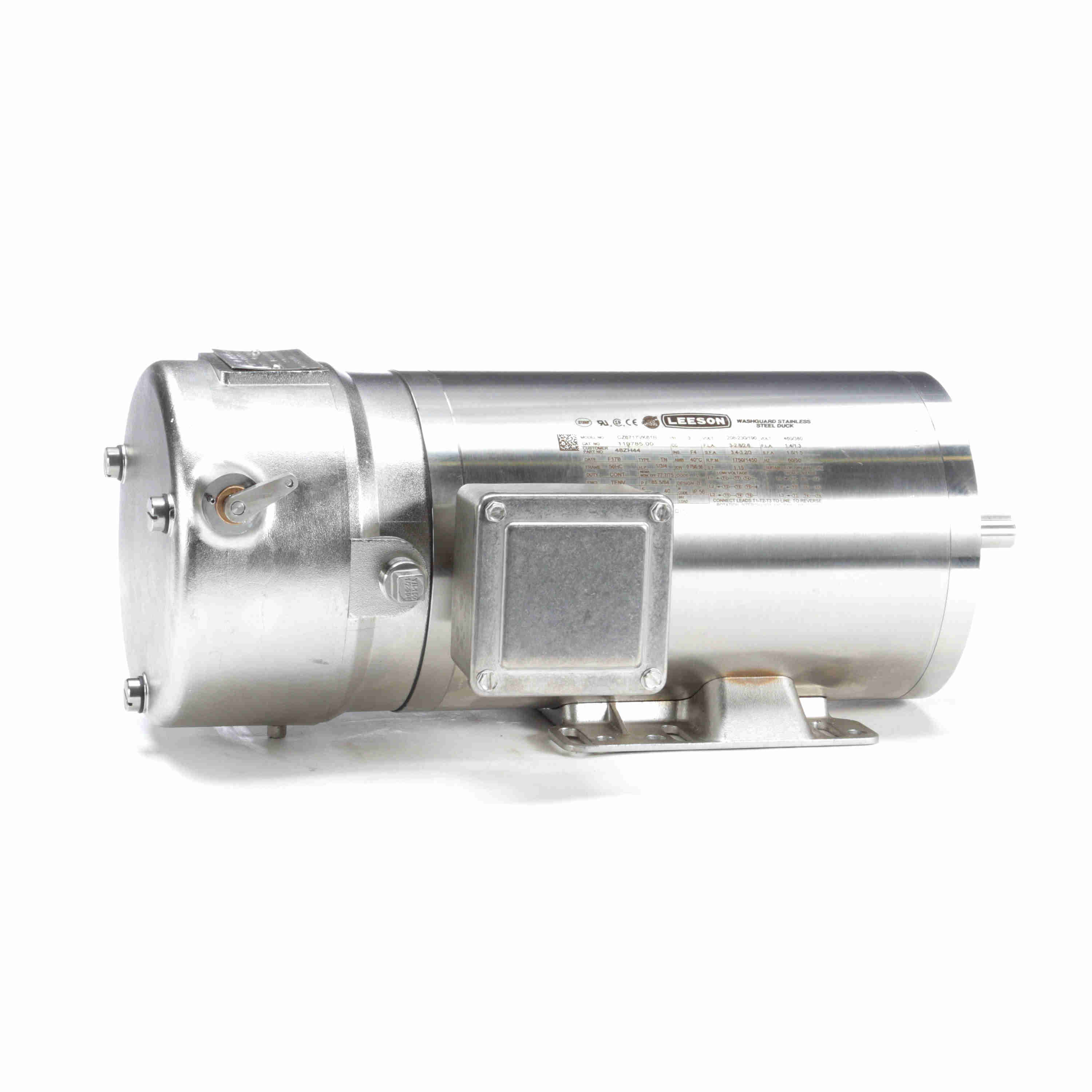

/119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM
Click Image to Expand

Product ID: 119785.00

119785.00 Leeson 1HP Washguard Electric Brake Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 119785.00

Selected accessories will also be added to cart
$5,411.97 / Each
Quantity:
TENV, 56HC Frame, 208-230/460V 60Hz 3-Phase, Rigid base

Features

Features
  • All exterior components are 300-series stainless steel
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • All Washdown Duty motors have Class F Insulation
  • Ease to clean construction is BISSC Certified for bakery applications
  • Washdown Duty
  • Nameplate etched in frame; Full fact nameplate is laser etched on the motor frame

General Specifications

General Specifications
Model :CZ6717VK61B Catalog No :119785.00
Part Description :..1HP..1725RPM.56H.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.CZ6T17VK32A.....Brakemotor.NOT....... Category :Brake Motors
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :3.0-2.8/1.4 A Speed :1750 rpm
Service Factor :1.15 Phase :3
Efficiency :85.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56HC
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :56

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :18.01 in Frame Length :9.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720102862
Weight :73.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down8.60619.0206.00429.01,2275.220.01.00
Pull-Up12.34888.0182.00379.006.110.01.00
Full Load1.39100.048.04100.01,7490.860.01.00
Locked-Rotor12.43894.0166.00346.006.110.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.74
  • 0.053
  • 0.0
  • 9.0
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 0.80
  • 0.239
  • 78.4
  • 37.5
  • 1,788
  • 0.0
  • 11.80
  • 50 %
  • 0.95
  • 0.438
  • 85.1
  • 57.9
  • 1,776
  • 0.0
  • 23.64
  • 75 %
  • 1.15
  • 0.644
  • 86.9
  • 70.3
  • 1,763
  • 0.0
  • 35.75
  • 100 %
  • 1.39
  • 0.861
  • 86.6
  • 77.7
  • 1,749
  • 56.0
  • 48.04
  • 125 %
  • 1.66
  • 1.084
  • 86.0
  • 82.0
  • 1,734
  • 0.0
  • 60.59
  • 150 %
  • 1.97
  • 1.324
  • 84.8
  • 84.4
  • 1,718
  • 0.0
  • 73.65
