/Products/Electric Motors/Single Phase/Leeson/120060.00 Leeson 2HP General Purpose Electric Motor, 1740RPM

Click Image to Expand

Previous Next

Product ID: 120060.00

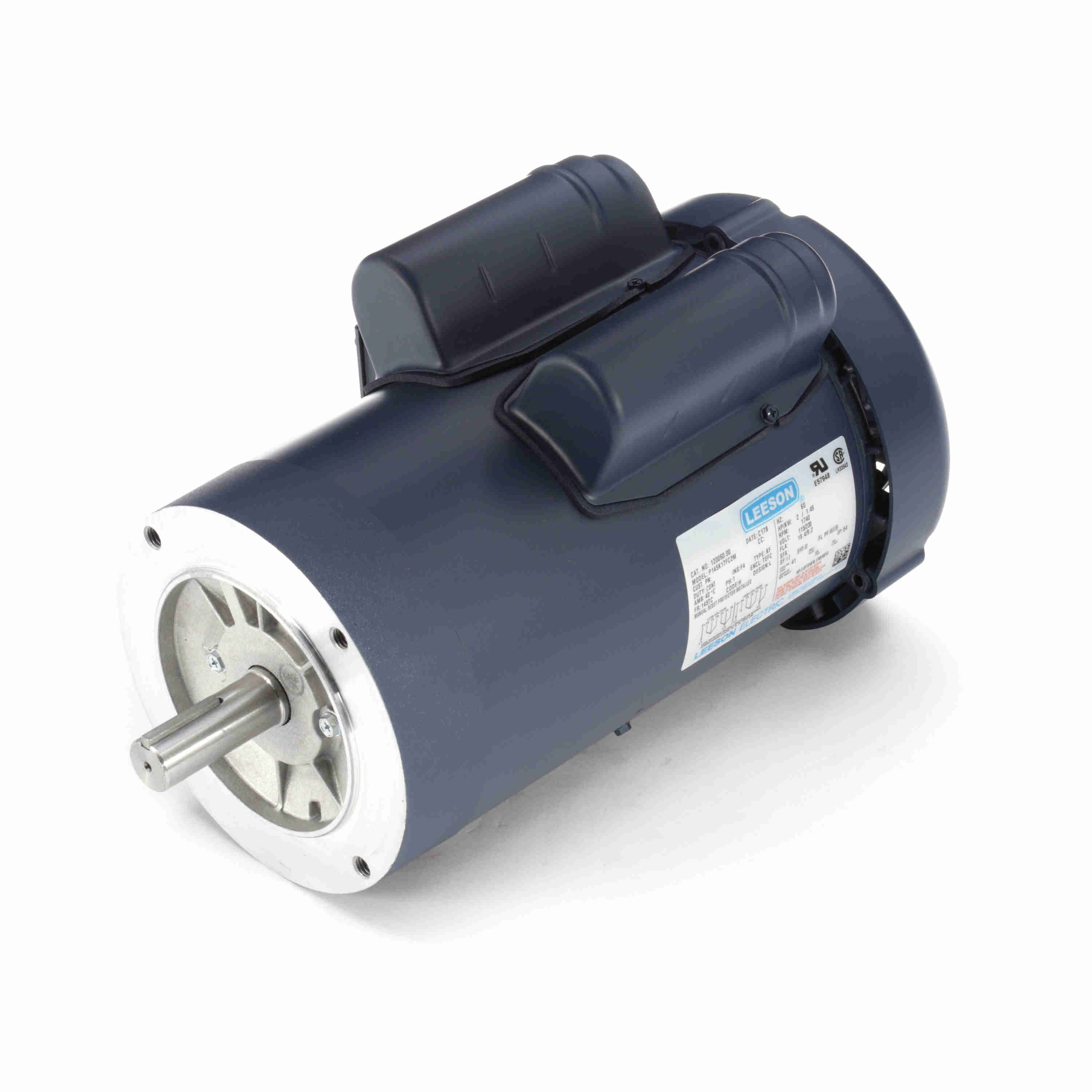

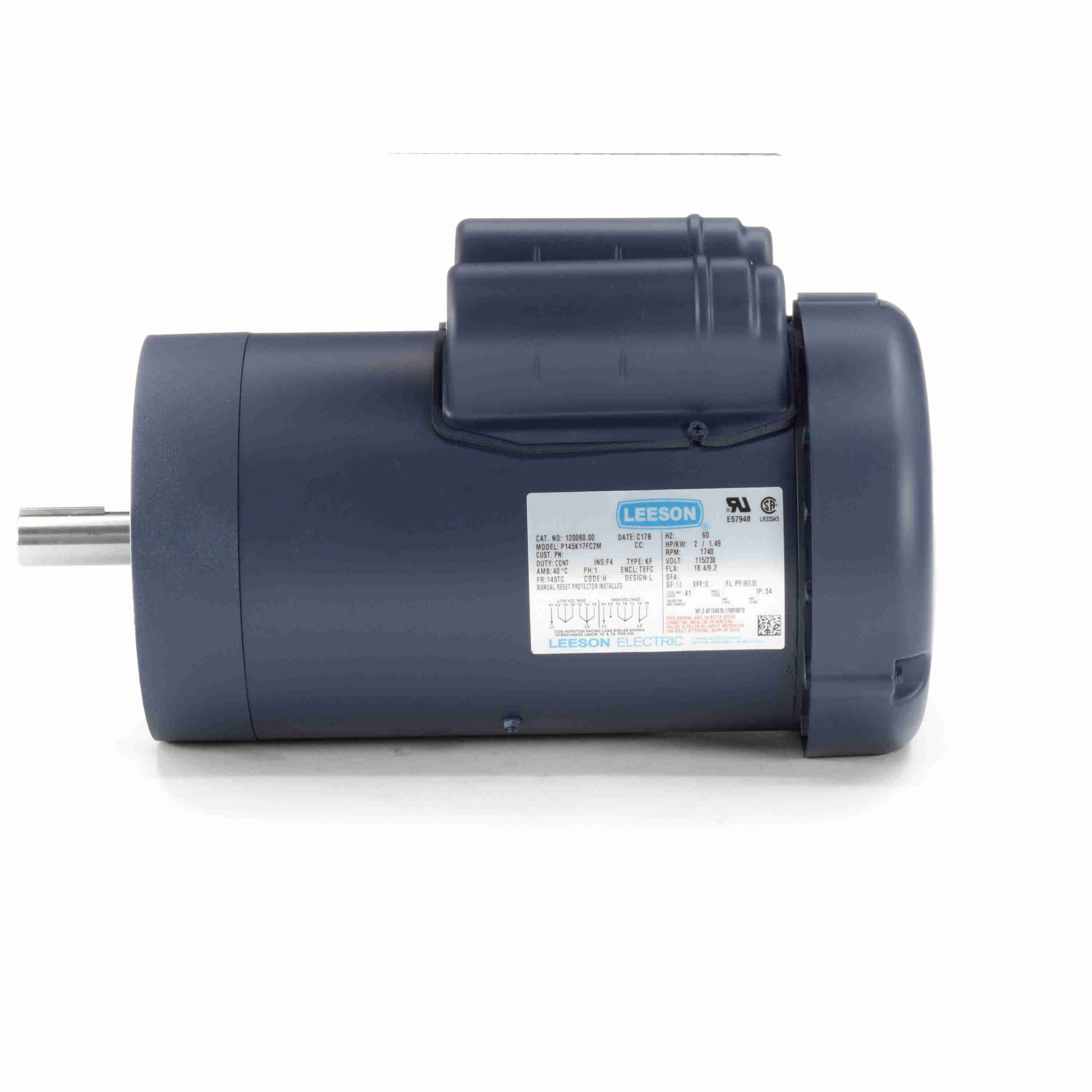

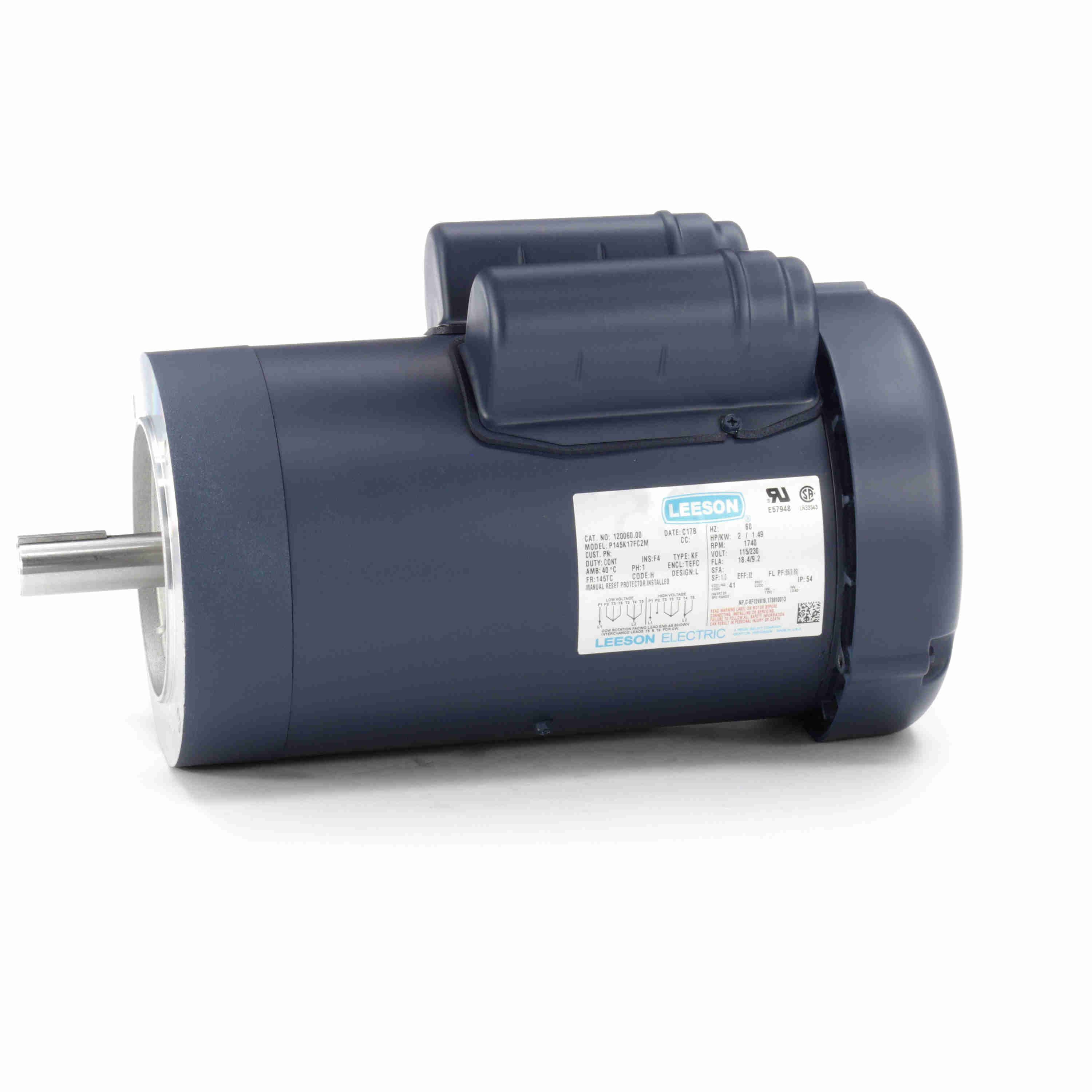

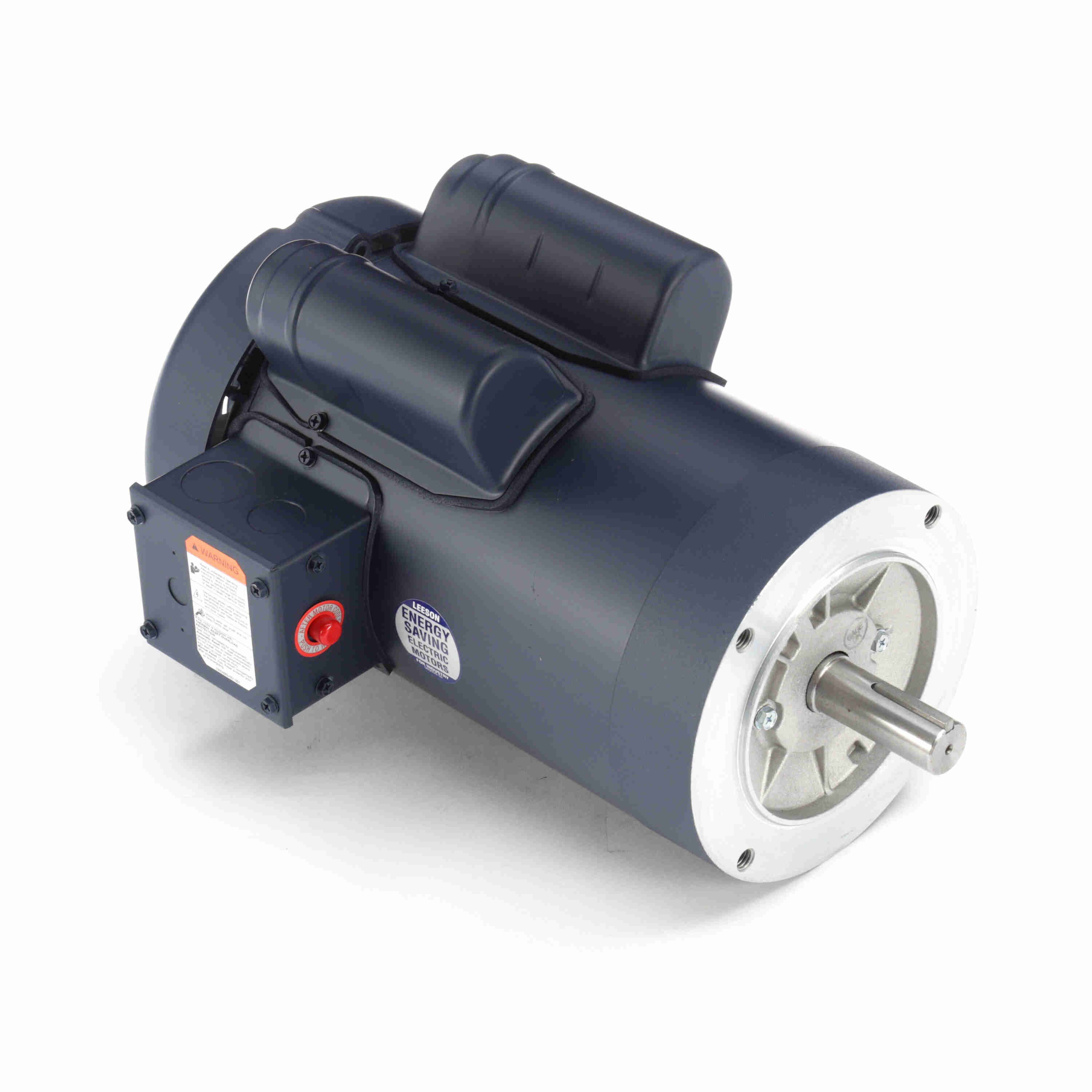

120060.00 Leeson 2HP General Purpose Electric Motor, 1740RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120060.00

Selected accessories will also be added to cart

$1,137.72 / Each

Quantity:

TEFC, 145TC Frame, 115/230VAC 60Hz Single Phase, Rolled Steel, Round Body, C-Face

Details
Purchase Components

Features

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.

General Specifications

UPC:	691720014950	Weight:	45.00 LB
Packaged Length:	19.5 IN	Packaged Width:	10.44 IN
Packaged Height:	10.88 IN	Country of Origin:	United States of America

Nameplate Specifications

Output HP:	2 Hp	Output KW:	1.5 kW
Frequency:	60 Hz	Voltage:	115/230 V
Current:	18.4/9.2 A	Speed:	1740 rpm
Service Factor:	1	Phase:	1
Efficiency:	82 %	Power Factor:	86
Duty:	Continuous	Insulation Class:	F
Design Code:	L	KVA Code:	H
Frame:	145TC	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	Manual	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	54
Number of Speeds:	1

Technical Specifications

Electrical Type:	Capacitor Start Capacitor Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Round
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	T	Overall Length:	14.43 in
Frame Length:	8.50 in	Shaft Diameter:	0.875 in
Shaft Extension:	2.25 in	Assembly/Box Mounting:	F1 ONLY

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (LB-FT)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	9.95	100.0	5.98	100.0	1,756	1.93	84.2	2.00
Locked-Rotor	66.50	668.0	16.20	271.0	0	12.00	0.0	2.00
Break-Down	31.60	318.0	15.40	258.0	1,479	7.00	0.0	2.00
Pull-Up	57.10	574.0	8.87	148.0	1,221	9.80	0.0	2.00

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	5.02	5.47	6.67	8.13	9.86	11.85	14.19
Rated Output (KW)	0.38	0.69	1.08	1.49	1.92	2.39	2.91
Efficiency (%)	0.0	53.9	69.0	75.2	77.6	77.9	77.0
Power Factor (%)	32.9	55.0	70.3	79.4	84.6	87.7	89.0
Speed (RPM)	1,798	1,788	1,776	1,765	1,752	1,737	1,720
Temp. Rise @ FL	0.0	0.0	0.0	0.0	96.9	0.0	0.0
Torque (LB-FT)	0.00	1.47	2.96	4.46	5.99	7.56	9.16
