12509ET3G447T-W22 WEG 125HP Severe Duty Electric Motor, 900RPM

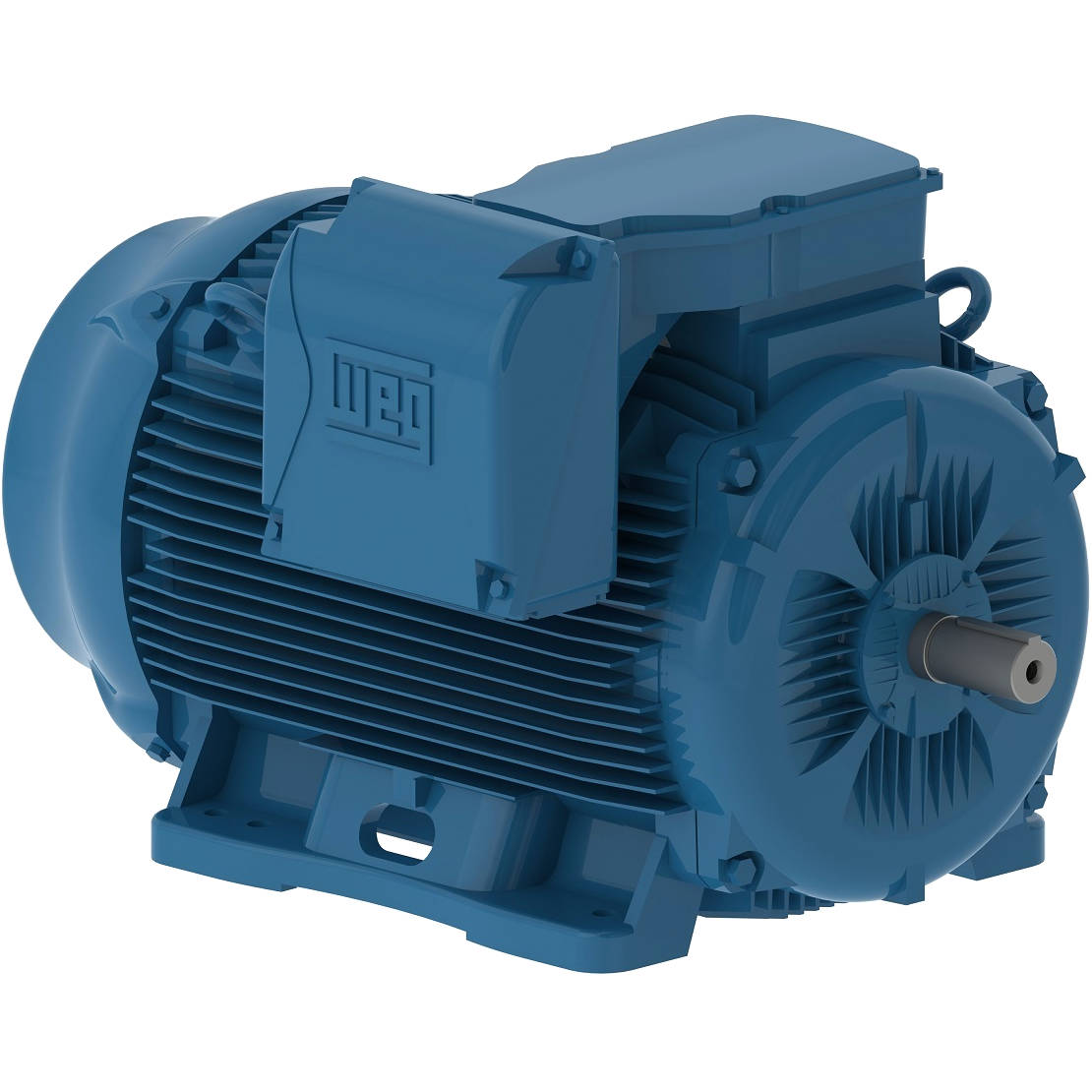

Enlarge Photo

Product ID: 12509ET3G447T-W22

12509ET3G447T-W22 WEG 125HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 12509ET3G447T-W22

Selected accessories will also be added to cart
$25,075.75 / Each
Quantity:
IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 11717746, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame445/7T
Output125 HP
Number of Poles8
Frequency60 Hz
Rated speed889 rpm
Slip1.22 %
Rated voltage460 V
Rated current151 A
L. R. Amperes906 A
LRC6.0x(Code G)
No load current65.0 A
Rated torque738 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  94.5  94.5

Power factor

50%75%100%
0.64  0.74  0.79
Frame445/7T
Output100 HP (75 kW)
Number of Poles8
Frequency50 Hz
Rated speed739 rpm
Slip1.47 %
Rated voltage380 V
Rated current156 A
L. R. Amperes920 A
LRC5.9x(Code G)
No load current64.1 A
Rated torque711 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.4  94.2  93.4

Power factor

50%75%100%
0.62  0.74  0.78
Frame445/7T
Output100 HP (75 kW)
Number of Poles8
Frequency50 Hz
Rated speed740 rpm
Slip1.33 %
Rated voltage400 V
Rated current152 A
L. R. Amperes988 A
LRC6.5x(Code H)
No load current70.0 A
Rated torque710 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  93.9  93.6

Power factor

50%75%100%
0.58  0.71  0.76
Frame445/7T
Output100 HP (75 kW)
Number of Poles8
Frequency50 Hz
Rated speed741 rpm
Slip1.20 %
Rated voltage415 V
Rated current148 A
L. R. Amperes1006 A
LRC6.8x(Code J)
No load current75.5 A
Rated torque709 ft.lb
Locked rotor torque229 %
Breakdown torque260 %
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.9  93.7  93.7

Power factor

50%75%100%
0.55  0.68  0.75
Frame445/7T
Output125 HP
Number of Poles8
Frequency50 Hz
Rated speed735 rpm
Slip2.00 %
Rated voltage380 V
Rated current187 A
L. R. Amperes879 A
LRC4.7x(Code E)
No load current64.1 A
Rated torque893 ft.lb
Locked rotor torque140 %
Breakdown torque170 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  93.6  92.4

Power factor

50%75%100%
0.68  0.77  0.79
Frame445/7T
Output125 HP
Number of Poles8
Frequency50 Hz
Rated speed736 rpm
Slip1.87 %
Rated voltage400 V
Rated current179 A
L. R. Amperes949 A
LRC5.3x(Code F)
No load current70.0 A
Rated torque892 ft.lb
Locked rotor torque160 %
Breakdown torque190 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.0  93.6  93.0

Power factor

50%75%100%
0.66  0.74  0.78
Frame445/7T
Output125 HP
Number of Poles8
Frequency50 Hz
Rated speed738 rpm
Slip1.60 %
Rated voltage415 V
Rated current174 A
L. R. Amperes992 A
LRC5.7x(Code G)
No load current75.5 A
Rated torque889 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)104 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?2038 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  93.6  93.6

Power factor

50%75%100%
0.61  0.72  0.77

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Speed
900RPM
Horsepower
125HP
Input Voltage
460VAC
Frame
445T/447T
