/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/12512ST3HIE445T-W22 WEG 125HP Severe Duty Electric Motor, 1200RPM

Product ID: 12512ST3HIE445T-W22

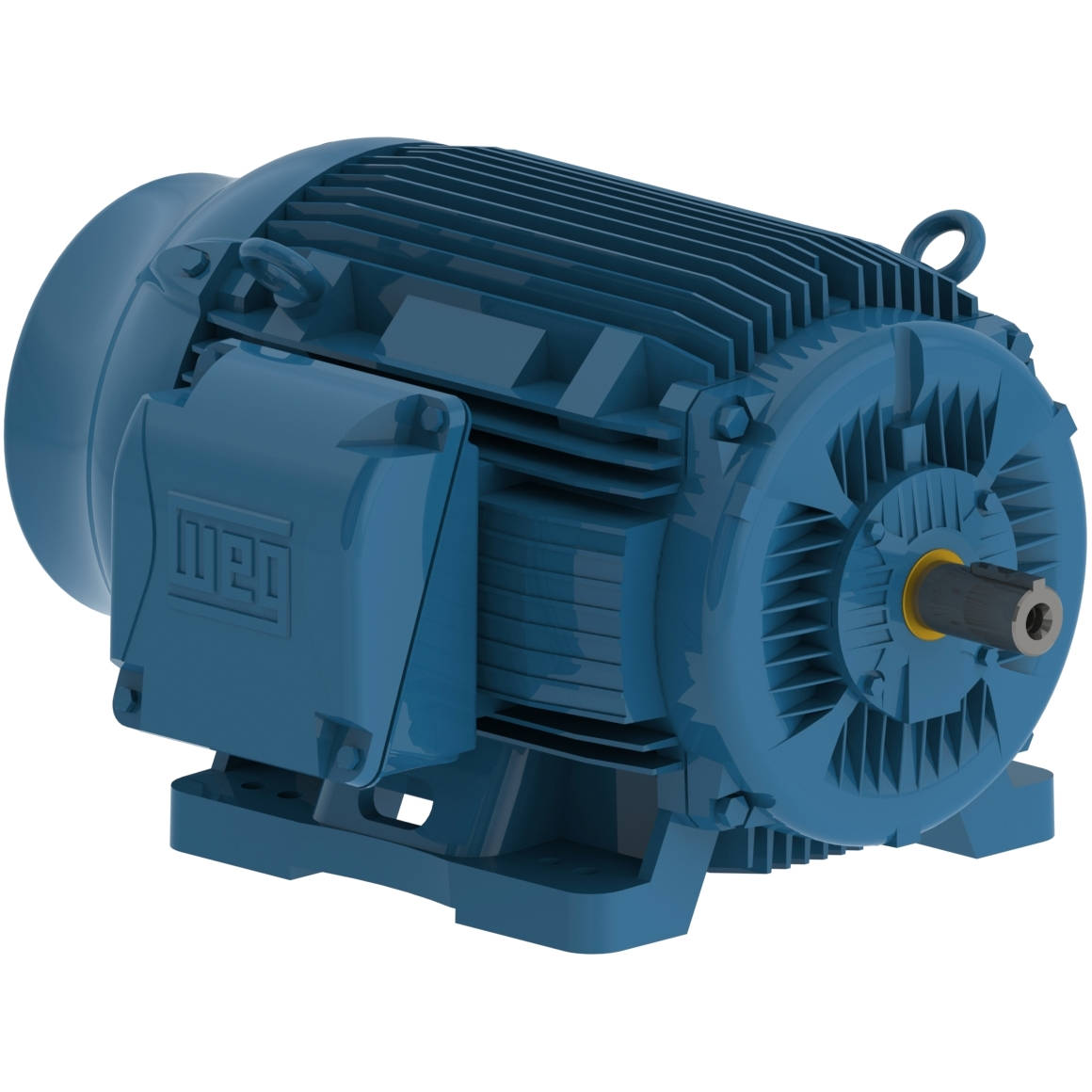

12512ST3HIE445T-W22 WEG 125HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 12512ST3HIE445T-W22

Selected accessories will also be added to cart

$15,118.50 / Each

Quantity:

IC411 - TEFC, IP55, 444T/445T Frame, 575VAC 60Hz 3 Phase, 11431937, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	444/5T
Output	125 HP
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	575 V
Rated current	114 A
L. R. Amperes	721 A
LRC	6.3x(Code G)
No load current	40.0 A
Rated torque	554 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	104 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1837 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.0

Power factor

50%	75%	100%
0.70	0.79	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
