/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount/12512ET3E445T-W22 WEG 125HP Severe Duty Electric Motor, 1200RPM

Product ID: 12512ET3E445T-W22

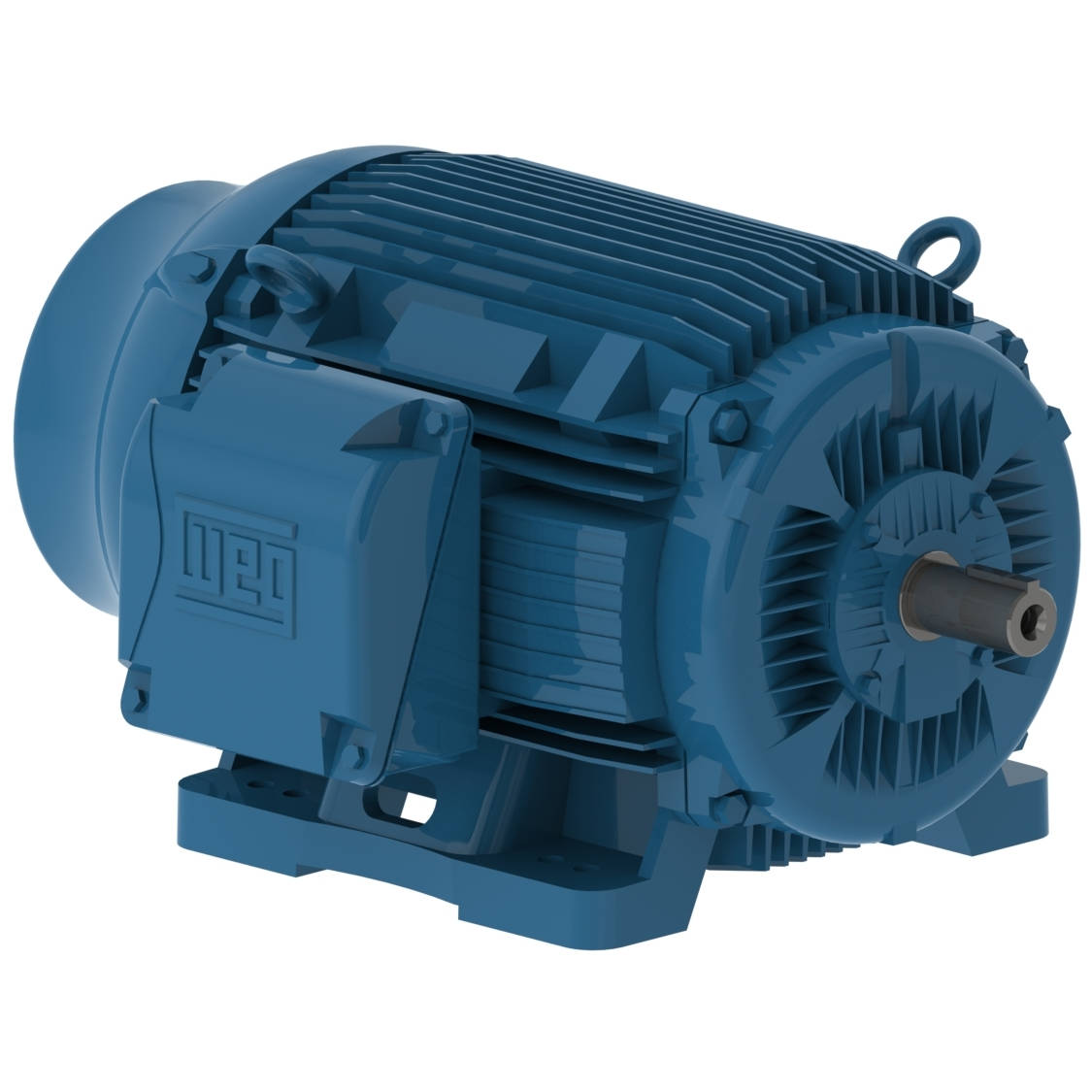

12512ET3E445T-W22 WEG 125HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 12512ET3E445T-W22

Selected accessories will also be added to cart

$13,460.25 / Each

Quantity:

IC411 - TEFC, IP55, 444T/445T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11355771, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Details
Purchase Components

Frame	444/5T
Output	125 HP
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	230/460 V
Rated current	286/143 A
L. R. Amperes	1830/915 A
LRC	6.4x(Code G)
No load current	112/56.0 A
Rated torque	554 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	104 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1803 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
