/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/131571.00 Leeson Washguard Motor, 2HP, 1800RPM
Click Image to Expand

Product ID: 131571.00

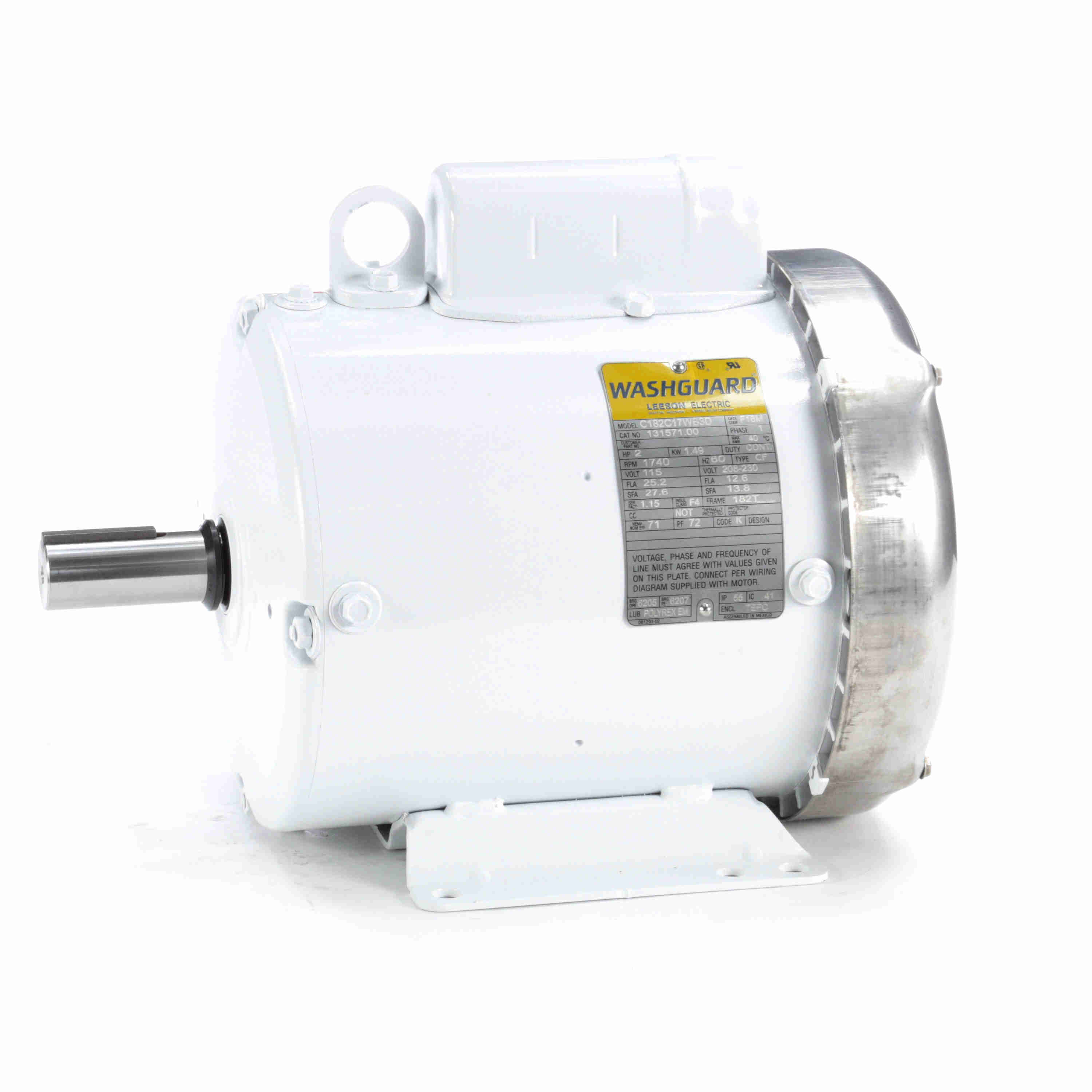

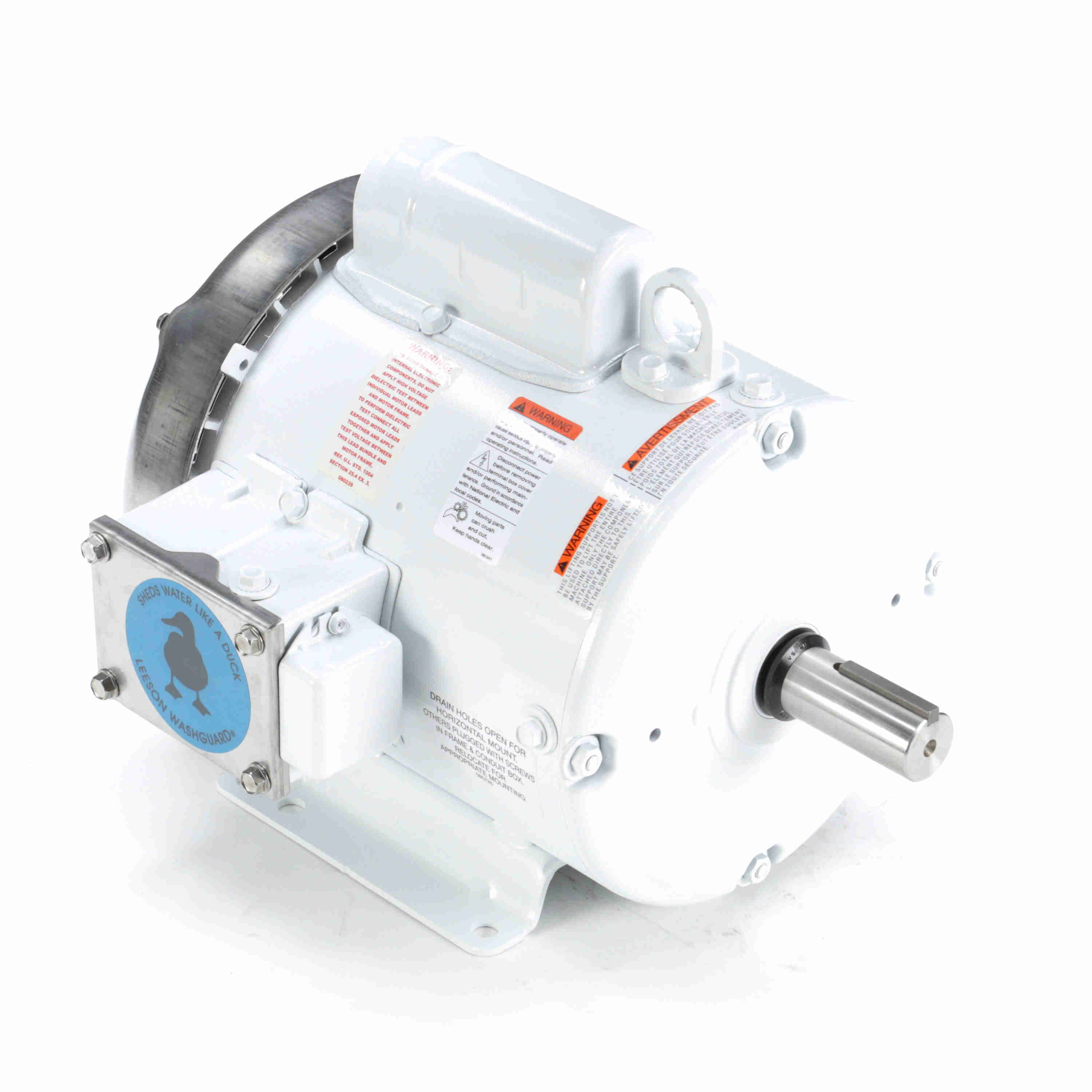

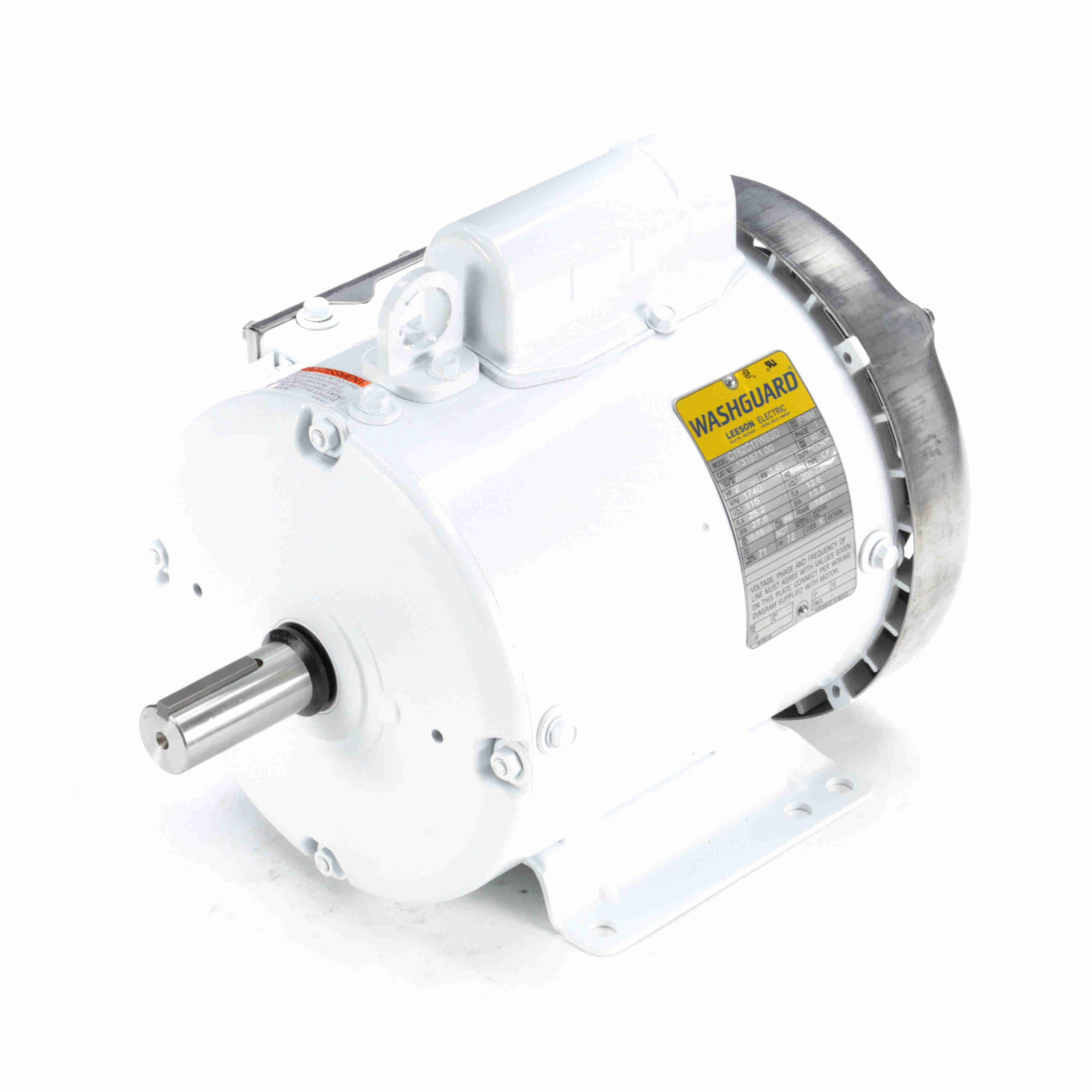

131571.00 Leeson Washguard Motor, 2HP, 1800RPM

MFG: Marathon Electric
MFG Part Number: 131571.00

Selected accessories will also be added to cart
$1,026.26 / Each
Quantity:
182T Frame, 115/208-230V 1-Phase, TEFC, Rigid Base, C182C17WB3
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C182C17WB3D Catalog No :131571.00
Part Description :2HP..1740RPM.182.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.WASHGUARD.C182C17WB3D Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :25.2/12.6 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :71 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :K Frame :182T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 ?C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :13.46 in Frame Length :8.00 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720018026
Weight :63.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.013.30222.000.000.02.00
Break-Down0.000.015.00250.000.000.02.00
Full Load12.60100.06.00100.000.000.02.00
Locked-Rotor68.00540.013.60227.000.000.02.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 7.90
  • 0.442
  • 0.0
  • 0.0
  • 1,796
  • 0.0
  • 0.00
  • 25 %
  • 8.15
  • 0.779
  • 46.0
  • 38.5
  • 1,786
  • 0.0
  • 1.50
  • 50 %
  • 9.36
  • 1.235
  • 61.2
  • 52.5
  • 1,777
  • 0.0
  • 3.00
  • 75 %
  • 10.83
  • 1.690
  • 68.5
  • 63.4
  • 1,767
  • 0.0
  • 4.50
  • 100 %
  • 12.63
  • 2.100
  • 71.0
  • 72.0
  • 1,756
  • 75.0
  • 6.00
  • 125 %
  • 14.82
  • 2.650
  • 0.0
  • 0.0
  • 1,742
  • 0.0
  • 7.50
  • 150 %
  • 17.25
  • 3.250
  • 0.0
  • 0.0
  • 1,727
  • 0.0
  • 9.00
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
2HP
Enclosure
TEFC
Frame
182T
