/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/132440.00 Leeson Washguard Motor, 5 HP, 1800 RPM
Click Image to Expand

Product ID: 132440.00

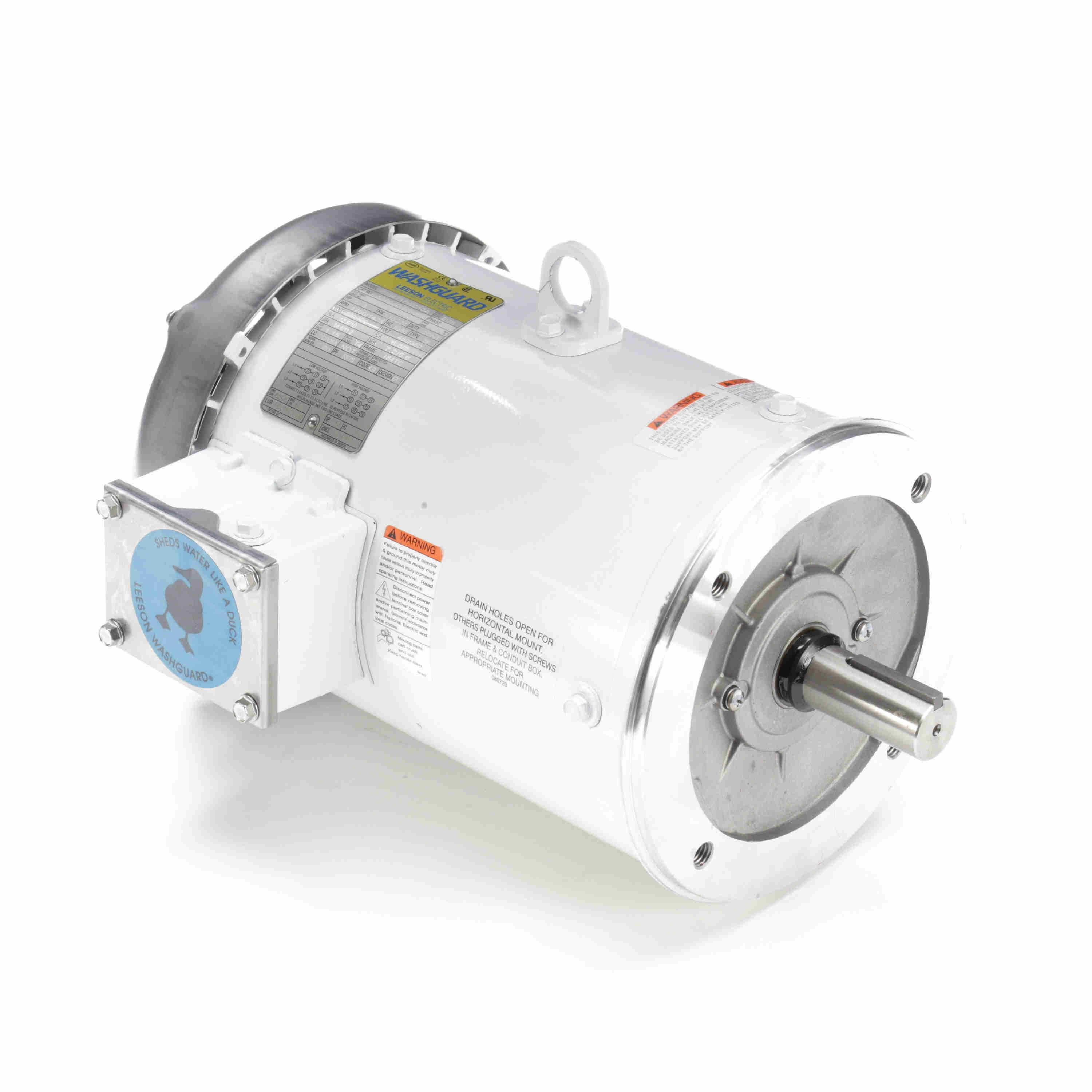

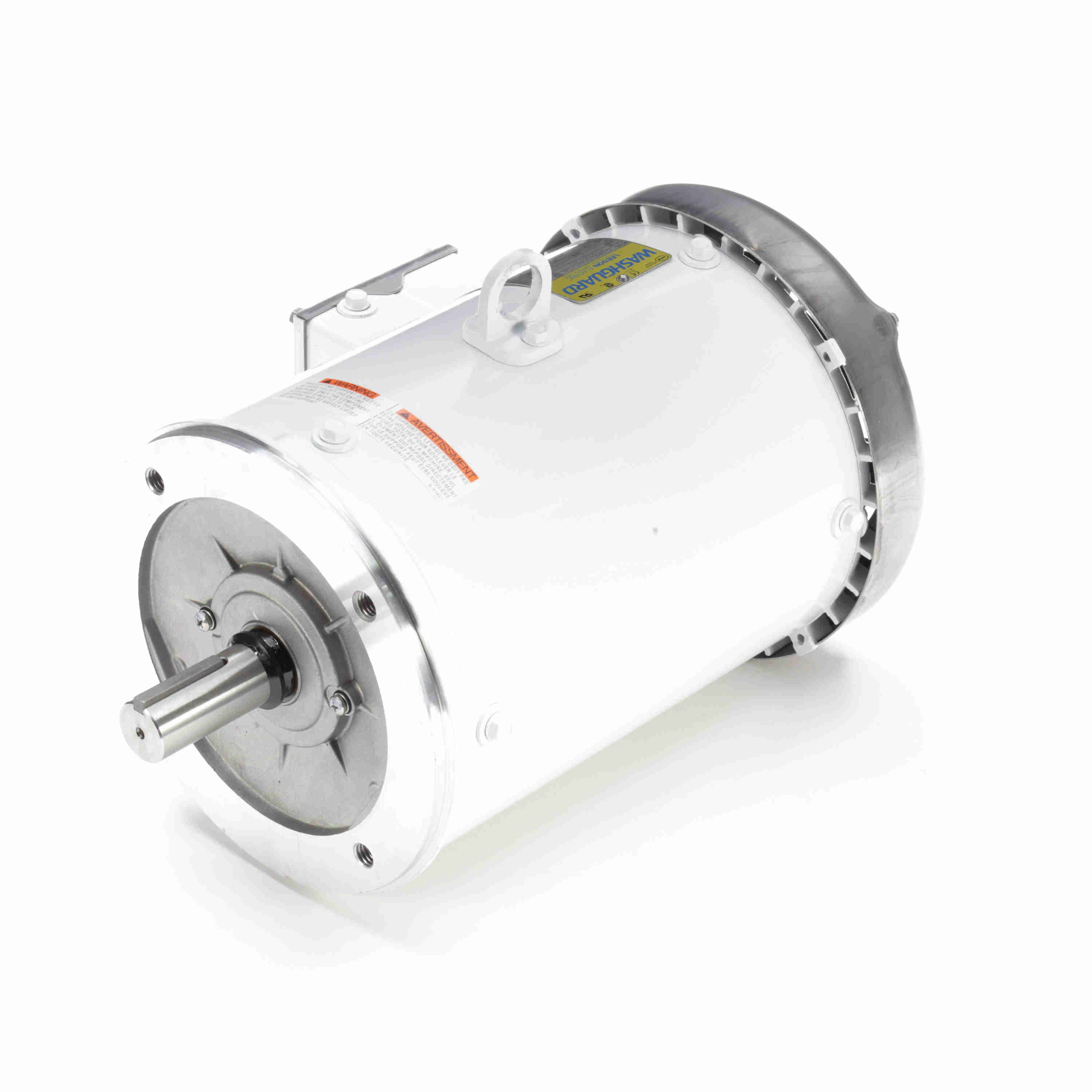

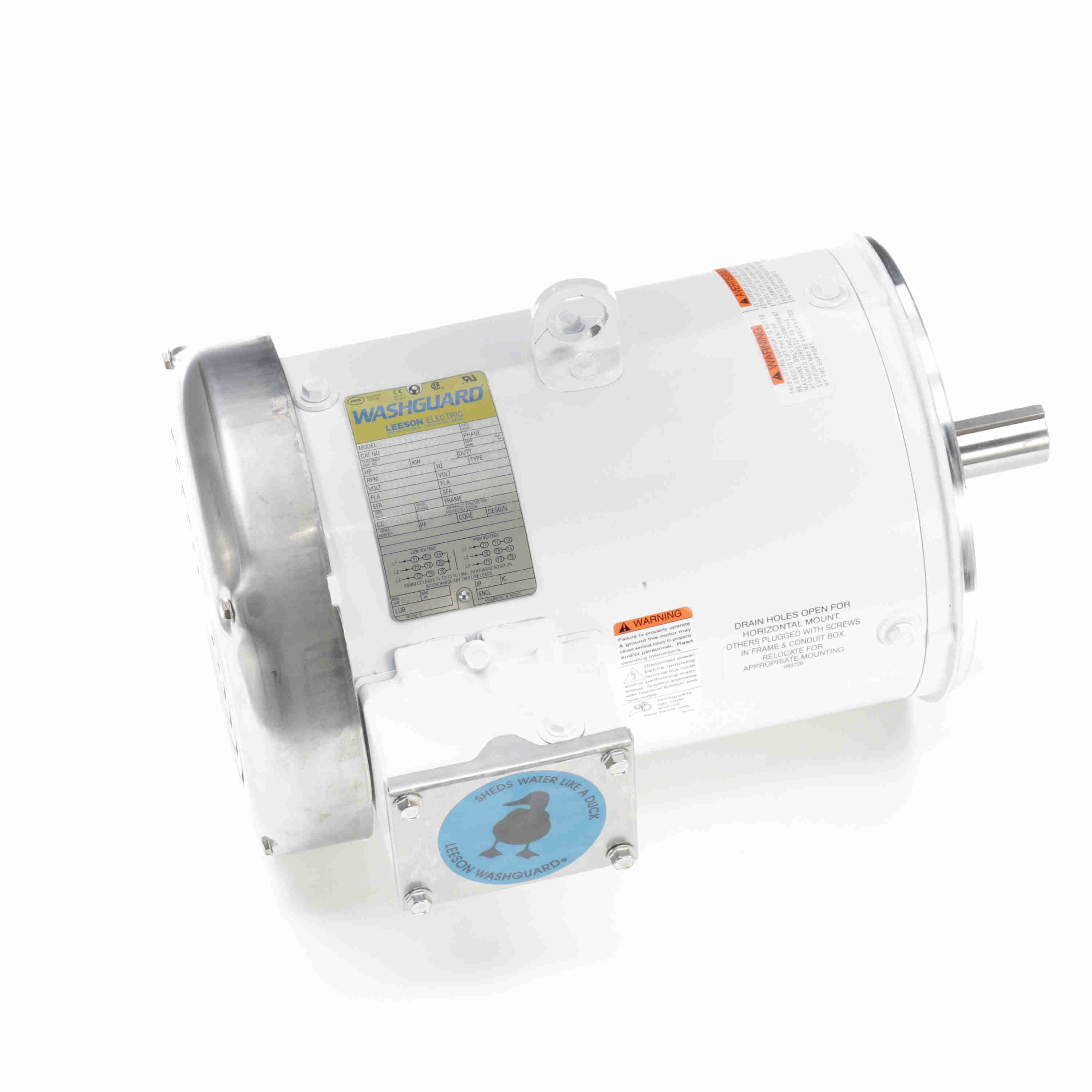

132440.00 Leeson Washguard Motor, 5 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 132440.00

Selected accessories will also be added to cart
$1,239.97 / Each
Quantity:
184TC Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C184T17WC10A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • Washdown brakemotors and pump motors available
General Specifications
Model :C184T17WC10A Catalog No :132440.00
Part Description :..5HP..1800RPM.184TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15 S.F..C FACE......WASHDOWN DUTY........ Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :5 Hp Output KW :3.7 kW
Frequency :60 Hz Voltage :230/460 V
Current :12.6/6.3 A Speed :1760 rpm
Service Factor :1.15 Phase :3
Efficiency :89.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :G Frame :184TC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :15.47 in Frame Length :10.00 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1/F2 CAPABLE UPC :691720051863
Weight :67.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.029.80199.000.000.05.00
Full Load6.30100.014.96100.004.170.05.00
Locked-Rotor49.00778.030.10201.000.000.05.00
Break-Down0.000.050.20336.000.000.05.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.40
  • 0.130
  • 0.0
  • 6.8
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.80
  • 1.089
  • 85.9
  • 48.8
  • 1,790
  • 0.0
  • 3.68
  • 50 %
  • 3.72
  • 2.100
  • 88.9
  • 70.9
  • 1,779
  • 0.0
  • 7.39
  • 75 %
  • 4.90
  • 3.100
  • 90.2
  • 79.4
  • 1,768
  • 0.0
  • 11.13
  • 100 %
  • 6.30
  • 4.166
  • 89.5
  • 83.1
  • 1,760
  • 65.0
  • 14.96
  • 115 %
  • 7.20
  • 4.830
  • 89.3
  • 84.2
  • 1,747
  • 90.0
  • 17.38
  • 125 %
  • 7.80
  • 5.300
  • 88.0
  • 85.3
  • 1,742
  • 110.0
  • 18.84
  • 150 %
  • 9.46
  • 6.490
  • 86.2
  • 86.1
  • 1,727
  • 0.0
  • 22.80
