/Products/Electric Motors/3 Phase/Marathon 3-Phase Electric Motors/132442.00 Marathon 3HP White Duck Washdown Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: 132442.00

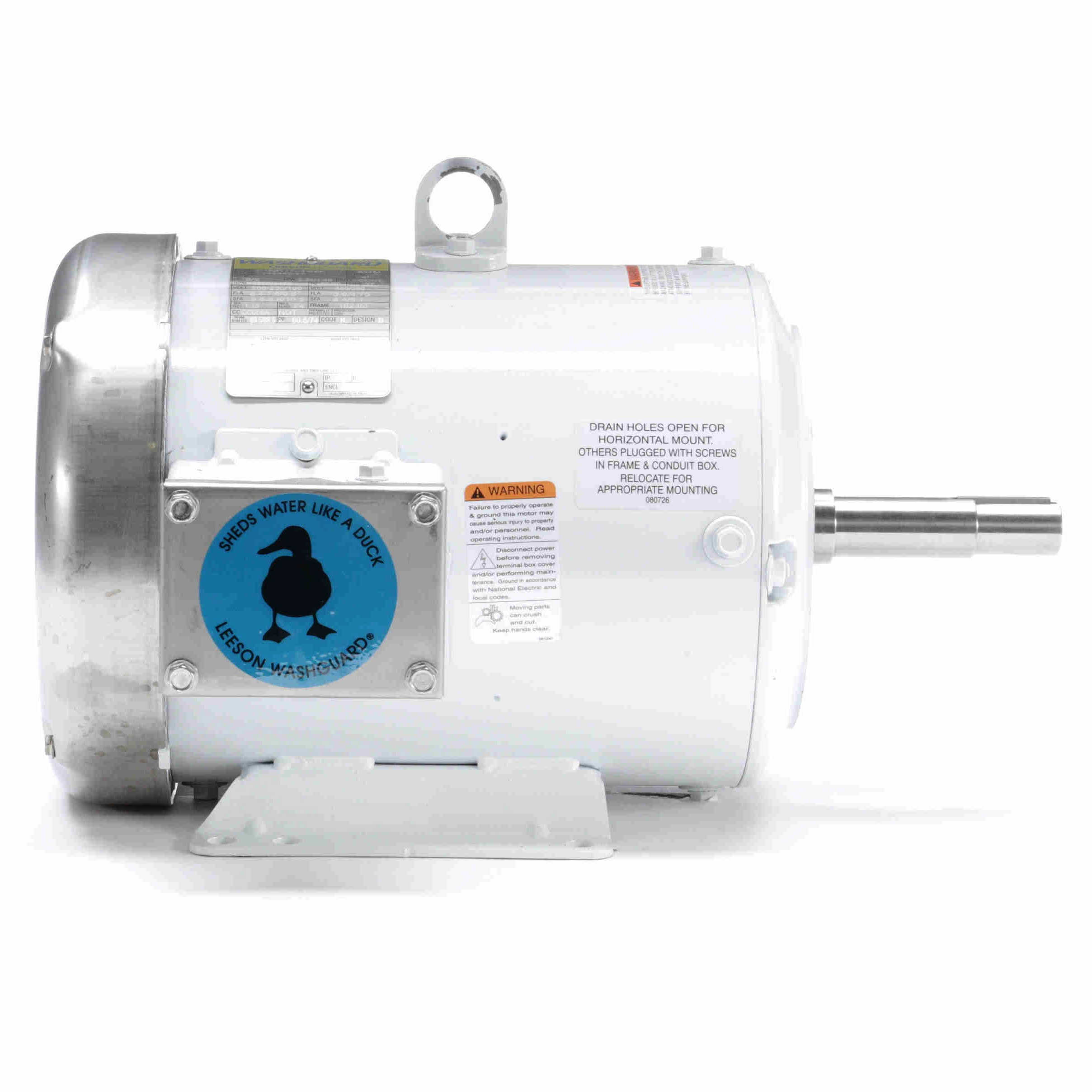

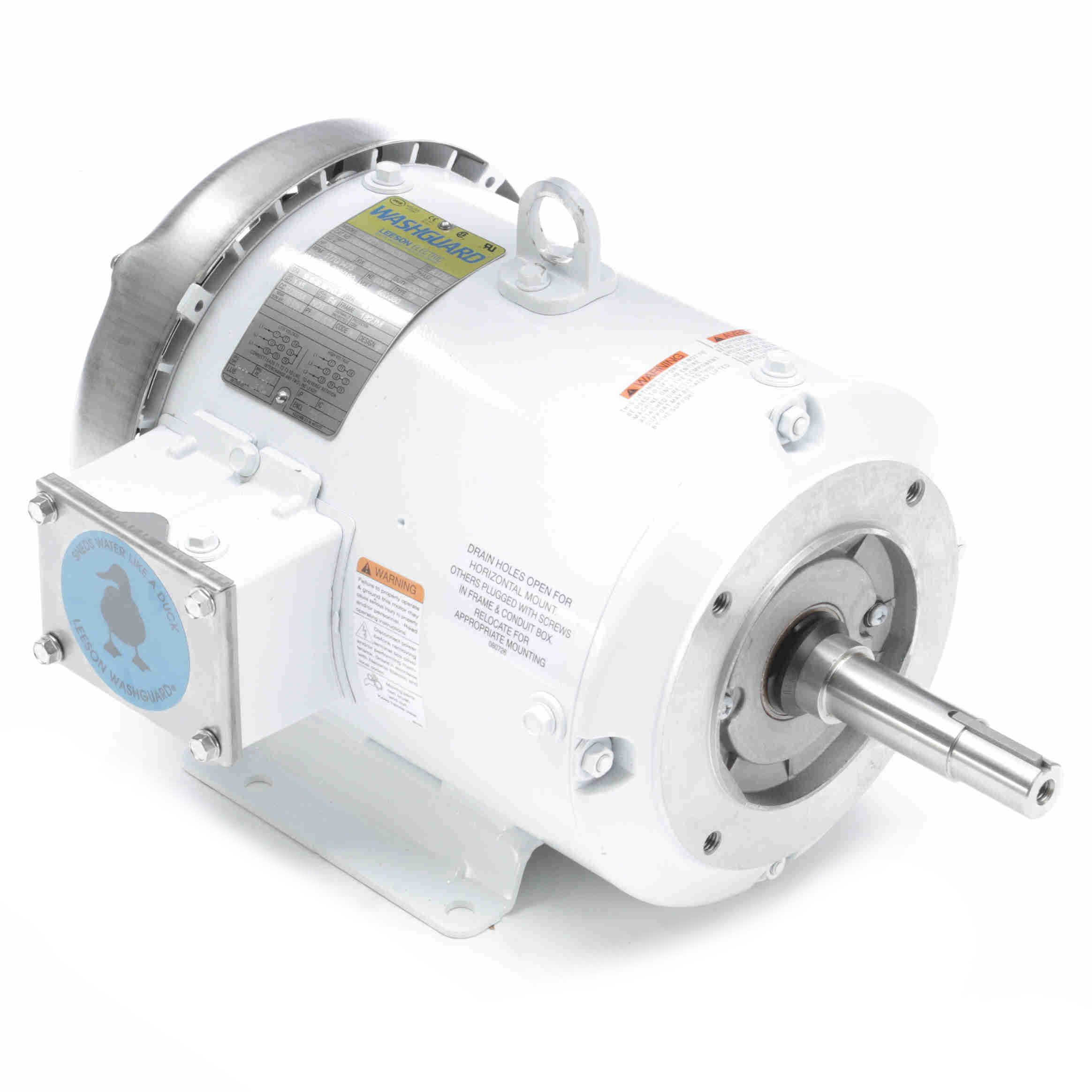

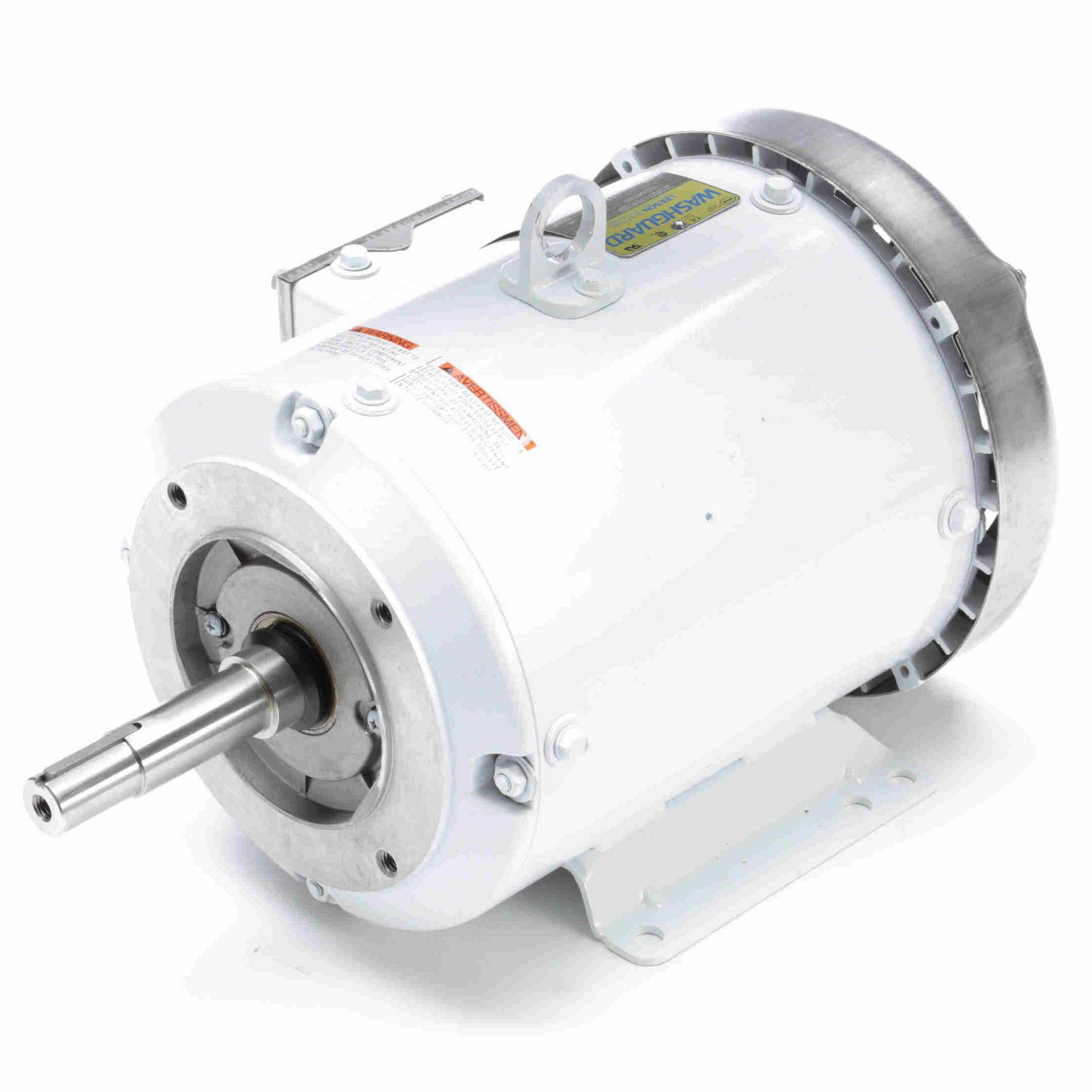

132442.00 Marathon 3HP White Duck Washdown Pump Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 132442.00

Selected accessories will also be added to cart
$1,446.92 / Each
Quantity:
TEFC, 182JM Frame, 208-230/460VAC 60Hz 3 Phase, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Features

  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals

General Specifications

UPC:691720052099Weight:90.00 LB
Packaged Length:17.94 INPackaged Width:13.06 IN
Packaged Height:12.88 INCountry of Origin:Mexico

Nameplate Specifications

Output HP:3 HpOutput KW:2.2 kW
Frequency:60 HzVoltage:208-230/460 V
Current:8.4-7.8/3.9 ASpeed:1770 rpm
Service Factor:1.15Phase:3
Efficiency:89.5 %Power Factor:80.5
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:K
Frame:182JMEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:No ProtectionAmbient Temperature:40 ?C
Drive End Bearing Size:6207Opp Drive End Bearing Size:6205
UL:RecognizedCSA:Y
CE:YIP Code:55
Number of Speeds:1

Technical Specifications

Electrical Type:Squirrel Cage Induction RunStarting Method:Across The Line
Poles:4Rotation:Reversible
Resistance Main:6.08 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:JMOverall Length:16.13 in
Frame Length:9.00 inShaft Diameter:0.875 in
Shaft Extension:4.28 inAssembly/Box Mounting:F1/F2 CAPABLE

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (LB-FT)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down21.50551.036.00404.000.000.03.00
Full Load3.90100.08.90100.01,7700.0080.53.00
Pull-Up33.00846.021.00236.000.000.03.00
Locked-Rotor33.50859.022.50253.000.000.03.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %150 %
Current (Amps)1.902.102.563.183.904.404.735.61
Rated Output (KW)0.110.691.281.872.502.863.133.79
Efficiency (%)0.080.887.789.689.589.989.588.5
Power Factor (%)6.941.462.773.880.581.683.084.7
Speed (RPM)1,7981,7921,7851,7771,7701,7661,7551,750
Temp. Rise @ FL0.00.00.00.040.047.060.00.0
Torque (LB-FT)0.002.204.426.648.9110.2611.2013.49
Type
Electric Motor
Speed
1800RPM
Horsepower
3HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182JM
