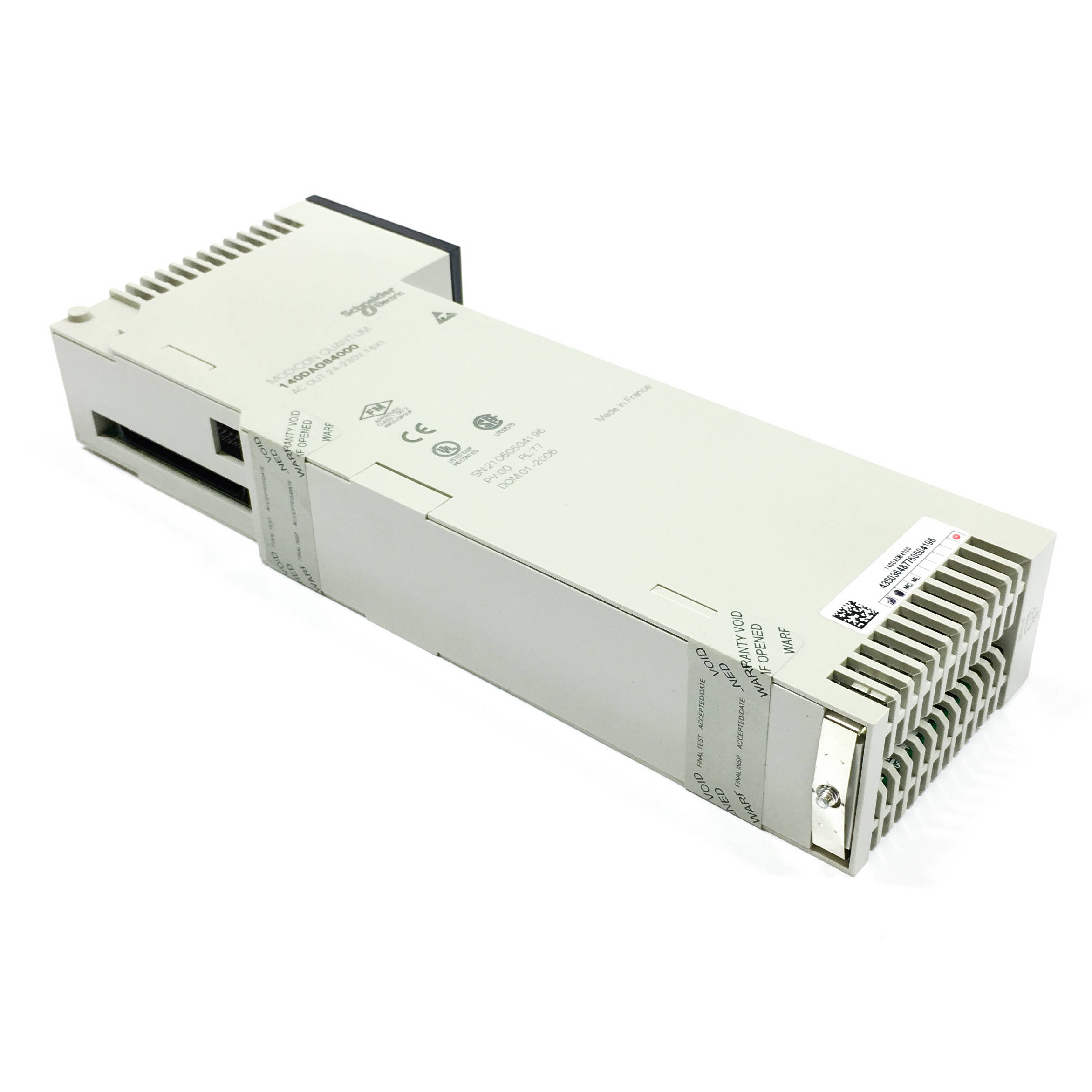

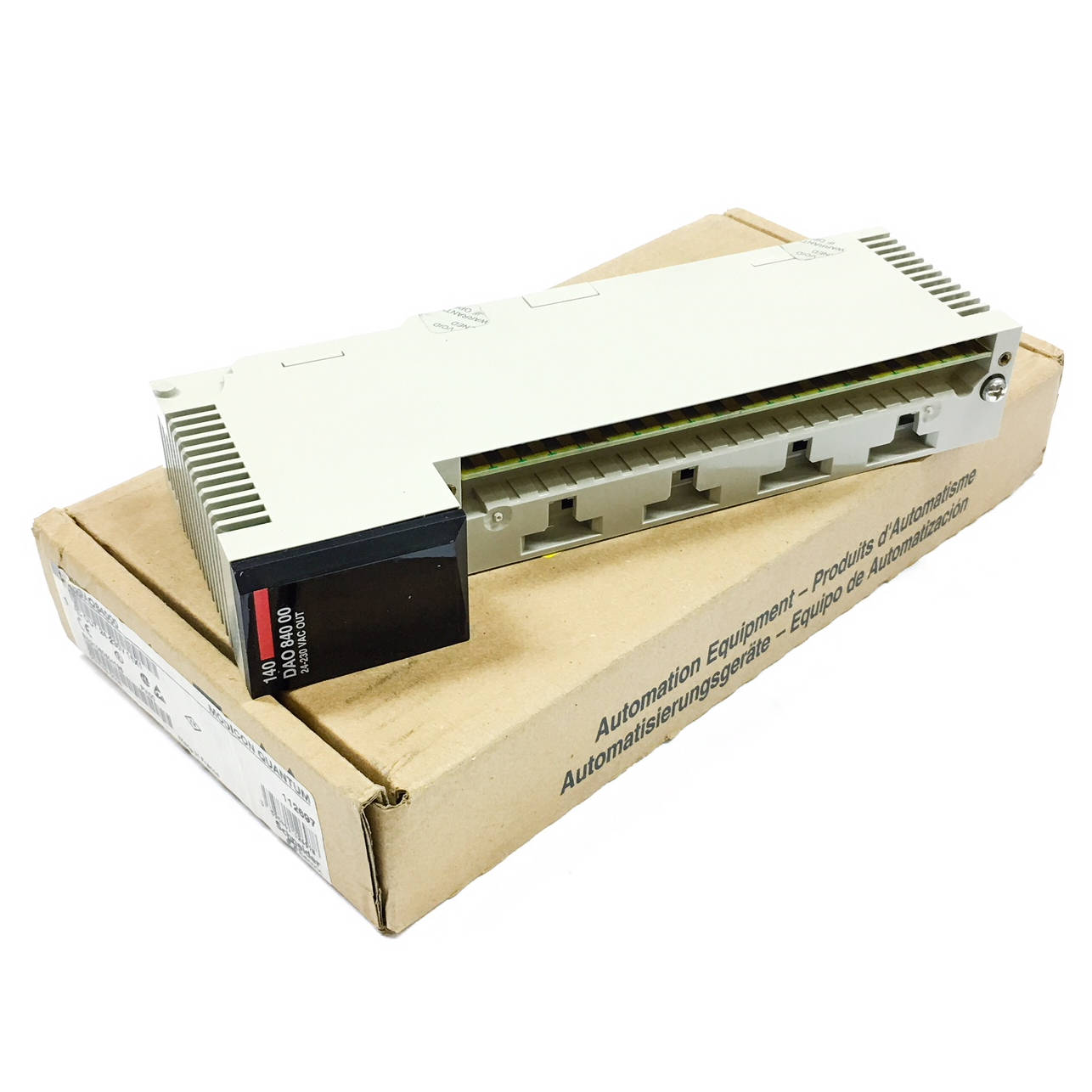

Schneider Electric 140-DAO-840-00 Modicon Quantum Discrete AC Output Module, 16x1, 24-230V
SN: 21060504196 PV: 00 RL: 77 DOM: 01-2006
Made in France
Main
| range of product |
Modicon Quantum automation platform
|
|
| product or component type |
AC discrete output modules
|
|
| discrete output number |
16
|
|
Complementary
| discrete output type |
Isolated
|
|
| group of channels |
16 groups of 1 channel
|
|
| supply frequency |
47...63 Hz
|
|
| voltage drop |
1.5 V
|
|
| discrete output voltage |
20...253 V AC
|
|
| addressing requirement |
1 output word
|
|
| absolute maximum output |
300 Vrms for 10 s AC
400 Vrms 1 cycle AC
|
|
| maximum load current |
4 A rms sum of four points, continuous
1 mA rms 24 Vrms off state leakage per output
1 mA rms 48 Vrms off state leakage per output
16 A rms per module
2 mA rms 115 Vrms off state leakage per output
2.5 mA rms 230 Vrms off state leakage per output
3 A rms 200...230 V per output
4 A rms 24...115 V per output
|
|
| surge current |
<= 10 A during 3 cycles per point
<= 20 A during 2 cycles per point
<= 30 A during 1 cycle per point
|
|
| dV/dt |
400 V/ms
|
|
| response time |
<= 0.5 ms at state 0 to state 1
<= 0.5 ms at state 1 to state 0
|
|
| protection type |
Internal by RC filter
|
|
| power dissipation |
1.85 + (1.1 V x total module load current)
|
|
| associated fuse rating |
5 A
|
|
| marking |
CE
|
|
| local signalling |
1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
16 LEDs green input status
|
|
| bus current requirement |
350 mA
|
|
| module format |
Standard
|
|
| product weight |
0.485 kg
|
|
Environment
| product certifications |
CUL
FM Class 1 Division 2
|
|
| standards |
CSA C22.2 No 142
UL 508
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test (test level:4 kV, contact discharge) conforming to IEC 801-2
Electrostatic discharge immunity test (test level:8 kV, air discharge) conforming to IEC 801-2
Susceptibility to electromagnetic fields (test level:10 V/m, 80...1000 MHz) conforming to IEC 801-3
|
|
| ambient air temperature for operation |
0...60 °C
|
|
| ambient air temperature for storage |
-40...85 °C
|
|
| relative humidity |
95 % without condensation
|
|
| operating altitude |
<= 5000 m
|
|
