Product ID: 140414.00

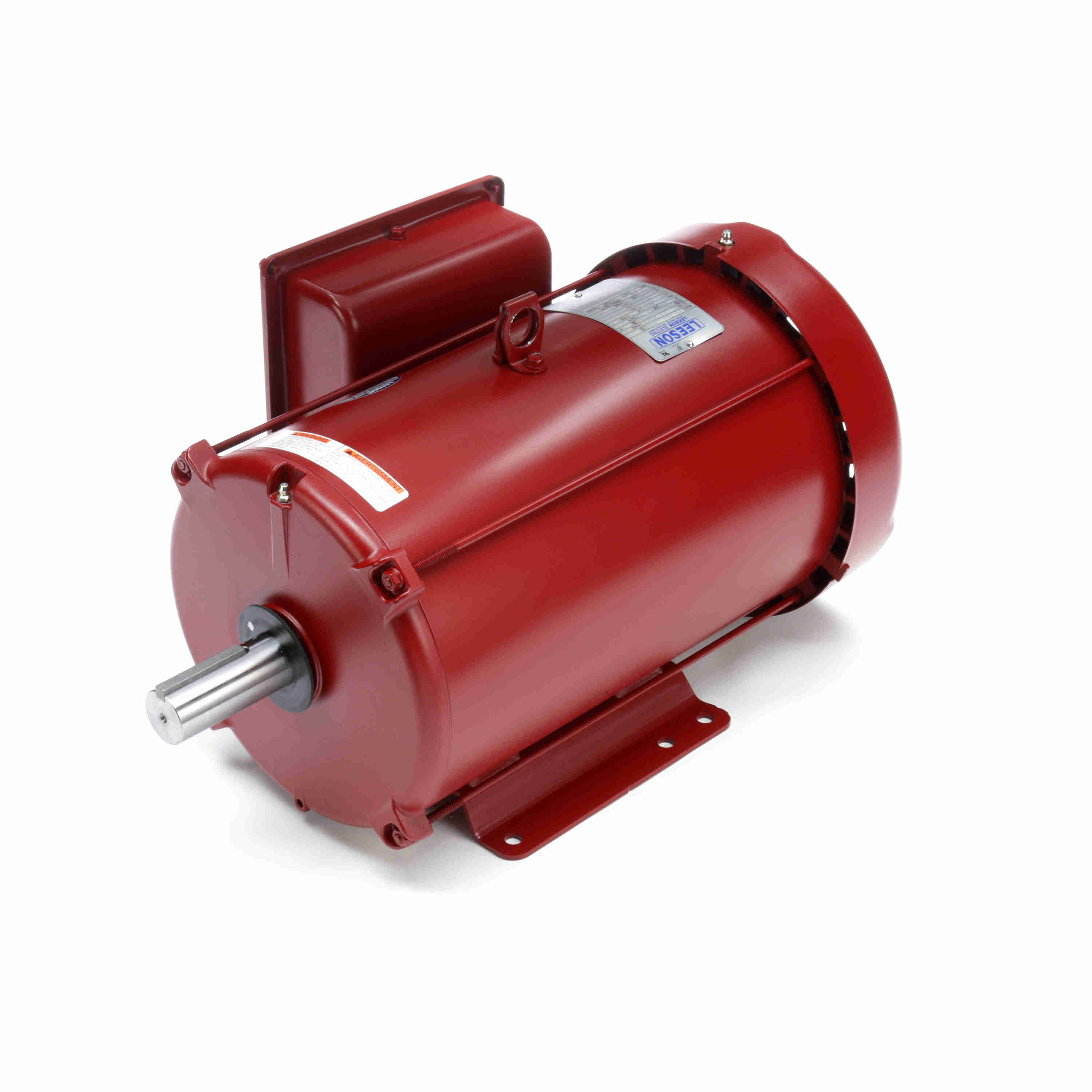

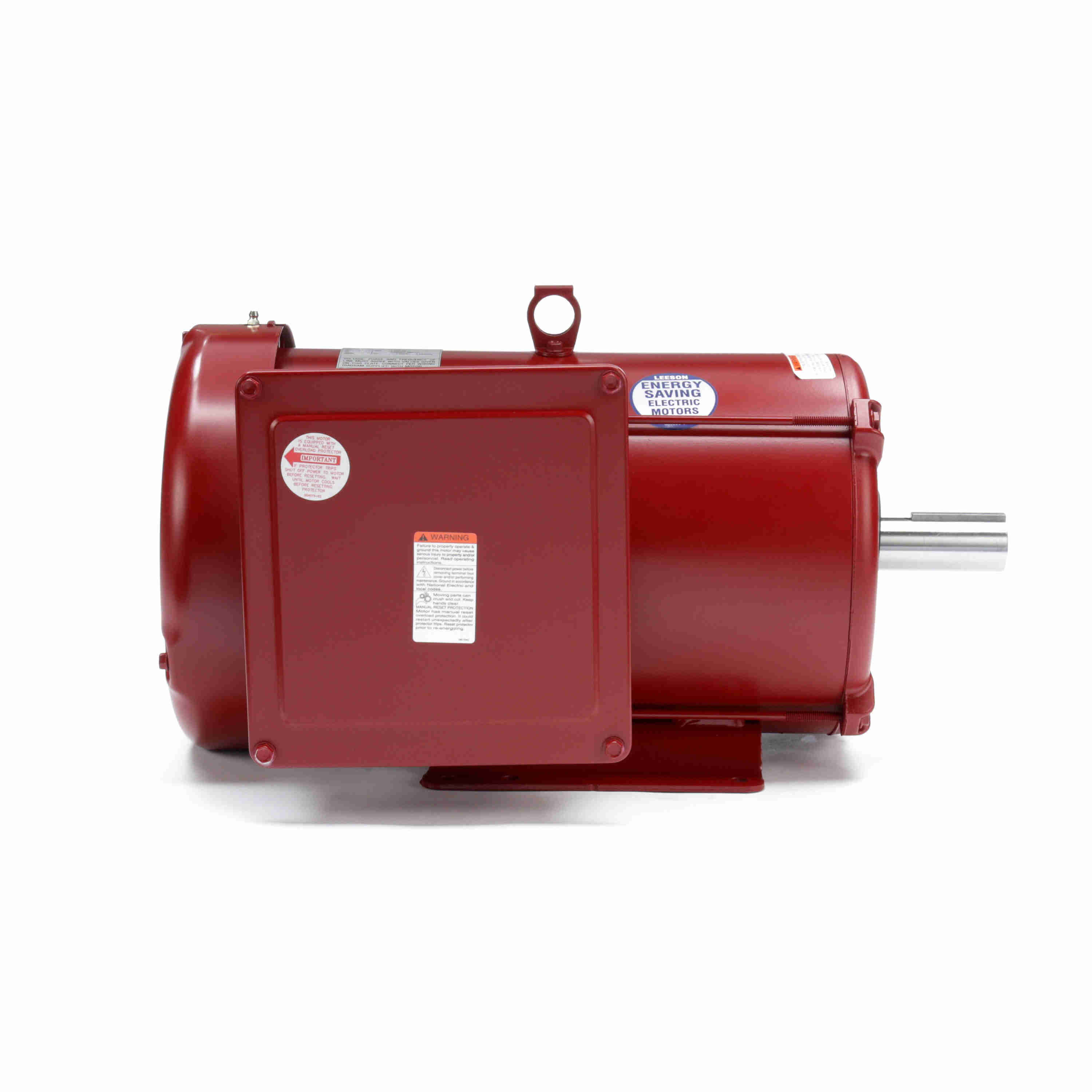

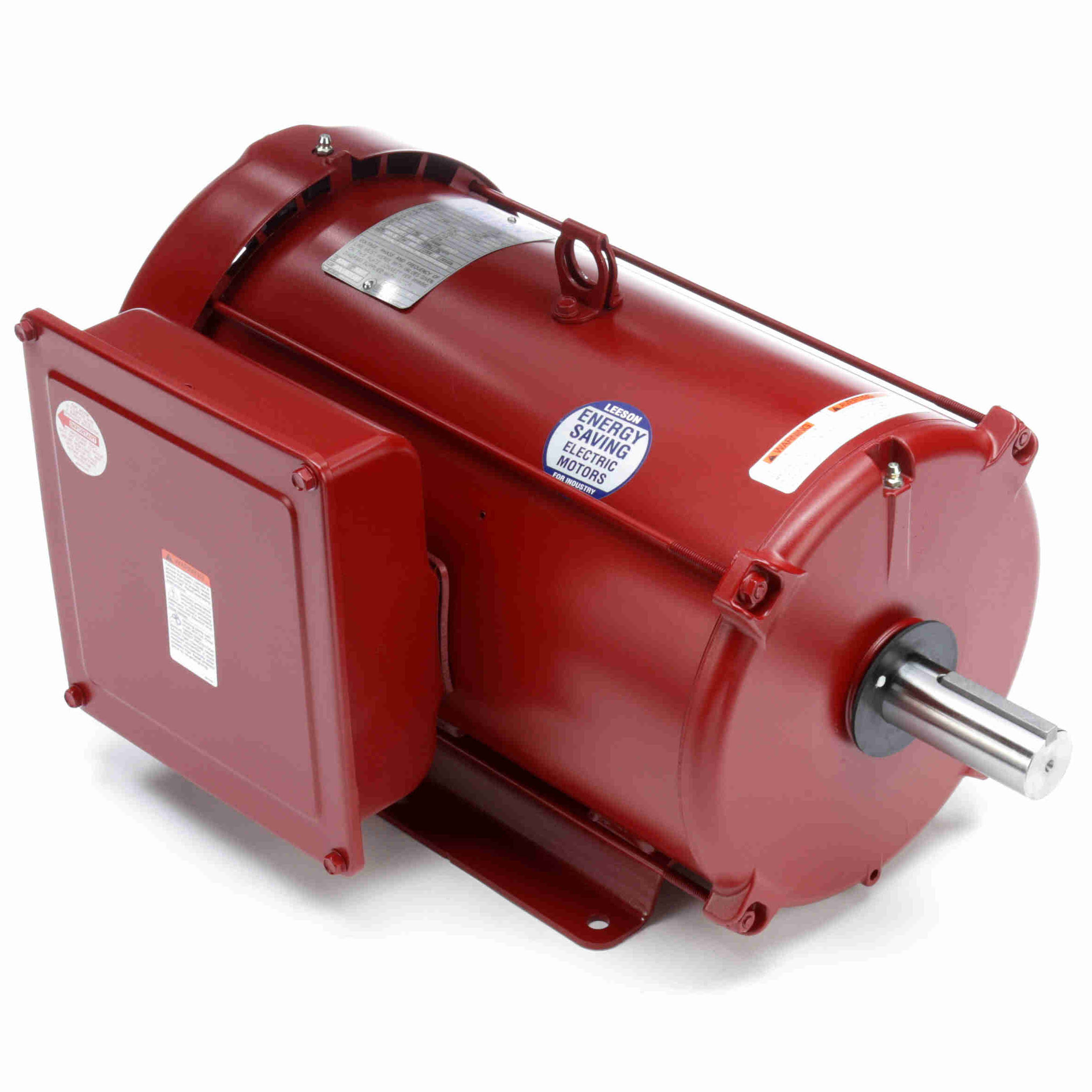

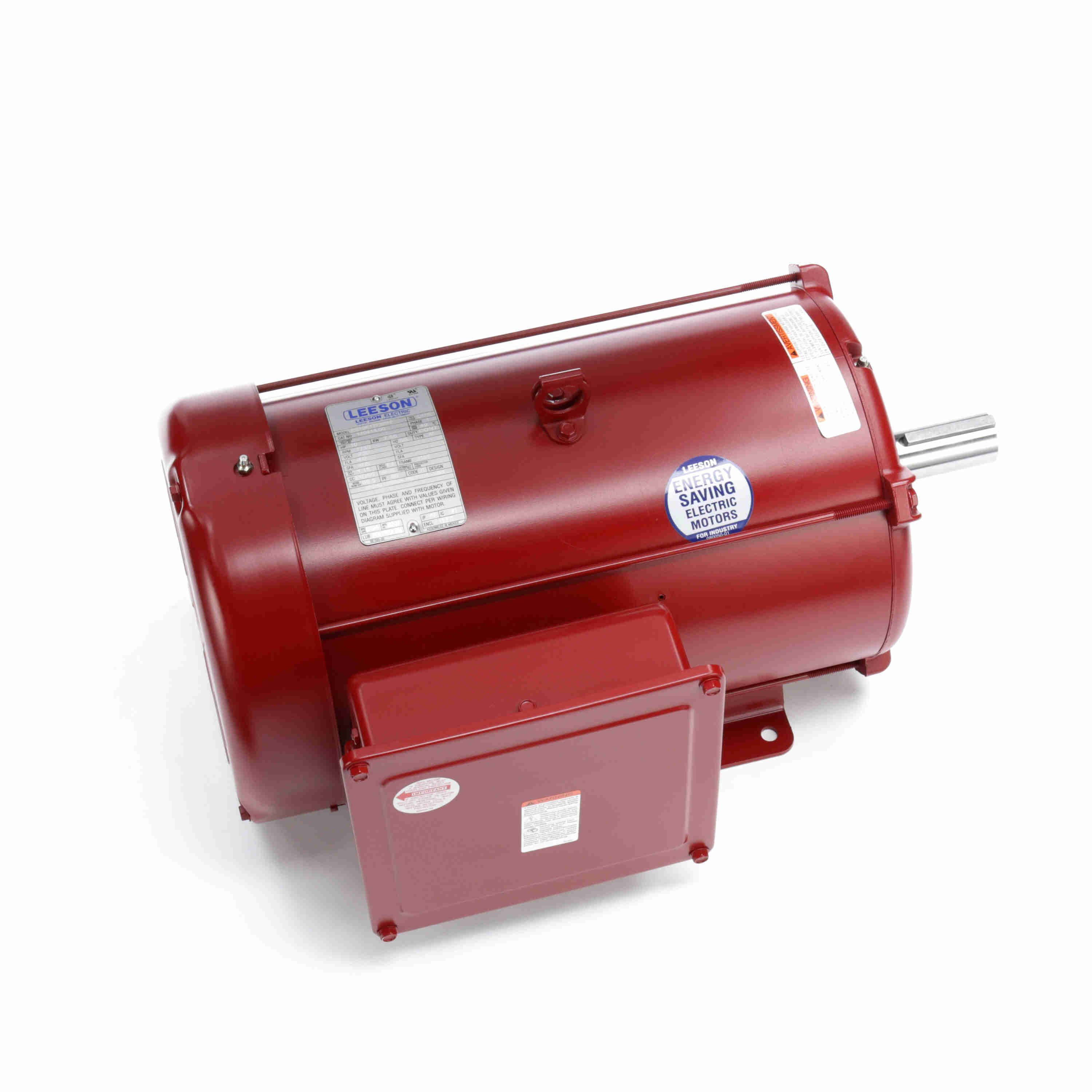

140414.00 10HP Leeson Ag Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: P215K17FB6

Selected accessories will also be added to cart
$1,446.20 / Each
Quantity:
General Purpose, Extra High Torque, Tefc, 1725 Rpm, 215T Frame, 1 Phase, 230V.
Features
  • Premium efficient designs
  • Double sealed ball bearings
  • Shaft flinger - output shaft
  • Normally closed thermostat protected
  • Weep holes provide condensation drains
General Specifications
Model :   P215K17FB6H
Catalog No :   140414.00
Part Description :   10HP..1740RPM.215.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.AG - GENERAL PURPOSE.P215K17FB6H
Category :   Agricultural
Stock :   No
Nameplate Specifications
Output HP :   10 Hp
Output KW :   7.5 kW
Frequency :   60 Hz
Voltage :   230 V
Current :   40 A
Speed :   1740 rpm
Service Factor :   1.15
Phase :   1
Efficiency :   86.5 %
Duty :   CONTINUOUS
Insulation Class :   F
Design Code :   NO DESIGN CODE
KVA Code :   H
Frame :   215T
Enclosure :   TEFC
Overload Protector :   MANUAL
Ambient Temperature :   40 °C
Drive End Bearing Size :   6207
Opp Drive End Bearing Size :   6206
UL :   Recognized
CSA :   Y
CE :   N
IP Code :   43
Technical Specifications
Electrical Type :   CAP START CAP RUN
Starting Method :   ACROSS THE LINE
Poles :   4
Rotation :   SELECTIVE CCW
Mounting :   RIGID
Motor Orientation :   HORIZONTAL
Drive End Bearing :   BALL
Opp Drive End Bearing :   BALL
Frame Material :   ROLLED STEEL
Shaft Type :   T
Overall Length :   20.71 in
Frame Length :   14 in
Shaft Diameter :   1.38 in
Shaft Extension :   3.38 in
Assembly/Box Mounting :   F1 ONLY
UPC :   691720019160
Weight :   156.00 LB

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 66.00 220.0 1,450 10.00
Full Load 40.00 30.00 100.0 1,747 10.00
Locked-Rotor 295.00 117.00 390.0 0 10.00
Break-Down 0.00 69.50 232.0 1,550 10.00

Load Characteristics

  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 6.80
  • 0.900
  • 0.0
  • 57.5
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 13.02
  • 2.673
  • 71.2
  • 89.3
  • 1,787
  • 0.0
  • 7.50
  • 50 %
  • 20.69
  • 4.500
  • 84.1
  • 94.6
  • 1,776
  • 0.0
  • 15.00
  • 75 %
  • 29.51
  • 6.540
  • 86.2
  • 96.4
  • 1,763
  • 0.0
  • 22.50
  • 100 %
  • 39.24
  • 8.610
  • 86.5
  • 95.4
  • 1,747
  • 92.0
  • 30.00
  • 125 %
  • 50.40
  • 11.120
  • 82.9
  • 95.9
  • 1,729
  • 0.0
  • 37.50
  • 150 %
  • 63.10
  • 13.820
  • 79.2
  • 95.2
  • 1,711
  • 0.0
  • 45.00
