/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/140706.00 Marathon 10HP Farm Duty/General Purpose Electric Motor
Click Image to Expand

Product ID: 140706.00

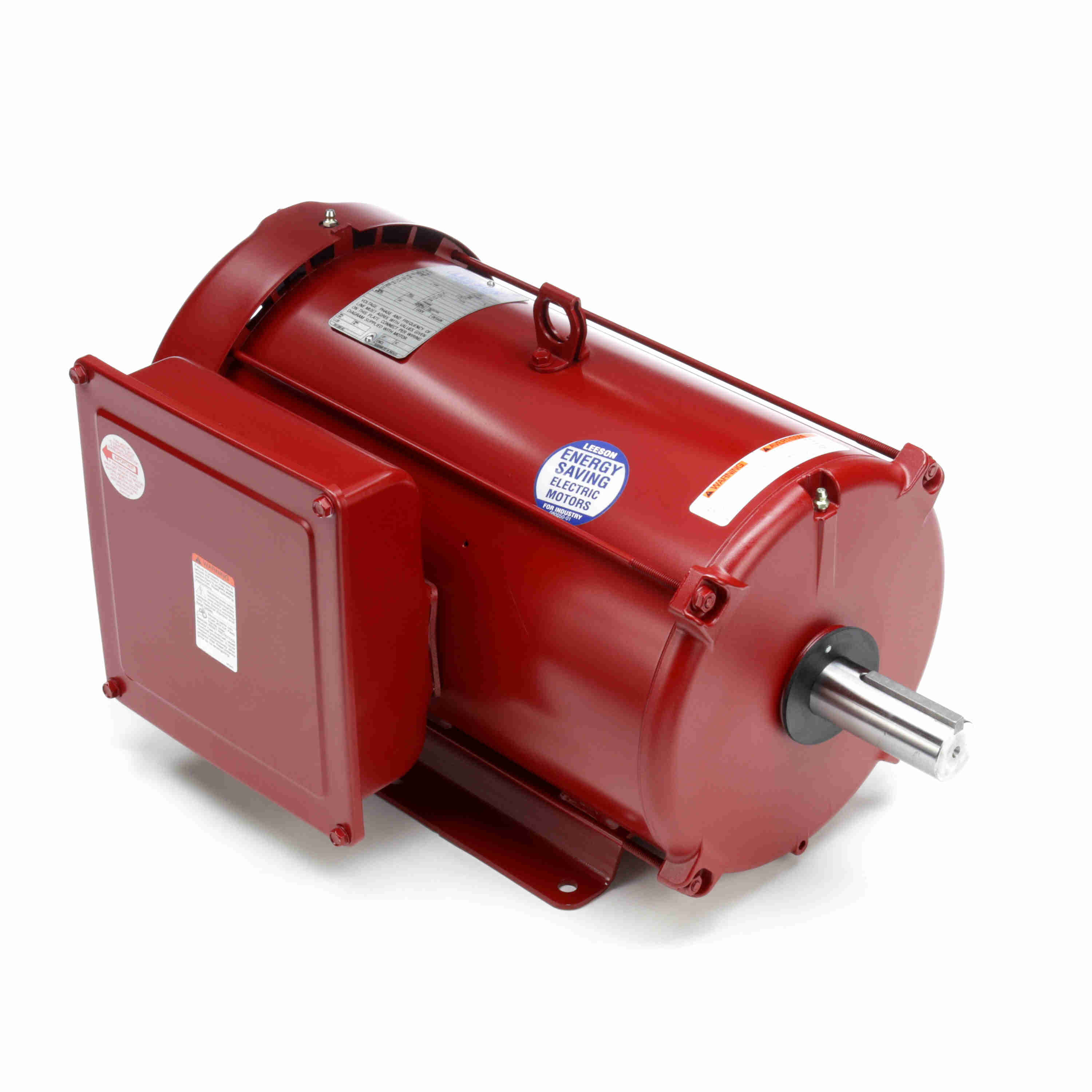

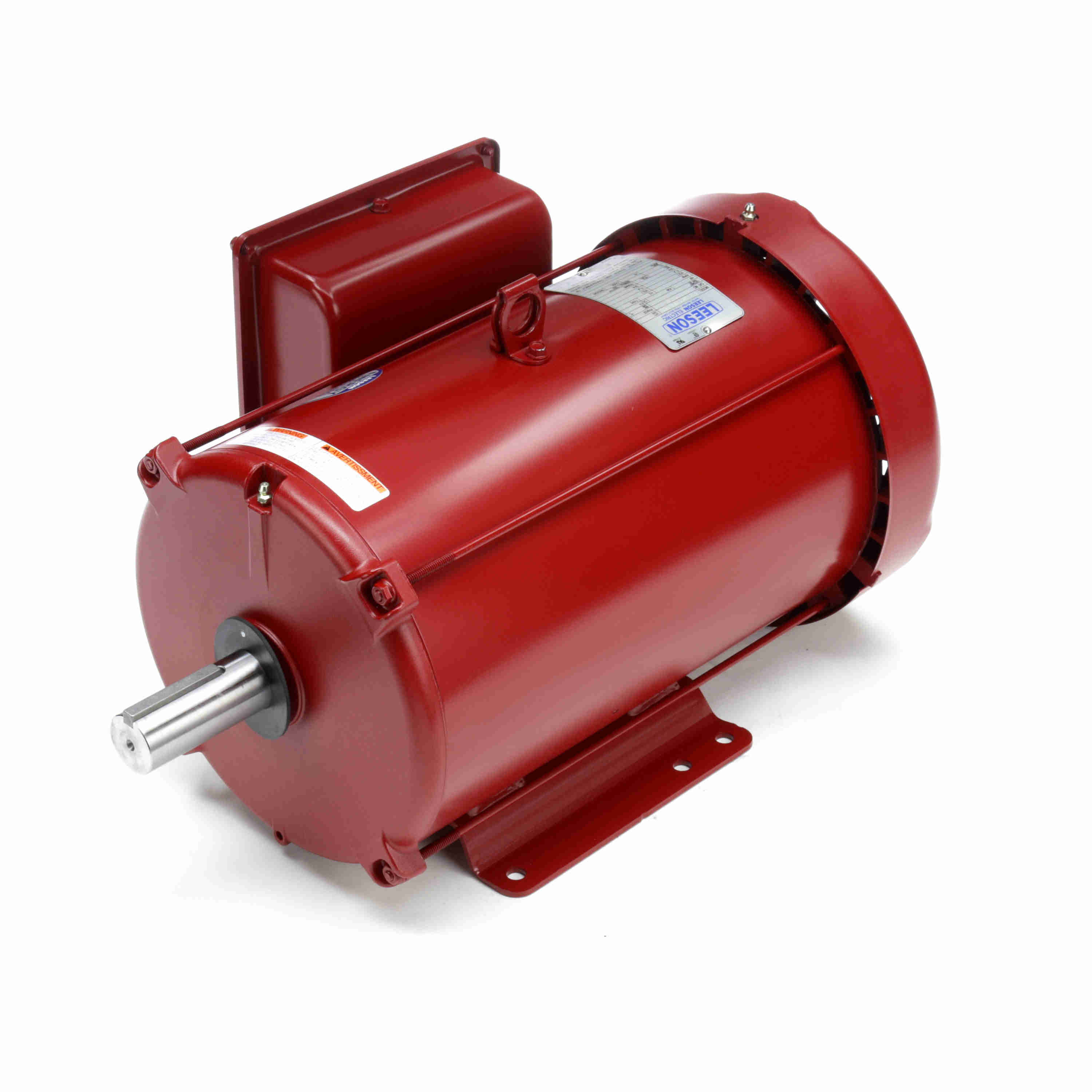

140706.00 Marathon 10HP Farm Duty/General Purpose Electric Motor

MFG: Marathon Electric
MFG Part Number: P215K17FB16

Selected accessories will also be added to cart
$1,478.17 / Each
Quantity:
TEFC, 1800RPM, 215T Frame, Single Phase, 230VAC, P215K17FB16B, Rigid Base, Rolled Steel

Product Features

List Price :$ 2,432
Catalog No 140706.00 Model P215K17FB16B
Product type AC MOTOR Stock Stock
Description 10HP..1740RPM.215.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.AG - FARM DUTY/GENERAL PURPOSE.P215K17FB16B.B
Information shown is for current motor's design
 Engineering Data
Volts 230Volts Volts
F.L. Amps 40F.L. Amps F.L. Amps
S. F Amps 45S. F Amps S. F Amps
RPM 1800Hertz 60
HP 10Duty CONTINUOUSTYPE KF
KW 7.50
Frame 215TServ. Factor 1.15Phase 1
Max Amb 40Design NO DESIGN CODECode G
Insul Class FProtection MANUALTherm.Prot. LED965
Eff 100% 86.5Eff 75% PF 95
UL Y-(LEESON UL REC)CSA YesBearing OPE 6206
CC Number EXEMPTCE NoBearing PE 6207
Load Type Inverter Type Speed Range NONE
Motor Wt. 155 LBEnclosure TEFCLubrication POLYREX EM
Nameplate 081285Mounting RIGIDRotation SELECTIVE CCW
Assembly 210-005.02Shaft Dia. 1 3/8 INExt. Diag. 005461.02
Cust Part NoOutline 037596-1400Ext. Diag2
Packaging BWinding K9425
Carton Label Leeson Farm Duty  GROUP: 2
Iris Paint RED - LEESON FARM DUTYTest Card 01
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK?) 1.157 LB-FT^2
Torque 30(Full Load) 69.5(Break Down) 61.5(Pull Up) 90.2(Locked Rotor)
CURRENT (amps) 40(Full Load) 146(Break Down) 179.4(Pull Up) 264(Locked Rotor)
Efficiency (%) 0(Full Load) 86.4(75% Load) 83.7(50% Load) 72.3(25% Load)
PowerFactor 0(Full Load) 94.9(75% Load) 92.8(50% Load) 85.5(25% Load)
Load Curve Data @60 Hz, 230 Volts, 10 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 7.7 0.813 1798 0.0 0.0 45.9 0.0 -
0.25 13.4 2.636 1788 7.5 72.3 85.5 0.0 -
0.5 21.2 4.523 1776 15.0 83.7 92.8 0.0 -
0.75 29.9 6.529 1766 22.5 86.4 94.9 0.0 -
1.0 39.5 8.656 1751 30.0 86.2 95.3 95.0 -
1.25 49.7 10.913 1733 37.5 84.6 95.5 0.0 -
1.5 60.9 13.36 1715 45.0 82.1 95.4 0.0 -
SOURCE: CALCULATED GROUP: 2
Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Enclosure
TEFC
Horsepower
10HP
Enclosure
TEFC
Color
Red
Frame
215T
Speed
1800RPM
