/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/140707.00 Marathon 7.5HP Farm Duty/General Purpose Electric Motor

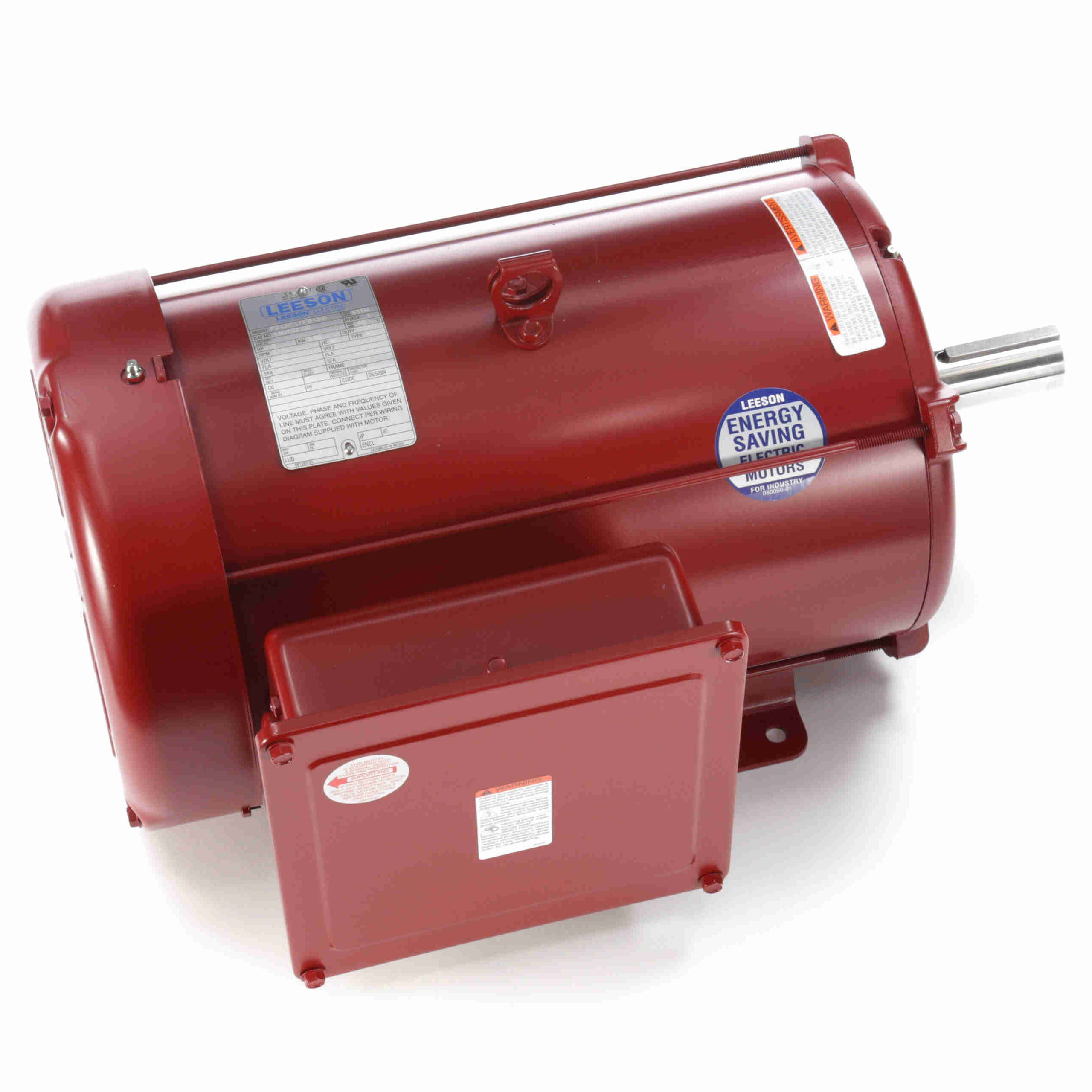

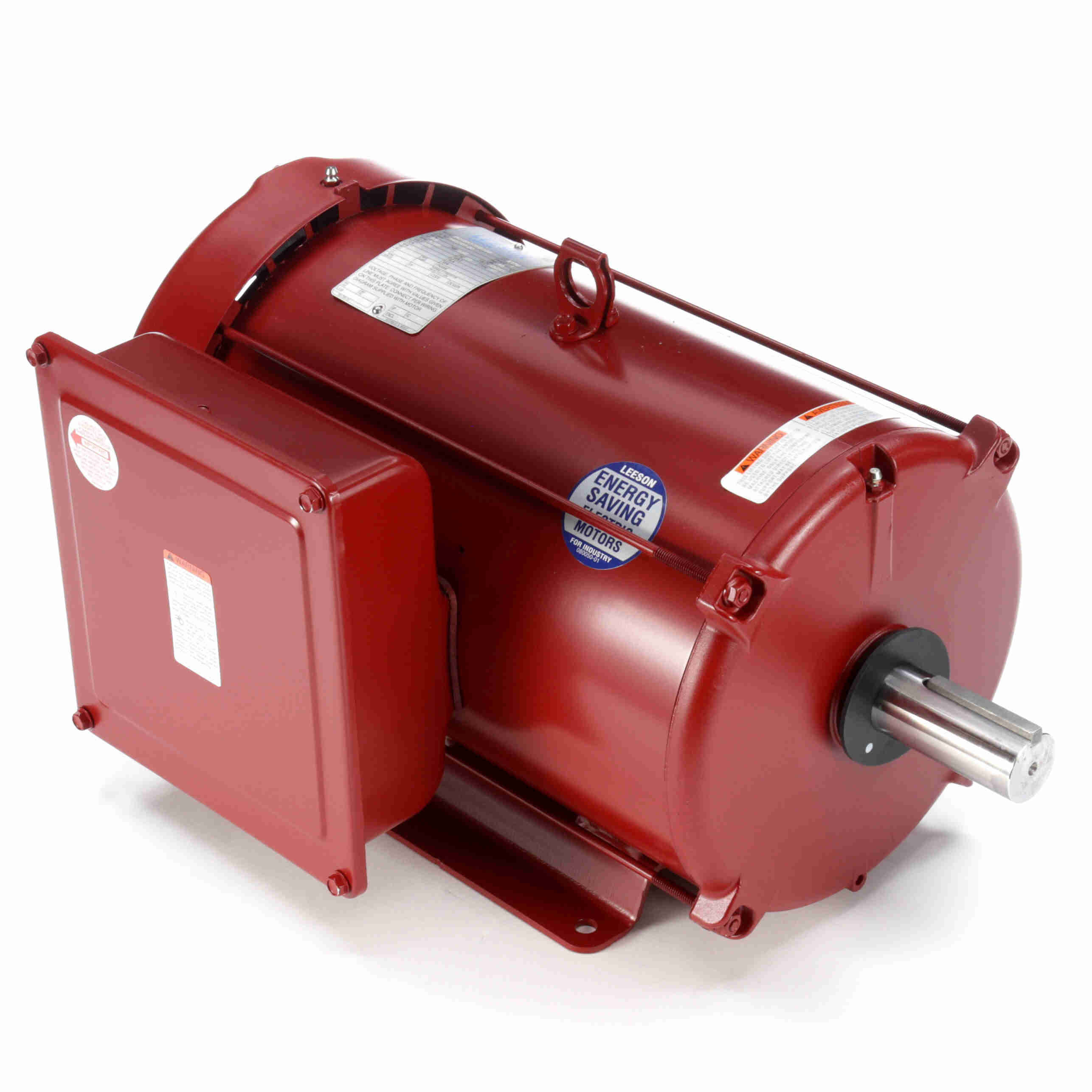

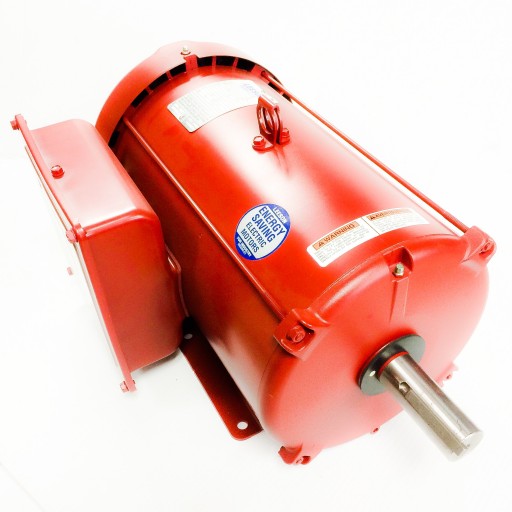

Click Image to Expand

Product ID: 140707.00

140707.00 Marathon 7.5HP Farm Duty/General Purpose Electric Motor

MFG: Marathon Electric
MFG Part Number: P215K17FB15

Selected accessories will also be added to cart
$1,278.24 / Each
Quantity:
TEFC, 1800RPM, 215T Frame, Single Phase, 230VAC, P215K17FB15B, Rigid Base

Features

Features
  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA service factors
  • Single phase designs
  • Double sealed ball bearings
  • UL recognized component listing and CSA certified
  • Condensate drains on general purpose Ag motors
  • Low temperature manual overload protected
  • High starting torque ratings

General Specifications

General Specifications
Model :P215K17FB15BCatalog No :140707.00
Part Description :..7 1/2HP..1740RPM.215.TEFC.230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.P215K17FB15B.....AG - .MANUAL.......Category :Agricultural
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :7.50 HPOutput KW :5.6 kW
Frequency :60 HzVoltage :230 V
Current :32.0 ASpeed :1740 RPM
Service Factor :1.15 Phase :1
Efficiency :85.5 %Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :J Frame :215T
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 ?CDrive End Bearing Size :6207
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :20.21 inFrame Length :13.50 in
Shaft Diameter :1.375 inShaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720255803
Weight :157.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load32.0022.50100.007.50
Locked-Rotor241.0085.50380.007.50
Break-Down0.0062.00276.007.50
Pull-Up0.0058.50260.007.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 10.30
  • 0.715
  • 0.0
  • 30.2
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 15.20
  • 1.841
  • 76.0
  • 52.7
  • 1,790
  • 0.0
  • 5.50
  • 50 %
  • 19.40
  • 3.290
  • 84.6
  • 73.7
  • 1,781
  • 0.0
  • 11.00
  • 75 %
  • 24.90
  • 4.890
  • 85.4
  • 85.4
  • 1,770
  • 0.0
  • 16.60
  • 100 %
  • 31.80
  • 6.550
  • 85.7
  • 89.6
  • 1,755
  • 76.2
  • 22.50
  • 115 %
  • 35.00
  • 7.400
  • 86.5
  • 91.0
  • 1,750
  • 0.0
  • 25.50
  • 125 %
  • 38.50
  • 7.950
  • 87.0
  • 89.8
  • 1,738
  • 0.0
  • 28.00
  • 150 %
  • 46.40
  • 9.600
  • 86.3
  • 90.0
  • 1,725
  • 0.0
  • 33.80
Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Enclosure
TEFC
Horsepower
7.5HP
Enclosure
TEFC
Color
Red
Frame
215T
Speed
1800RPM
