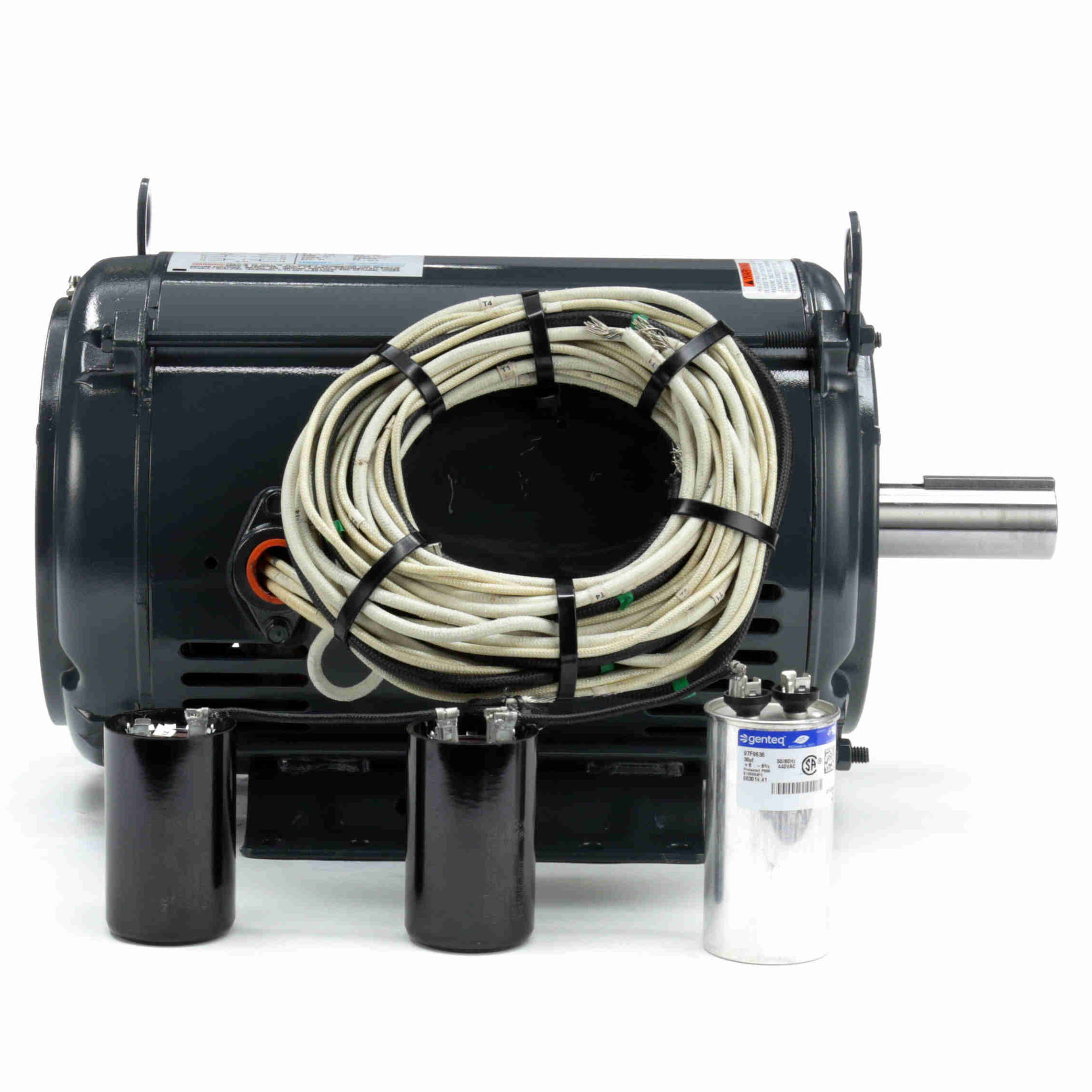

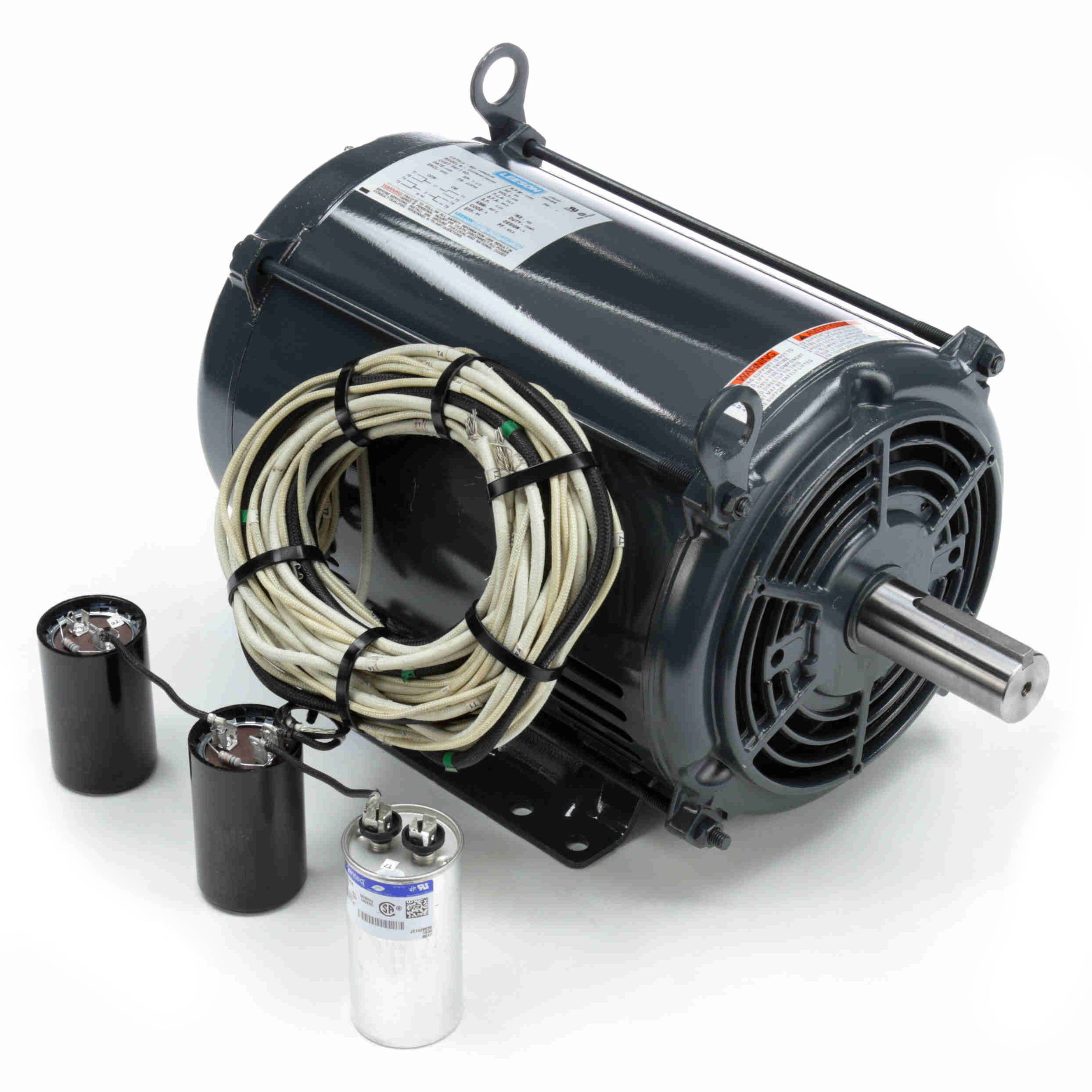

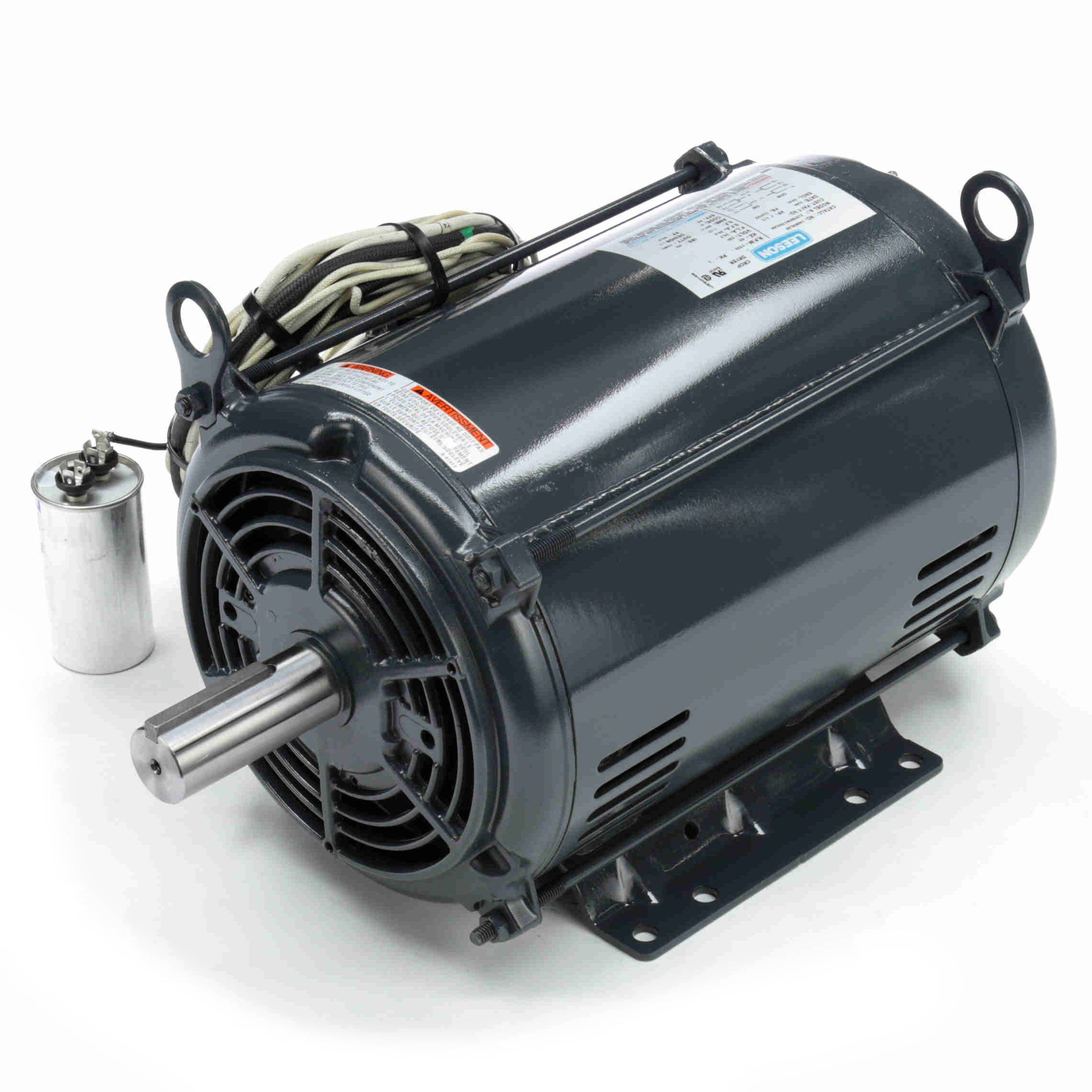

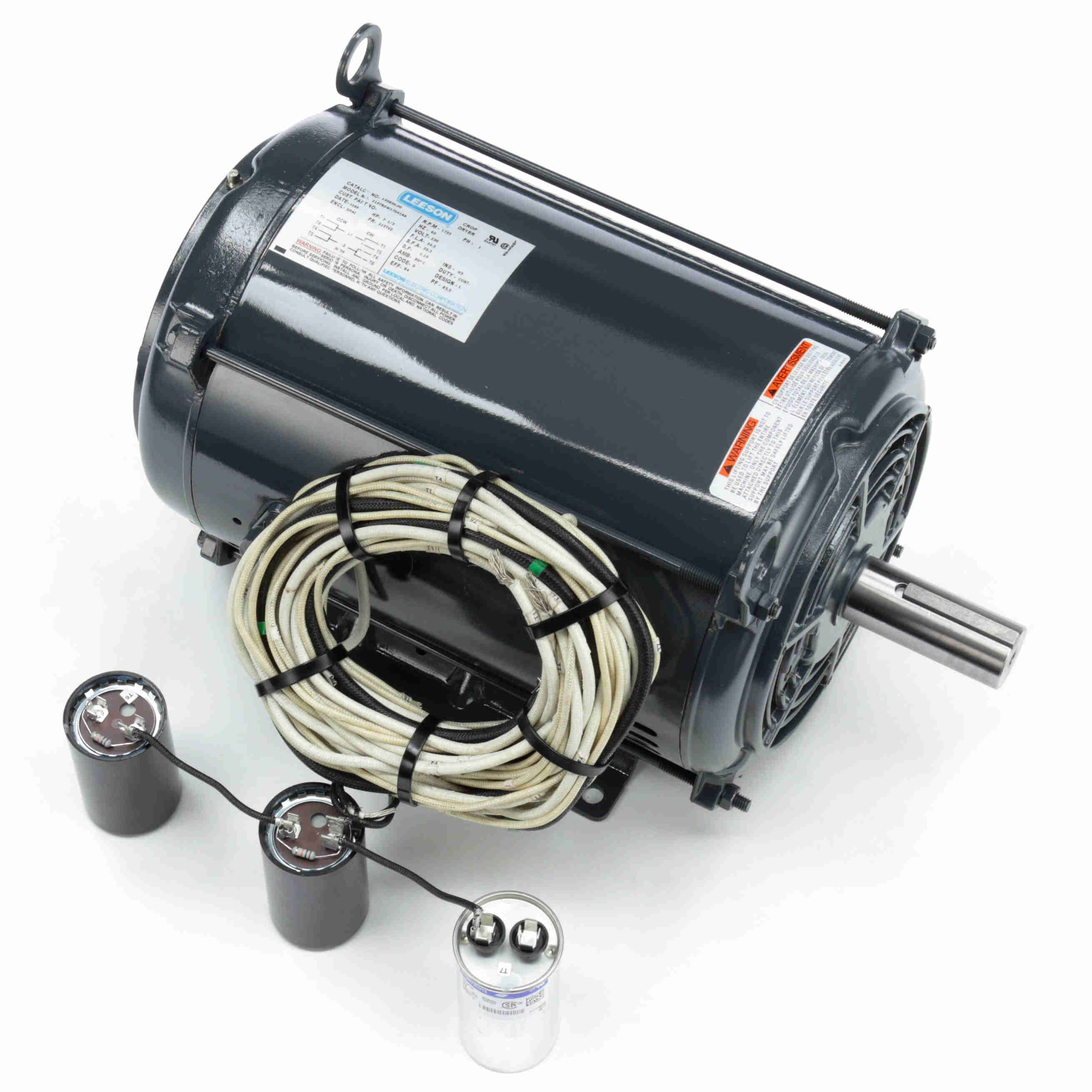

Used in Tobacco Barns and other applications that require a fan motor in a high ambient condition.Features: • Drip-proof airover designs • Class H insulation for high ambient conditions • 80? C ambient rated • 120 inch leads • Oversized double sealed bearings • 1/4-20 tapped hole at end of shaft

Volts 230   Volts   Volts   FL Amps 34.5   FL Amps   FL Amps   SF Amps 39.5   SF Amps   SF Amps   RPM 1800   Hertz 60       HP 7 1/2   Duty CONTINUOUS   Type KD   KW 5.6   SF 1.15   Phase 1   Frame 215TVZ   Design L   KVA Code G   Ambient 80   Protection NOT   Therm.Prot.   Insulation Class H   Eff(75%)   PF 85.5   Eff(100%) 84   CSA Y   Bearing OPE 206   UL Y-(LEESON UL REC)   CE N   Bearing PE 309   CC Number EXEMPT   Inverter Type   Speed Range NONE   LOad Type     Motor Wt. 125 LB   Enclosure DPAO   Lubrication DC 44M   Nameplate   Mounting RIGID   Rotation SELECTIVE CCW   Shaft Diam.   Cust Part No.   Packaging B       Winding BK104117   Carton Label INDIVIDUAL       Group 2   Iris   Paint GRAY - LEESON (EPOXY)   Hazardous Location NONE   Test Card
