/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/141084.00 Marathon 10-15HP Agriculture Duty Crop Dryer Electric Motor, 3600RPM
Click Image to Expand

Product ID: 141084.00

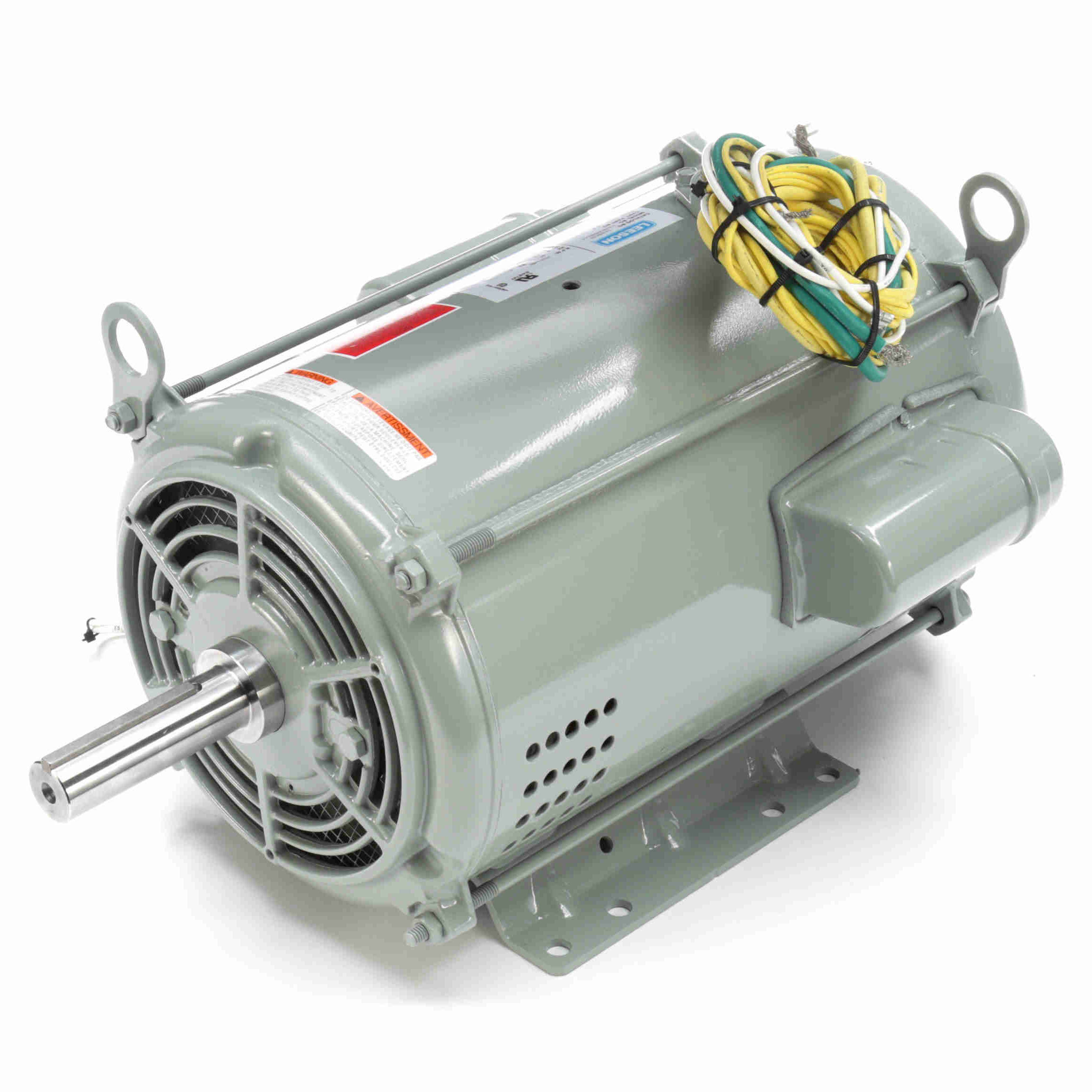

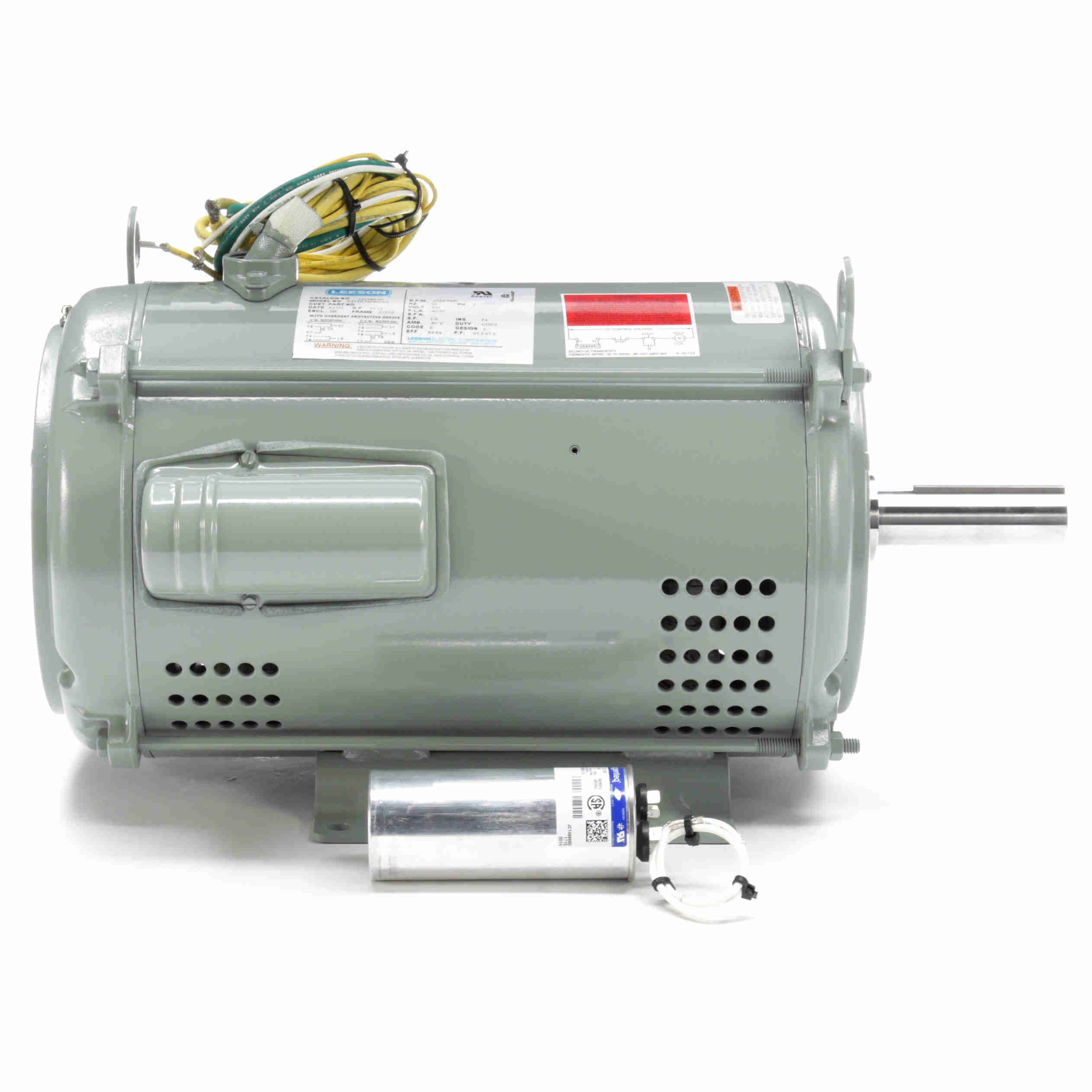

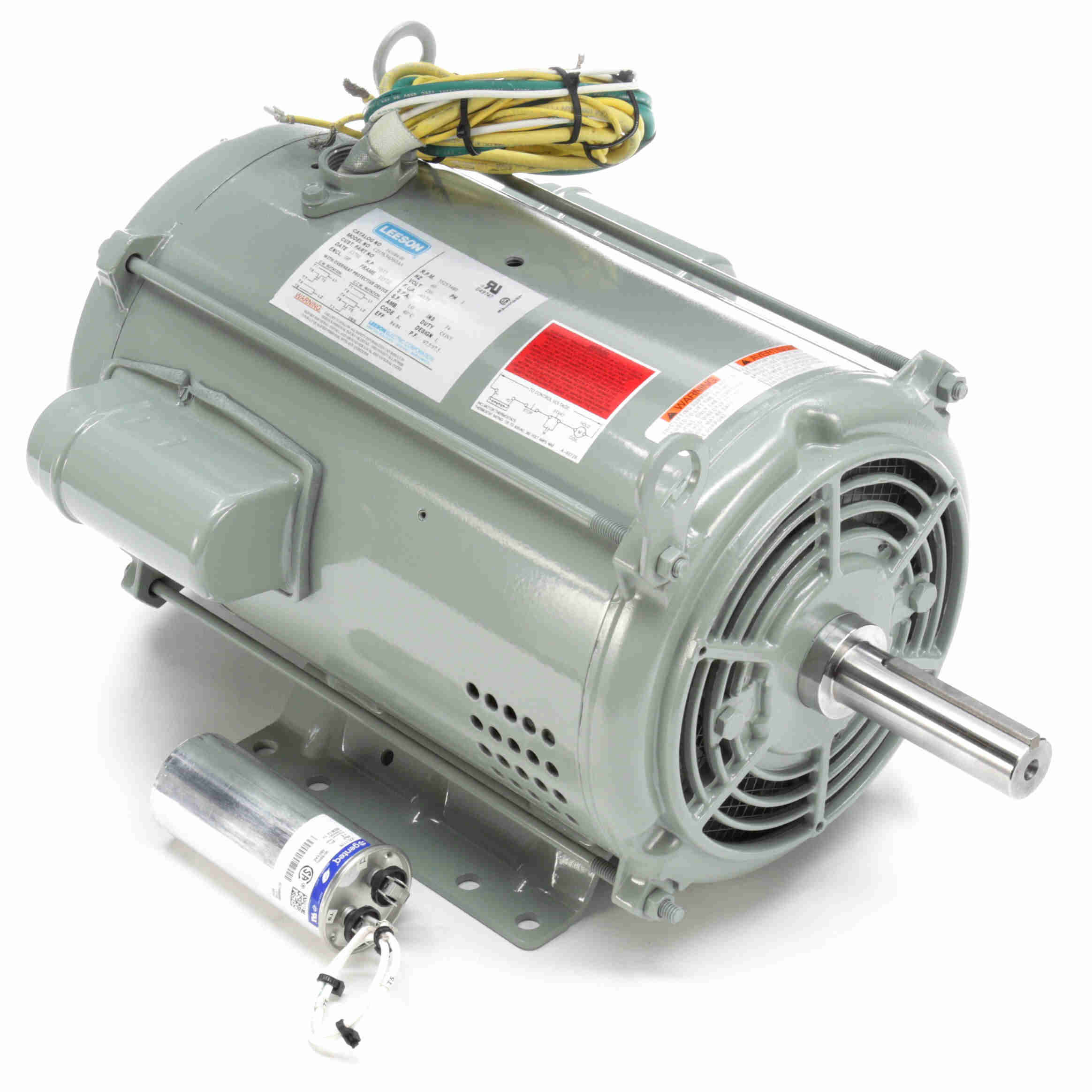

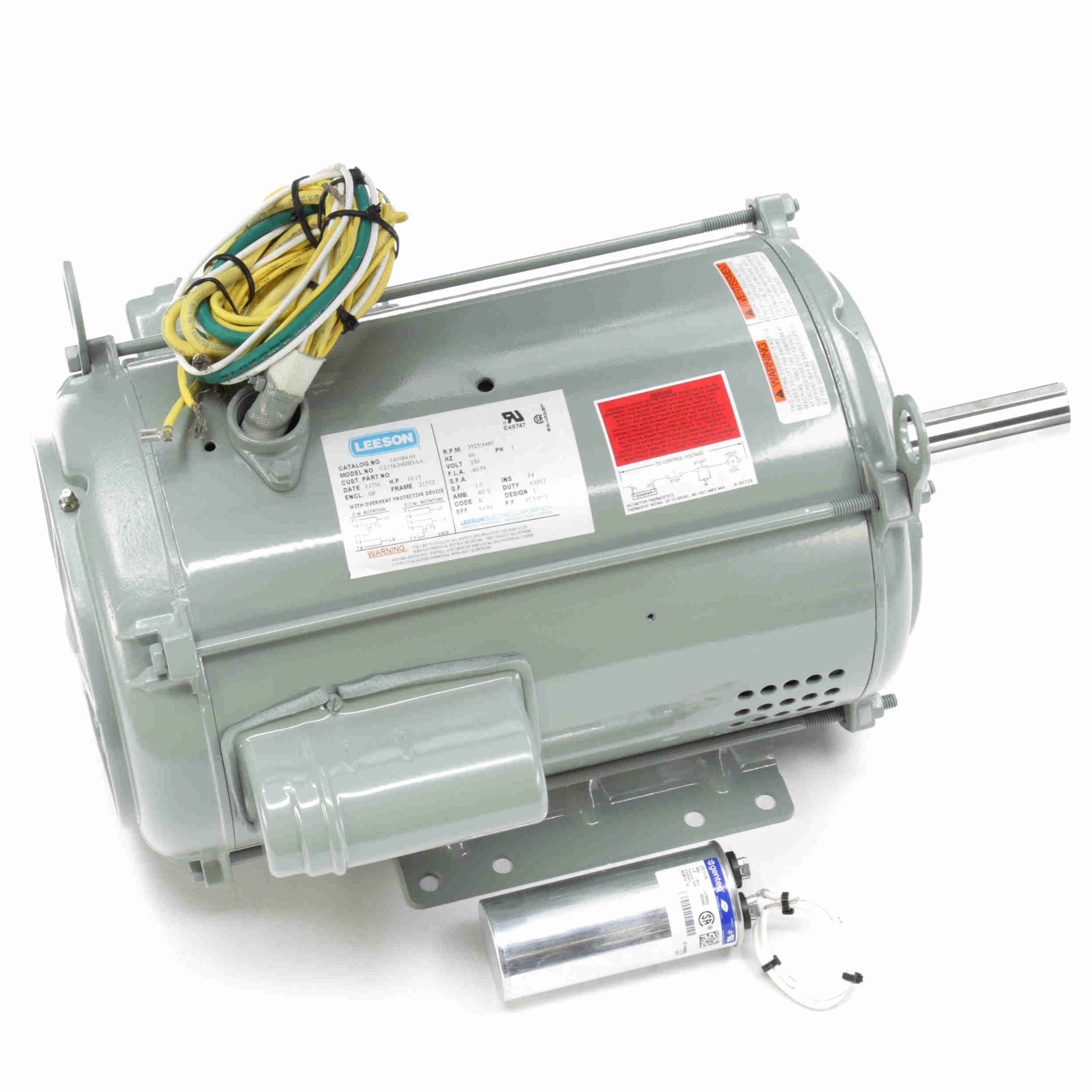

141084.00 Marathon 10-15HP Agriculture Duty Crop Dryer Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: C215K34DB3

Selected accessories will also be added to cart
$1,224.13 / Each
Quantity:
DPAO, 215TZ Frame, 230VAC Single Phase 60Hz, C215K34DB3AA, Rolled Steel, Rigid Base
Used on Crop Dryers with air over/fan on shaft designs

Features

  • Class “F” insulation system
  • Overload protected
  • Keyed shaft with 1/4-20 UNC tapped hole on end
  • 34” long leads
  • Capacitors shipped loose on 1-phase designs
  • Motor venting protected against insects and rodents
  • Double sealed ball bearings

General Specifications

UPC:691720212035Weight:159.00 LB
Packaged Length:22.63 INPackaged Width:16.13 IN
Packaged Height:14.25 IN

Nameplate Specifications

Output HP:10 HpOutput KW:7.5 kW
Frequency:60/60 HzVoltage:230 V
Current:40.0 ASpeed:3525 rpm
Service Factor:1Phase:1
Efficiency:84 %Power Factor:97.5
Duty:ContinuousInsulation Class:F
Design Code:LKVA Code:K
Frame:215TZEnclosure:Drip Proof
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:309Opp Drive End Bearing Size:206
UL:RecognizedCSA:Y
CE:NIP Code:22

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:2Rotation:Selective Counterclockwise
Resistance Main:.106 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:Single Special ExtensionOverall Length:20.08 in
Frame Length:12.40 inShaft Diameter:1.125 in
Shaft Extension:3.75 inAssembly/Box Mounting:F3

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor330.000.039.300.0055.8073.815.00
Pull-Up348.000.028.500.014052.6065.515.00
Full Load59.00100.022.60100.03,48013.2098.515.00
Break-Down212.000.052.130.03,07039.5080.815.00
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
DPAO
Horsepower
10HP
Horsepower
15HP
Frame
215TZ
