Product ID: 141266.00

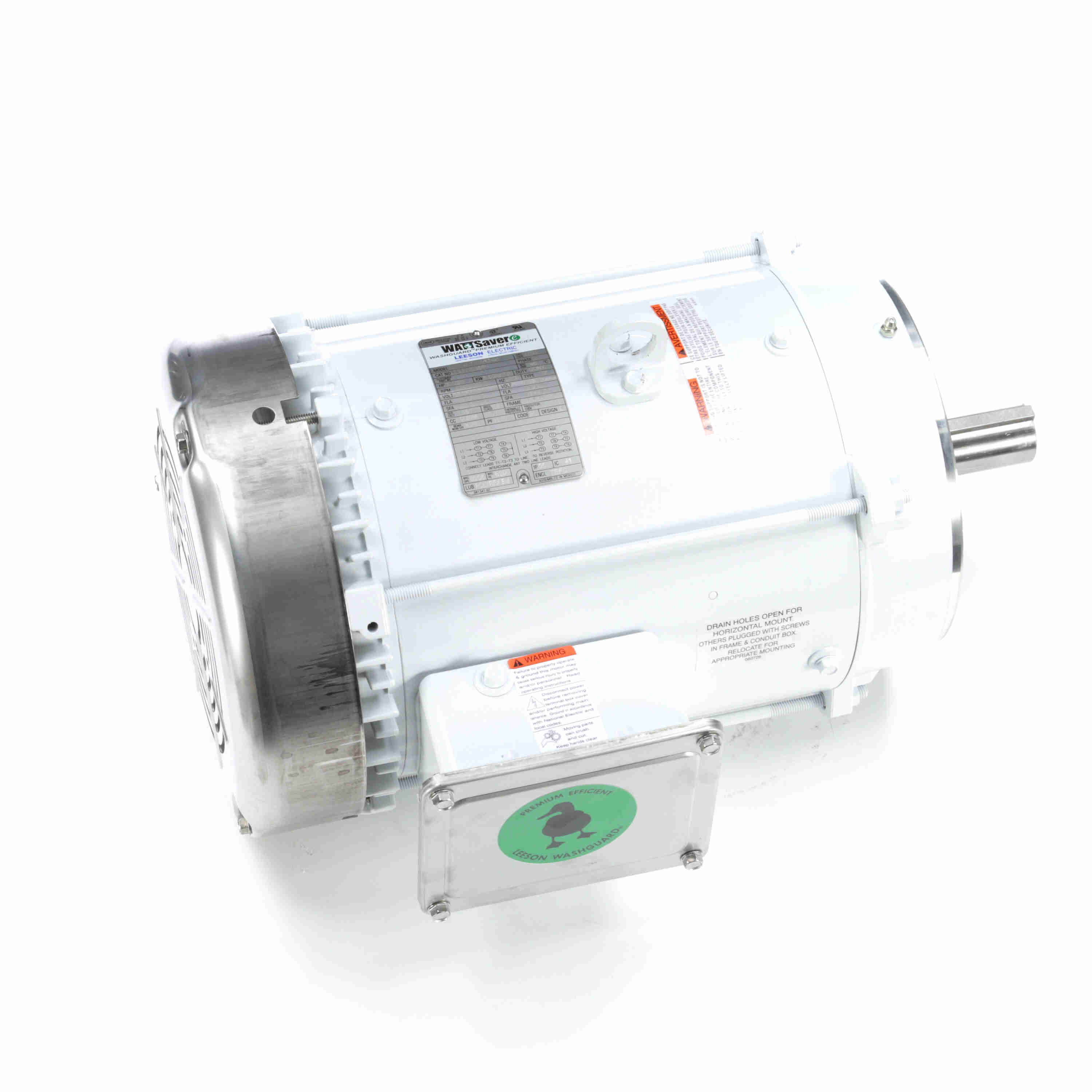

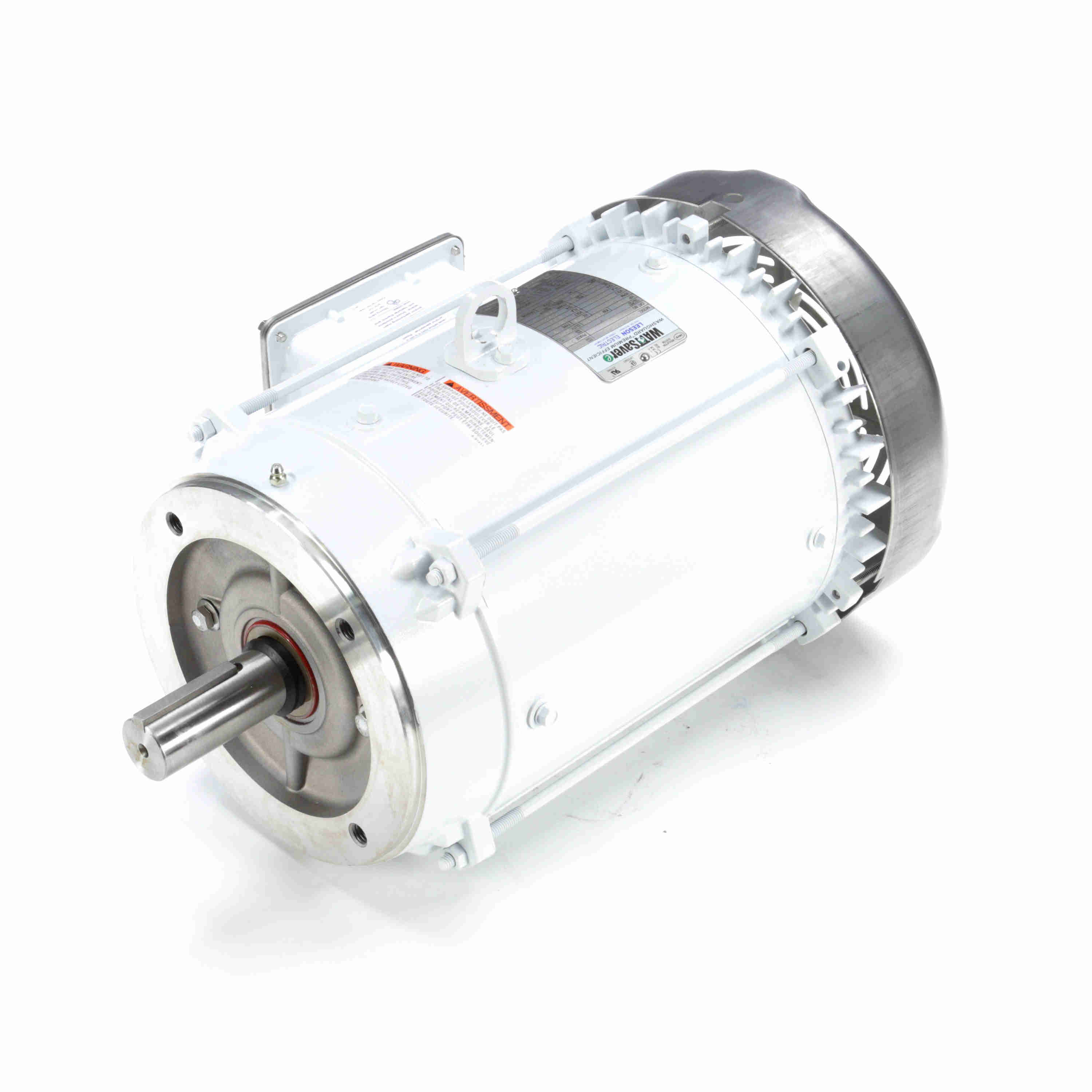

141266.00 Leeson Washguard Motor, 7.5 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 141266.00

Selected accessories will also be added to cart

$1,669.97 / Each

Quantity:

213TC Frame, 208-230/460V 3-Phase, TEFC, C Face Less Base, C213T17WC4A, Washdown Duty

Details
Purchase Components

Features

USDA-approved epoxy painted motors
NEMA motors
AC washdown
Rigid base and C face mount types
BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
3-year warranty on encapsulated and premium efficient models
UL recognized and CSA certified
Double lip contact seals and v-ring seals used for shaft seals
3-year warranty on encapsulated and premium efficient models
Washdown brakemotors and pump motors available

General Specifications

Model :	C213T17WC4A	Catalog No :	141266.00
Part Description :	..7.5HP..1800RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15 S.F..C FACE......WASHDOWN DUTY........	Category :	General Purpose
Stock :	No

Nameplate Specifications

Output HP :	7.50 Hp	Output KW :	5.6 kW
Frequency :	60 Hz	Voltage :	230/460 V
Current :	19.6/9.8 A	Speed :	1765 rpm
Service Factor :	1.15	Phase :	3
Efficiency :	91.7 %	Duty :	Continuous
Insulation Class :	F	Design Code :	B
KVA Code :	H	Frame :	213TC
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6309
Opp Drive End Bearing Size :	6206	UL :	Recognized
CSA :	Y	CE :	Y
IP Code :	55

Technical Specifications

Electrical Type :	Squirrel Cage Induction Run	Starting Method :	Across The Line
Poles :	4	Rotation :	Reversible
Mounting :	Round	Motor Orientation :	HORIZONTAL
Drive End Bearing :	BALL	Opp Drive End Bearing :	BALL
Frame Material :	Rolled Steel	Shaft Type :	T
Overall Length :	18.77 in	Frame Length :	9.65 in
Shaft Diameter :	1.375 in	Shaft Extension :	3.12 in
Assembly/Box Mounting :	F1/F2 CAPABLE	UPC :	691720051887
Weight :	135.00 LB

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Locked-Rotor	67.50	635.0	52.90	238.0	0	0.00	42.6	7.50
Pull-Up	57.00	570.0	49.00	221.0	900	0.00	0.0	7.50
1/3	63.00	630.0	48.70	219.0	600	0.00	0.0	7.50
No Load	5.50	55.0	0.00	0.0	1,800	0.00	5.0	7.50
Break-Down	41.00	410.0	75.00	338.0	1,600	0.00	72.5	7.50
2/3	57.00	570.0	54.00	243.0	1,200	0.00	0.0	7.50
Full Load	10.00	100.0	22.20	100.0	1,770	0.00	0.0	7.50
