/141274.00 Marathon 7.5HP Washdown JM Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 141274.00

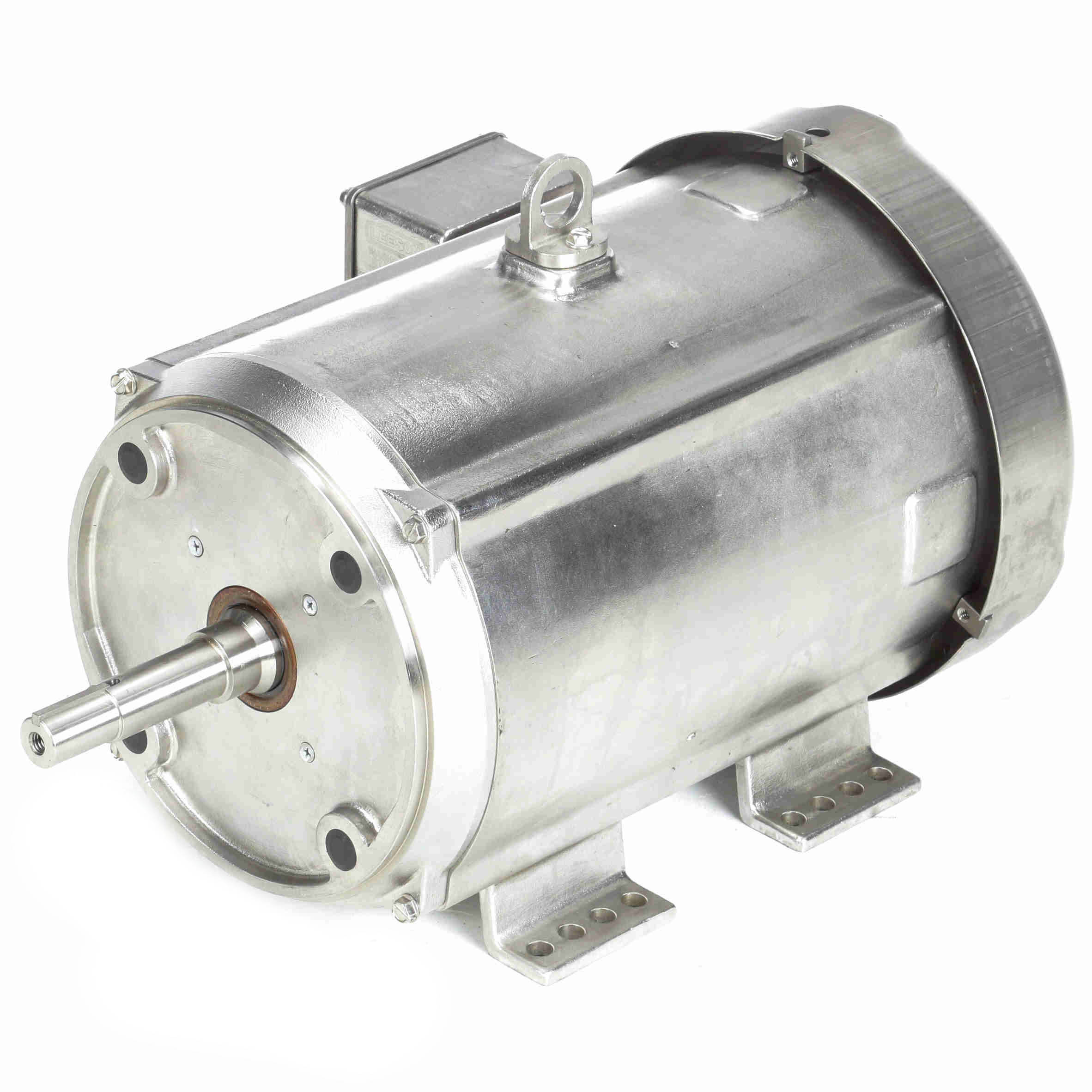

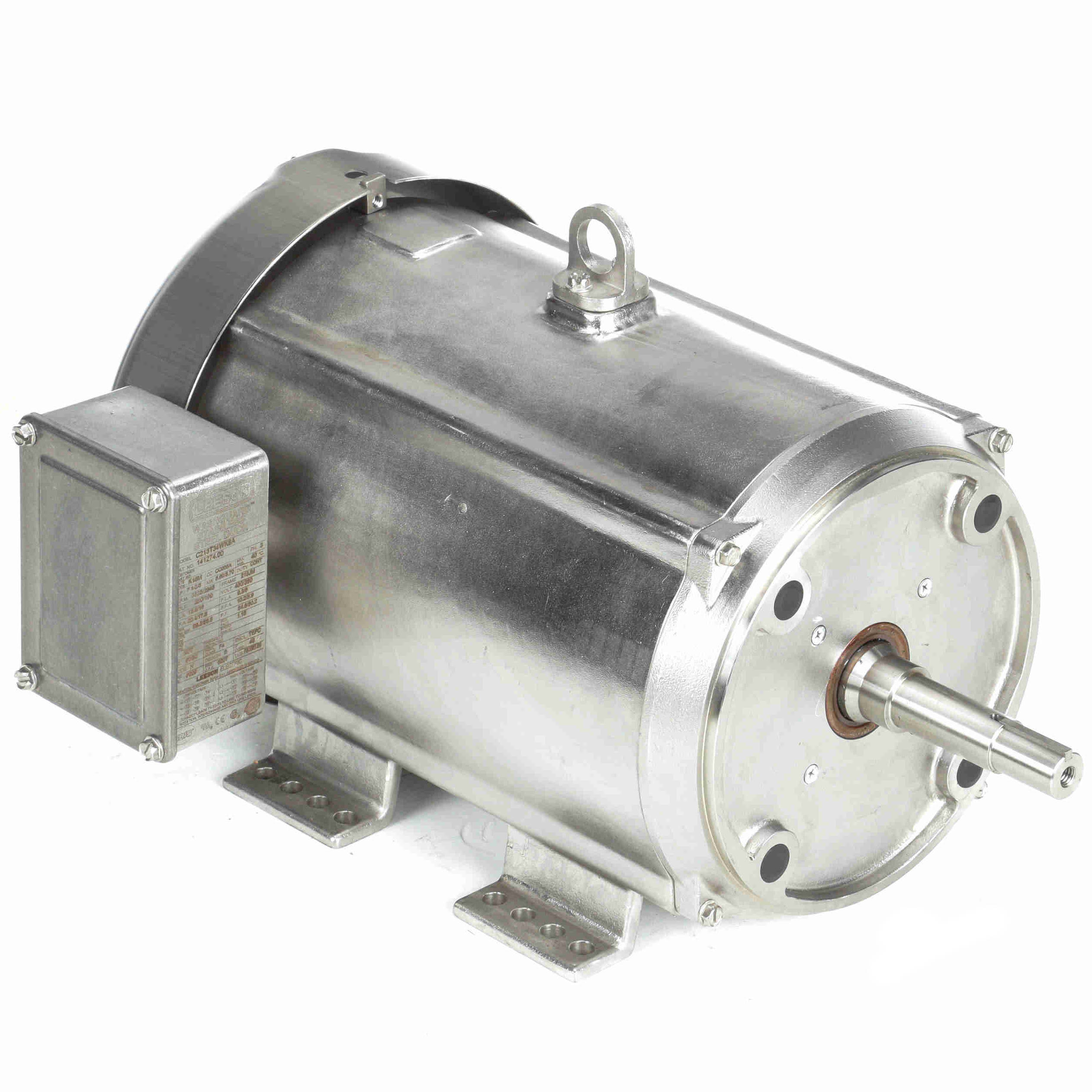

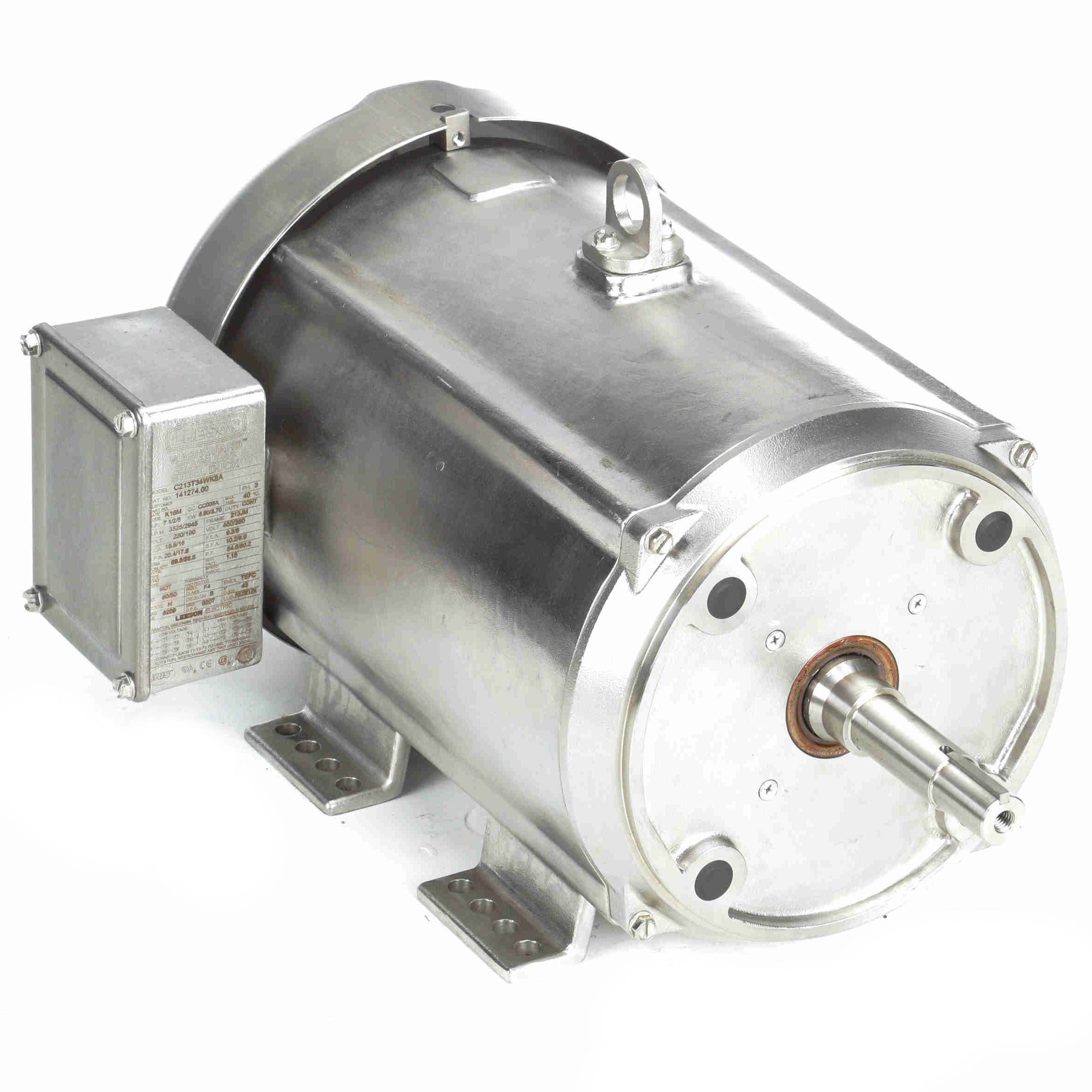

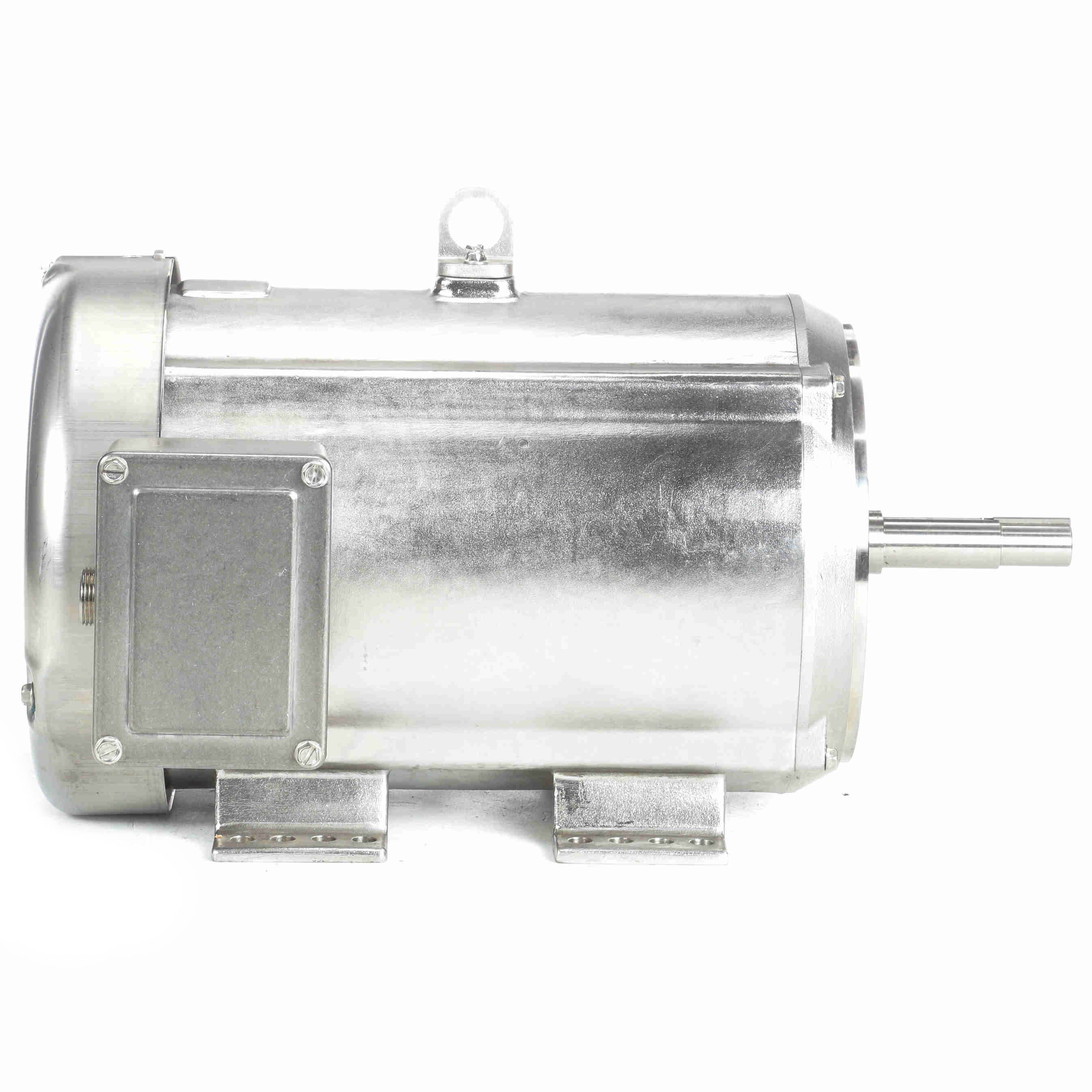

141274.00 Marathon 7.5HP Washdown JM Pump Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: 141274.00

Selected accessories will also be added to cart
$2,666.57 / Each
Quantity:
TEFC, IP43, 213JM Frame, 230/460VAC 60Hz 3-Phase, Rigid Base, Stainless Steel Frame, 7/8" Keyed Shaft

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton? for superior chemical resistance
  • End shields are O-ring sealed to the frame
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Three phase motors are UL component recognized – file number E57948, guide number PRGY2; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC:691720053201Weight:156.00 LB
Packaged Length:22.5 INPackaged Width:16 IN
Packaged Height:12.05 IN

Nameplate Specifications

Output HP:7.50 HpOutput KW:5.6 kW
Frequency:60 HzVoltage:230/460 V
Current:18.6/9.3 ASpeed:3525 rpm
Service Factor:1.15Phase:3
Efficiency:89.5 %Power Factor:84.6
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:H
Frame:213JMEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6209Opp Drive End Bearing Size:6207
UL:RecognizedCSA:Y
CE:YIP Code:43

Technical Specifications

Electrical Type:Squirrel Cage Inverter RatedStarting Method:Line Or Inverter
Poles:2Rotation:Reversible
Resistance Main:.1725 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Stainless Steel
Shaft Type:JMOverall Length:19.81 in
Frame Length:12.00 inShaft Diameter:0.875 in
Shaft Extension:4.21 inAssembly/Box Mounting:F1 Only

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
1/358.00624.025.00223.01,2000.000.07.50
2/348.00516.030.00268.02,4000.000.07.50
Locked-Rotor63.00677.019.30172.000.000.07.50
No Load4.1044.00.000.03,6000.000.07.50
Pull-Up60.00645.019.00170.05520.000.07.50
Full Load9.30100.011.20100.03,5250.000.07.50
Break-Down38.00409.033.00295.03,1300.0074.77.50

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)4.104.505.807.409.3010.2011.40
Rated Output (KW)0.261.683.164.706.276.957.91
Efficiency (%)0.081.888.188.989.589.988.1
Power Factor (%)8.046.968.479.784.685.587.1
Speed (RPM)3,6003,5853,5653,5453,5253,5203,505
Temp. Rise @ FL0.00.00.00.055.070.085.0
Torque (ft-lbs)0.002.705.508.3011.2012.5014.00
Type
Electric Motor
Speed
3600RPM
Horsepower
7.5HP
Input Phase
3-Phase
Enclosure
TEFC
Frame
213JM
