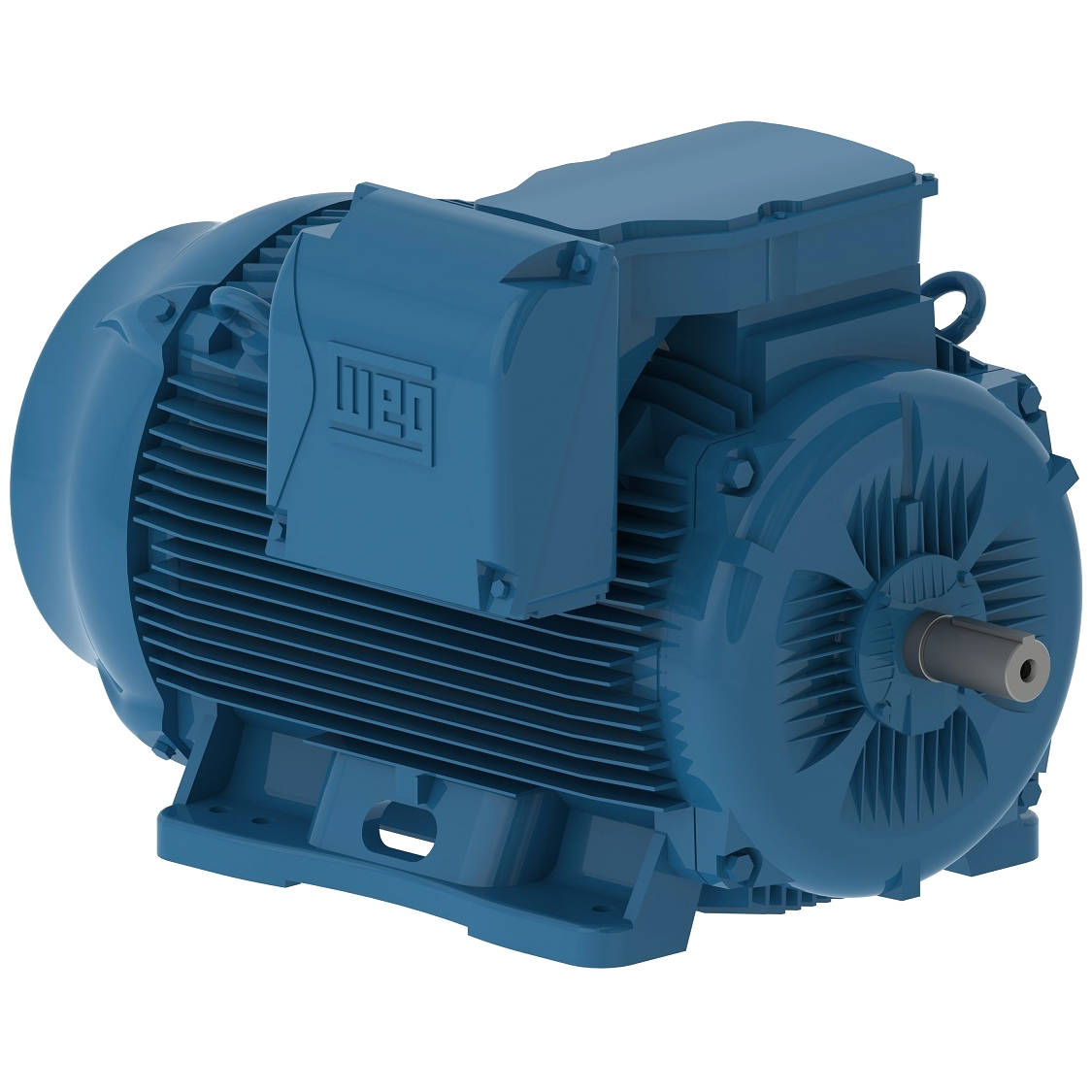

15009ET3G449T-W22 WEG 150HP Severe Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 15009ET3G449T-W22

15009ET3G449T-W22 WEG 150HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 15009ET3G449T-W22

Selected accessories will also be added to cart
$27,302.53 / Each
Quantity:
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 12208161, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame 447/9T
Output 150 HP (110 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 890 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 190 A
L. R. Amperes 1178 A
LRC 6.2x(Code G)
No load current 84.3 A
Rated torque 885 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 2858 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.9  94.5  94.5

Power factor

50% 75% 100%
0.61  0.71  0.77

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
Type
Electric Motor
Input Phase
3-Phase
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Speed
900RPM
Horsepower
150HP
Input Voltage
460VAC
Frame
447T/449T
