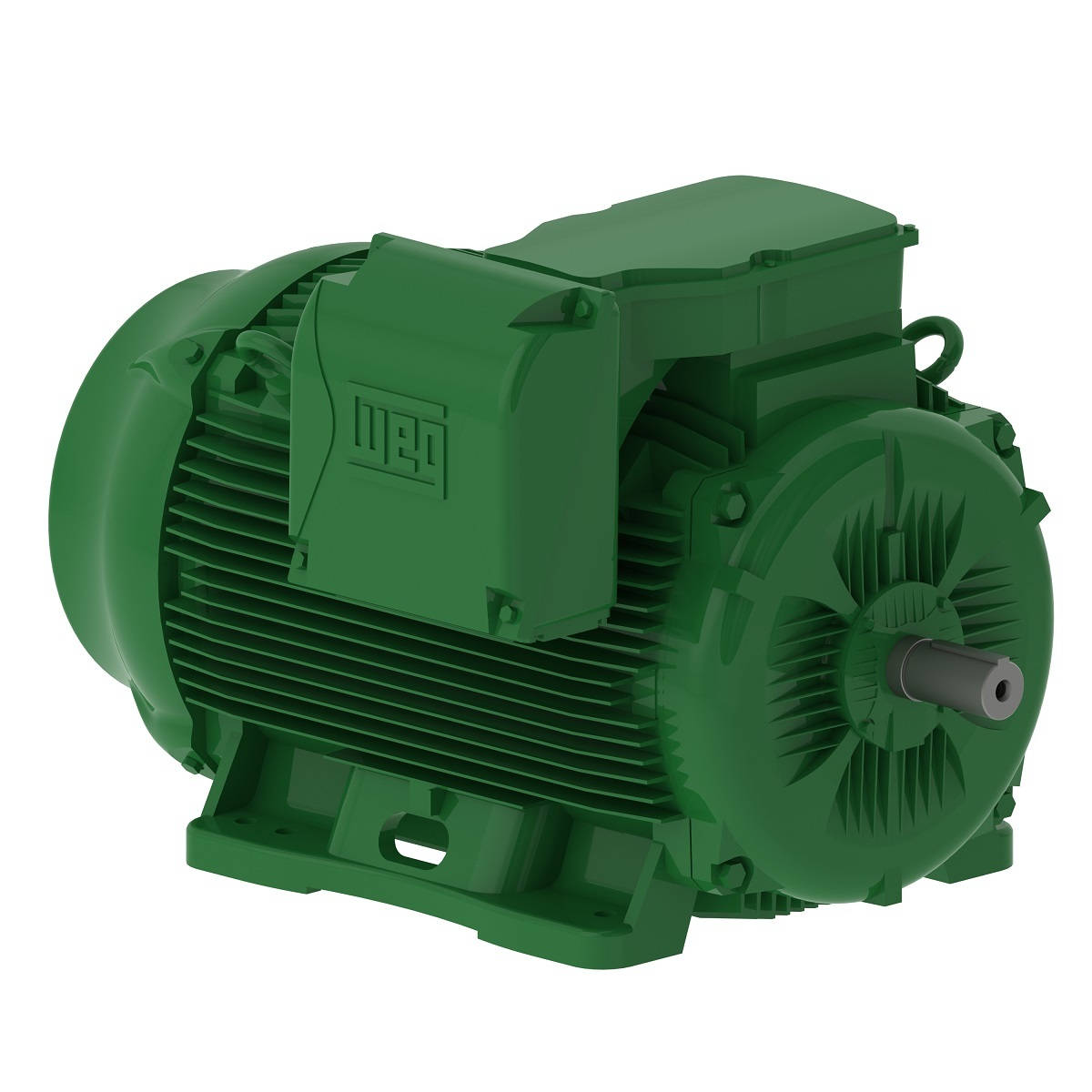

15012EG3G449T-W22 WEG 150HP Electric Motor, 1200RPM
Enlarge Photo

Product ID: 15012EG3G449T-W22

15012EG3G449T-W22 WEG 150HP Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 15012EG3G449T-W22

Selected accessories will also be added to cart
$20,205.67 / Each
Quantity:
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 11792548, Super Premium Efficiency, Cast Iron Frame, Foot Mounted, 3-3/8" Keyed Shaft

Electric Motors

Frame447/9T
Output150 HP (110 kW)
Number of Poles6
Frequency60 Hz
Rated speed1190 rpm
Slip0.83 %
Rated voltage460 V
Rated current179 A
L. R. Amperes1343 A
LRC7.5x(Code J)
No load current86.0 A
Rated torque662 ft.lb
Locked rotor torque260 %
Breakdown torque320 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?2837 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.8  96.2

Power factor

50%75%100%
0.62  0.74  0.80
Frame447/9T
Output150 HP (110 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage380 V
Rated current211 A
L. R. Amperes1329 A
LRC6.3x(Code G)
No load current85.0 A
Rated torque796 ft.lb
Locked rotor torque200 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?2837 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.68  0.78  0.83
Frame447/9T
Output150 HP (110 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage400 V
Rated current205 A
L. R. Amperes1394 A
LRC6.8x(Code H)
No load current91.0 A
Rated torque796 ft.lb
Locked rotor torque229 %
Breakdown torque290 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?2837 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.65  0.76  0.81
Frame447/9T
Output150 HP (110 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage415 V
Rated current200 A
L. R. Amperes1440 A
LRC7.2x(Code H)
No load current95.0 A
Rated torque796 ft.lb
Locked rotor torque250 %
Breakdown torque320 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?2837 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.62  0.74  0.80

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 6002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Enclosure
TEFC
Enclosure
TEFC
Horsepower
150HP
Input Voltage
460VAC
Frame
447T/449T
