Product ID: 15012ET3E447T-W22

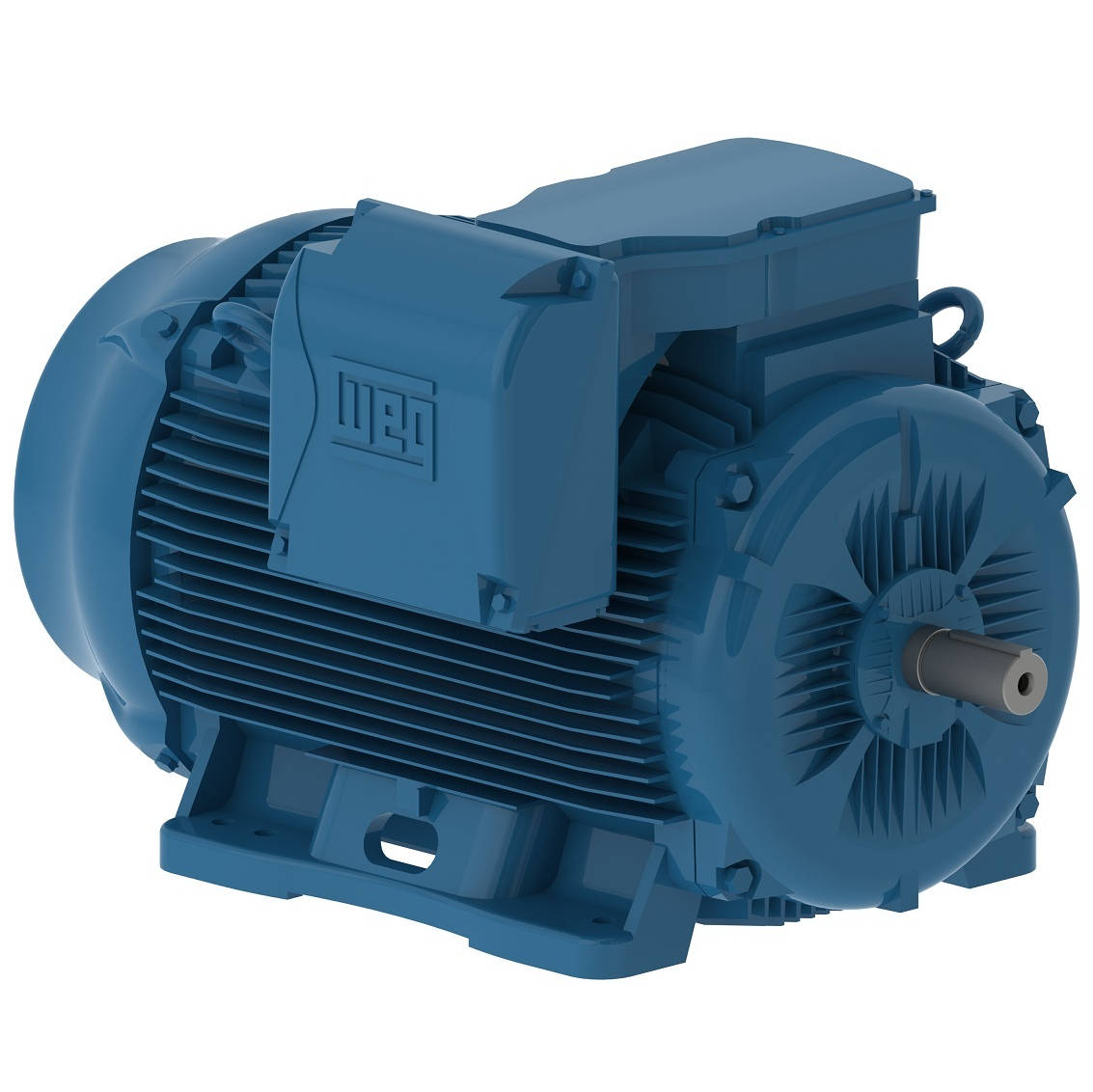

15012ET3E447T-W22 WEG 150HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 15012ET3E447T-W22

Selected accessories will also be added to cart

$18,368.71 / Each

Quantity:

IC411 - TEFC, IP55, 445T/447T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11626903, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame	445/7T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1189 rpm
Slip	0.92 %
Rated voltage	230/460 V
Rated current	352/176 A
L. R. Amperes	2179/1090 A
LRC	6.2x(Code G)
No load current	136/68.0 A
Rated torque	662 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.8

Power factor

50%	75%	100%
0.67	0.78	0.82

Frame	445/7T
Output	125 HP
Number of Poles	6
Frequency	50 Hz
Rated speed	989 rpm
Slip	1.10 %
Rated voltage	380 V
Rated current	174 A
L. R. Amperes	1042 A
LRC	6.0x(Code F)
No load current	67.0 A
Rated torque	664 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.8	95.1	94.9

Power factor

50%	75%	100%
0.67	0.79	0.83

Frame	445/7T
Output	125 HP
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	167 A
L. R. Amperes	1083 A
LRC	6.5x(Code G)
No load current	72.0 A
Rated torque	663 ft.lb
Locked rotor torque	260 %
Breakdown torque	270 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.1	95.1

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	445/7T
Output	125 HP
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	165 A
L. R. Amperes	1152 A
LRC	7.0x(Code H)
No load current	78.0 A
Rated torque	663 ft.lb
Locked rotor torque	280 %
Breakdown torque	290 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.1	95.1

Power factor

50%	75%	100%
0.60	0.74	0.80

Frame	445/7T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	984 rpm
Slip	1.60 %
Rated voltage	380 V
Rated current	211 A
L. R. Amperes	1053 A
LRC	5.0x(Code E)
No load current	67.0 A
Rated torque	800 ft.lb
Locked rotor torque	190 %
Breakdown torque	200 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	94.5

Power factor

50%	75%	100%
0.73	0.82	0.84

Frame	445/7T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	201 A
L. R. Amperes	1107 A
LRC	5.5x(Code F)
No load current	74.0 A
Rated torque	800 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.0

Power factor

50%	75%	100%
0.70	0.80	0.83

Frame	445/7T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	986 rpm
Slip	1.40 %
Rated voltage	415 V
Rated current	196 A
L. R. Amperes	1179 A
LRC	6.0x(Code G)
No load current	78.0 A
Rated torque	799 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	134 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	2212 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.0

Power factor

50%	75%	100%
0.67	0.78	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
Fan material	Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	WSeal
DE bearing Seal	WSeal
Cable Press Material	Sem
