Motor/Control Division

Frame	315L
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	380 V
Rated current	282 A
L. R. Amperes	2002 A
LRC	7.1
No load current	103 A
Rated torque	1050 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	264 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	68.0 dB(A)
Approx. weightÂ³	3250 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	96.1	96.1

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	315L
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	271 A
L. R. Amperes	1924 A
LRC	7.1
No load current	110 A
Rated torque	1050 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	264 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	68.0 dB(A)
Approx. weightÂ³	3250 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.7	96.1	96.3

Power factor

50%	75%	100%
0.67	0.78	0.83

Frame	315L
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	264 A
L. R. Amperes	1874 A
LRC	7.1
No load current	116 A
Rated torque	1050 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	264 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	68.0 dB(A)
Approx. weightÂ³	3250 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.5	96.1	96.4

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	315L
Output	200 HP (150 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1190 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	240 A
L. R. Amperes	1752 A
LRC	7.3
No load current	105 A
Rated torque	871 ft.lb
Locked rotor torque	280 %
Breakdown torque	300 %
Locked rotor time	73s (cold) 41s (hot)

Moment of inertia (J)	264 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	71.0 dB(A)
Approx. weightÂ³	3250 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	95.8

Power factor

50%	75%	100%
0.66	0.77	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow

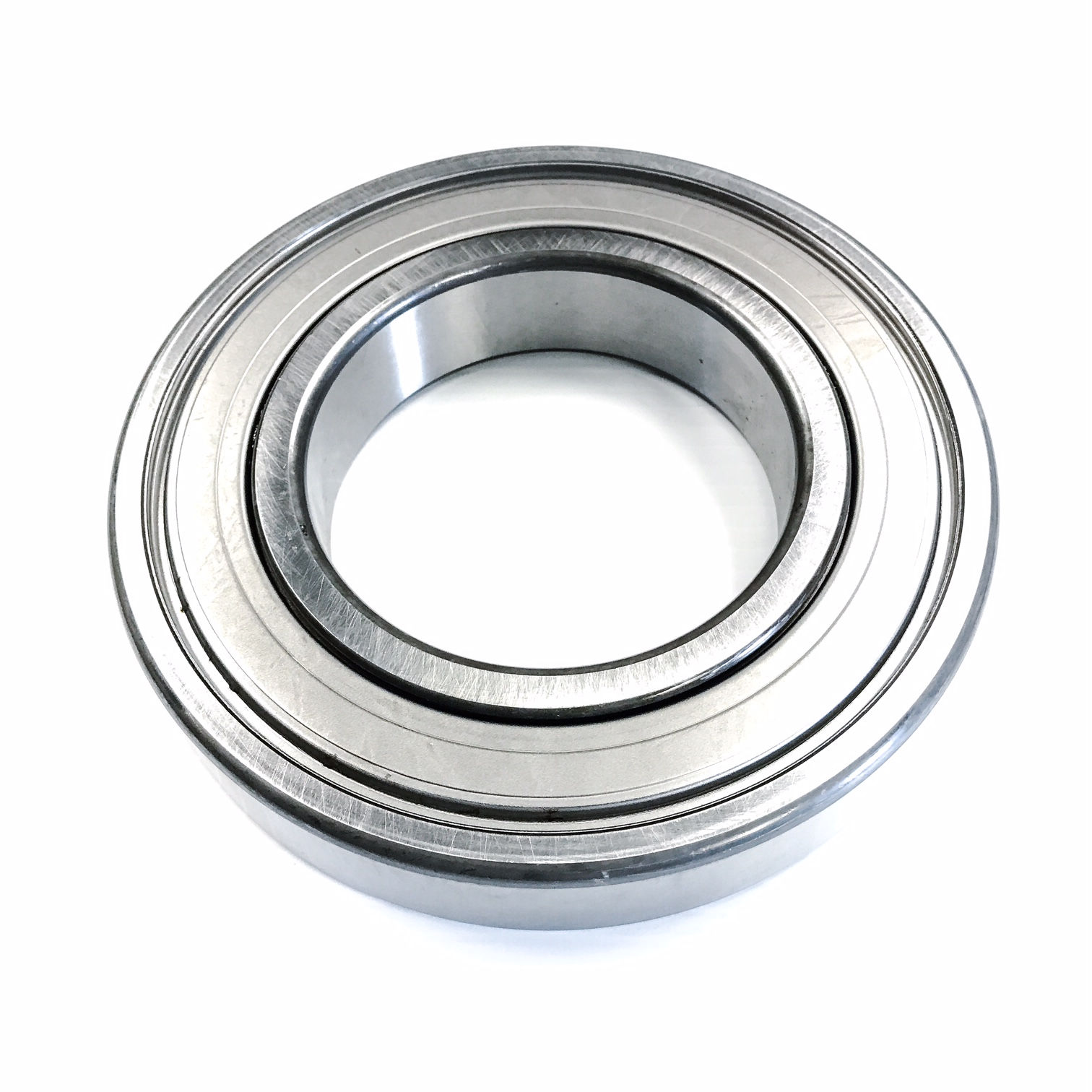

Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM63x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
