15018EG3G445T-W22 WEG 150HP Electric Motor, 1800RPM

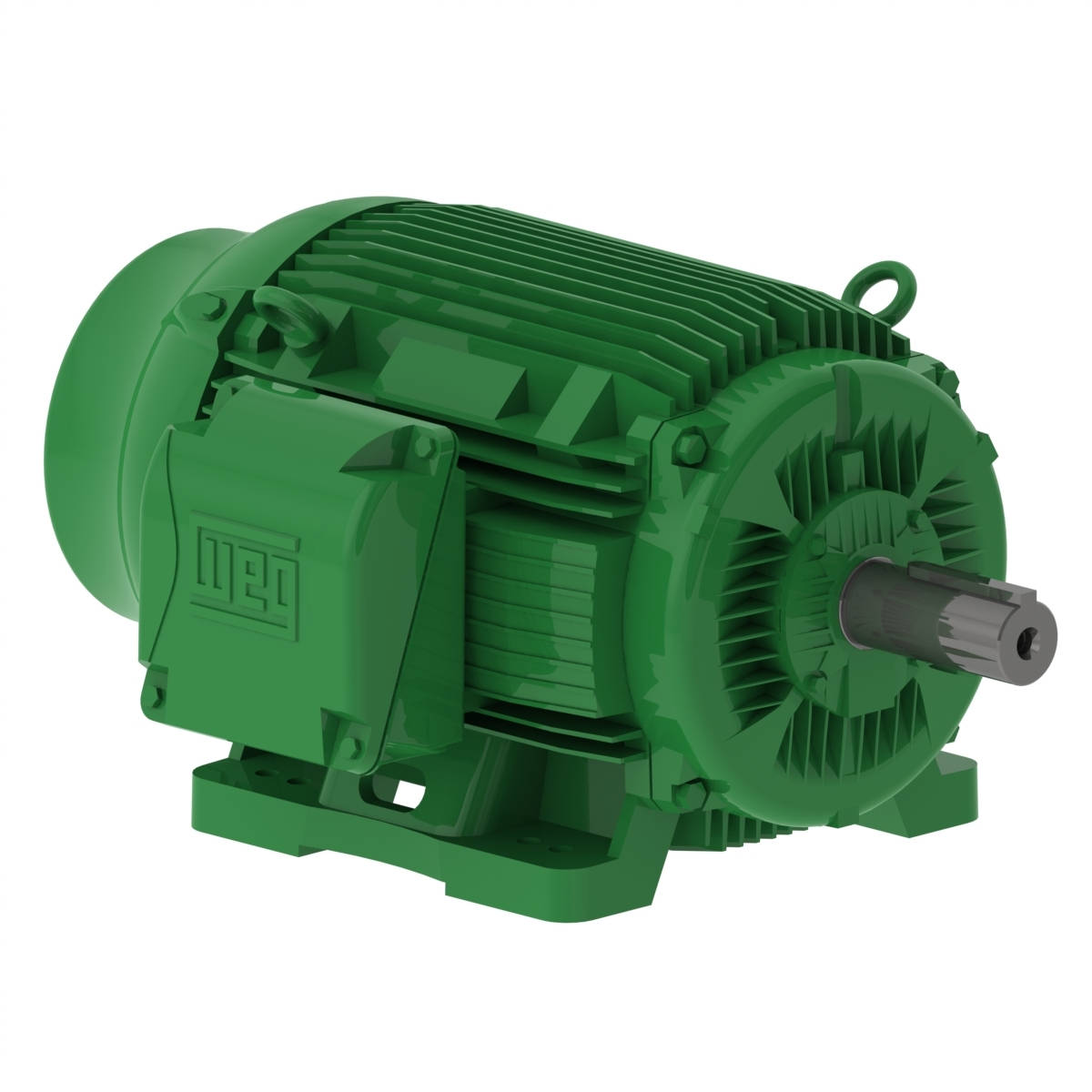

Enlarge Photo

Product ID: 15018EG3G445T-W22

15018EG3G445T-W22 WEG 150HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 15018EG3G445T-W22

Selected accessories will also be added to cart
$17,054.18 / Each
Quantity:
IC411 - TEFC, IP55, 444T/445T Frame, 460VAC 60Hz 3 Phase, 11792527, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame444/5T
Output150 HP (110 kW)
Number of Poles4
Frequency60 Hz
Rated speed1785 rpm
Slip0.83 %
Rated voltage460 V
Rated current170 A
L. R. Amperes1513 A
LRC8.9x(Code K)
No load current71.0 A
Rated torque441 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)73.0 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?2052 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  96.2  96.5

Power factor

50%75%100%
0.68  0.79  0.84
Frame444/5T
Output150 HP (110 kW)
Number of Poles4
Frequency50 Hz
Rated speed1485 rpm
Slip1.00 %
Rated voltage380 V
Rated current202 A
L. R. Amperes1293 A
LRC6.4x(Code G)
No load current69.0 A
Rated torque530 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time63s (cold) 35s (hot)
Moment of inertia (J)73.0 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2052 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.74  0.83  0.86
Frame444/5T
Output150 HP (110 kW)
Number of Poles4
Frequency50 Hz
Rated speed1485 rpm
Slip1.00 %
Rated voltage400 V
Rated current194 A
L. R. Amperes1358 A
LRC7.0x(Code G)
No load current73.0 A
Rated torque530 ft.lb
Locked rotor torque220 %
Breakdown torque270 %
Locked rotor time63s (cold) 35s (hot)
Moment of inertia (J)73.0 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2052 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.4  96.2

Power factor

50%75%100%
0.71  0.81  0.85
Frame444/5T
Output150 HP (110 kW)
Number of Poles4
Frequency50 Hz
Rated speed1490 rpm
Slip0.67 %
Rated voltage415 V
Rated current189 A
L. R. Amperes1399 A
LRC7.4x(Code H)
No load current76.0 A
Rated torque529 ft.lb
Locked rotor torque240 %
Breakdown torque290 %
Locked rotor time63s (cold) 35s (hot)
Moment of inertia (J)73.0 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2052 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.4  96.4

Power factor

50%75%100%
0.68  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 6002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
TEFC
Enclosure
TEFC
Horsepower
150HP
Input Voltage
460VAC
Frame
444T/445T
